Clutch & Clutch Field Coil: Installation
- Clean the A/C clutch field coil and pulley mounting surfaces.

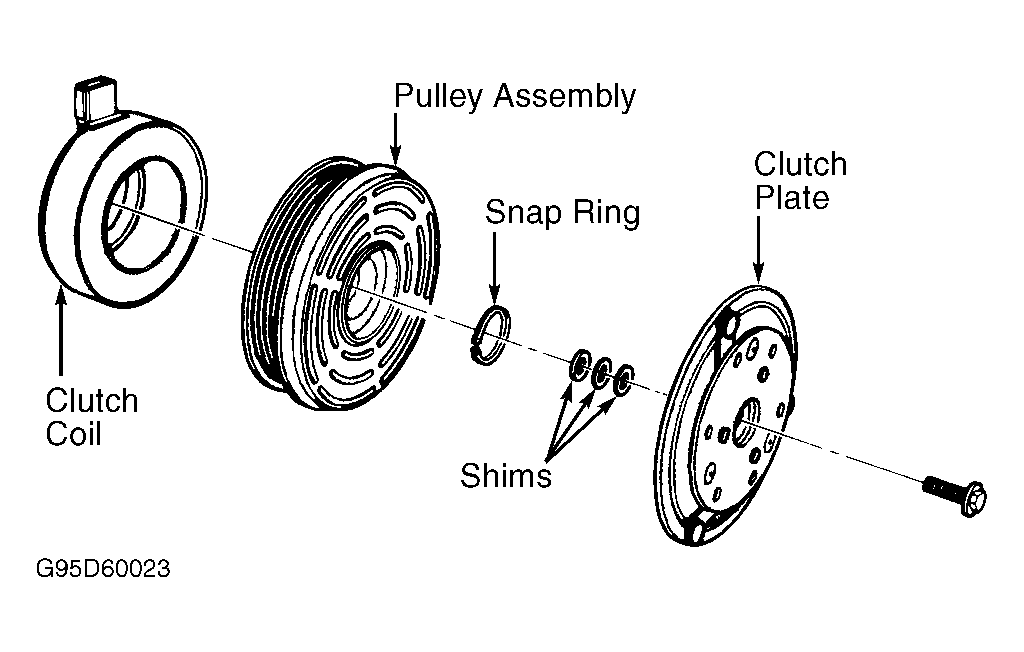

- Install the A/C clutch field coil:
- Place the A/C clutch field coil on the A/C compressor with the A/C clutch field coil electrical connector correctly positioned.

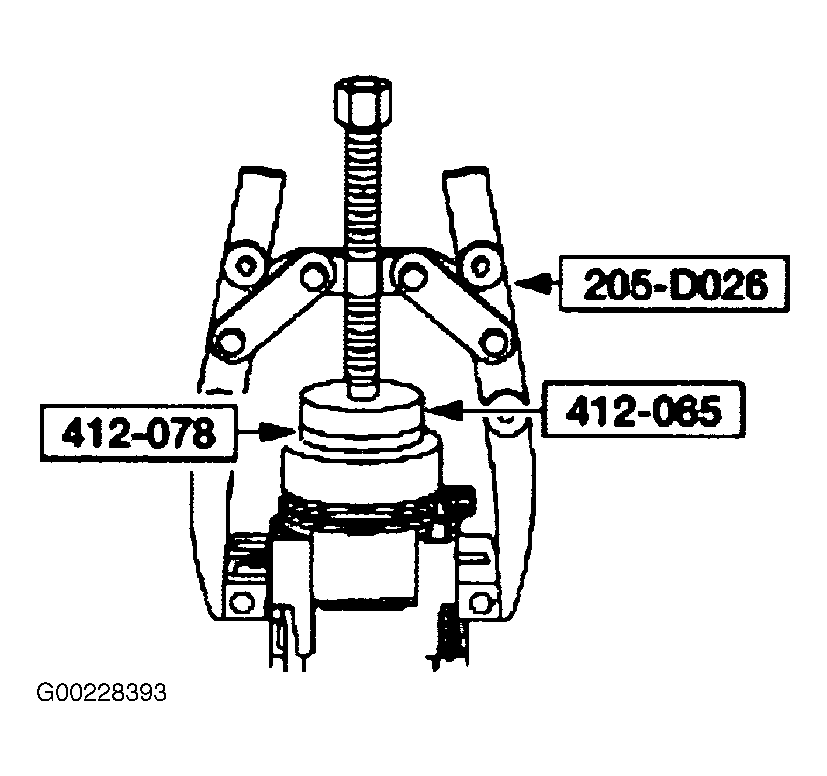

- Place the special tool on the A/C clutch field coil. See Fig 6.
- Use the special tool to install the A/C clutch field coil until bottomed completely against the A/C compressor.
- Install the A/C clutch pulley.
- Install the pulley snap ring with the bevel side out.
- Place one nominal thickness A/C clutch hub spacer inside the clutch hub spline opening.
- Install the A/C clutch.
- Install the bolt:

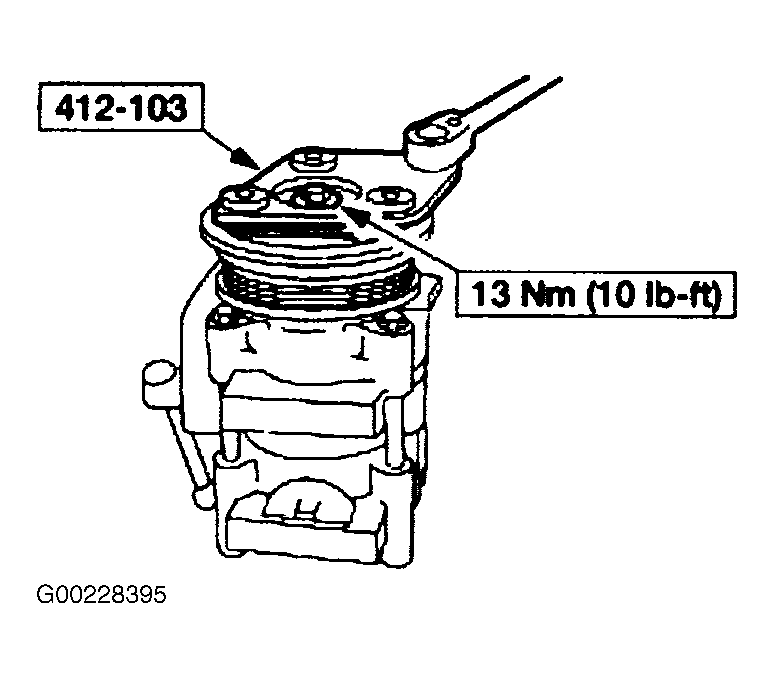

- Hold the A/C clutch hub with the special tool. See Fig 7.
- Tighten the bolt to 115 INCH Lbs. (13 N.m)

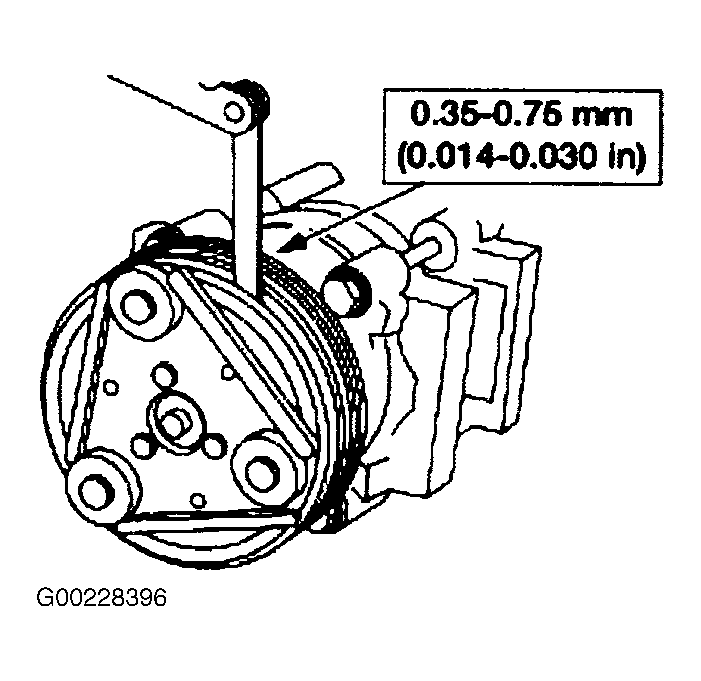

- Measure and adjust the clutch air gap by removing or adding A/C clutch hub spacers. See Fig 8.
- Install the A/C compressor. See appropriate procedure.
CAUTION:
DO NOT use air tools. The A/C clutch field coil can be easily damaged.
NOTE:
The A/C clutch pulley is a tight fit on the A/C compressor head, it must be correctly aligned during installation.
