Clutch Assembly: Removal

  1. Remove the A/C compressor. See REMOVAL AND INSTALLATION .

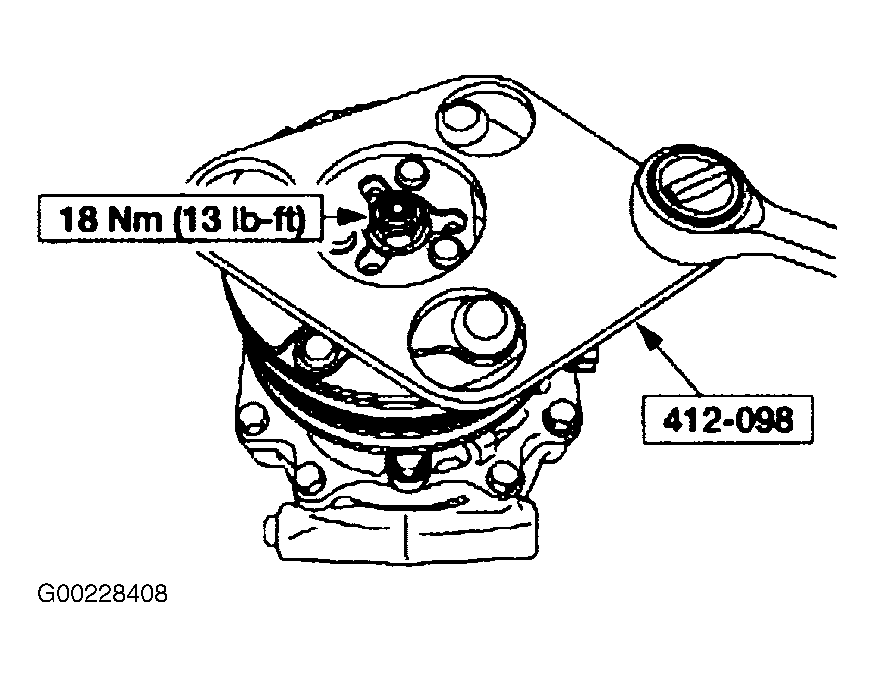

  2. Remove the A/C clutch plate retaining nut. Using the special tool, hold the A/C clutch plate and remove the nut. See Figure.

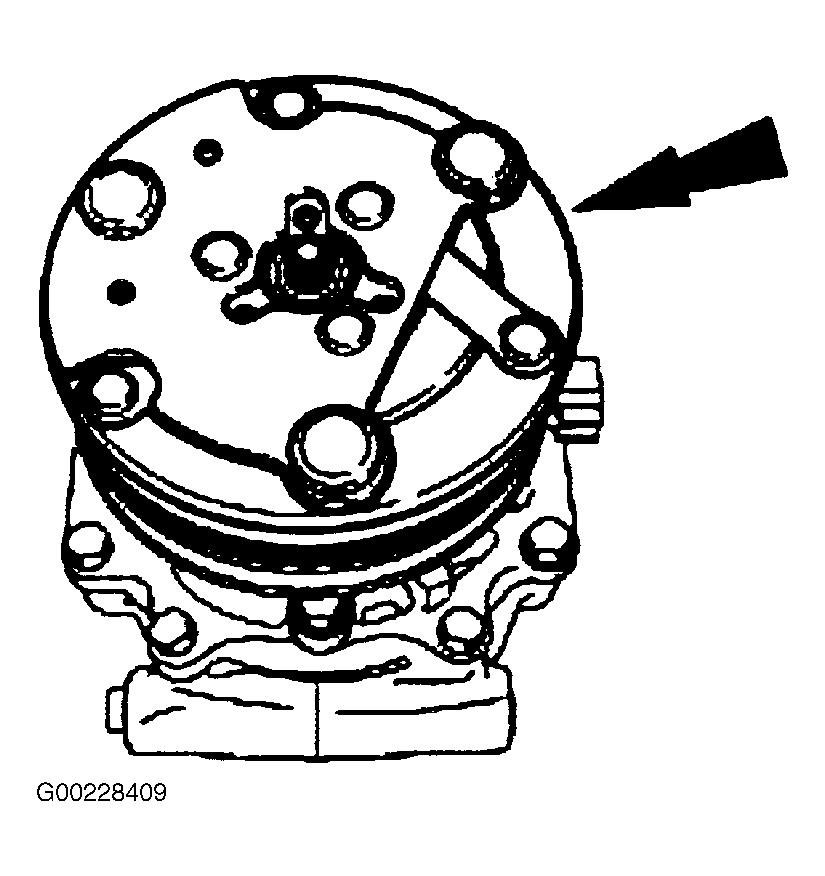

  3. Remove the A/C clutch plate. See Figure.
  4. Remove the A/C clutch plate spacer.
  5. Remove the A/C clutch pulley snap-ring.
    6. CAUTION: DO NOT use air tools. Damage to the A/C clutch pulley may result.

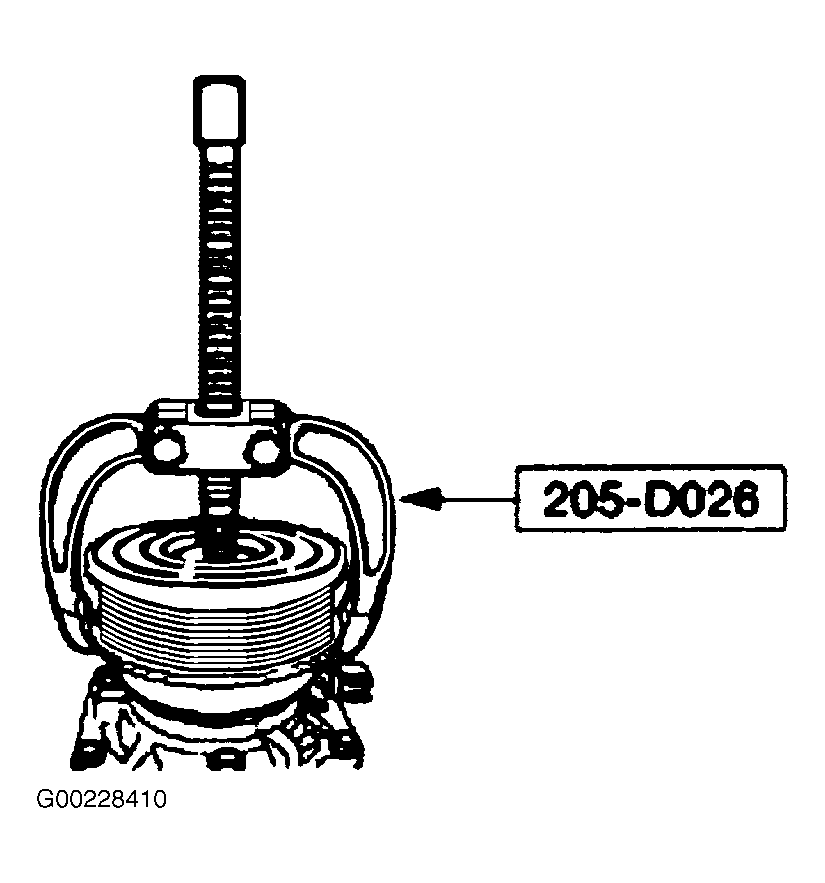

  6. Using the special tool, remove the A/C clutch pulley. See Figure.
  7. Note the location of the A/C clutch field coil connector.

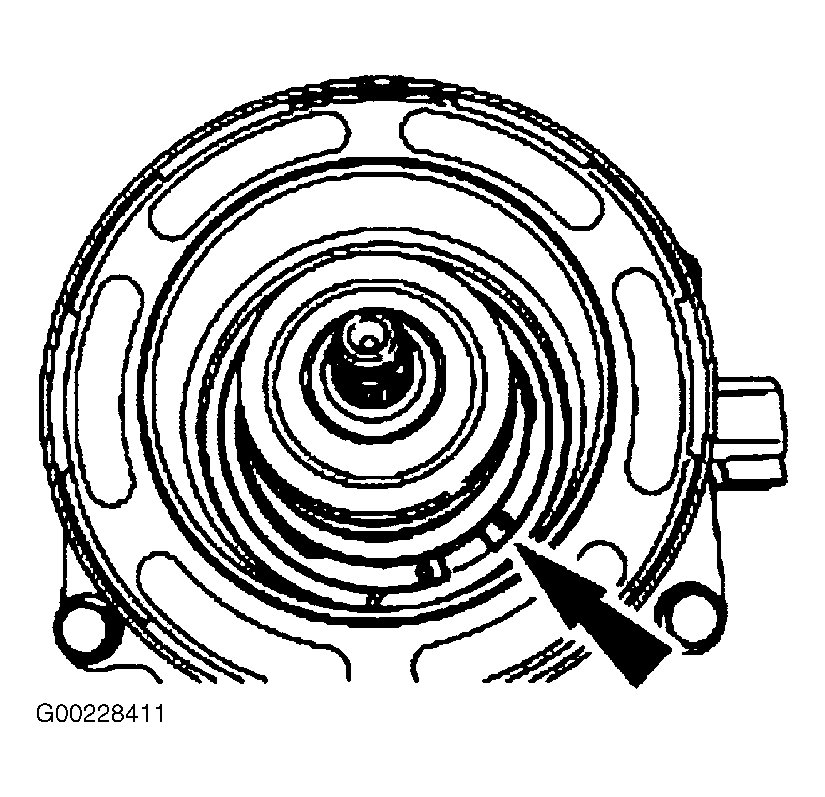

  8. Remove the A/C clutch field coil snap-ring. See Figure.

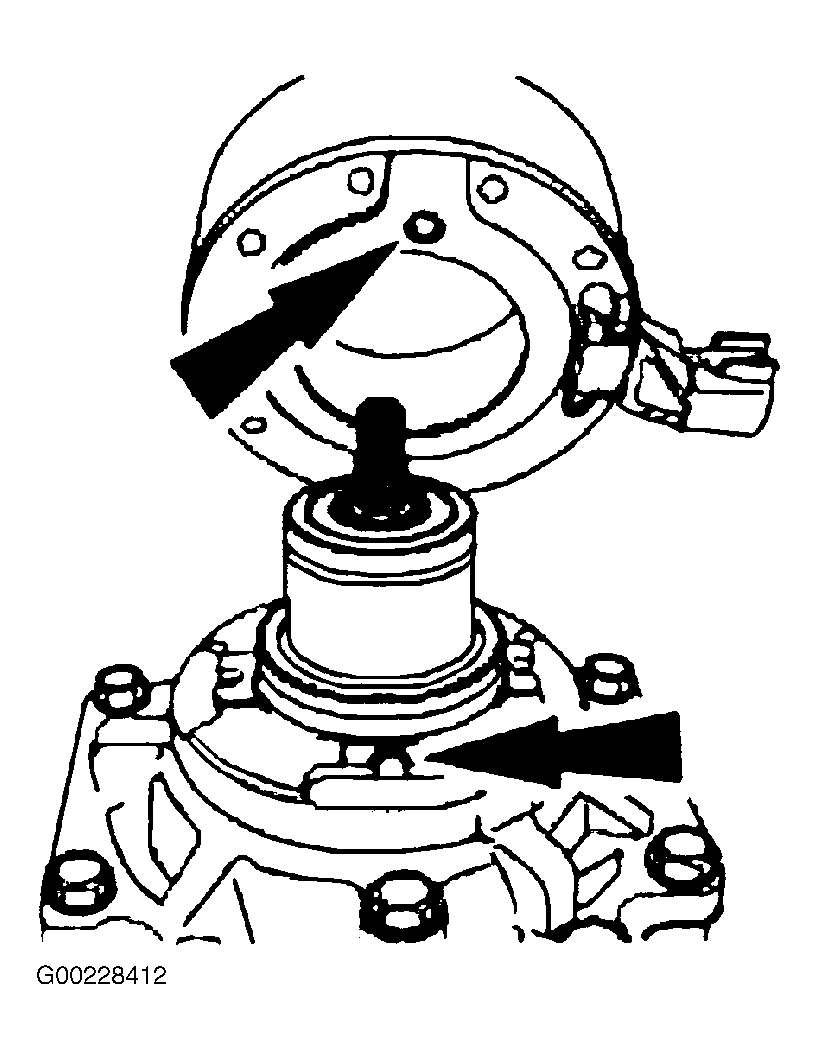

  9. Remove the A/C clutch field coil. See Figure.
