Lamp Assembly - Headlamp: Removal

    NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

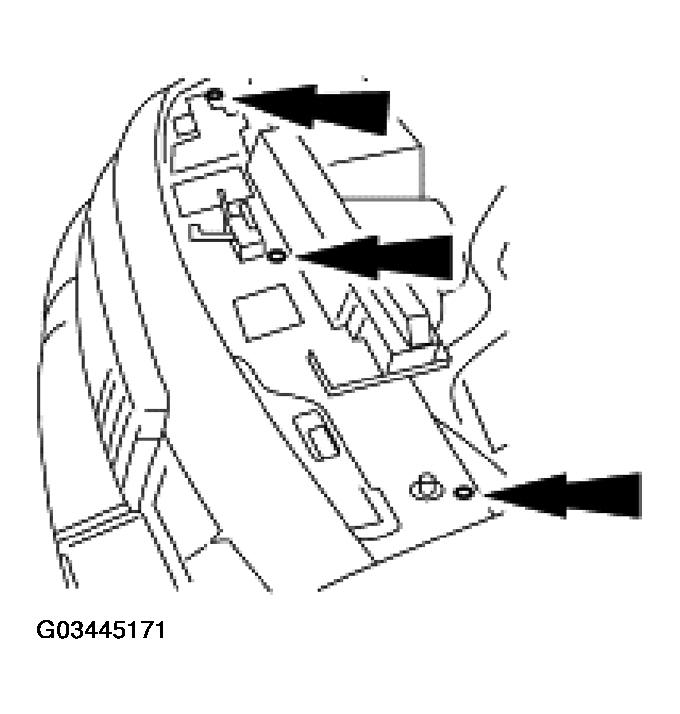

    Fig 1: Twisting Clips
    G03445171Courtesy of FORD MOTOR CO.
  1. Remove the sight shield.
    • Twist the clips.
  2. Remove the headlamp retainers.

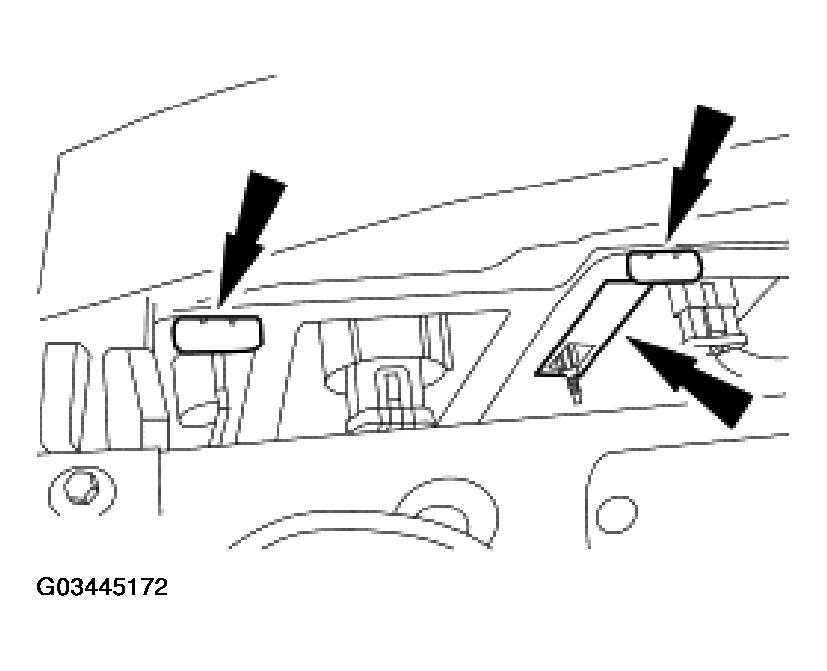

    Fig 2: Removing Headlamp Retainers
    G03445172Courtesy of FORD MOTOR CO.
  3. Remove the headlamp assembly.
    • Disconnect the electrical connectors.

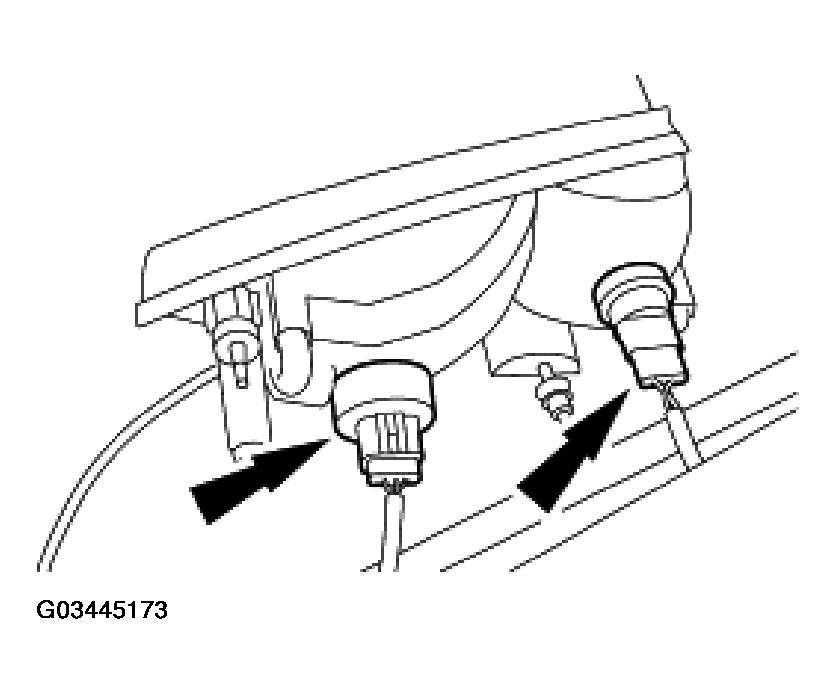

    Fig 3: Disconnecting Electrical Connectors
    G03445173Courtesy of FORD MOTOR CO.
