Identifying Compressor Components

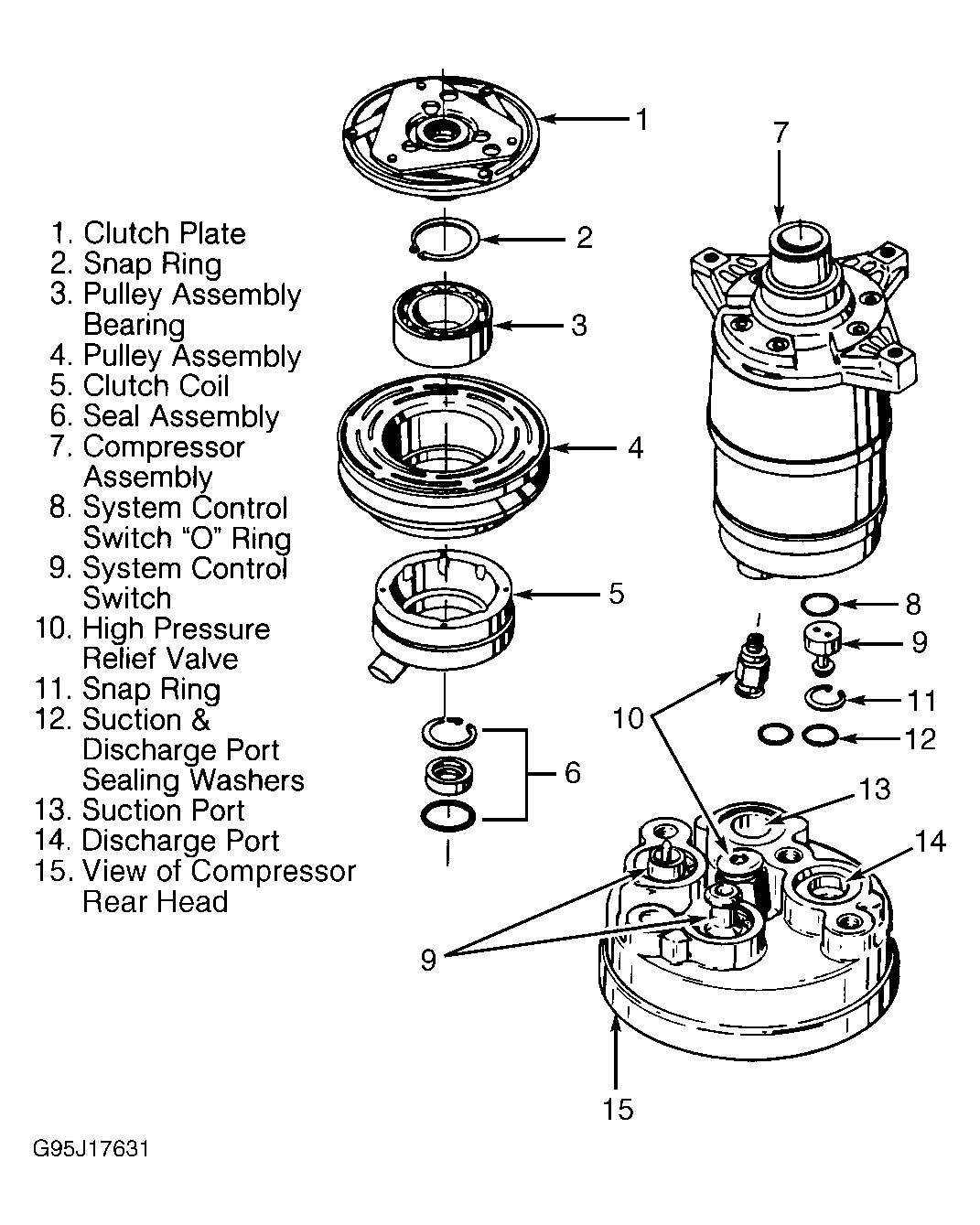

Fig 1: Identifying Compressor Components (Harrison HD6/HT6/HU6 & HD6/HR-6HE 6-Cyl.)
G95J17631Courtesy of GENERAL MOTORS CORP.

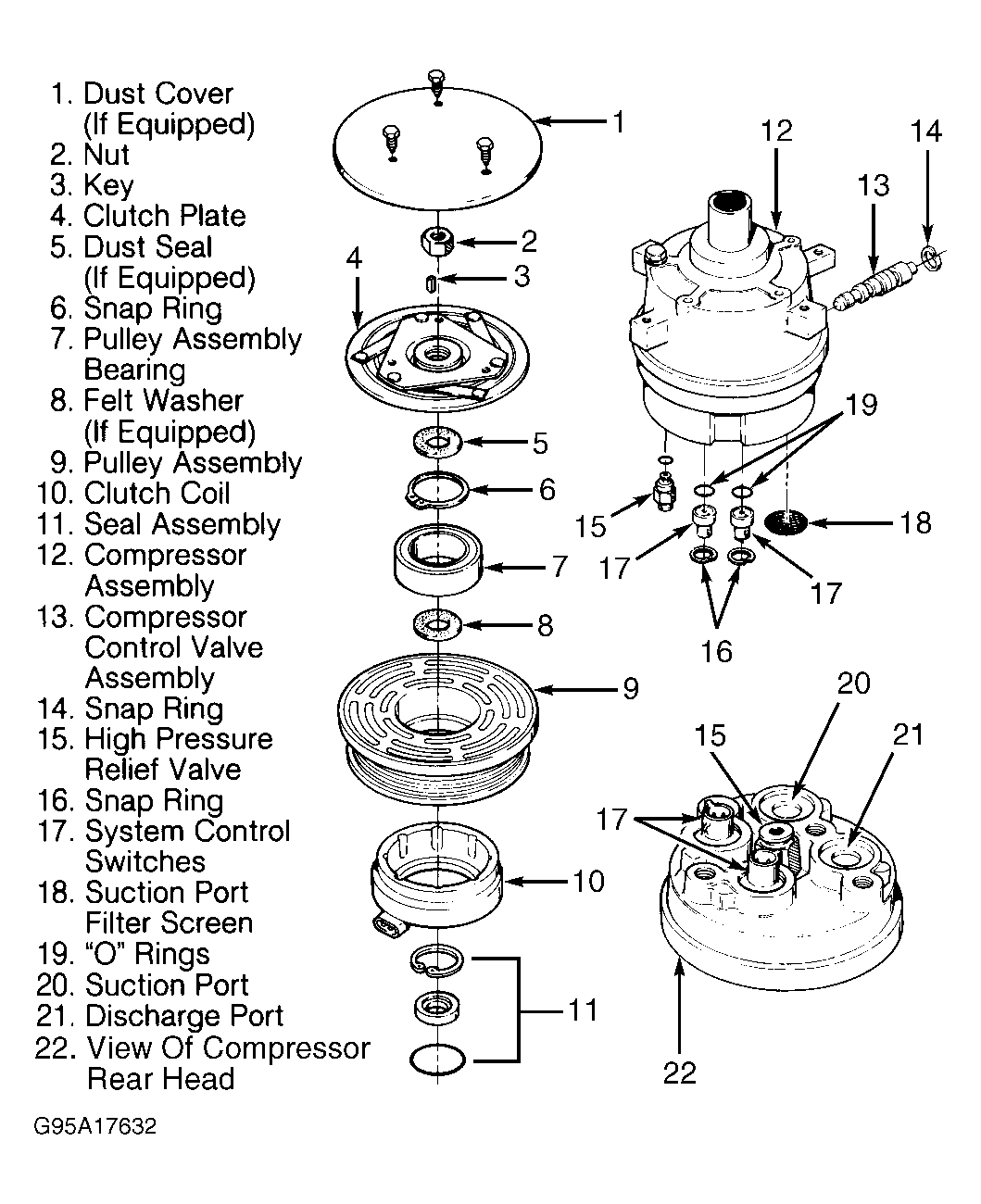

Fig 2: Identifying Compressor Components (Harrison V5 5-Cyl. With Conv. Mt. Shown; V7 7-Cyl. Is Similar)
G95A17632Courtesy of GENERAL MOTORS CORP.
