Pressure Relief Valve: Removal

  1. Recover the refrigerant. See RECOVERY/EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING.
  2. Raise and support the vehicle.

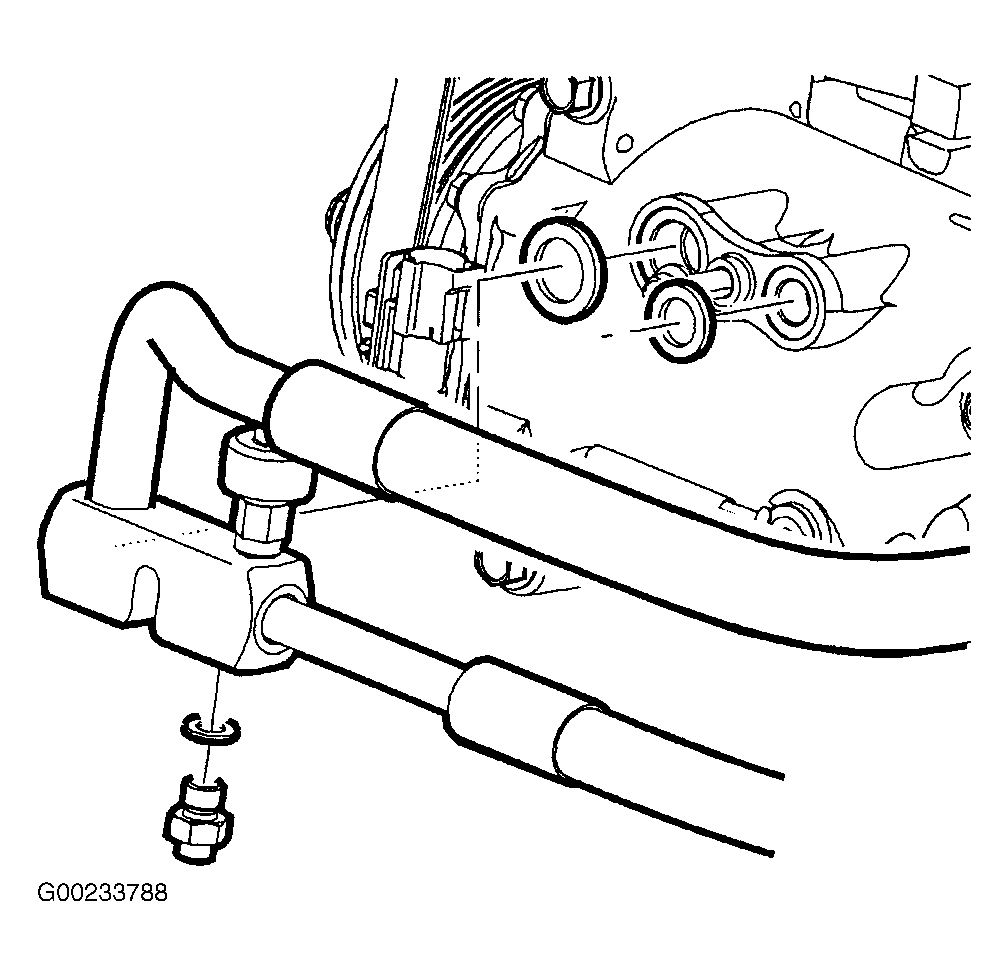

  3. Remove pressure relief valve from compressor hose. See Figure.
