Lamp Assembly - High Mounted Stoplamp: Removal

  1. Remove the two high mounted stoplamp screws.

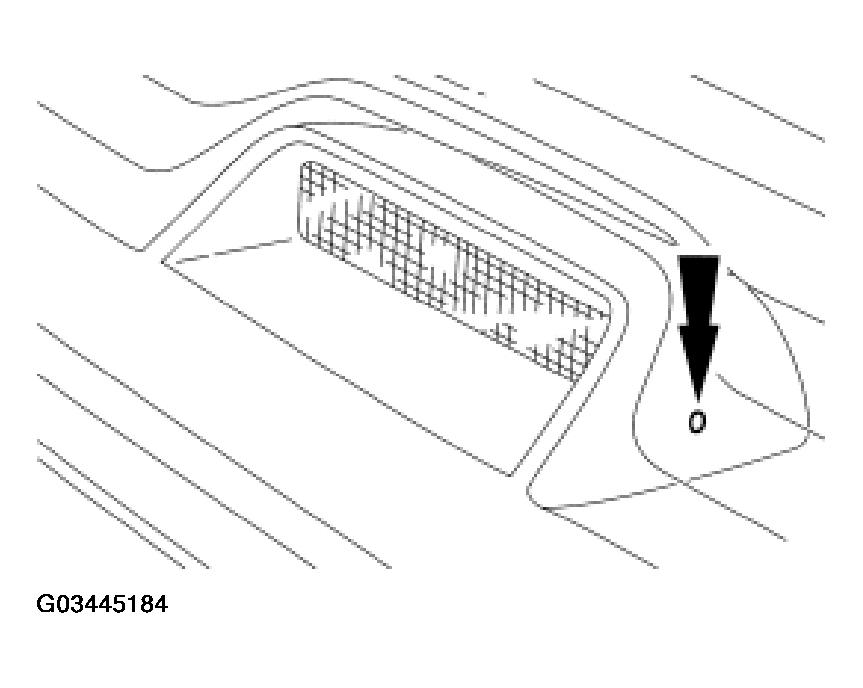

    Fig 1: Identifying Stoplamp Screws
    G03445184Courtesy of FORD MOTOR CO.
  2. Remove the high mounted stoplamp assembly.
    1. Disconnect the electrical connector.
    2. Depress the clips and remove the high mounted stoplamp assembly.

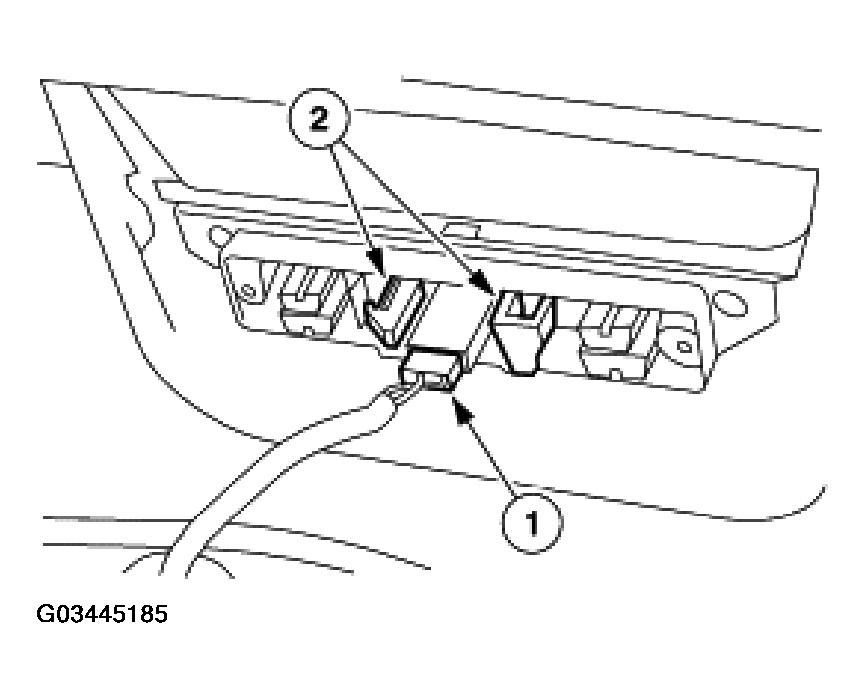

    Fig 2: Connecting Electrical Connector
    G03445185Courtesy of FORD MOTOR CO.
