Crown Victoria Base, 4.6 9
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
HVAC System - Manual
>>
Component Locations
Component Locations

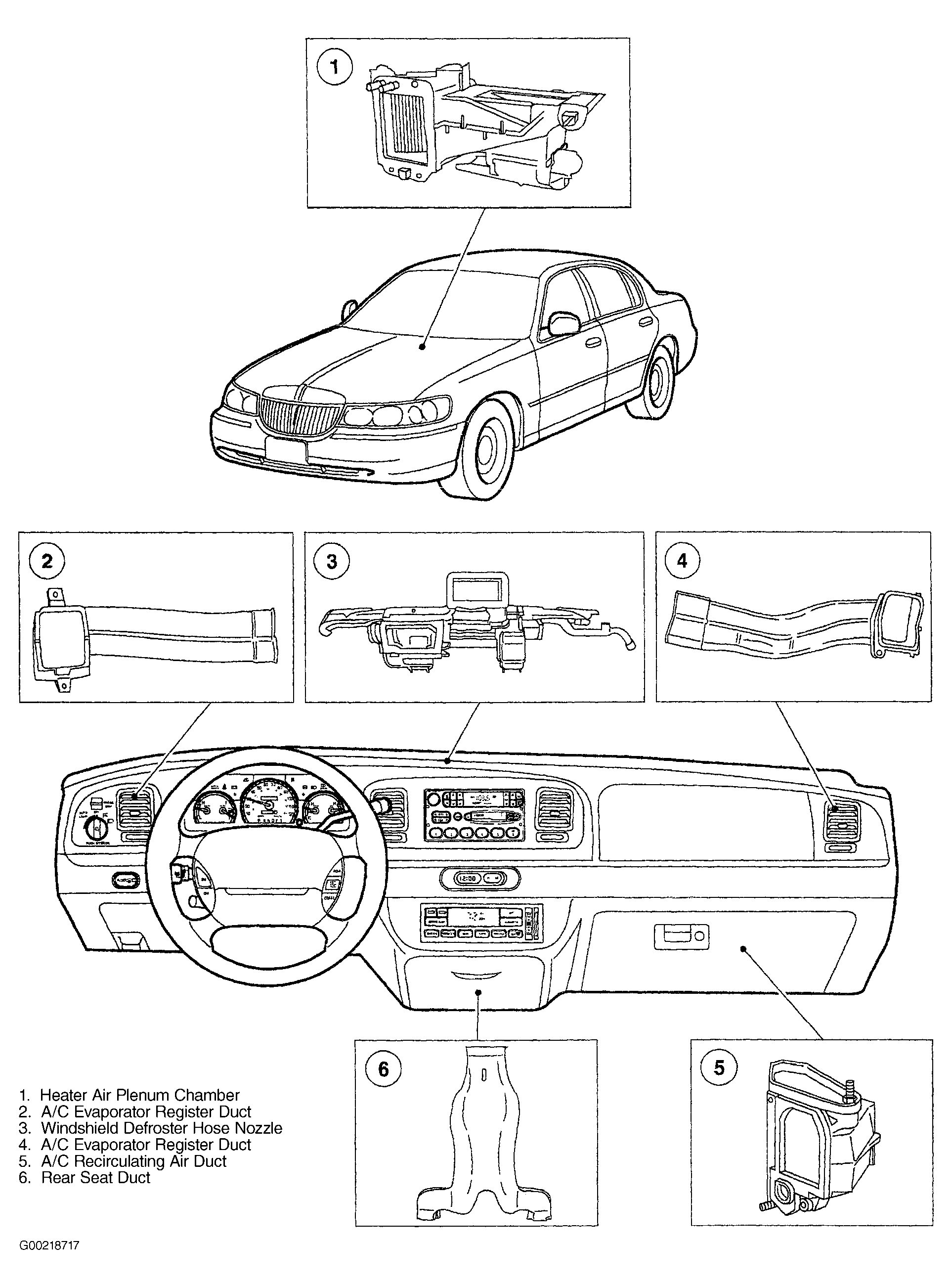

Fig 1: Locating Air Distribution System Components
Courtesy of FORD MOTOR CO.

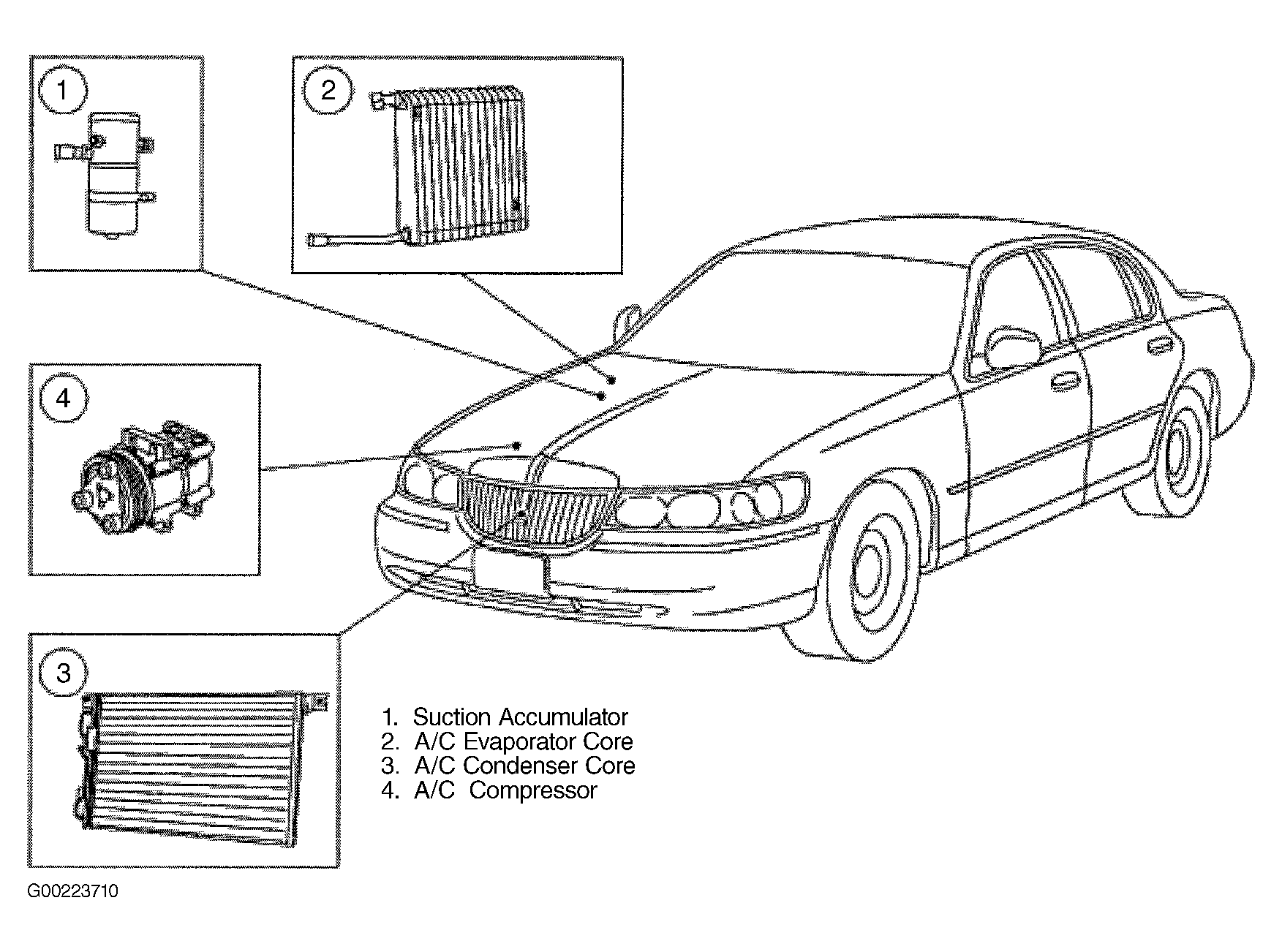

Fig 2: Locating A/C System Components
Courtesy of FORD MOTOR CO.

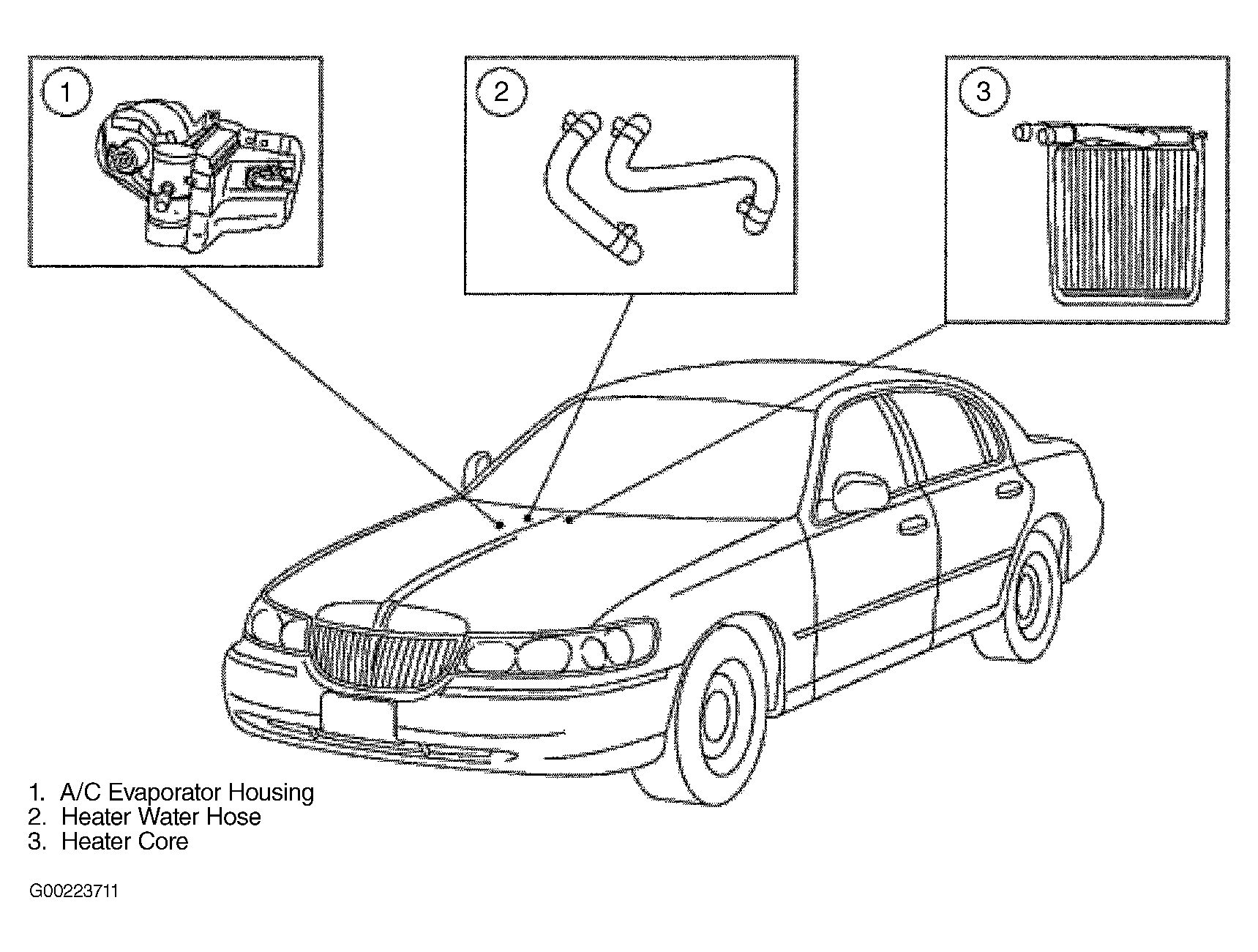

Fig 3: Locating Heater System Components
Courtesy of FORD MOTOR CO.

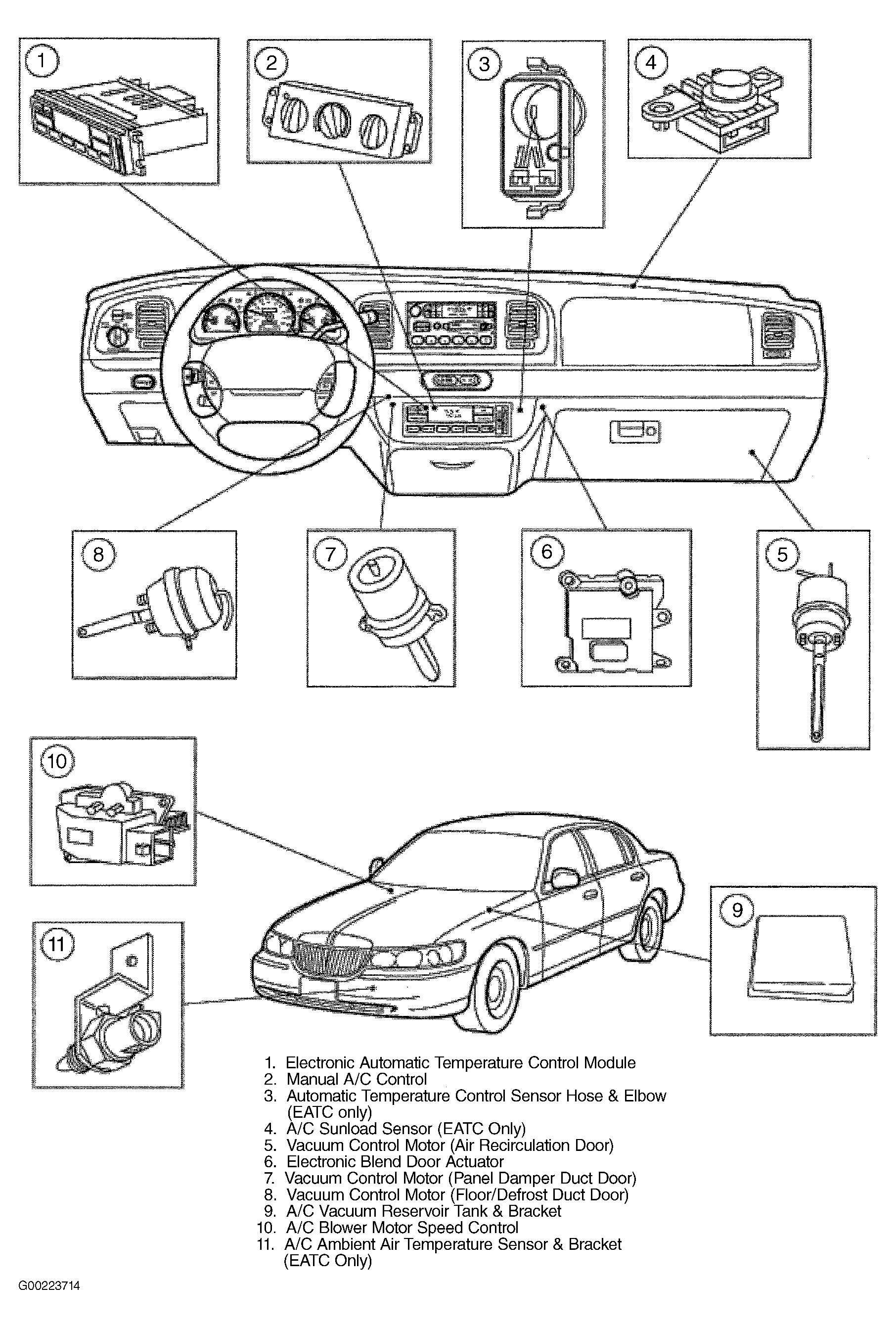

Fig 4: Locating Control System Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
