Diagnostic Procedures

For testing procedure, see Fig 1-Fig 8 .

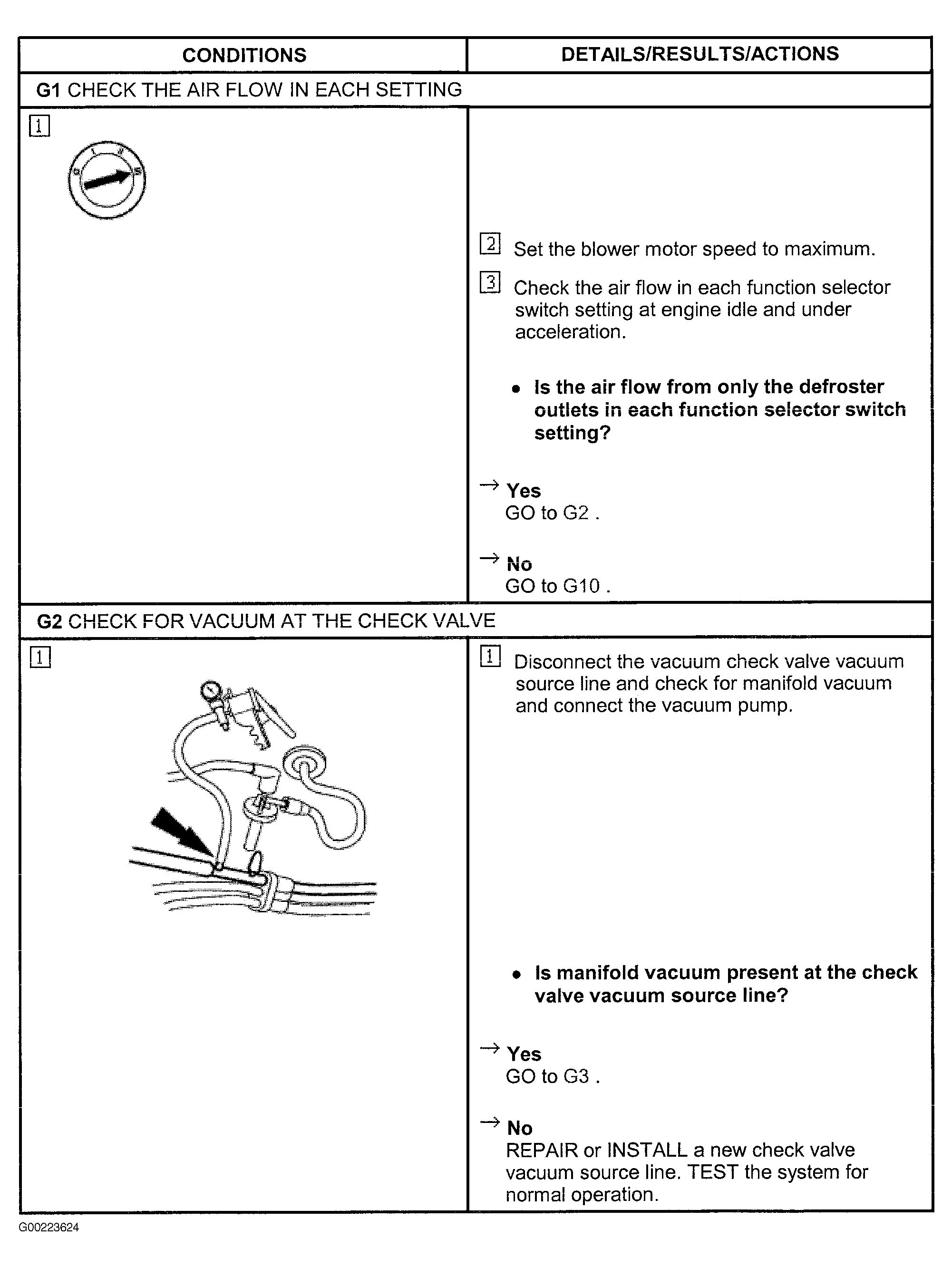

Fig 1: Test G (1 Of 8 - Steps G1-G2)

G00223624

Courtesy of FORD MOTOR CO.

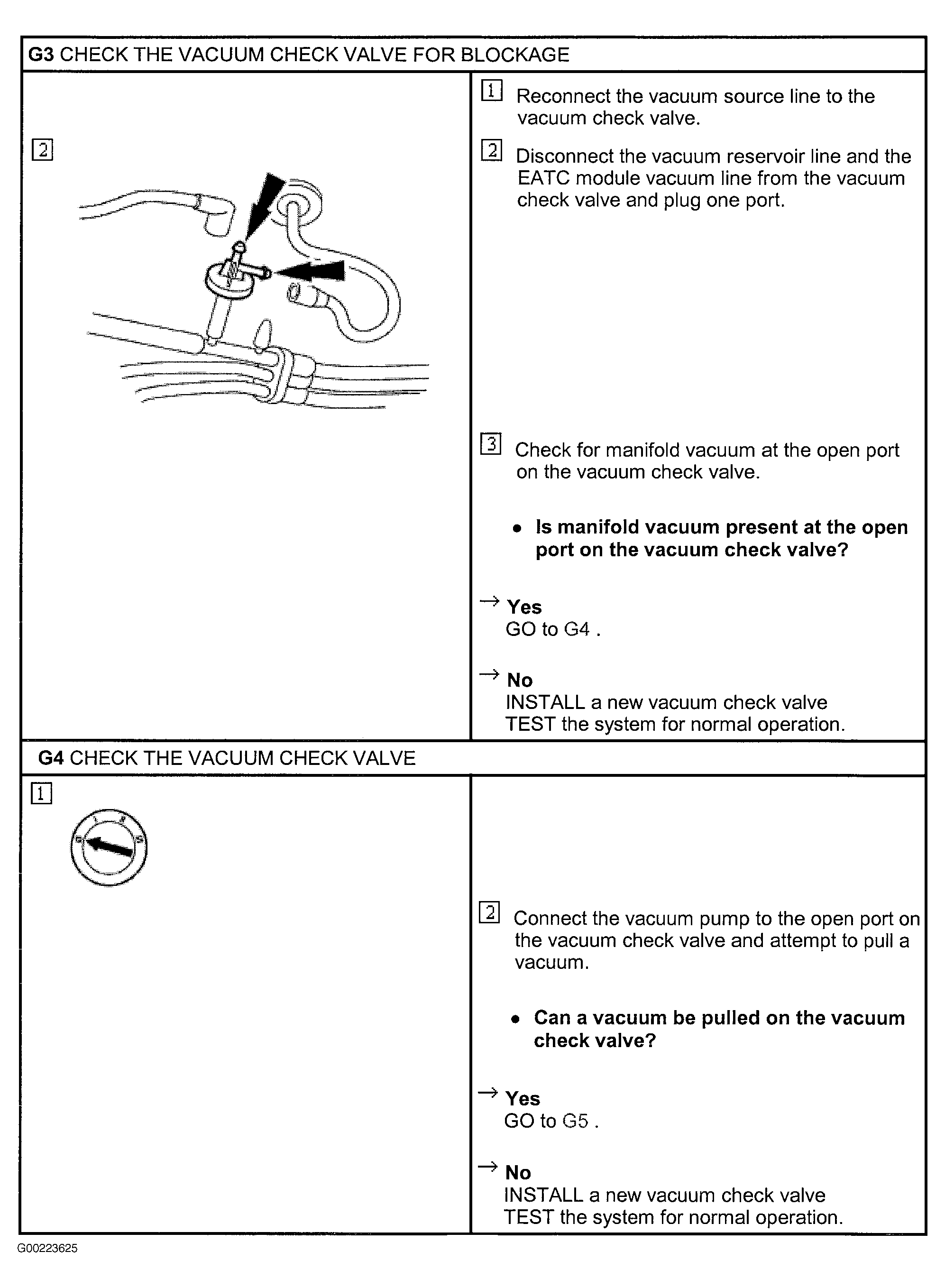

Fig 2: Test G (2 Of 8 - Steps G3-G4)

G00223625

Courtesy of FORD MOTOR CO.

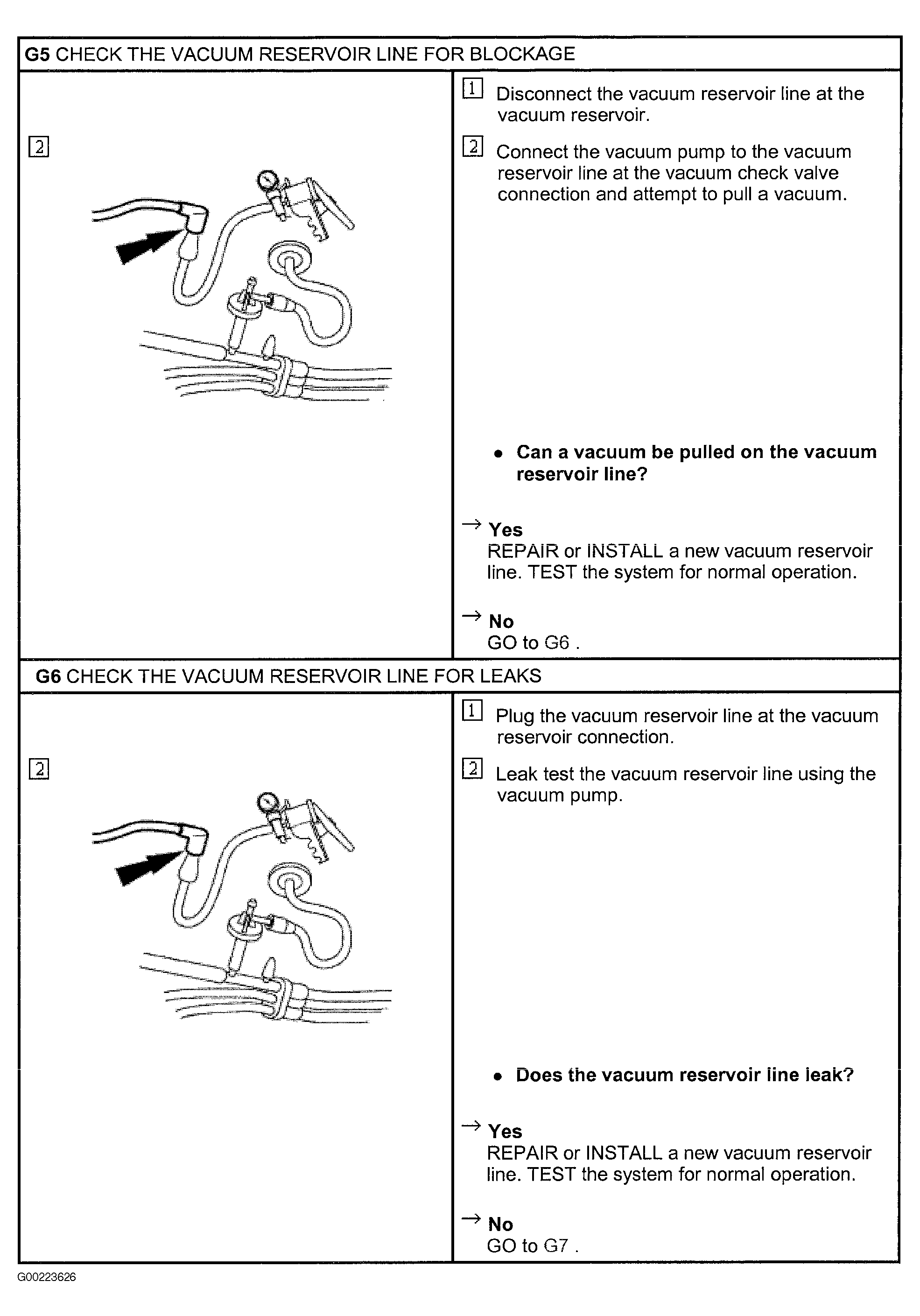

Fig 3: Test G (3 Of 8 - Steps G5-G6)

G00223626

Courtesy of FORD MOTOR CO.

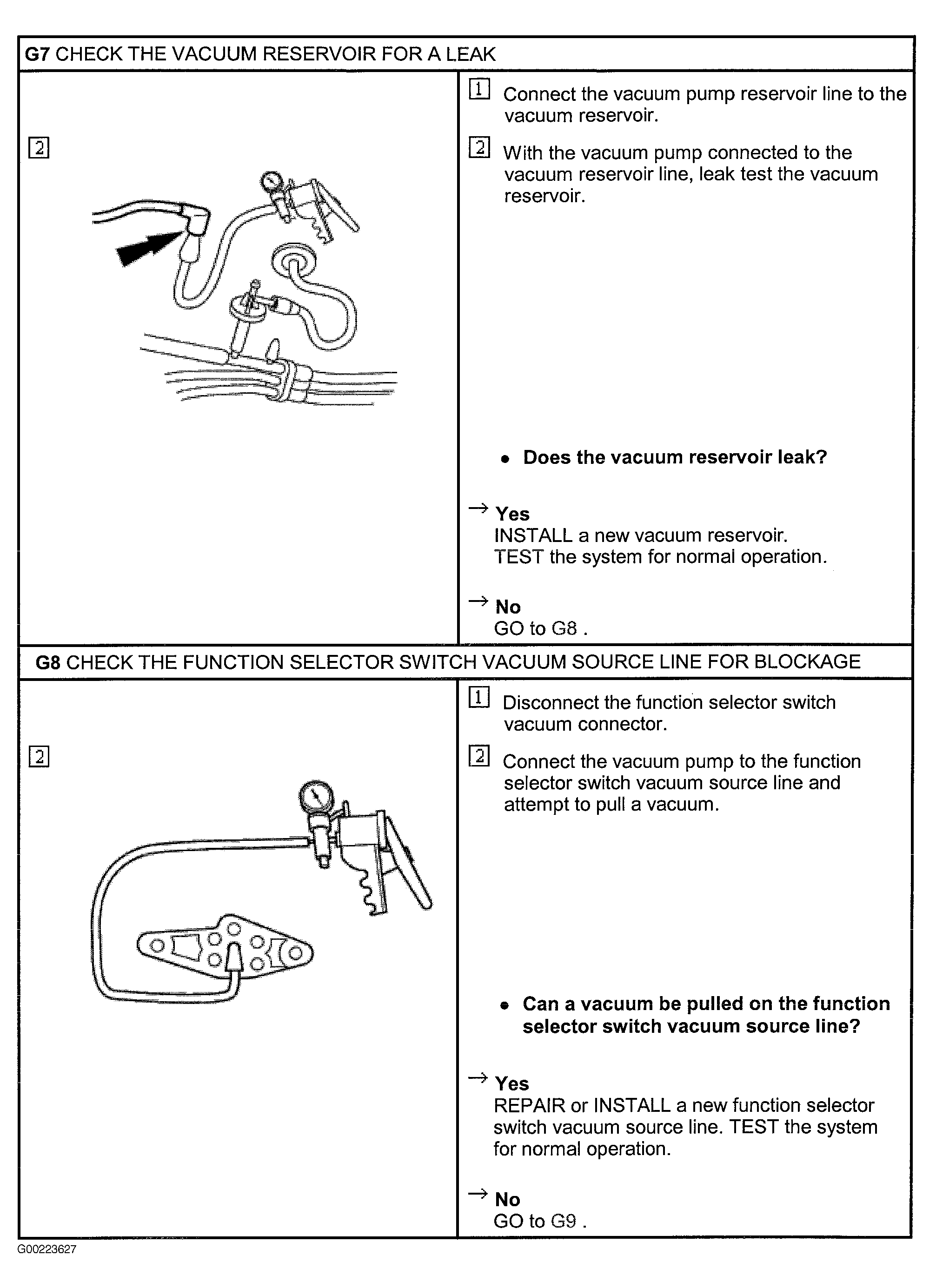

Fig 4: Test G (4 Of 8 - Steps G7-G8)

G00223627

Courtesy of FORD MOTOR CO.

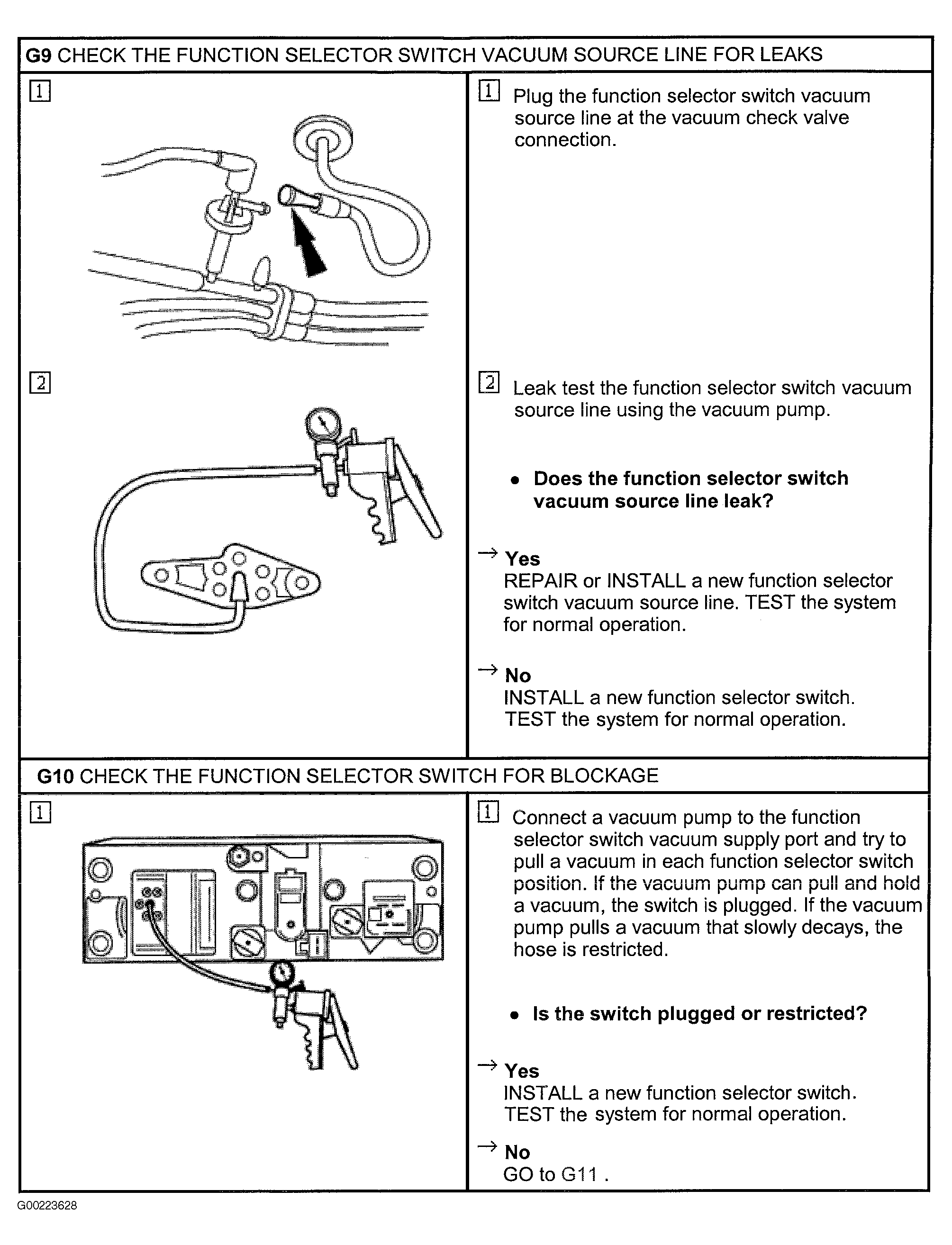

Fig 5: Test G (5 Of 8 - Steps G9-G10)

G00223628

Courtesy of FORD MOTOR CO.

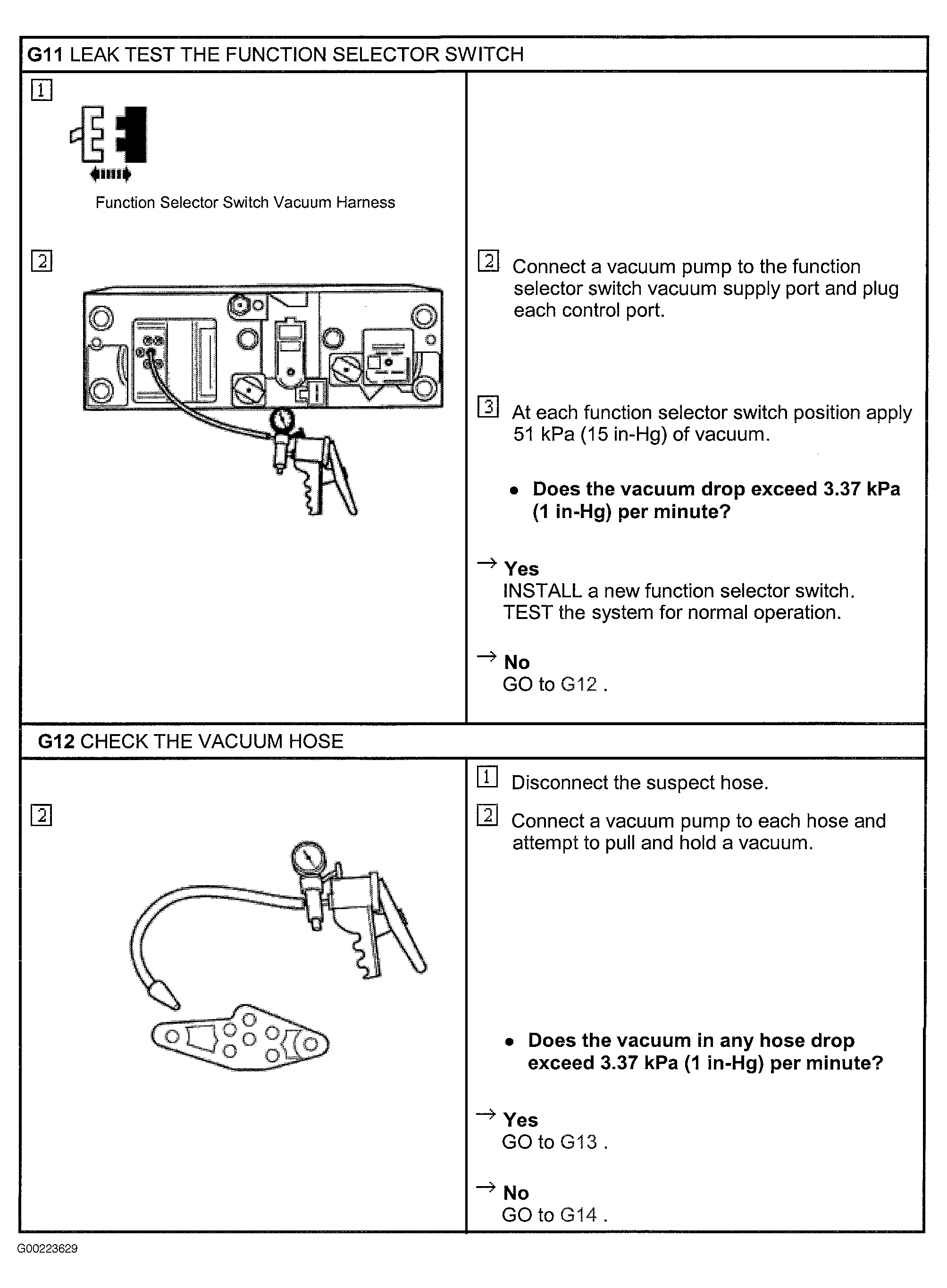

Fig 6: Test G (6 Of 8 - Steps G11-G12)

G00223629

Courtesy of FORD MOTOR CO.

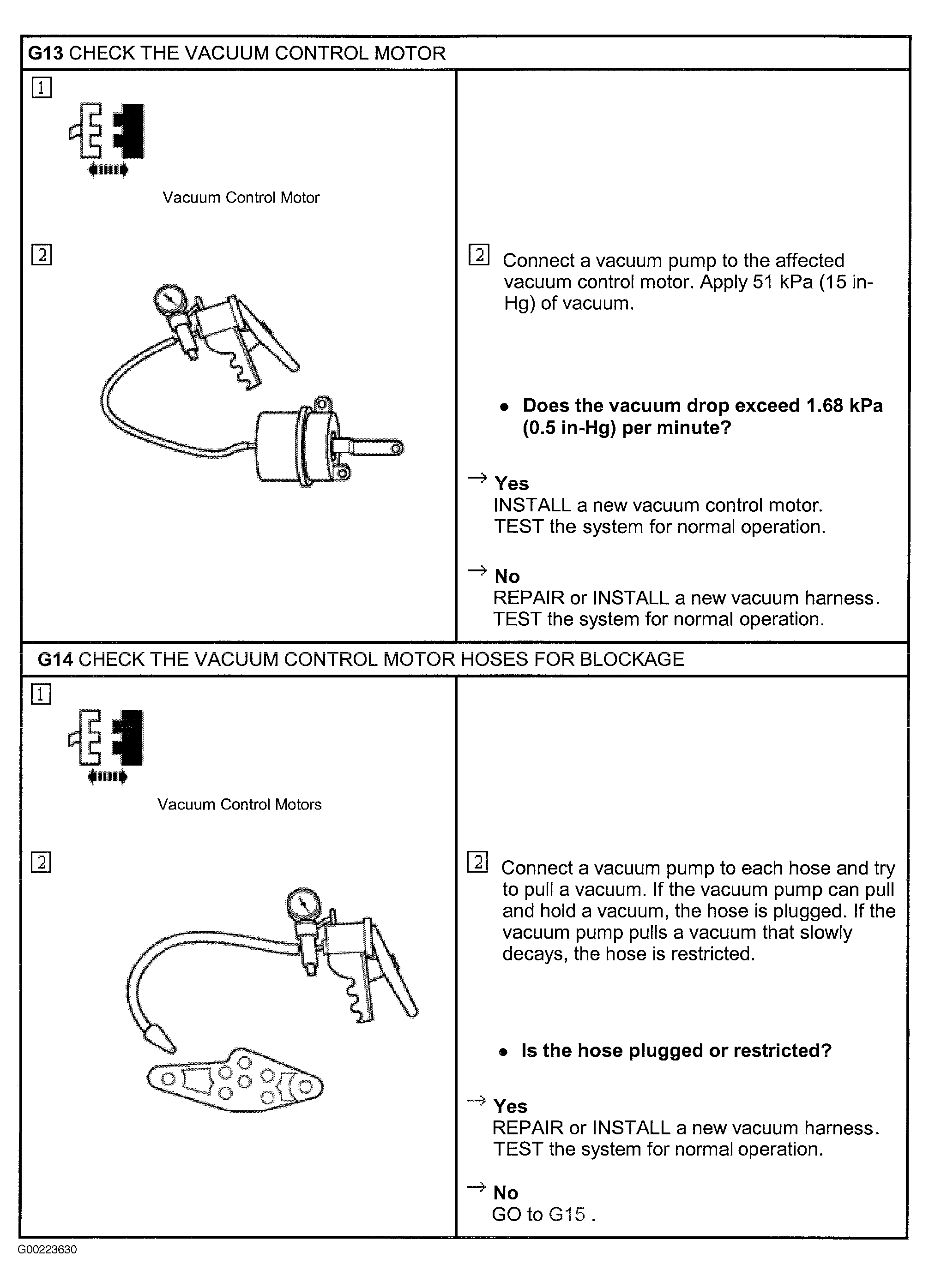

Fig 7: Test G (7 Of 8 - Steps G13-G14)

G00223630

Courtesy of FORD MOTOR CO.

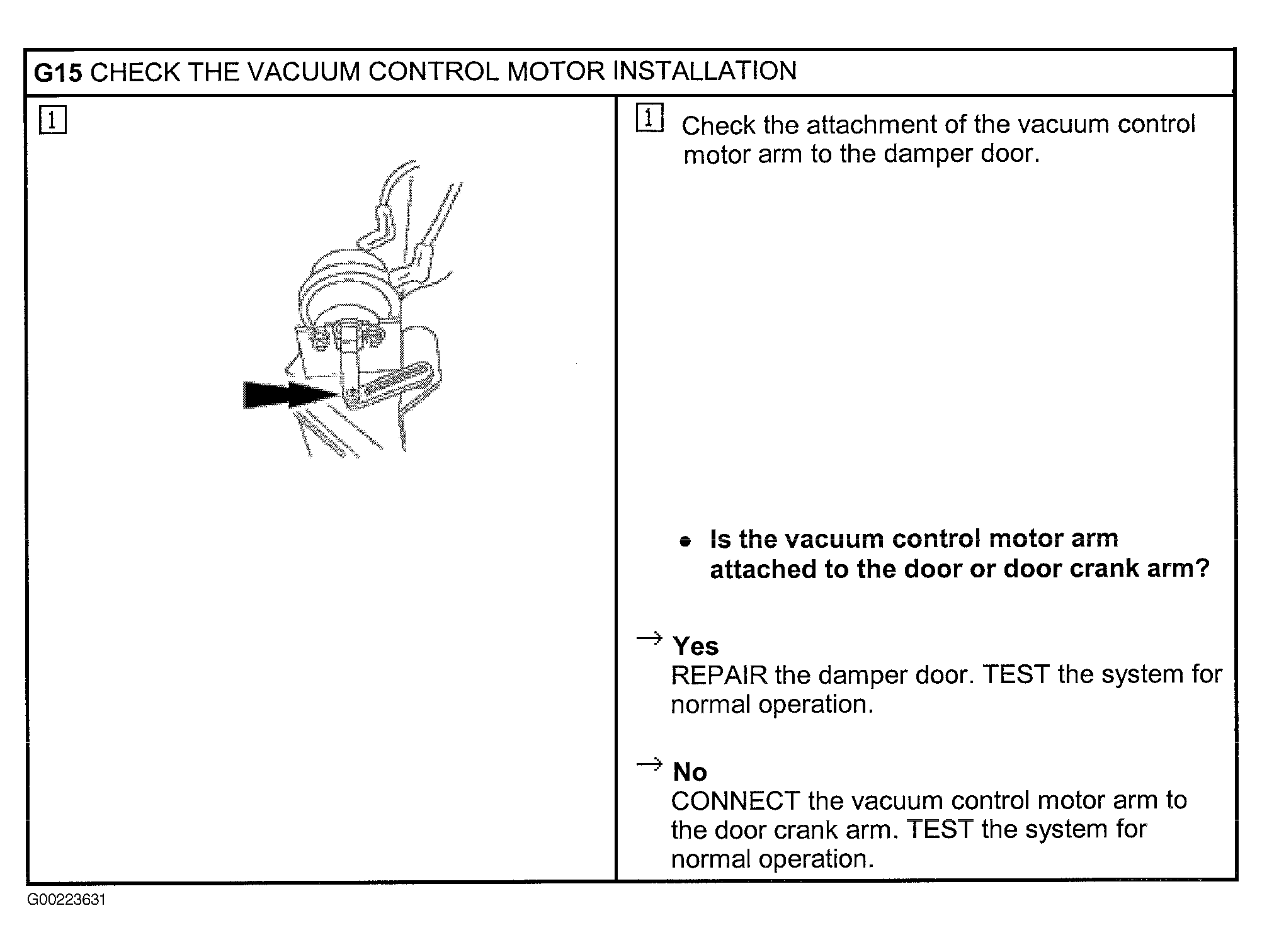

Fig 8: Test G (8 Of 8 - Step G15)

G00223631

Courtesy of FORD MOTOR CO.
