Test I: Insufficient, Erratic Or No Heat
>>
Diagnostic Procedures
Diagnostic Procedures
For testing procedure, see
Fig 1
-
Fig 2
.

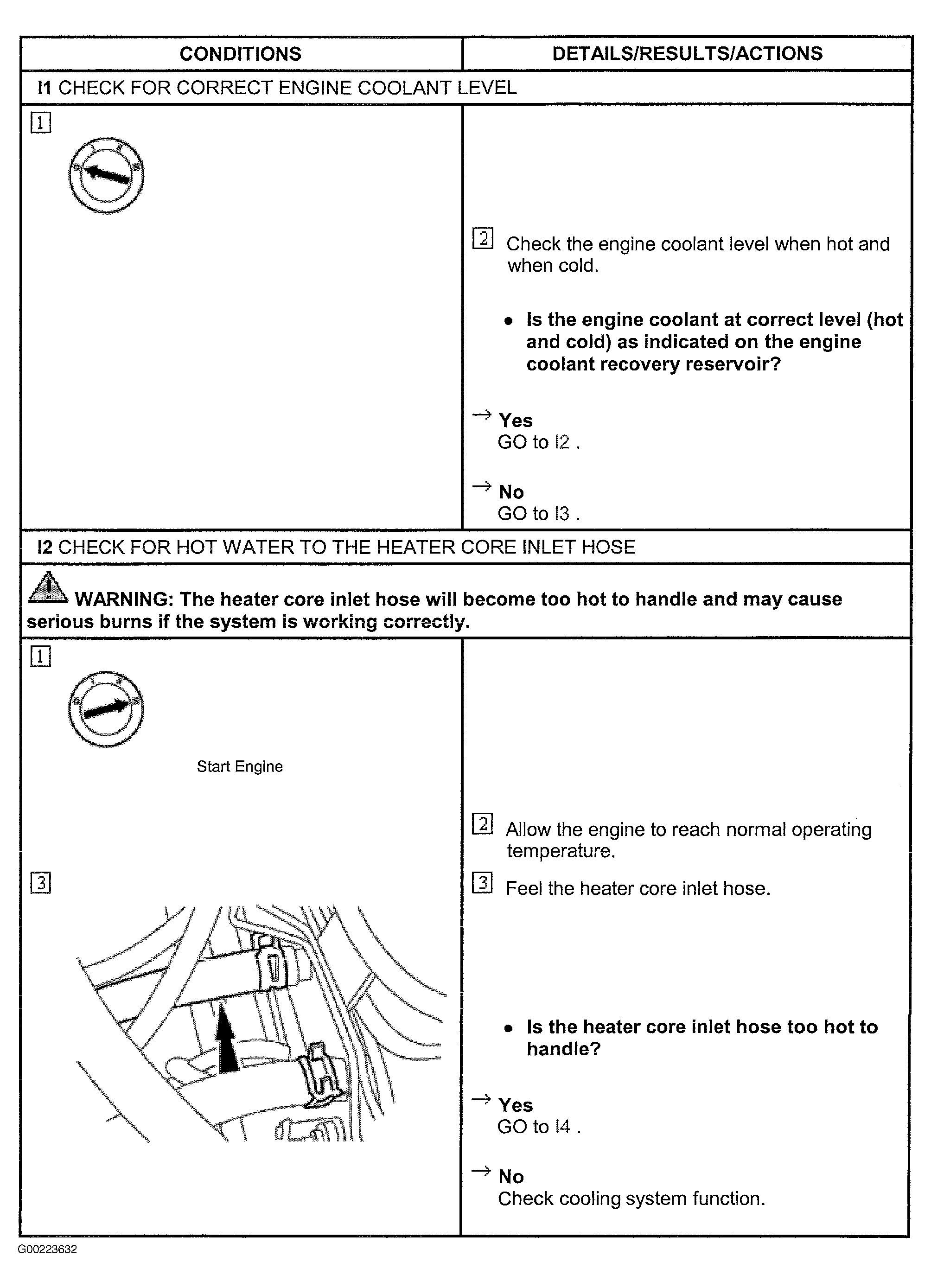

Fig 1: Test I (1 Of 2 - Steps I1-I2)
Courtesy of FORD MOTOR CO.

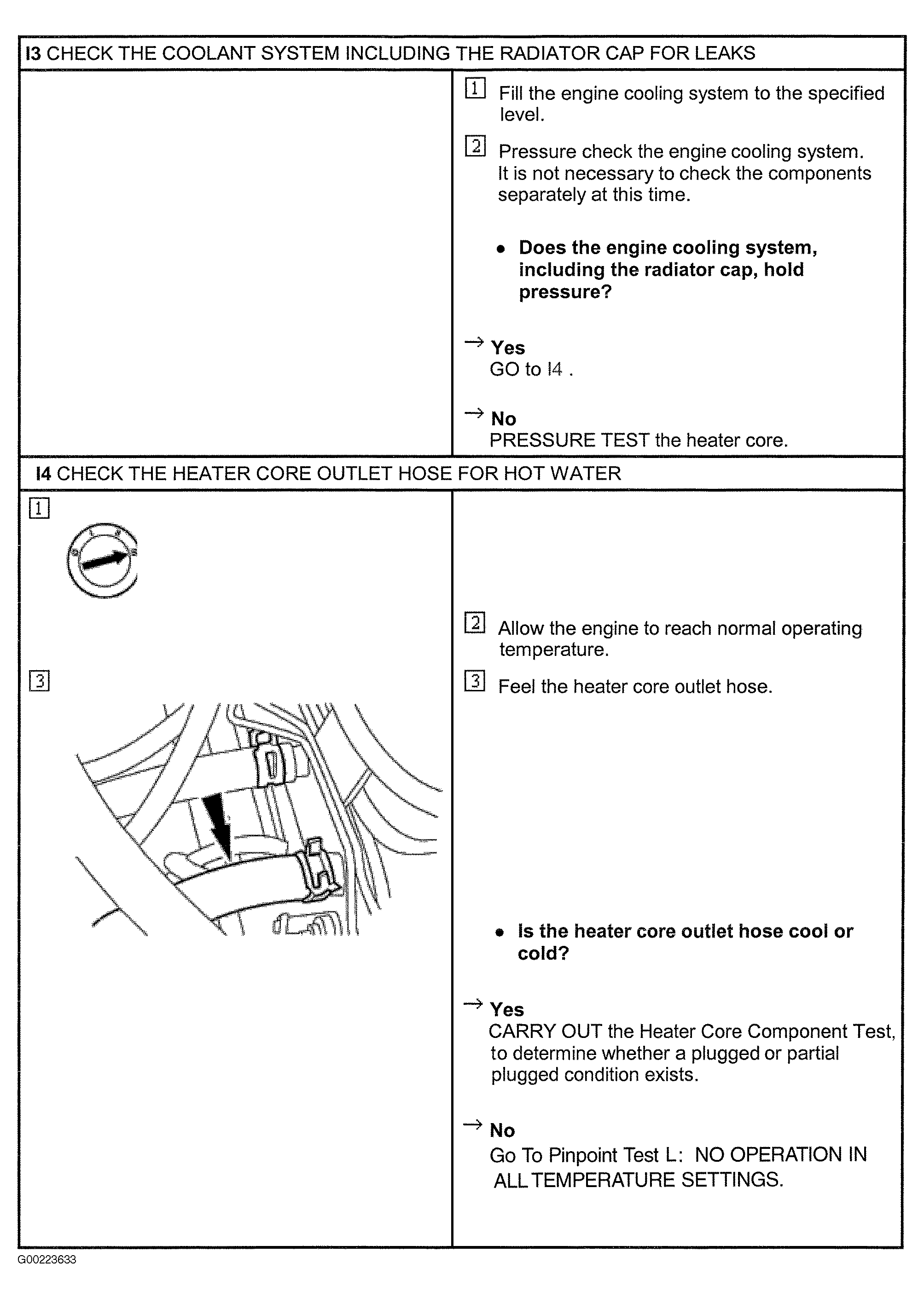

Fig 2: Test I (2 Of 2 - Steps I3-I4)
Courtesy of FORD MOTOR CO.
