Diagnostic Procedures

For testing procedure, see Fig 1-Fig 10 .

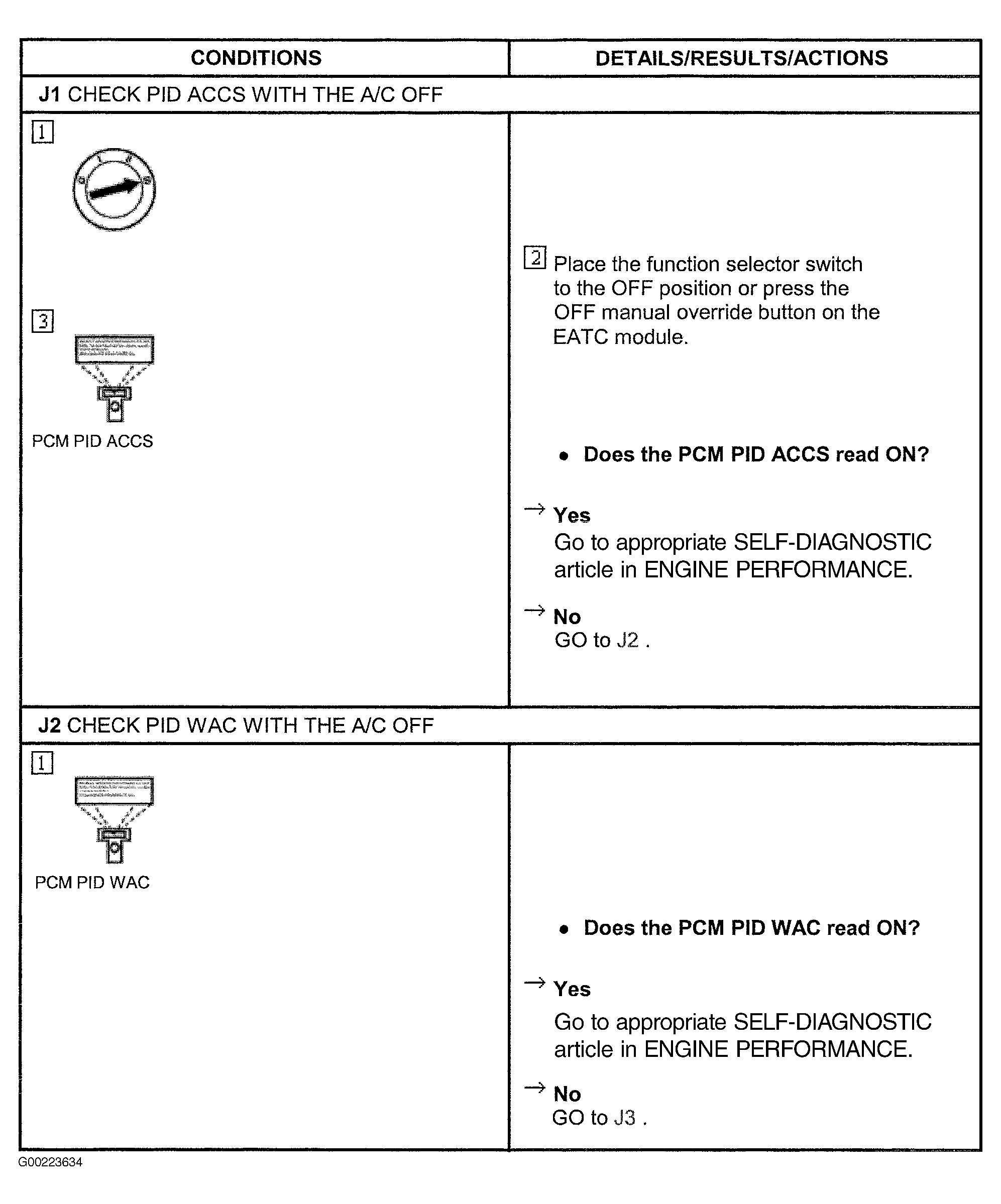

Fig 1: Test J (1 Of 10 - Steps J1-J2)

G00223634

Courtesy of FORD MOTOR CO.

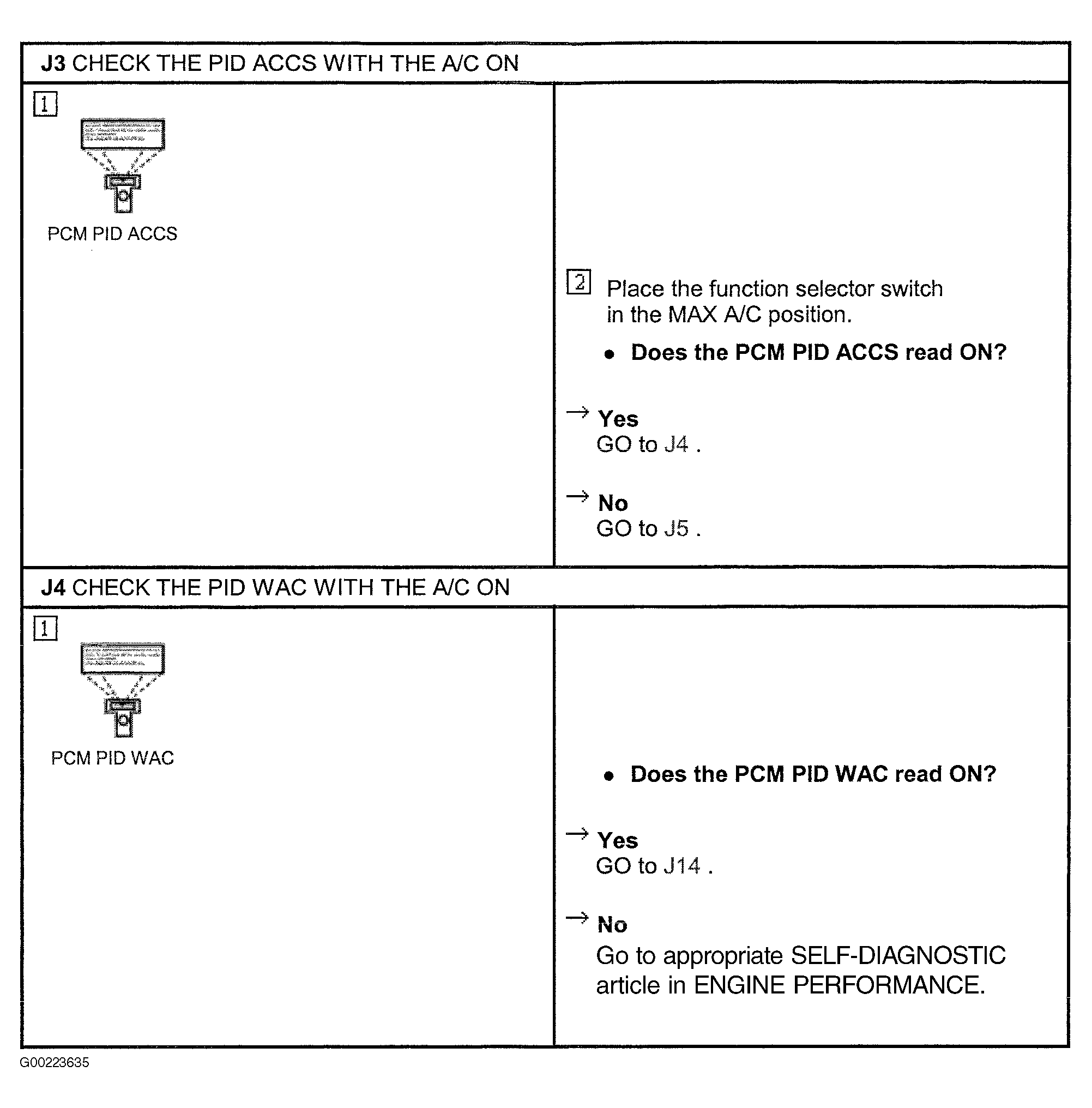

Fig 2: Test J (2 Of 10 - Steps J3-J4)

G00223635

Courtesy of FORD MOTOR CO.

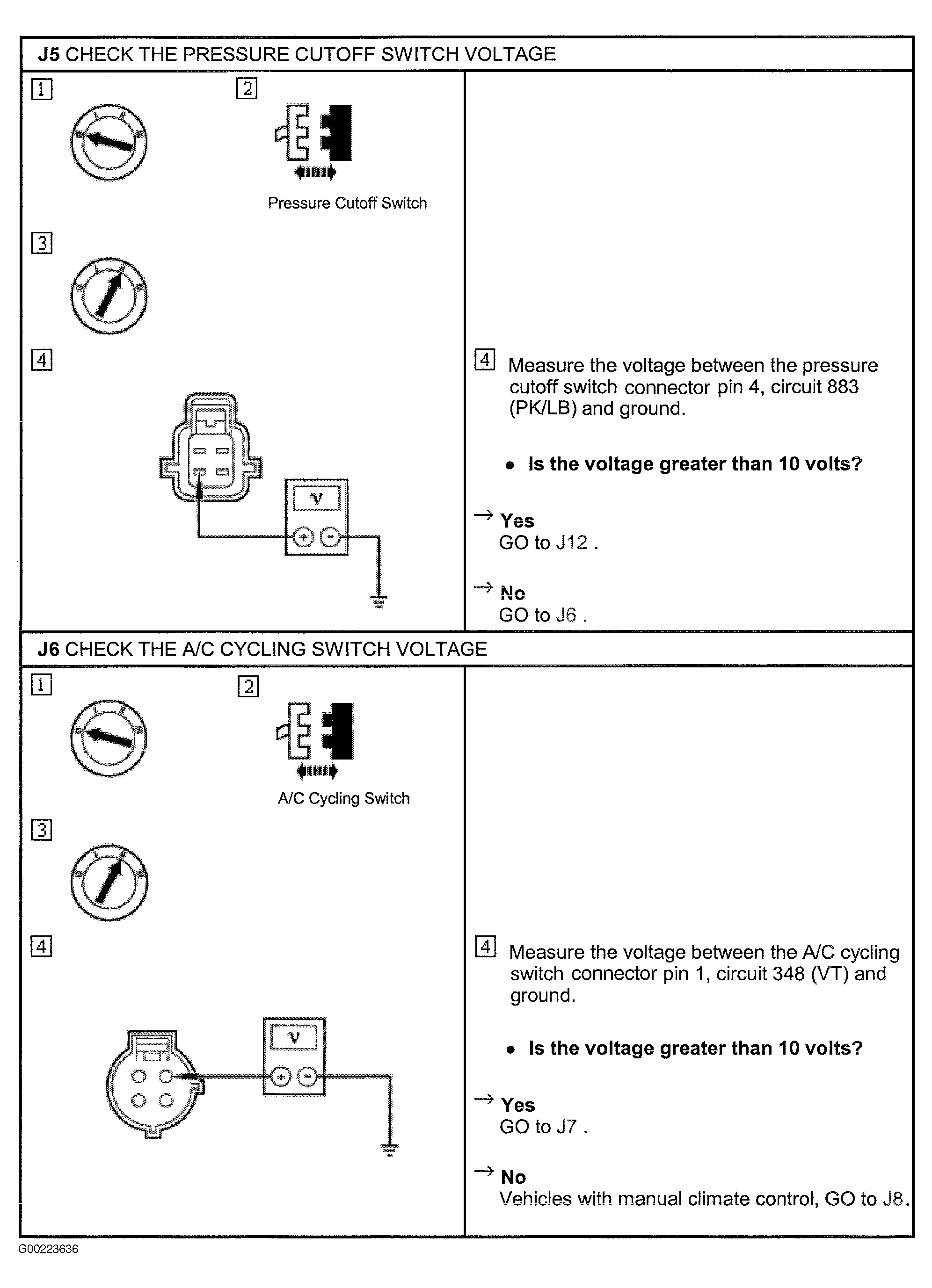

Fig 3: Test J (3 Of 10 - Steps J5-J6)

G00223636

Courtesy of FORD MOTOR CO.

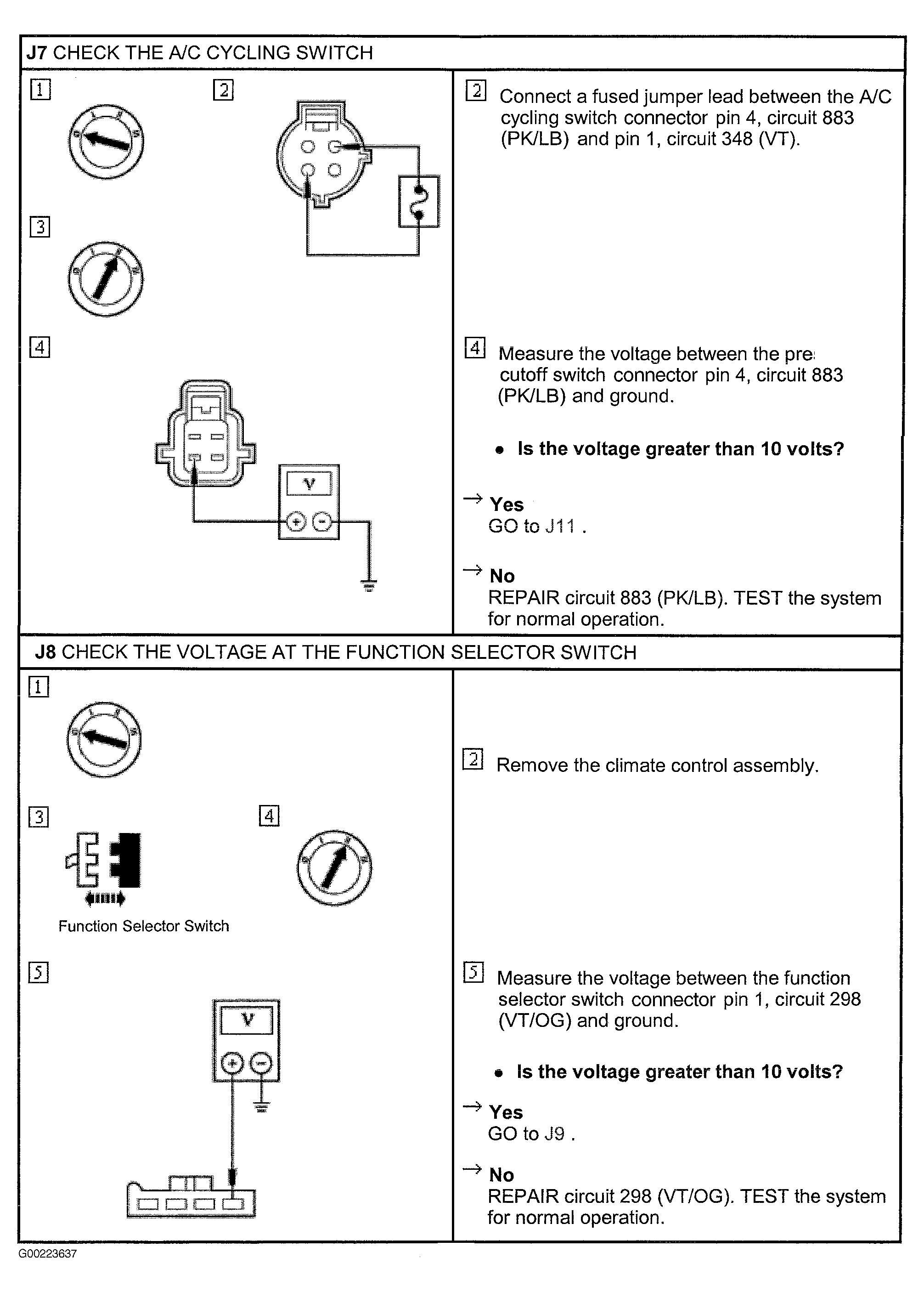

Fig 4: Test J (4 Of 10 - Steps J7-J8)

G00223637

Courtesy of FORD MOTOR CO.

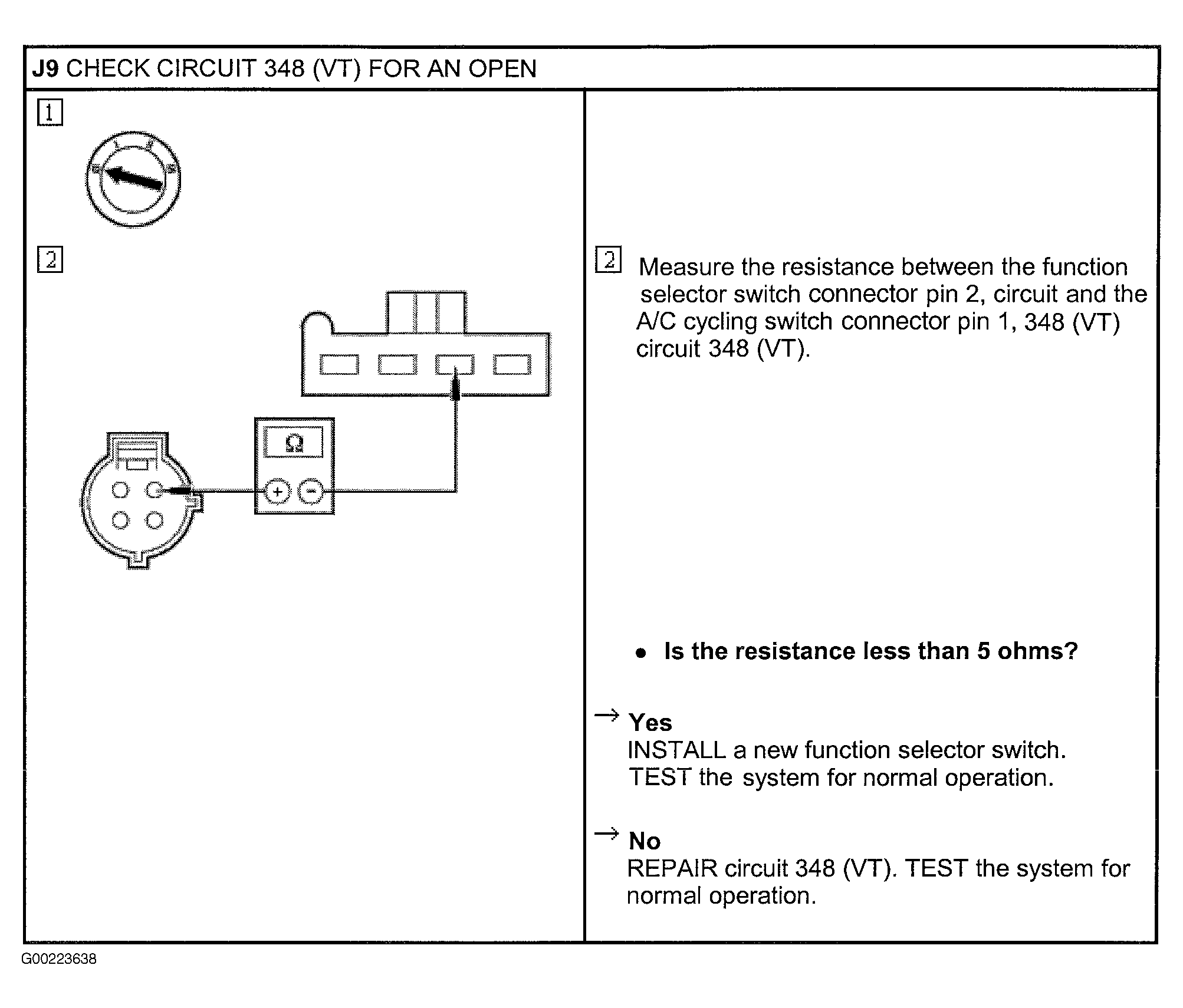

Fig 5: Test J (5 Of 10 - Steps J9-J10)

G00223638

Courtesy of FORD MOTOR CO.

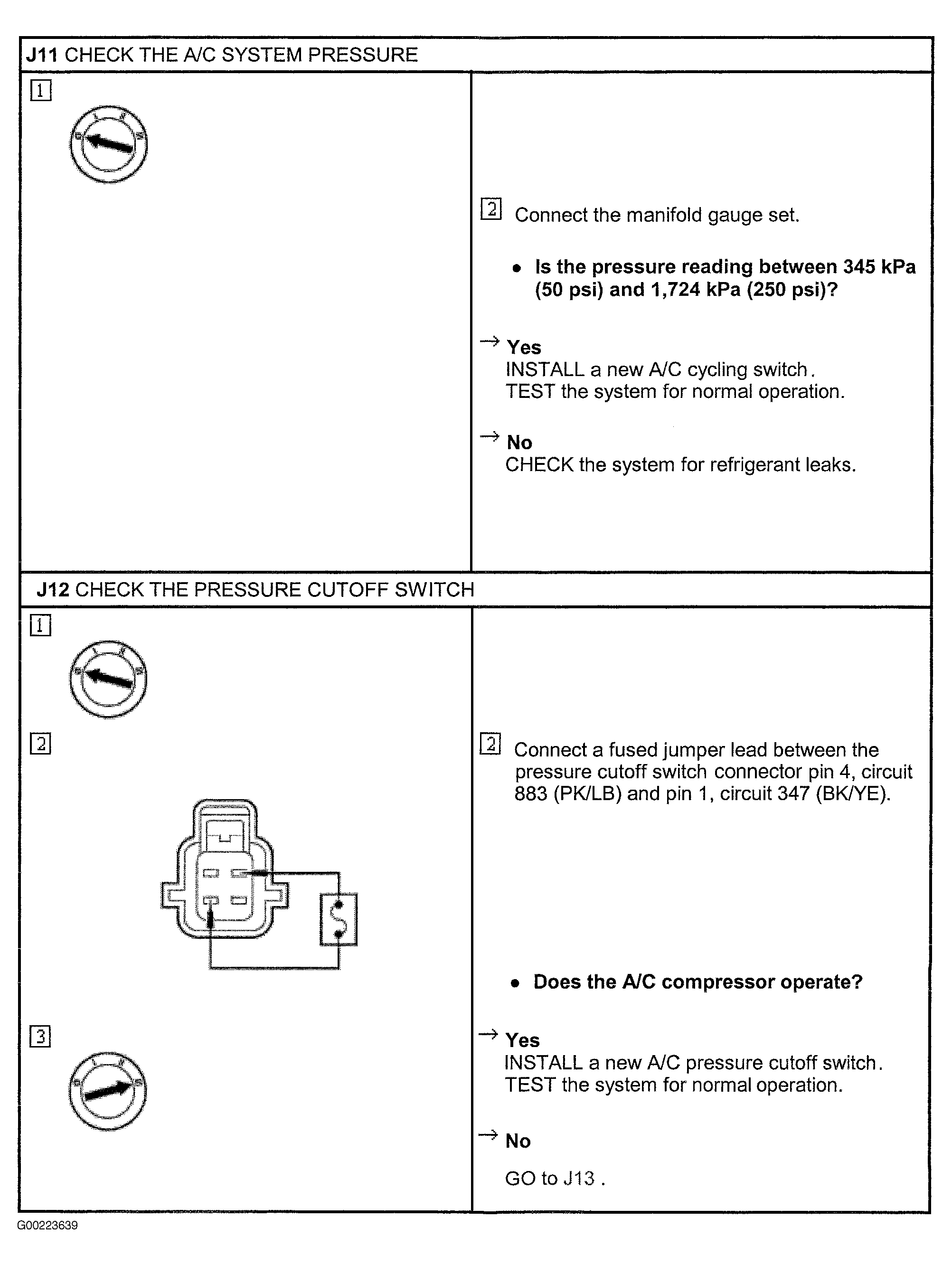

Fig 6: Test J (6 Of 10 - Steps J11-J12)

G00223639

Courtesy of FORD MOTOR CO.

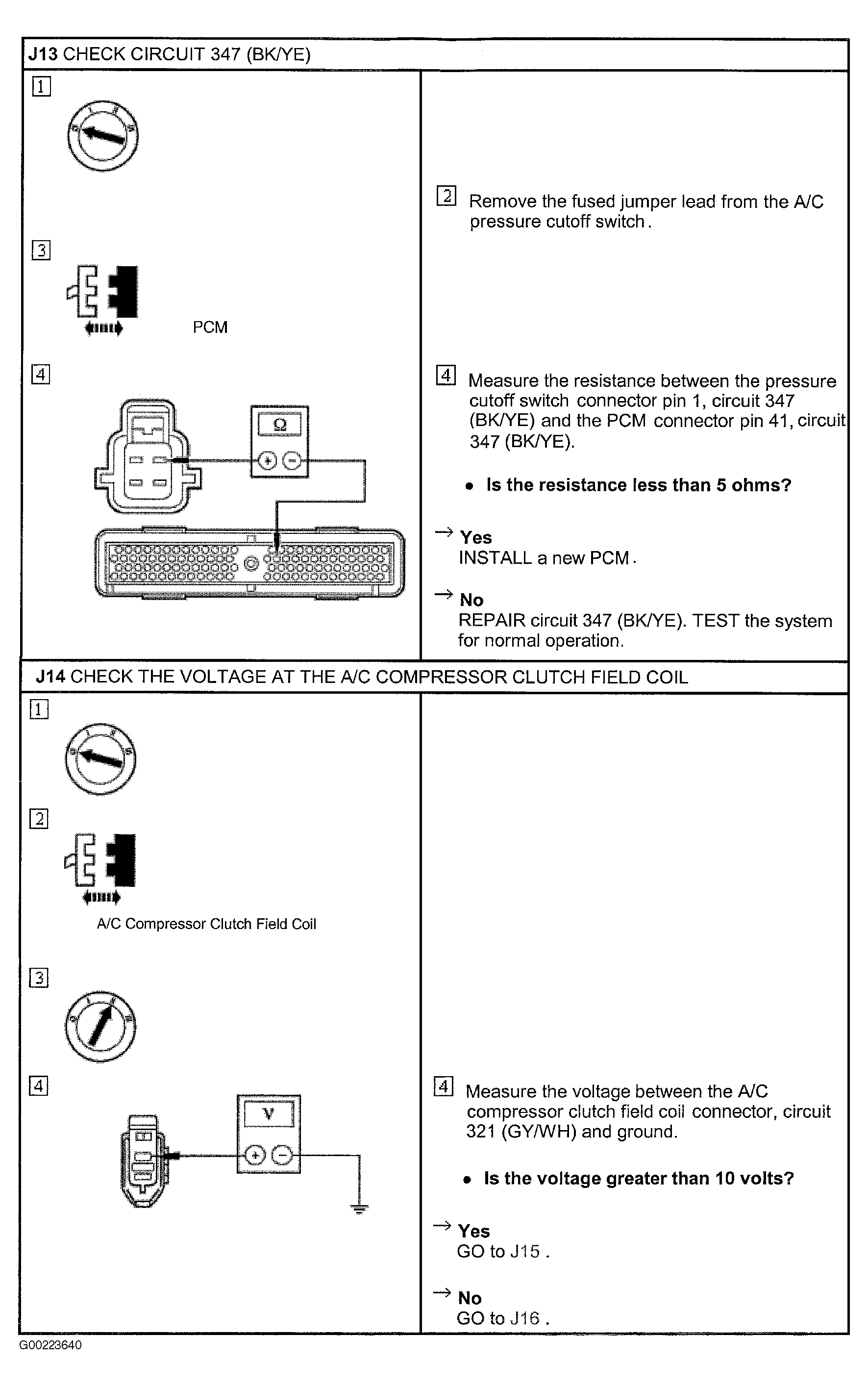

Fig 7: Test J (7 Of 10 - Steps J13-J14)

G00223640

Courtesy of FORD MOTOR CO.

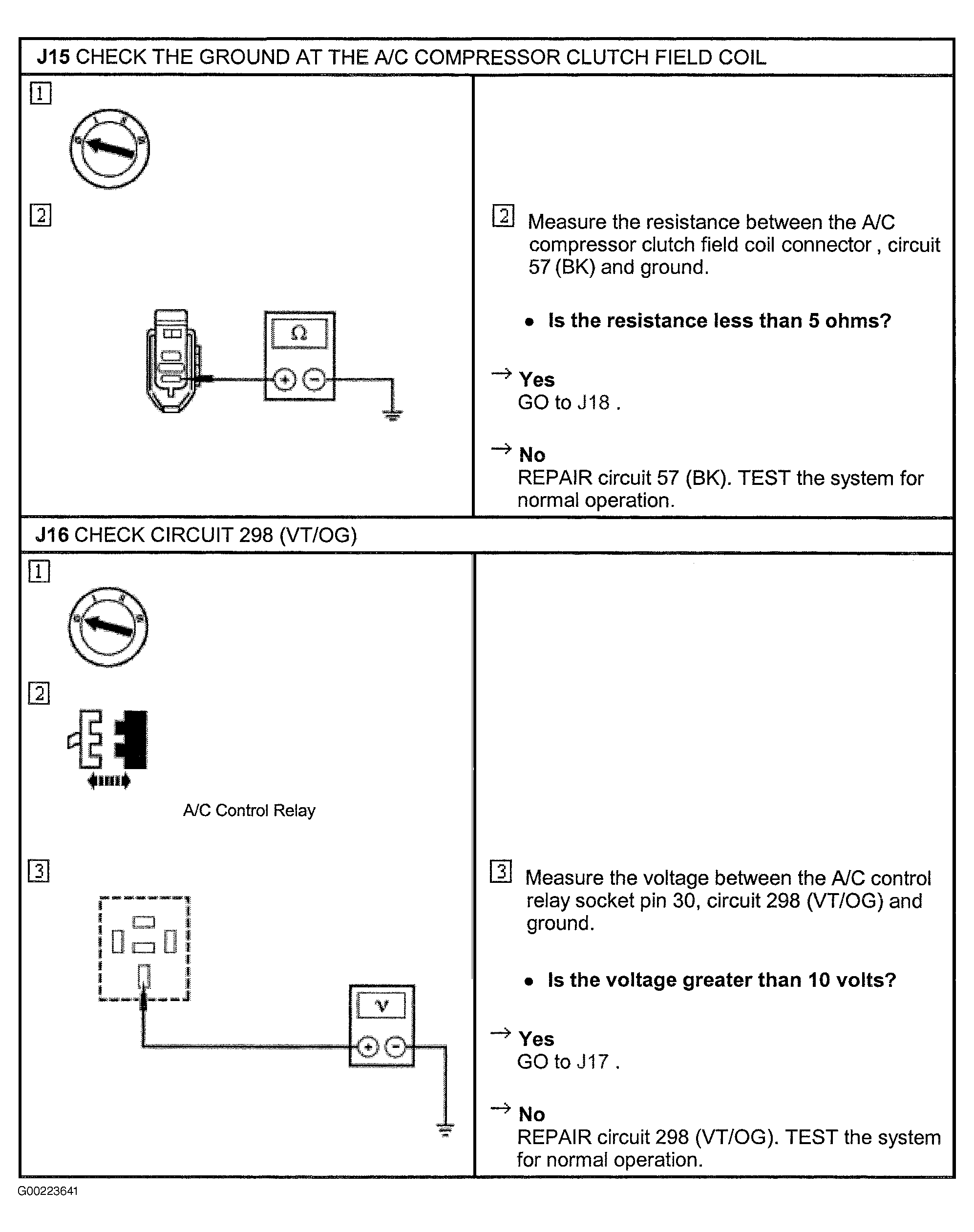

Fig 8: Test J (8 Of 10 - Steps J15-J16)

G00223641

Courtesy of FORD MOTOR CO.

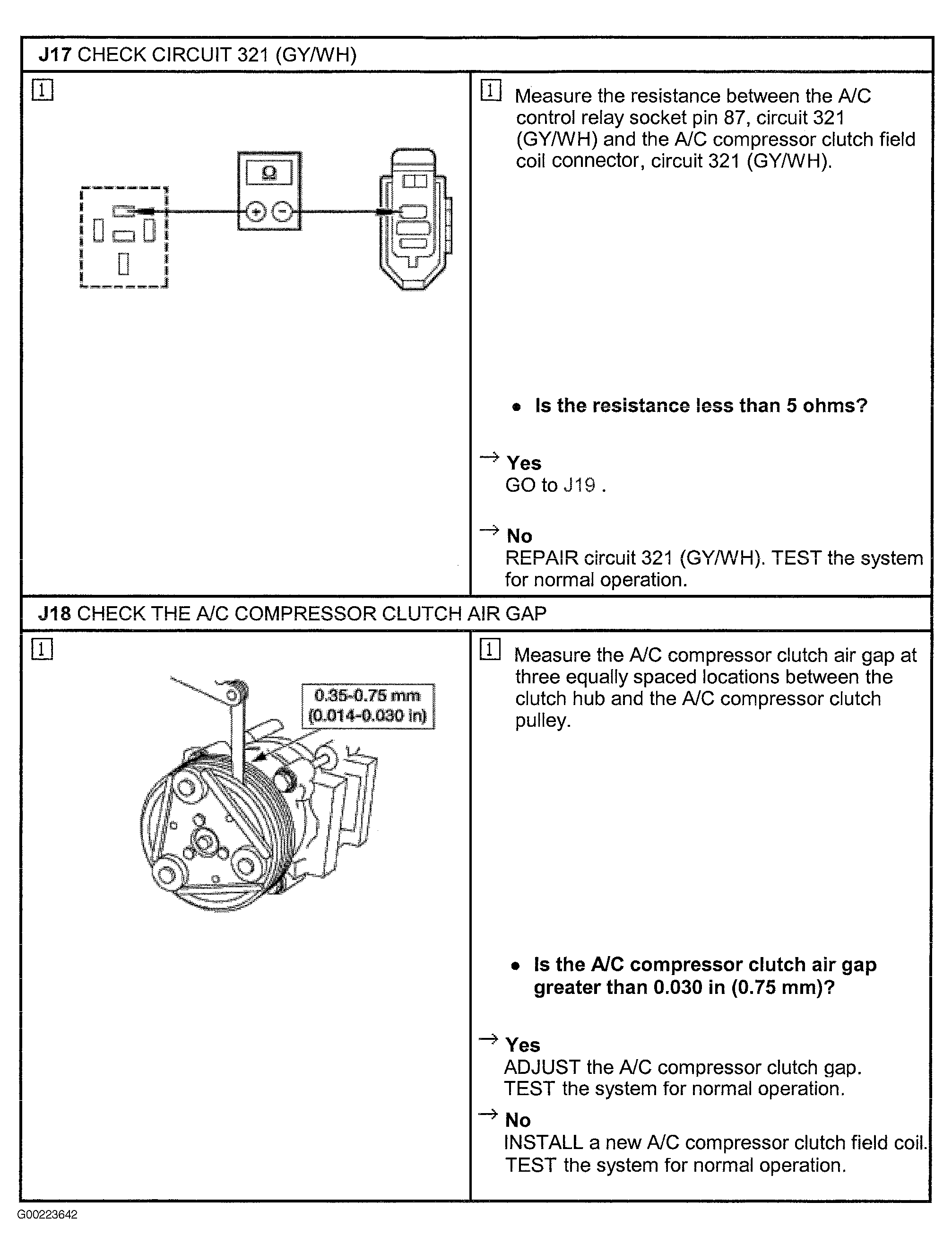

Fig 9: Test J (9 Of 10 - Steps J17-J18)

G00223642

Courtesy of FORD MOTOR CO.

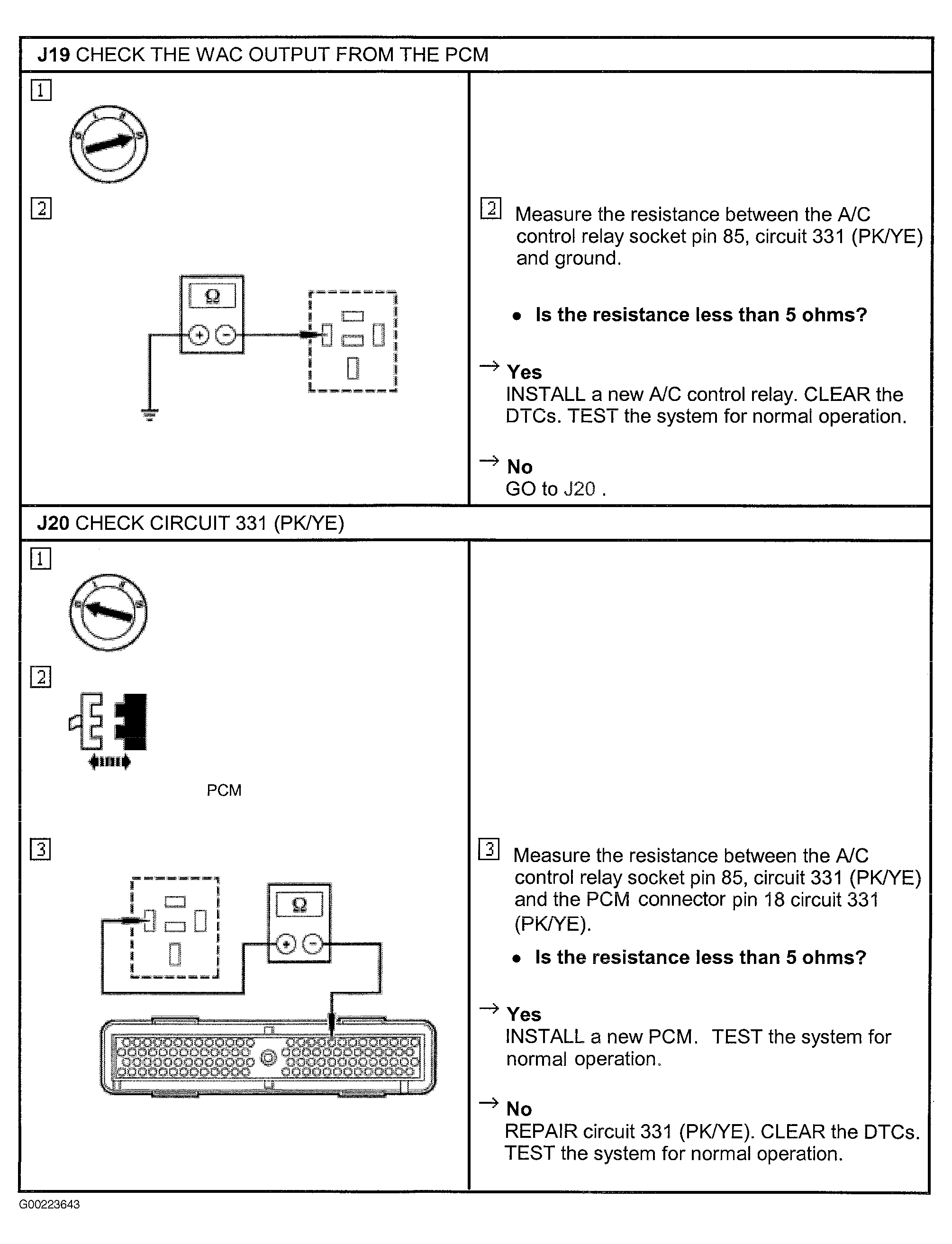

Fig 10: Test J (10 Of 10 - Steps J19-J20)

G00223643

Courtesy of FORD MOTOR CO.
