Diagnostic Procedures

For testing procedure, see Fig 1-Fig 5 .

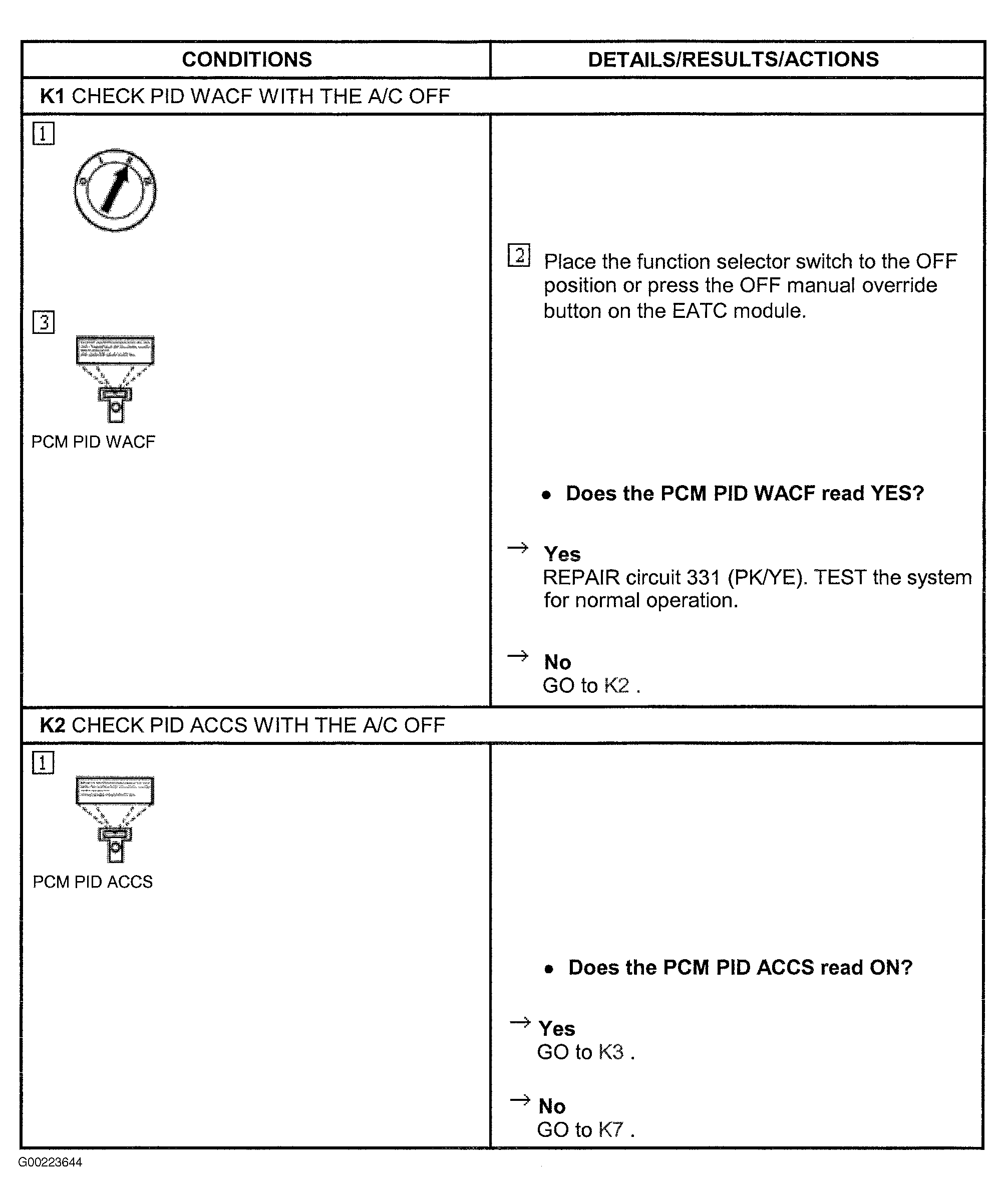

Fig 1: Test K (1 Of 5 - Steps K1-K2)

G00223644

Courtesy of FORD MOTOR CO.

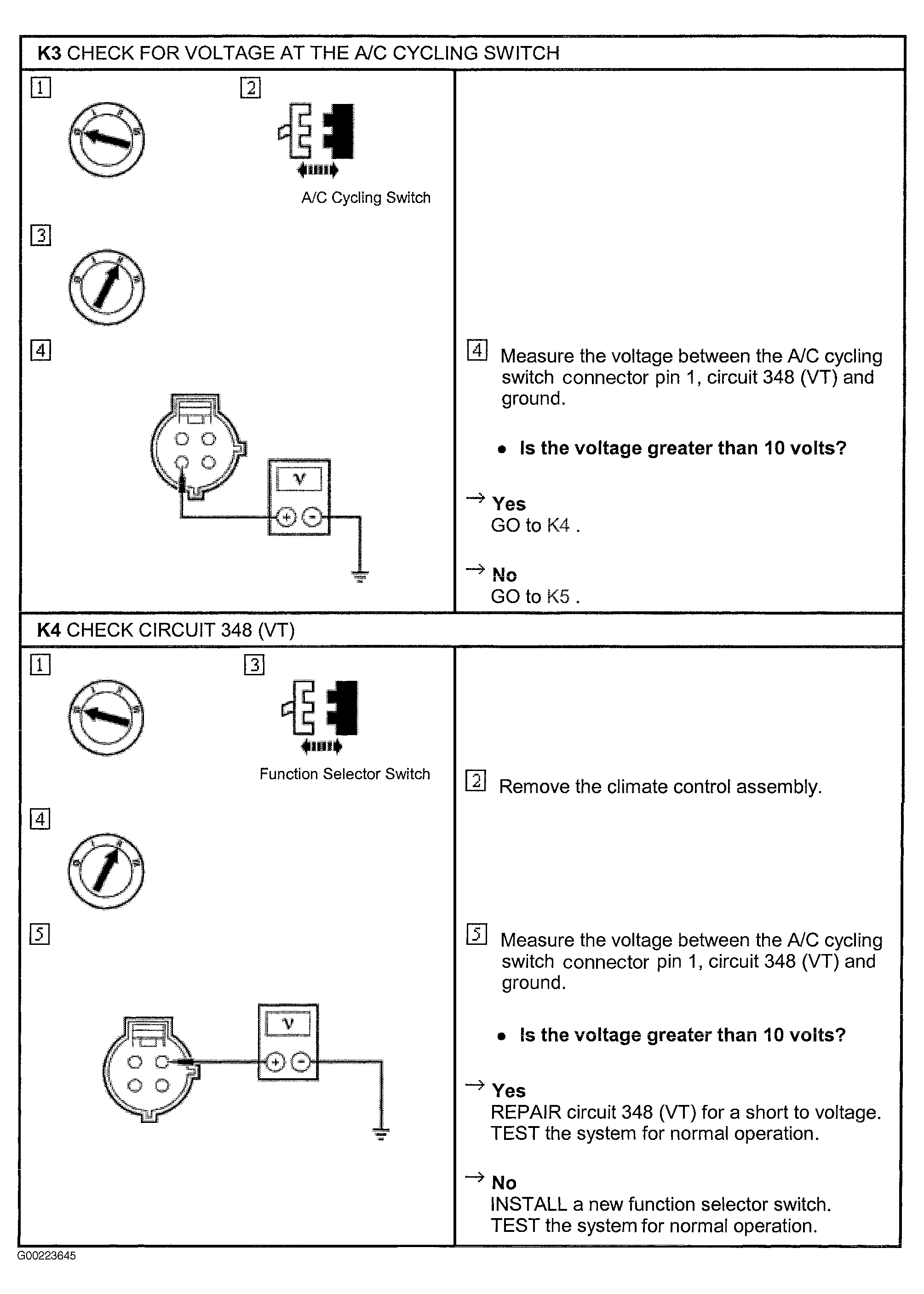

Fig 2: Test K (2 Of 5 - Steps K3-K4)

G00223645

Courtesy of FORD MOTOR CO.

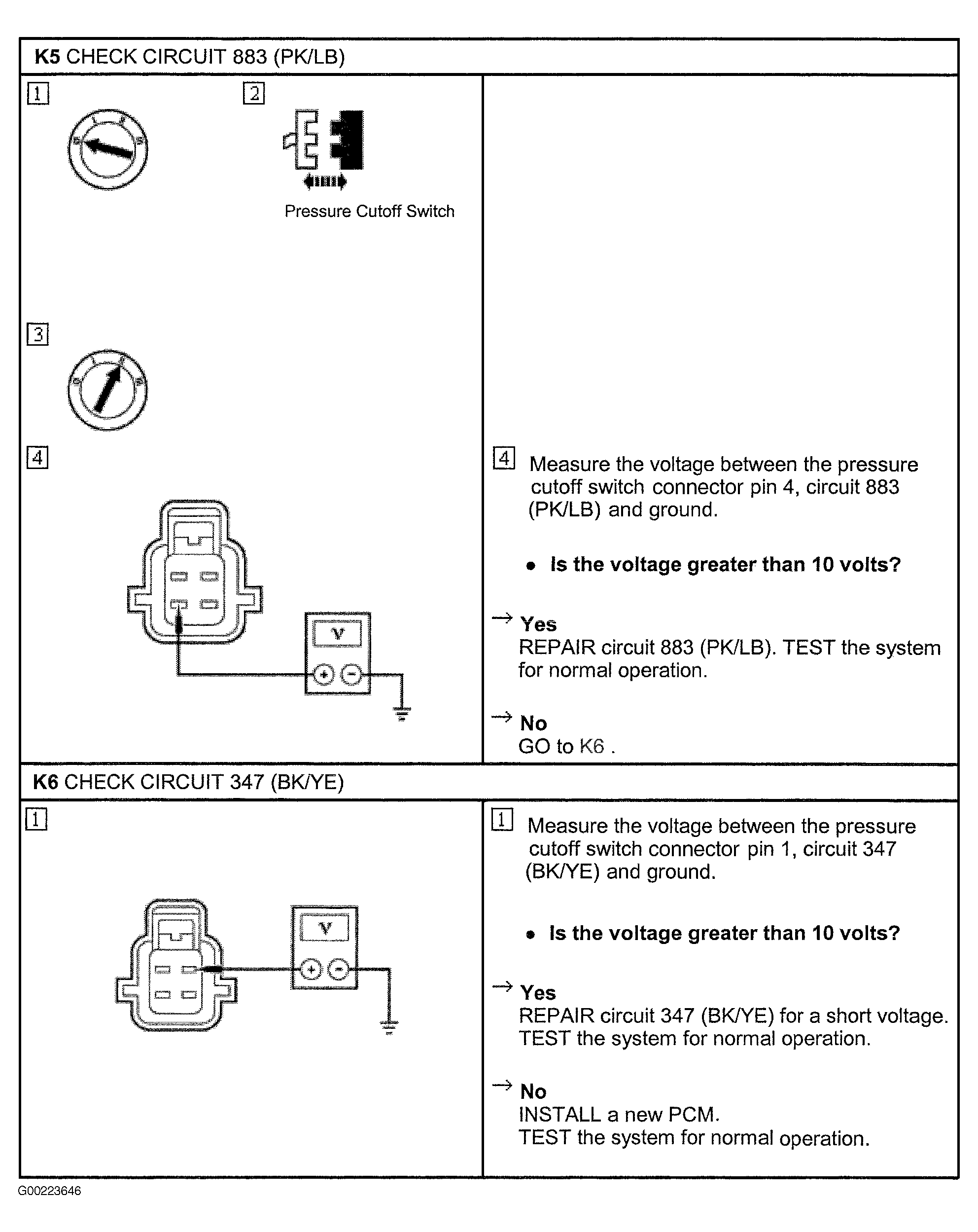

Fig 3: Test K (3 Of 5 - Steps K5-K6)

G00223646

Courtesy of FORD MOTOR CO.

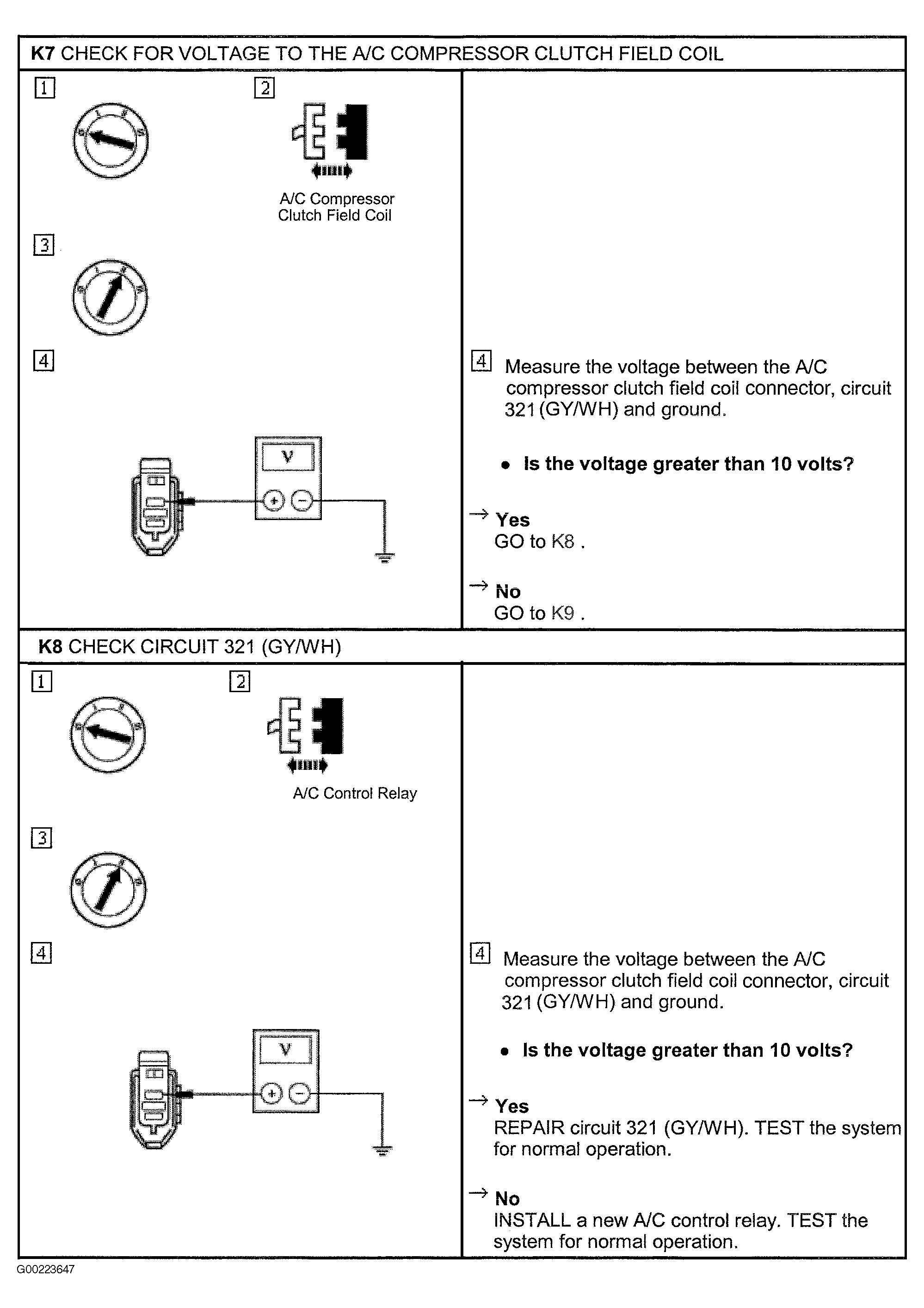

Fig 4: Test K (4 Of 5 - Steps K7-K8)

G00223647

Courtesy of FORD MOTOR CO.

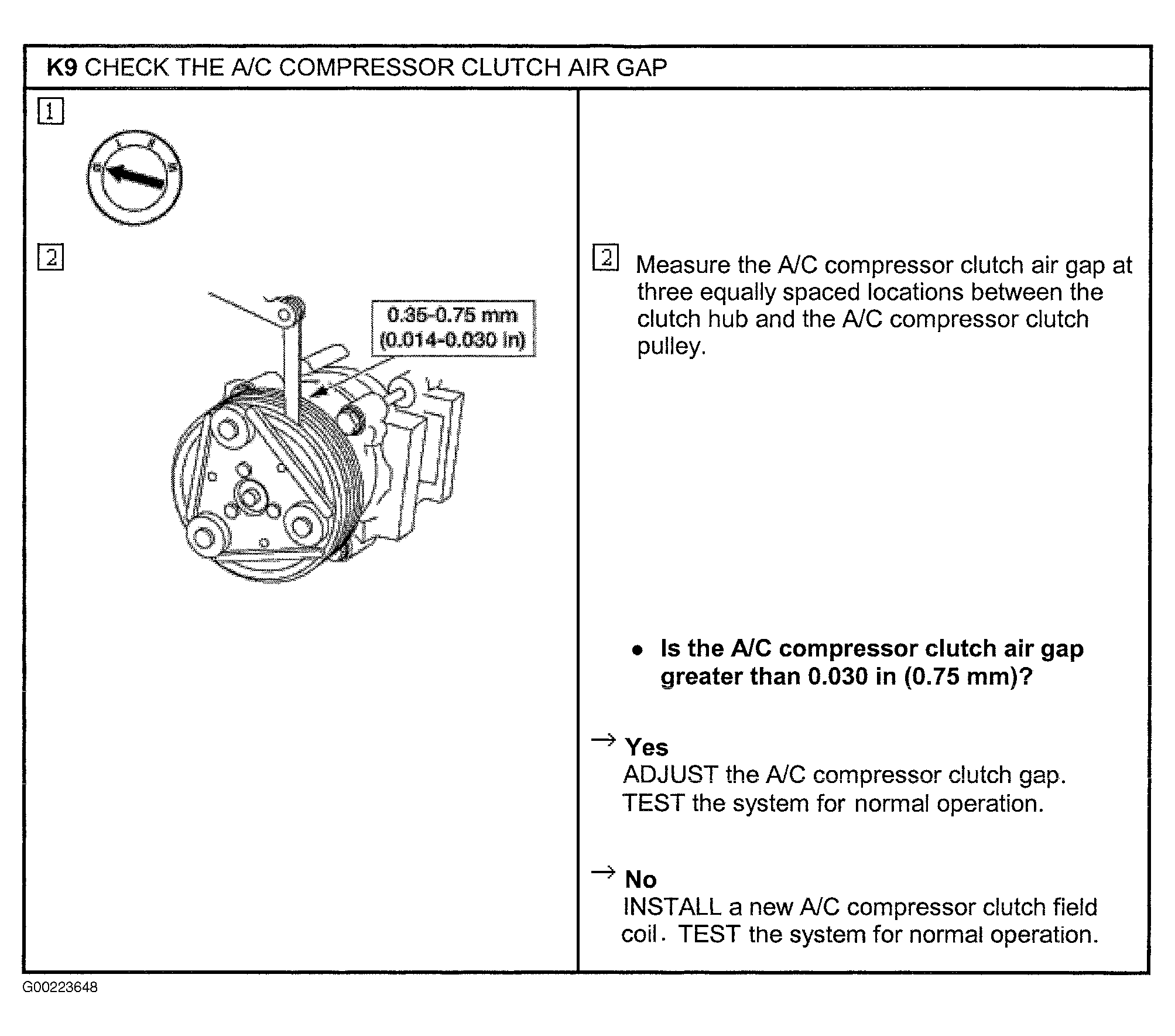

Fig 5: Test K (5 Of 5 - Step K9)

G00223648

Courtesy of FORD MOTOR CO.
