Diagnostic Procedures

For testing procedure, see Fig 1-Fig 6 .

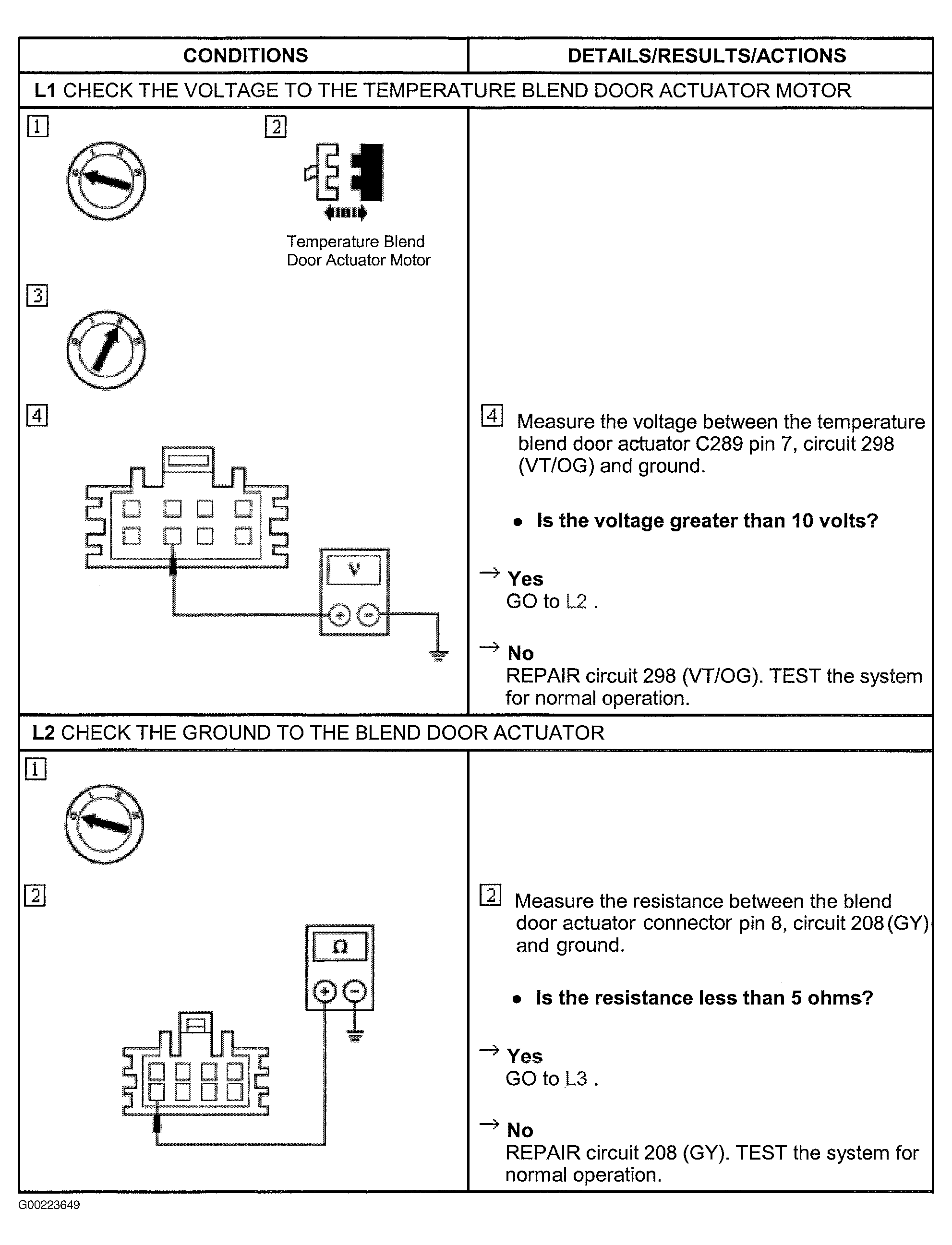

Fig 1: Test L (1 Of 6 - Steps L1-L2)

G00223649

Courtesy of FORD MOTOR CO.

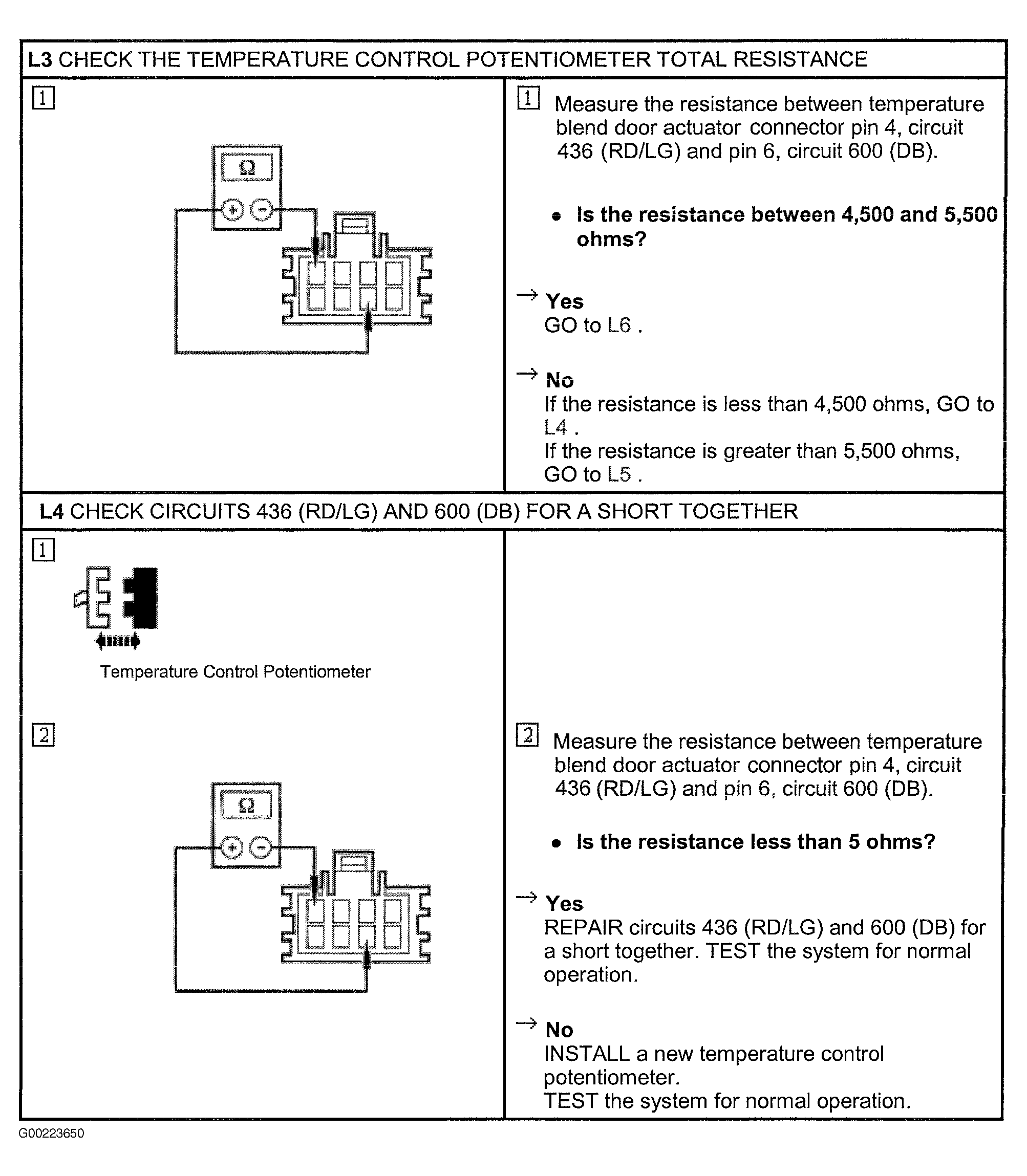

Fig 2: Test L (2 Of 6 - Steps L3-L4)

G00223650

Courtesy of FORD MOTOR CO.

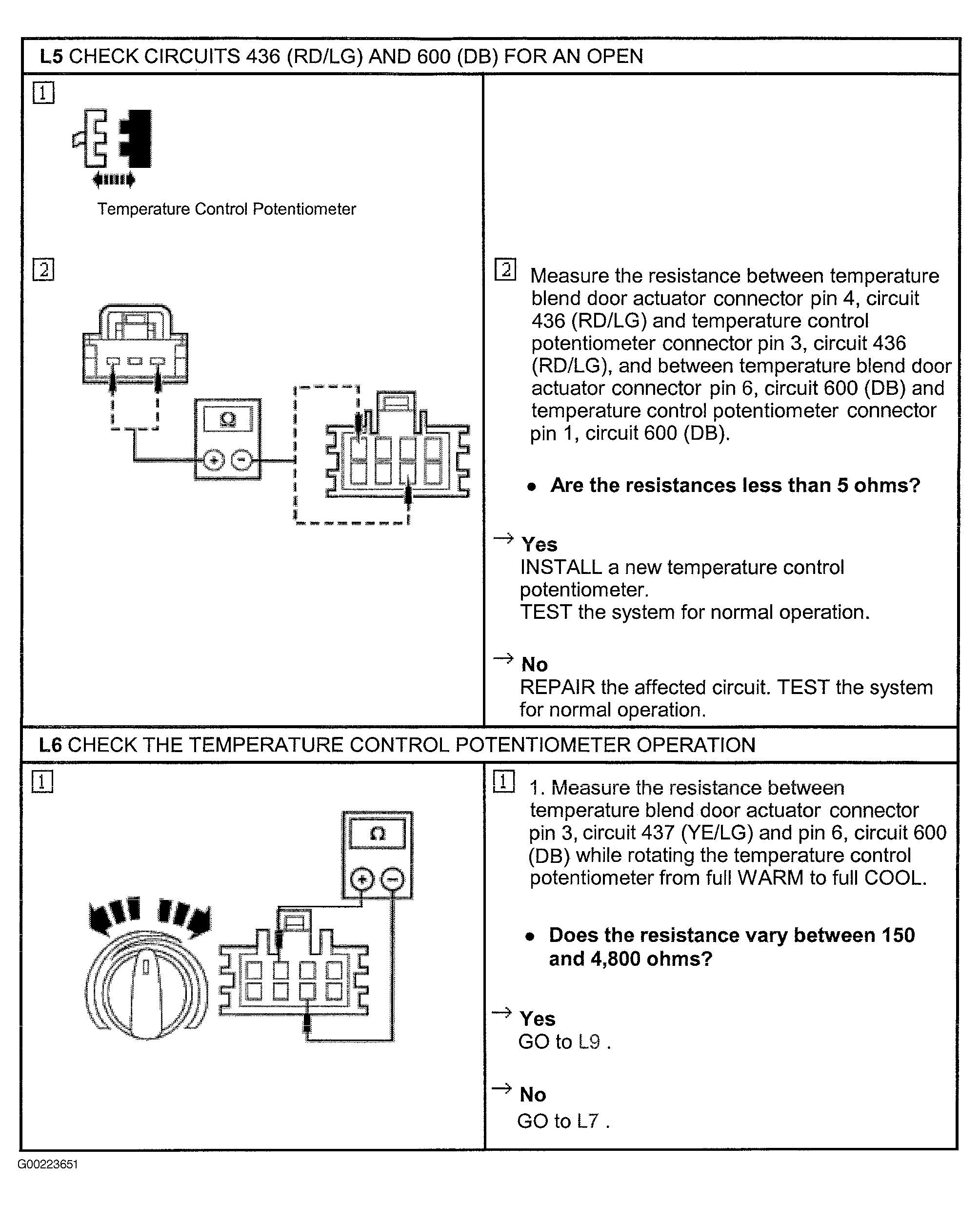

Fig 3: Test L (3 Of 6 - Steps L5-L6)

G00223651

Courtesy of FORD MOTOR CO.

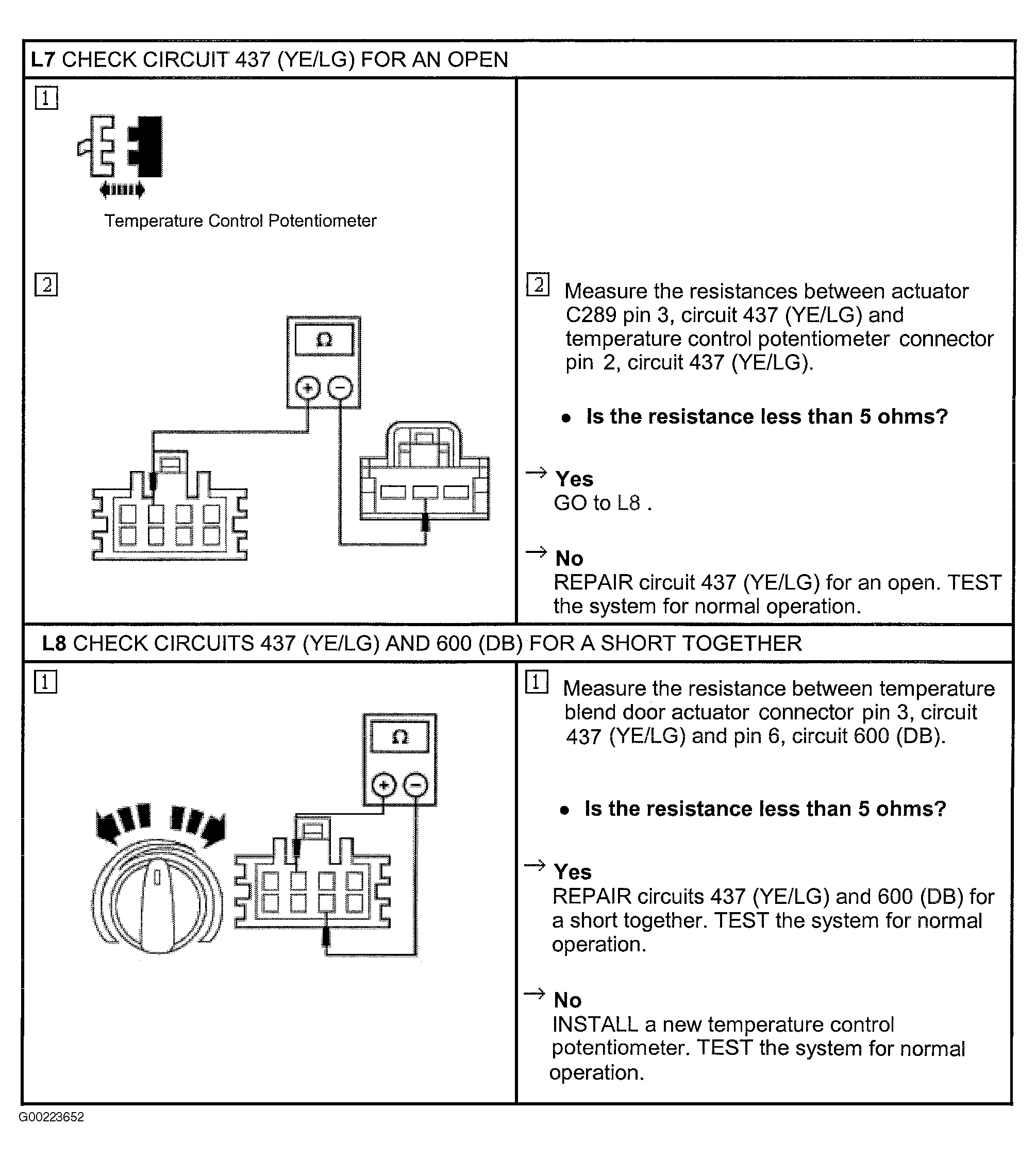

Fig 4: Test L (4 Of 6 - Steps L7-L8)

G00223652

Courtesy of FORD MOTOR CO.

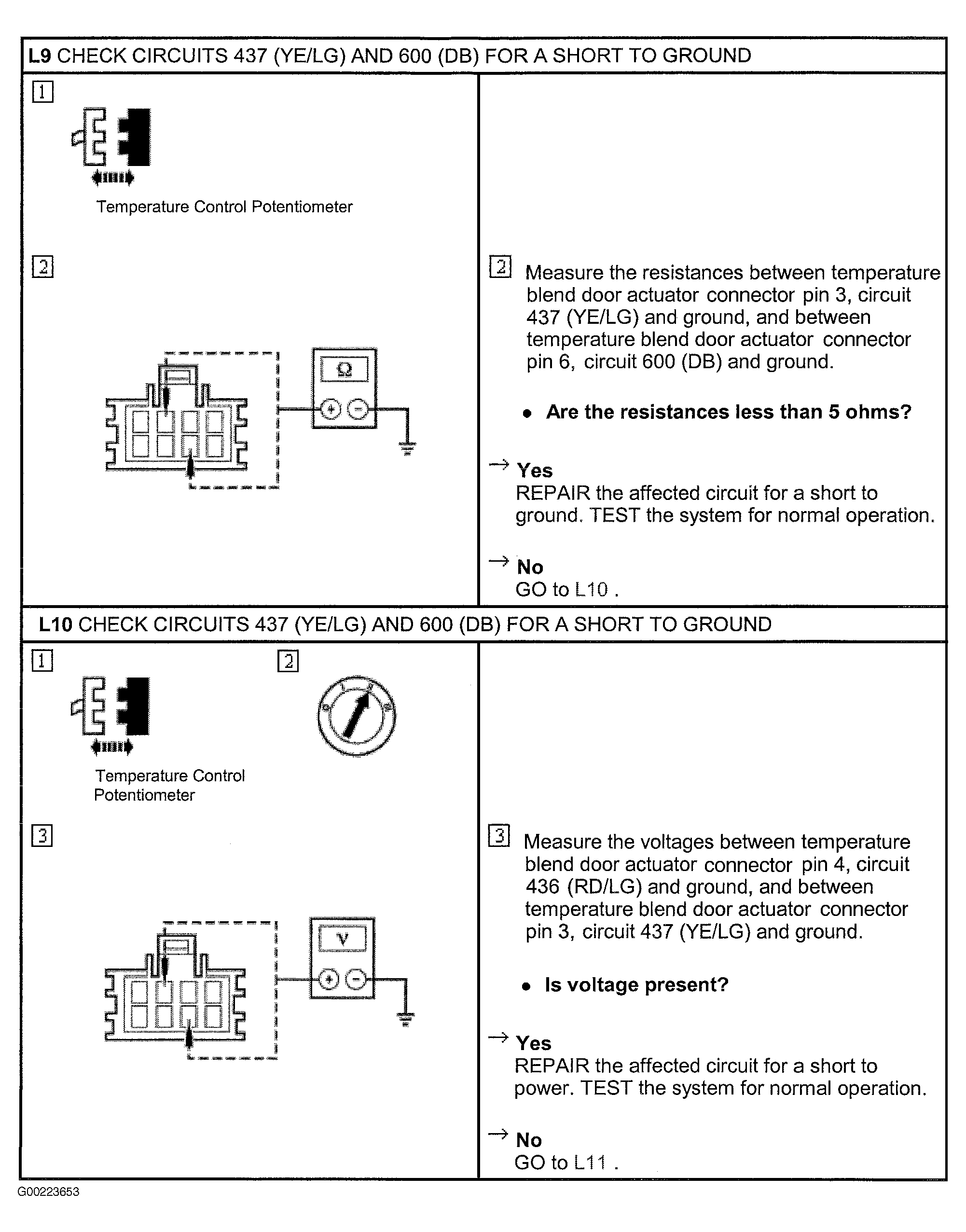

Fig 5: Test L (5 Of 6 - Steps L9-L10)

G00223653

Courtesy of FORD MOTOR CO.

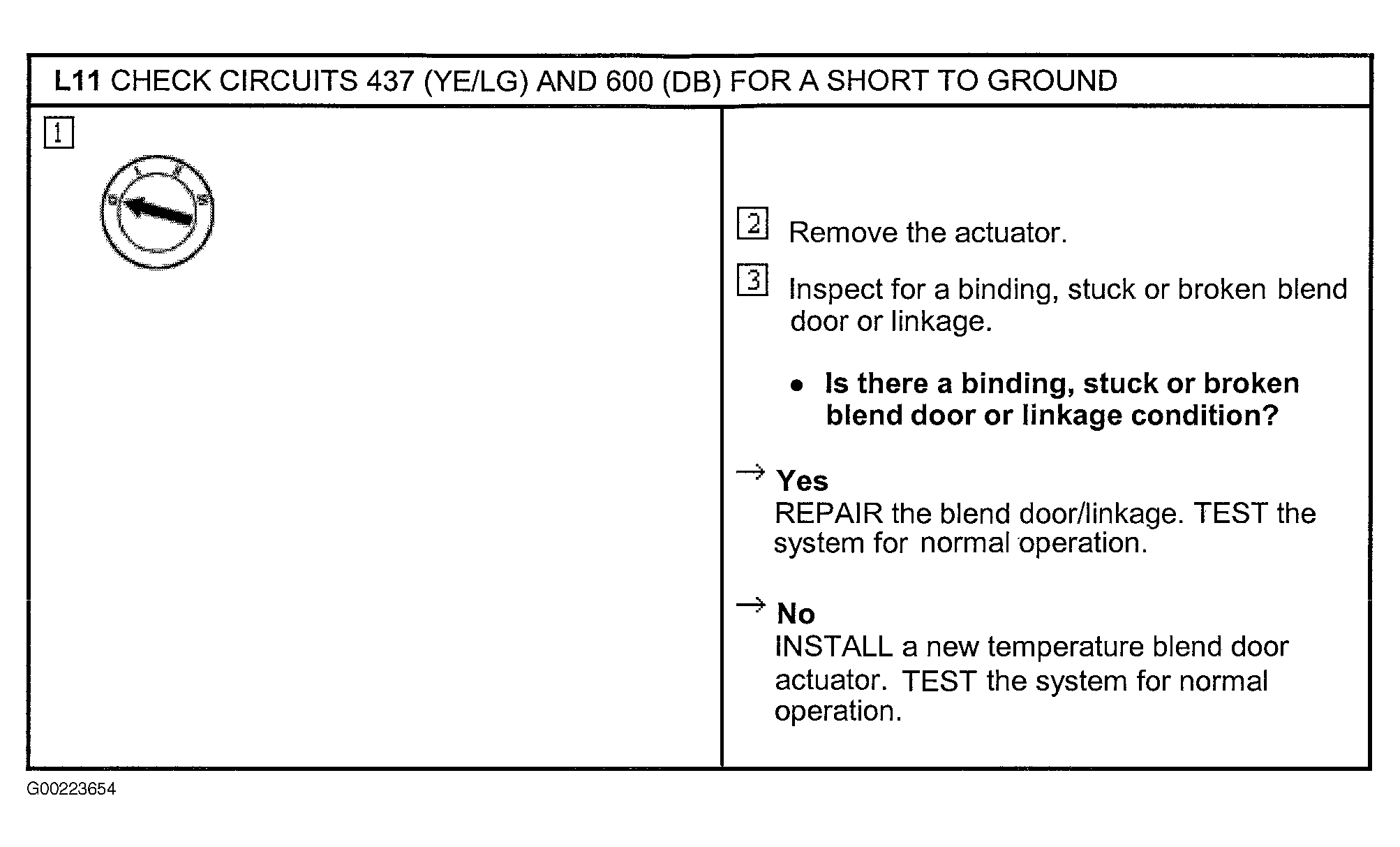

Fig 6: Test L (6 Of 6 - Step L11)

G00223654

Courtesy of FORD MOTOR CO.
