Lamp Switch - Brake Pedal Position (BPP): Removal

Disconnect the battery ground cable. For additional information, refer to GENERATORS & REGULATORS .
Remove LH instrument panel insulator.
1. Remove the pin-type retainers.
2. Remove the LH instrument panel insulator.
  - Disconnect the courtesy lamp.

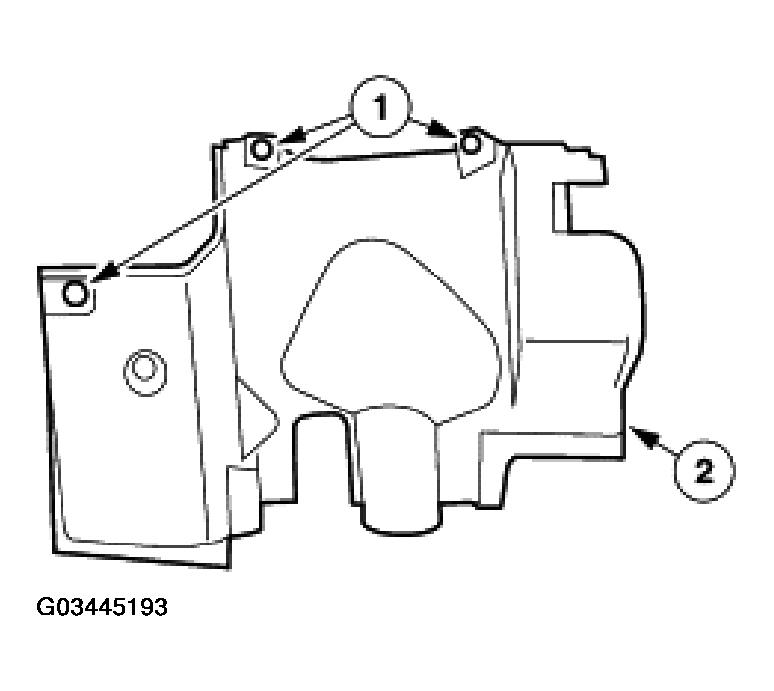

Fig 1: Removing LH Instrument Panel Insulator
Courtesy of FORD MOTOR CO.
Disconnect the brake pedal position (BPP) switch electrical connector.

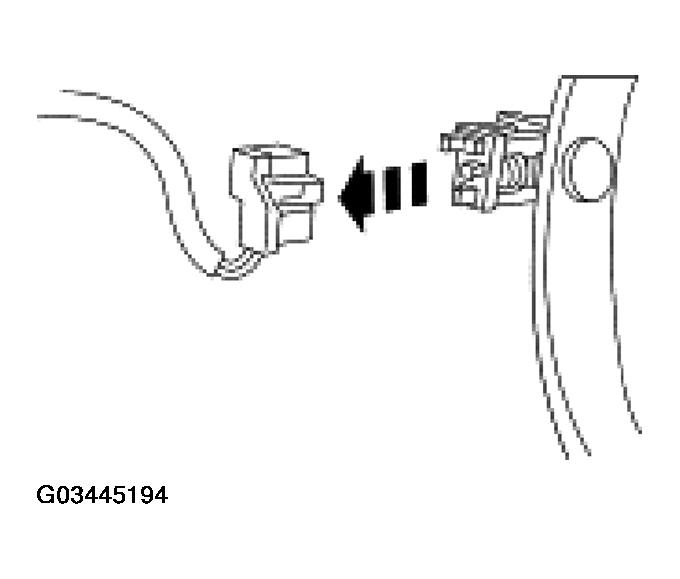

Fig 2: Disconnecting Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the BPP switch.
1. Remove the self-locking pin.
2. Remove the (A) BPP switch from the (B) brake master cylinder push rod.
3. Remove the brake master cylinder push rod spacer.
4. Remove the brake master cylinder push rod bushing.

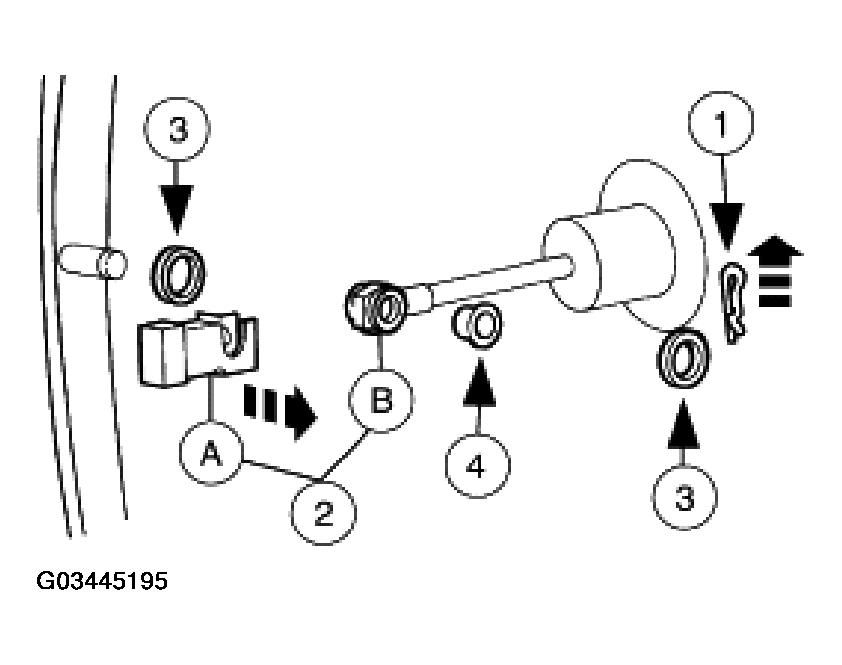

Fig 3: Removing BPP Switch
Courtesy of FORD MOTOR CO.
