Diagnostic Procedures

For testing procedure, see Fig 1-Fig 3 .

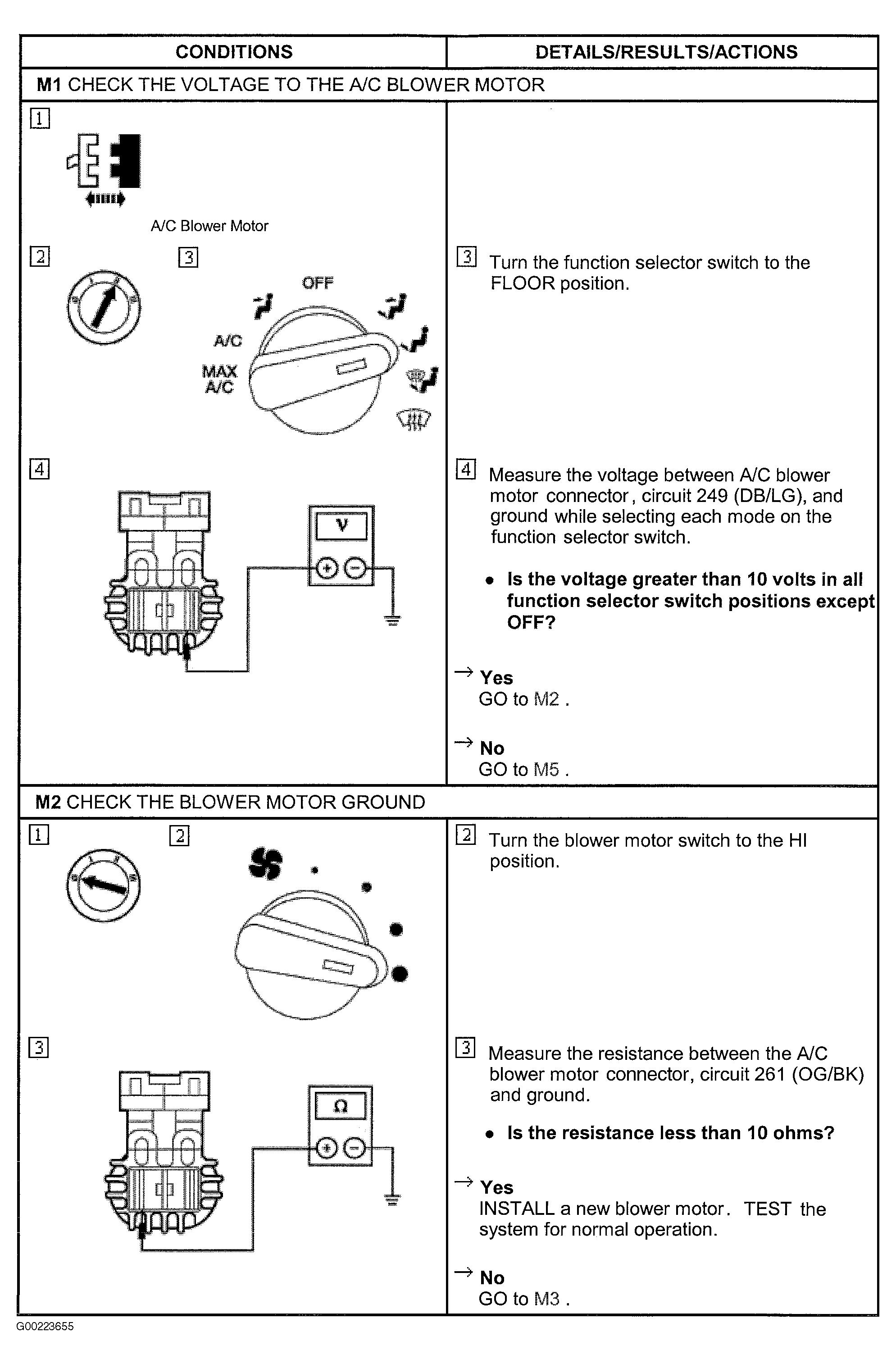

Fig 1: Test M (1 Of 3 - Steps M1-M2)
G00223655Courtesy of FORD MOTOR CO.

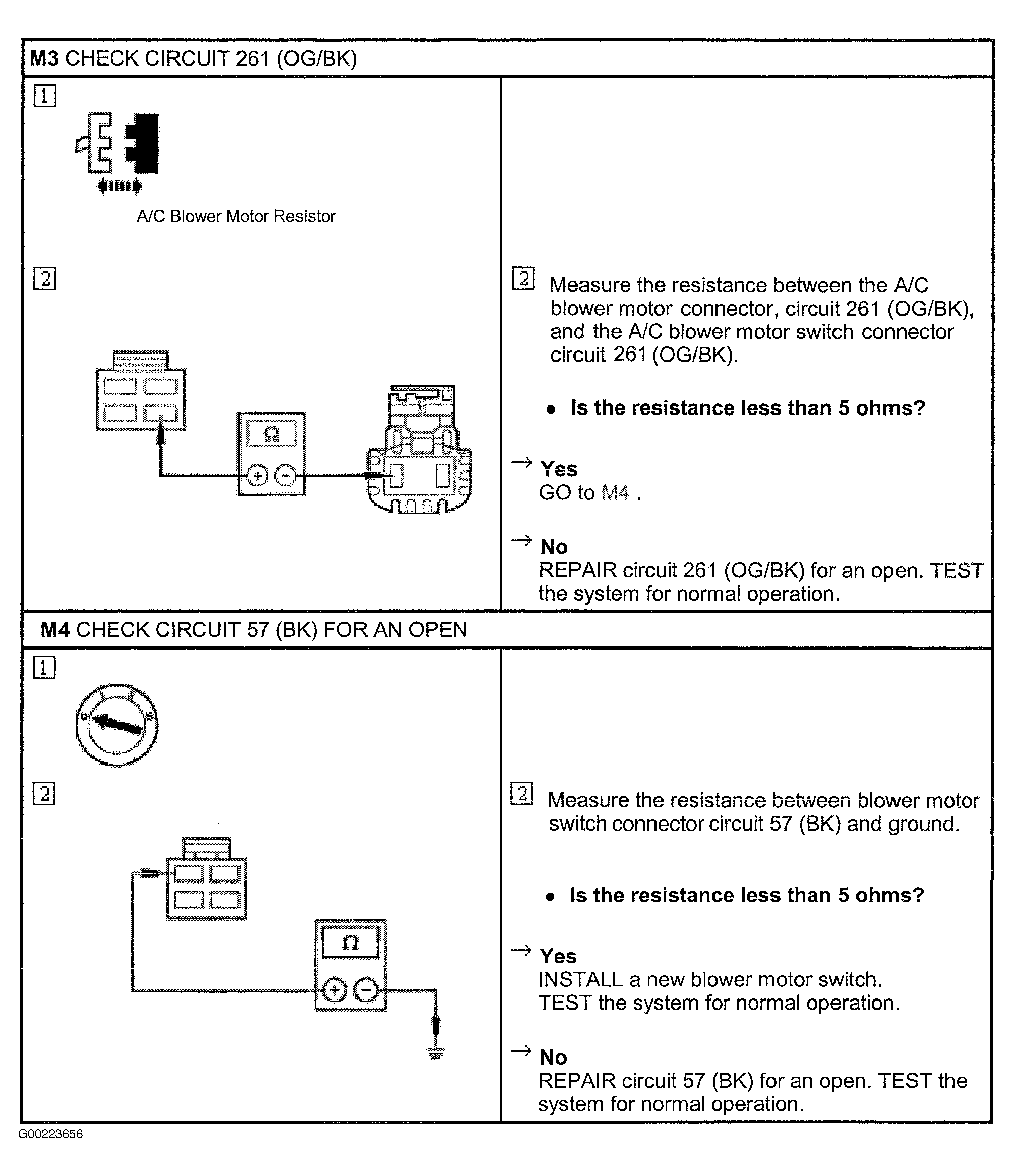

Fig 2: Test M (2 Of 3 - Steps M3-M4)
G00223656Courtesy of FORD MOTOR CO.

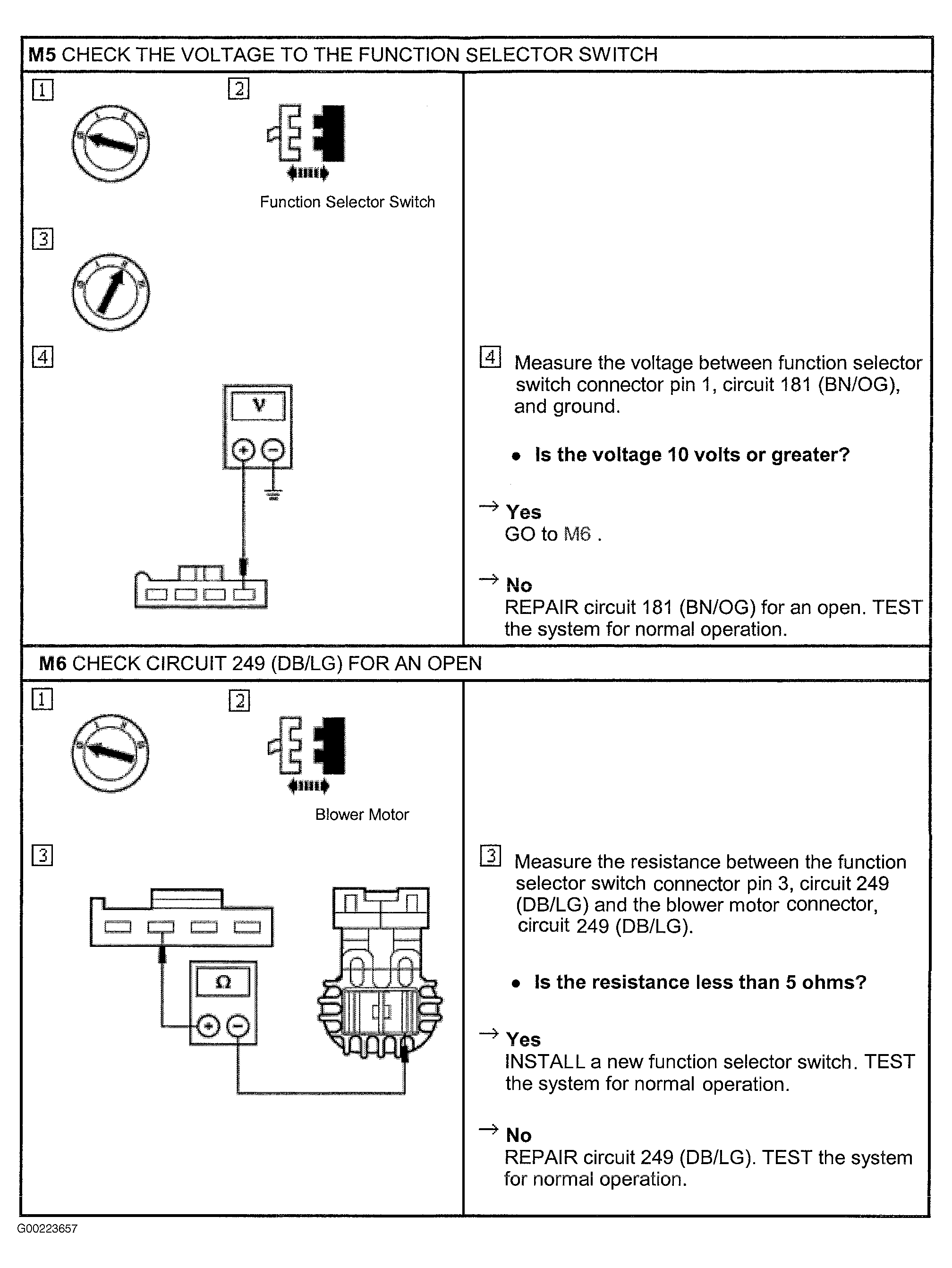

Fig 3: Test M (3 Of 3 - Steps M5-M6)
G00223657Courtesy of FORD MOTOR CO.
