Diagnostic Procedures

For testing procedure, see Fig 1-Fig 2 .

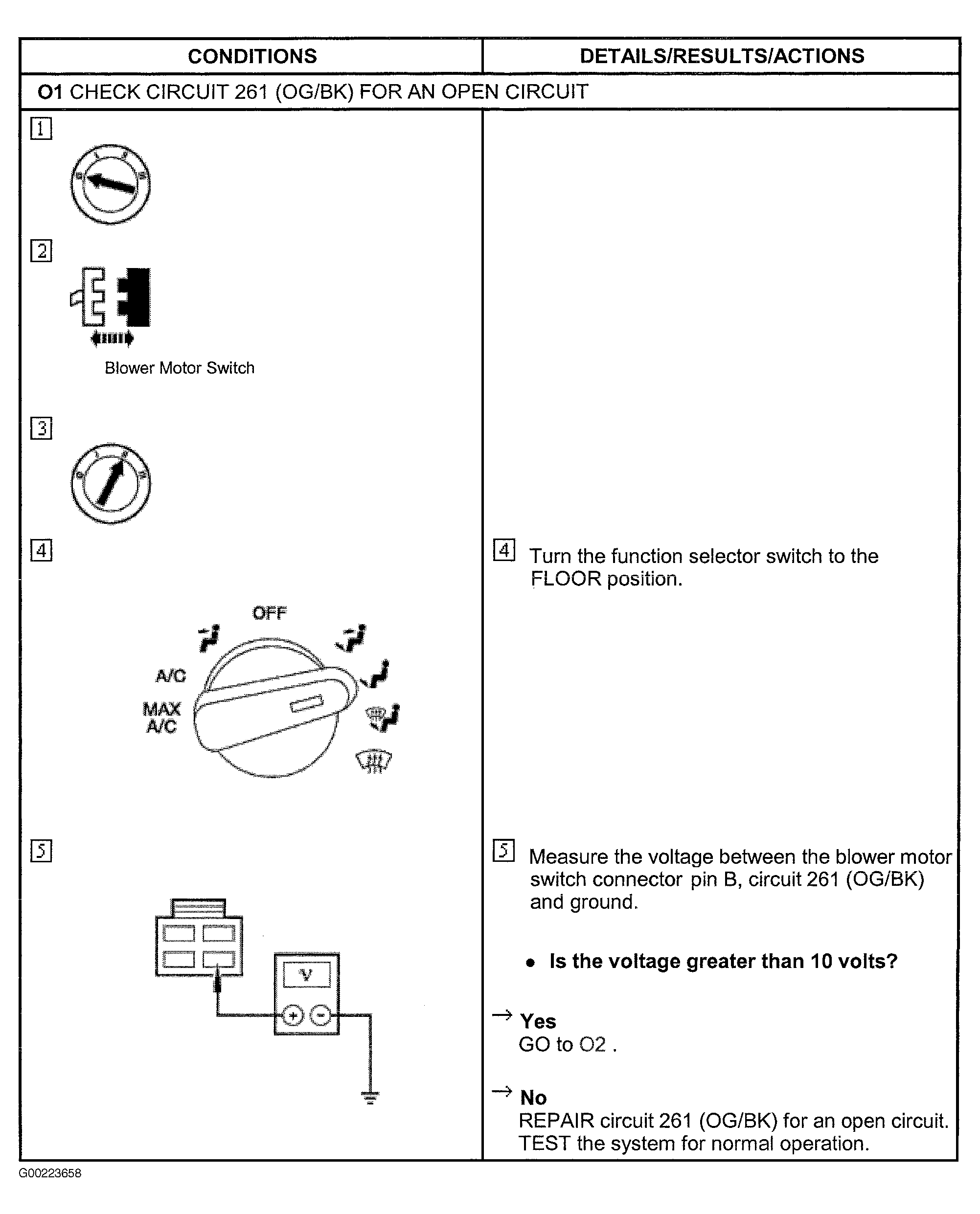

Fig 1: Test O (1 Of 2 - Step O1)
G00223658Courtesy of FORD MOTOR CO.

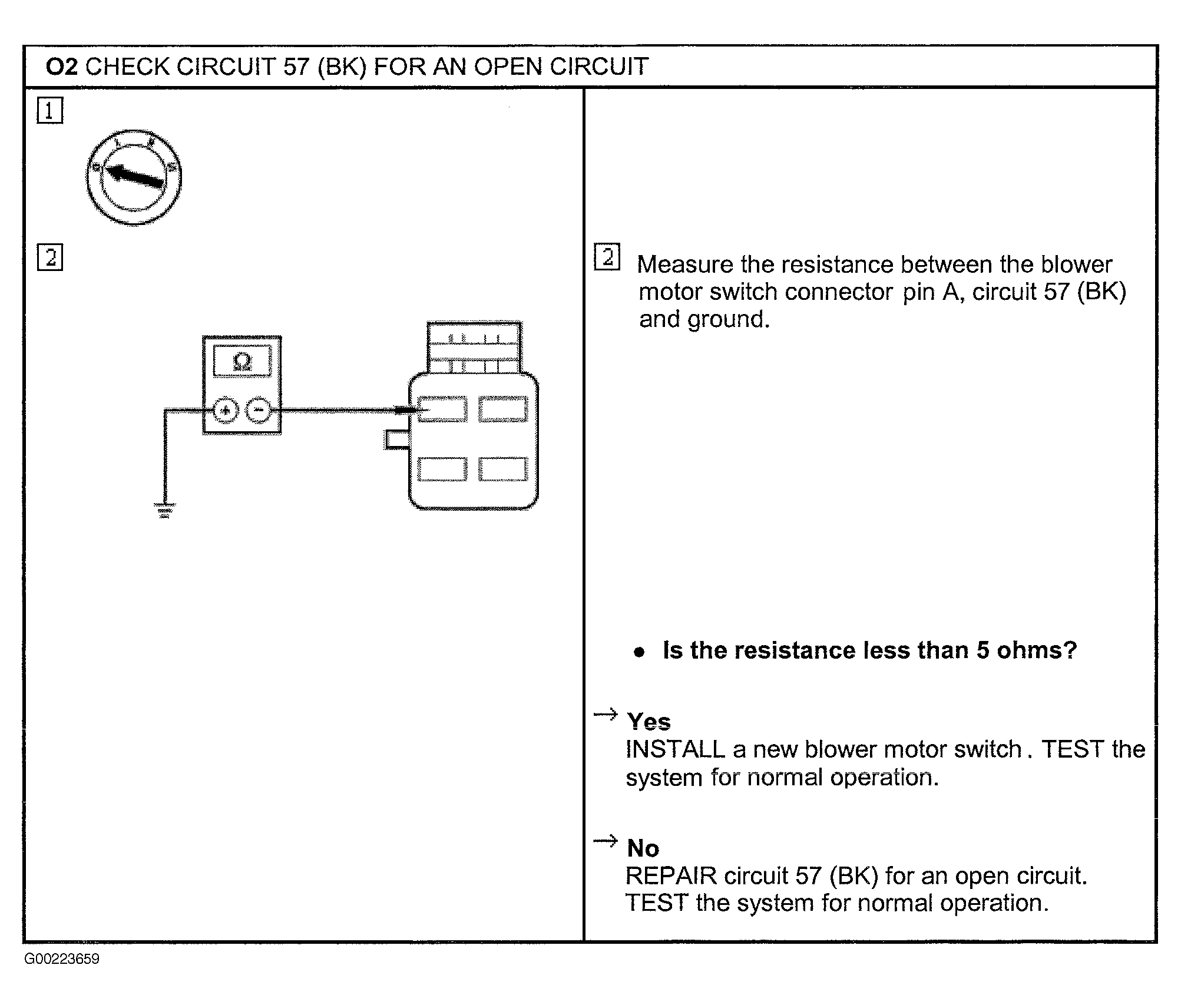

Fig 2: Test O (2 Of 2 - Step O2)
G00223659Courtesy of FORD MOTOR CO.
