Diagnostic Procedures

For testing procedure, see Fig 1-Fig 3 .

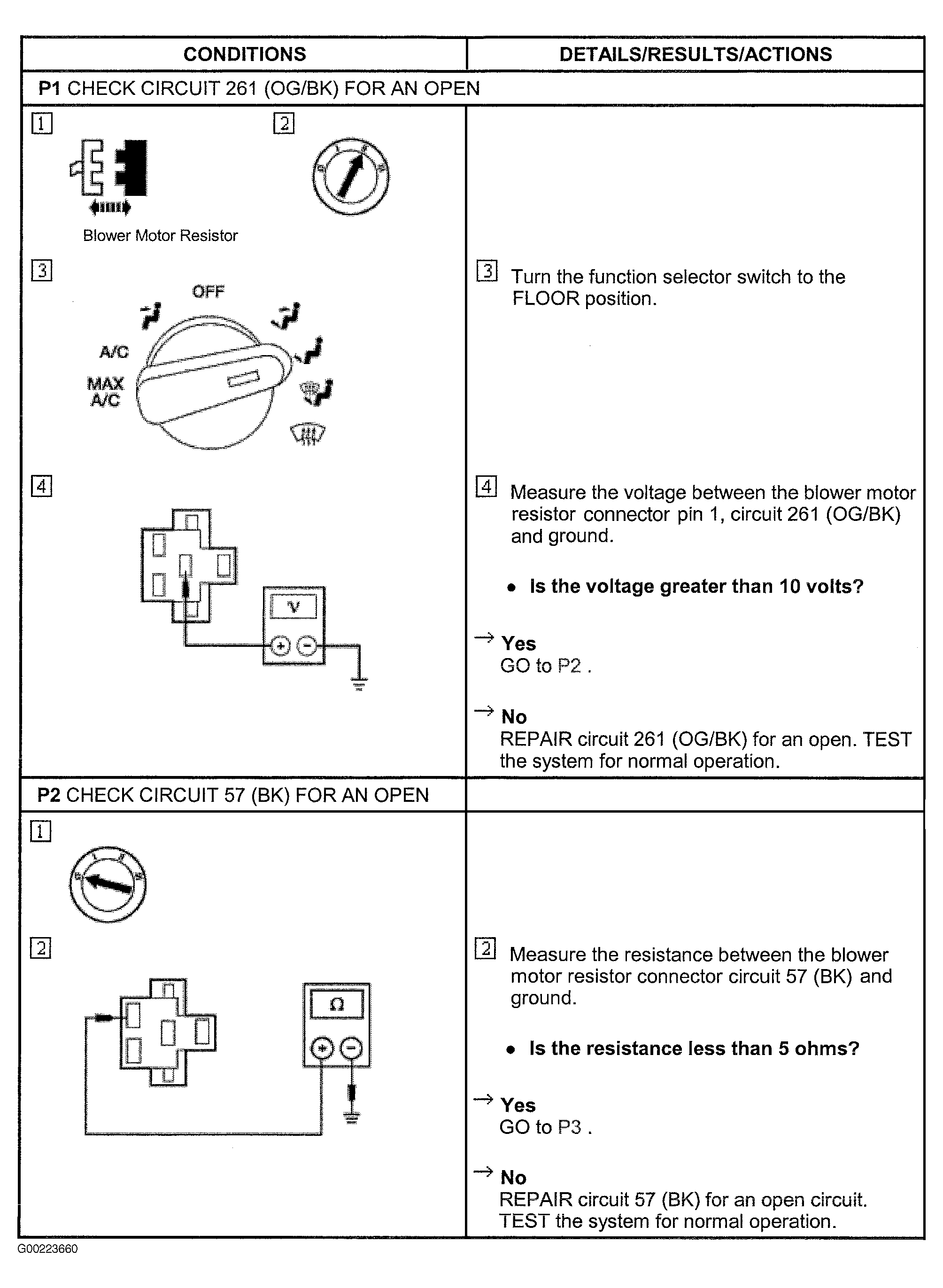

Fig 1: Test P (1 Of 3 - Steps P1-P2)
G00223660Courtesy of FORD MOTOR CO.

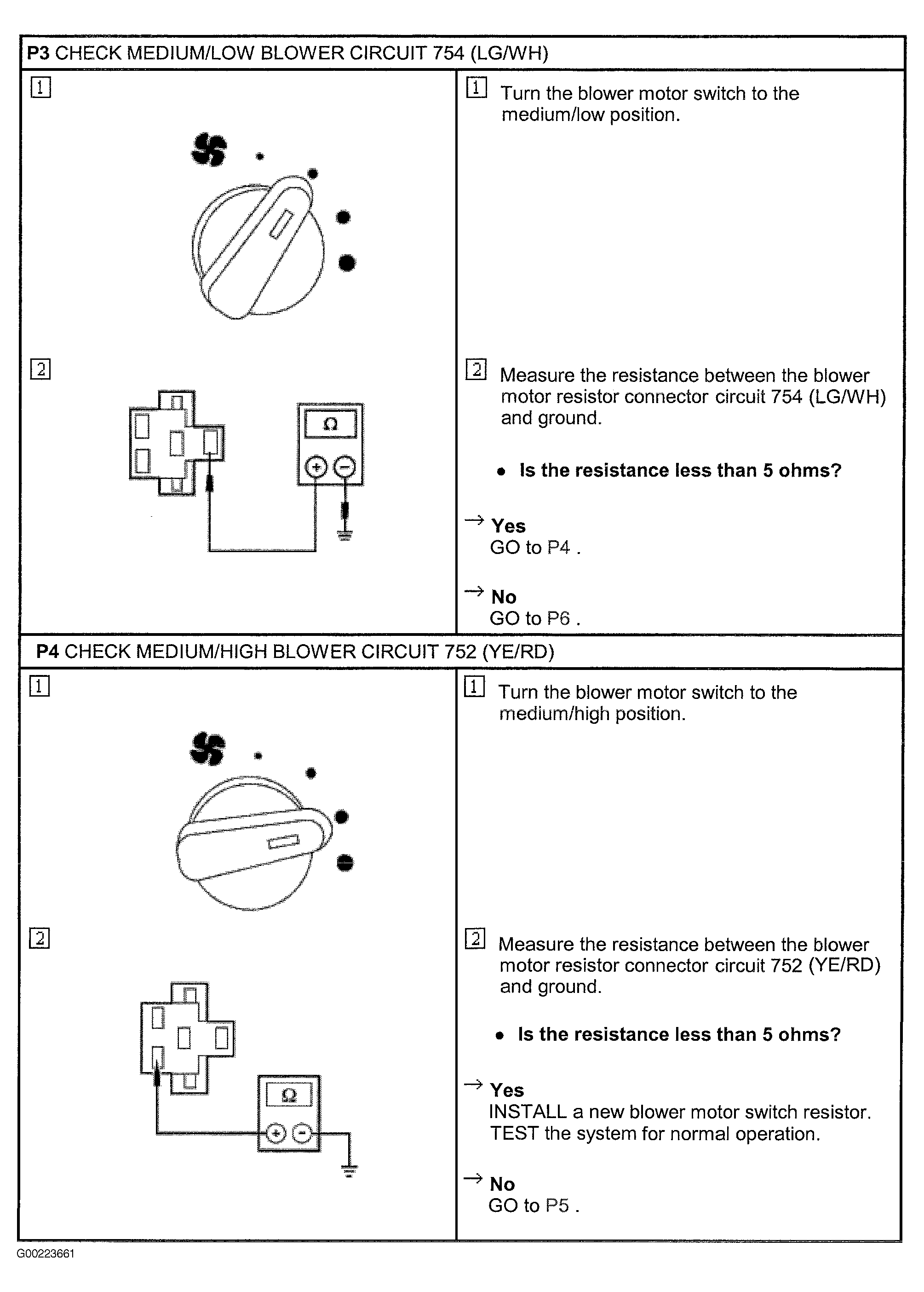

Fig 2: Test P (2 Of 3 - Steps P3-P4)
G00223661Courtesy of FORD MOTOR CO.

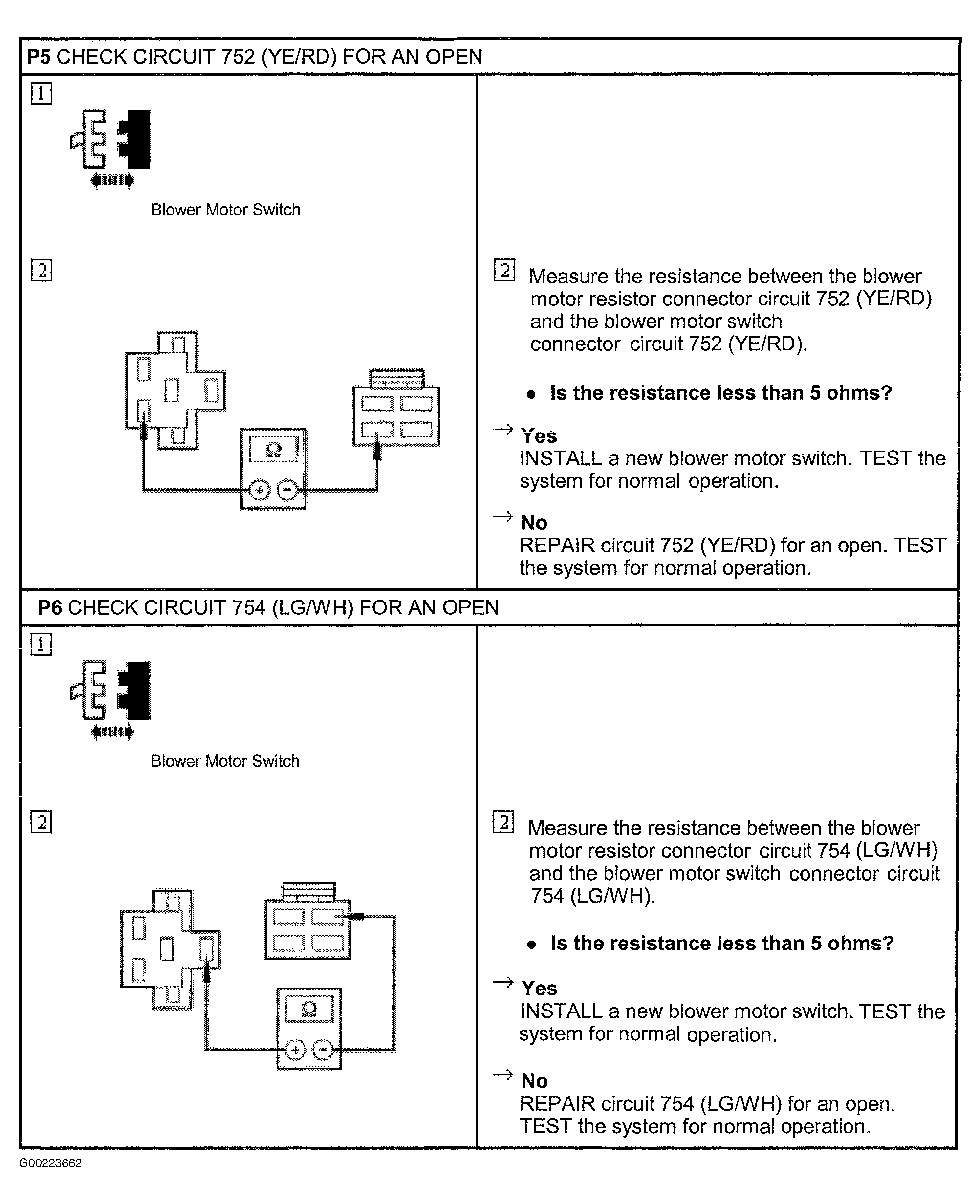

Fig 3: Test P (3 Of 3 - Steps P5-P6)
G00223662Courtesy of FORD MOTOR CO.
