Diagnostic Procedures

For testing procedure, see Fig 1.

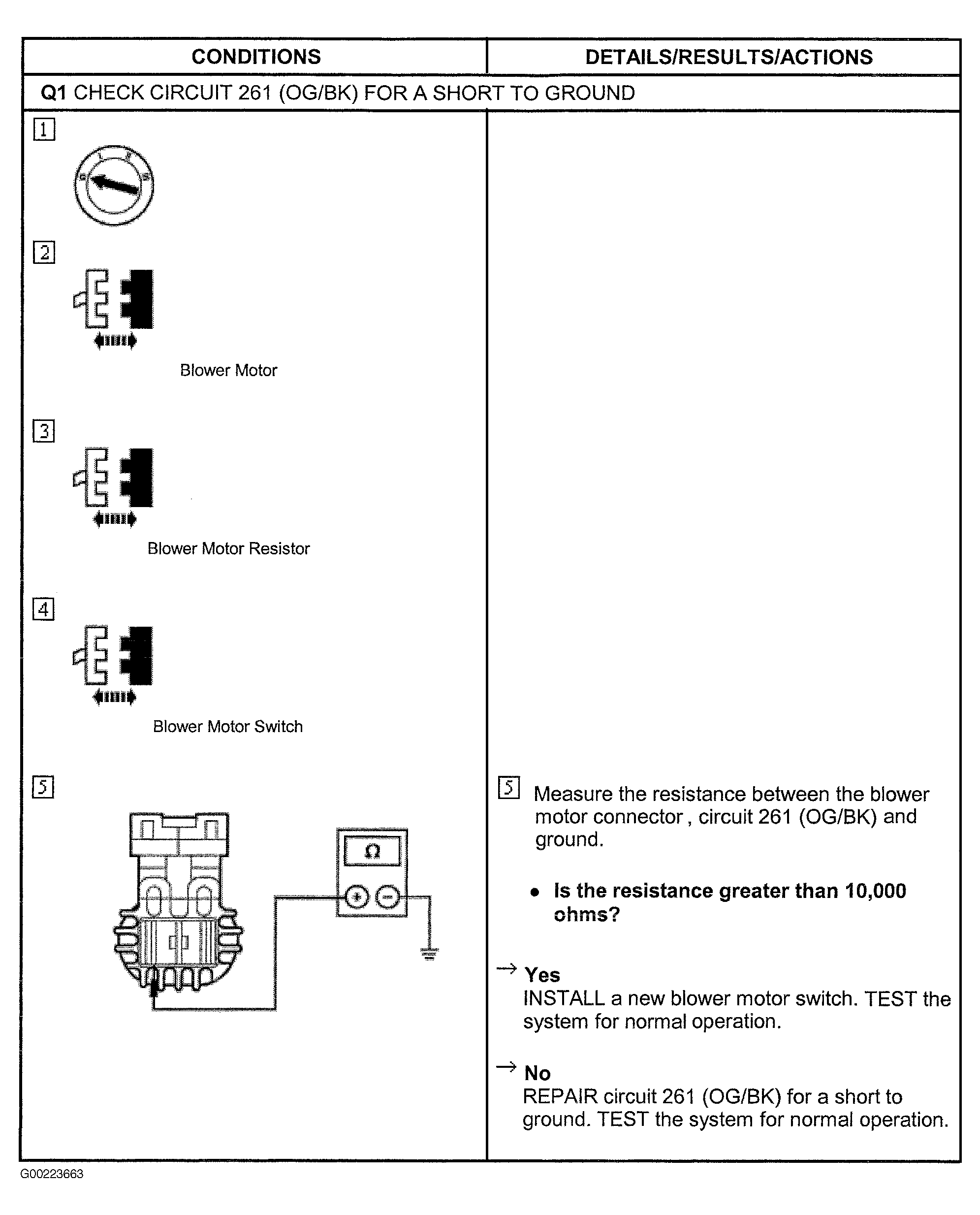

Fig 1: Test Q

G00223663

Courtesy of FORD MOTOR CO.
