Photocell and Amplifier - Light Sensor Amplifier: Removal

Unclip the instrument panel upper finish panel.

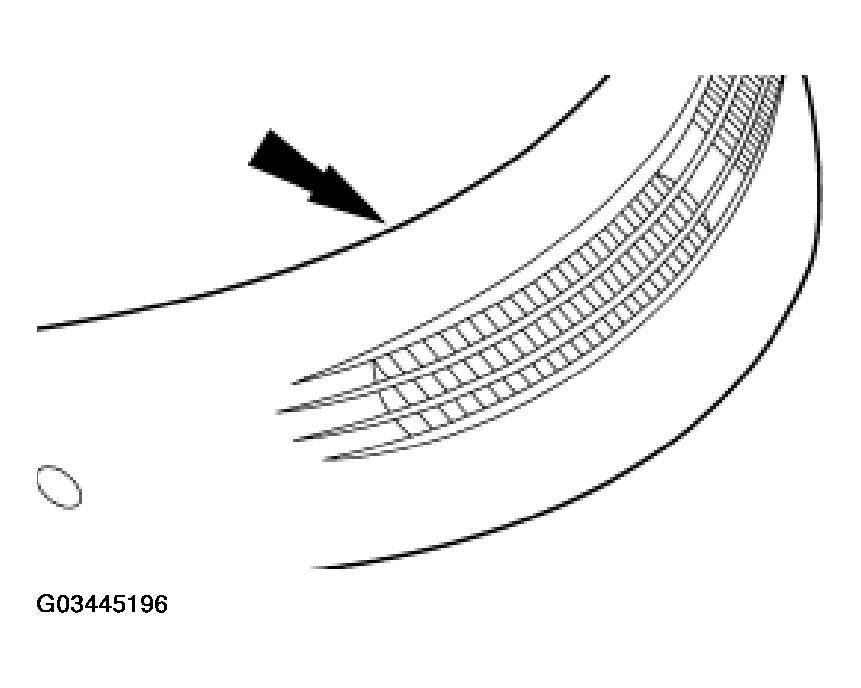

Fig 1: Unclipping Instrument Panel Upper Finish Panel
Courtesy of FORD MOTOR CO.

CAUTION: To avoid damaging the light sensor amplifier electrical connector, carefully tilt the panel to expose the connector without stretching the wiring.

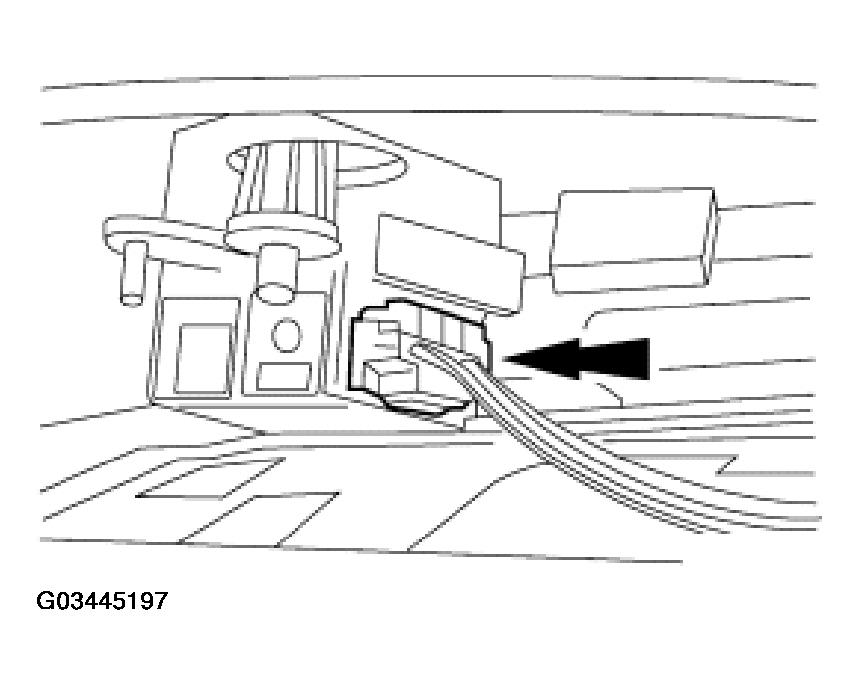

Fig 2: Disconnecting Light Sensor Amplifier Electrical Connector

Courtesy of FORD MOTOR CO.

Disconnect the light sensor amplifier electrical connector.
Unclip the light sensor amplifier (13A018).

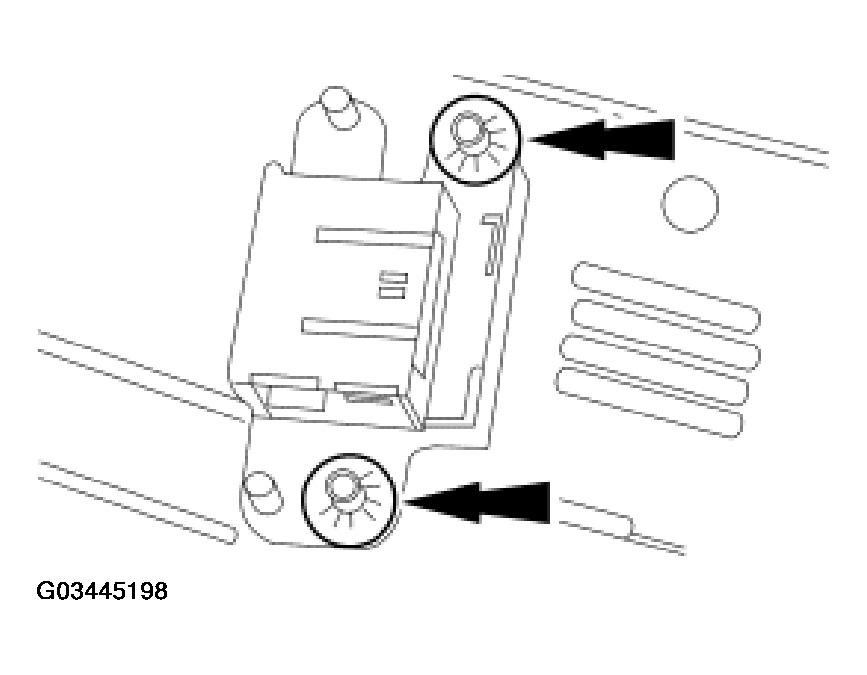

Fig 3: Unclipping Light Sensor Amplifier
Courtesy of FORD MOTOR CO.
