Removal & Installation

  1. Disconnect wire harness connector. See Fig 1. Remove A/C cycling switch. See Fig 2.
  2. To install, reverse removal procedure. Lubricate "O" ring seal with PAG Refrigerant Compressor Oil or equivalent.
Fig 1: Disconnecting & Reconnecting A/C Cycling Switch Wire Harness Connector
G00218739Courtesy of FORD MOTOR CO.

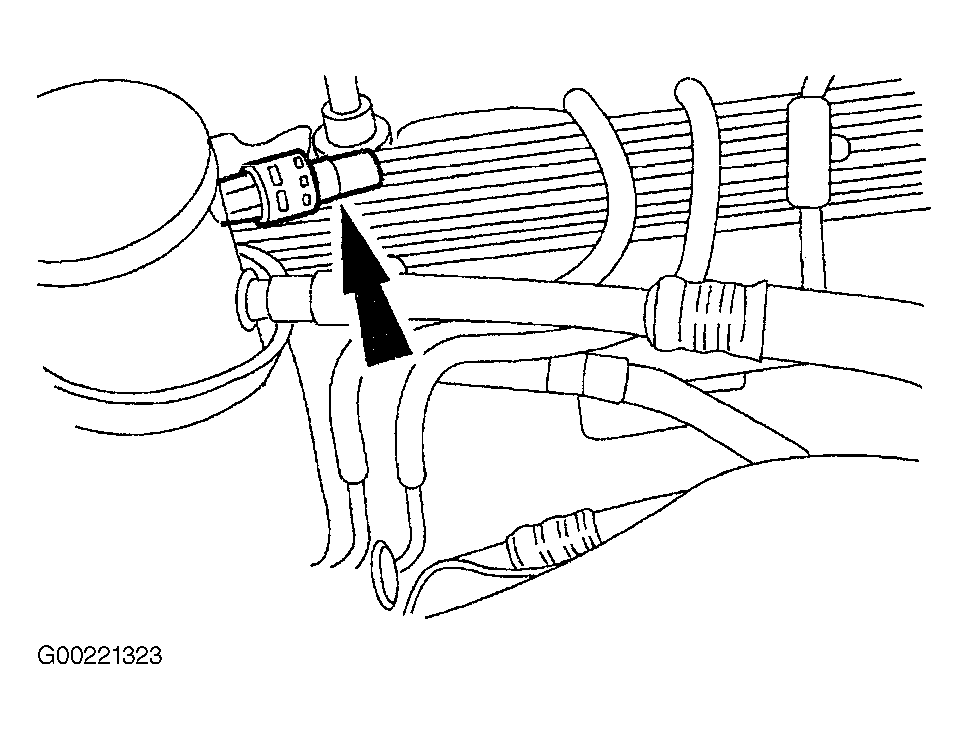

Fig 2: Removing & Installing A/C Cycling Switch
G00221323Courtesy of FORD MOTOR CO.
