Removal & Installation

  1. Disengage wire harness connectors from retainer. See Fig 1. Disconnect wire harness connector. See Fig 2.
  2. Remove hose. See Fig 3. Remove screws and remove blower motor. See Fig 4. Remove push clip then remove wheel from blower motor. See Fig 5.
  3. To install, reverse removal procedure.
Fig 1: Disengaging Wire Harness Connectors From Retainer
G00218733Courtesy of FORD MOTOR CO.

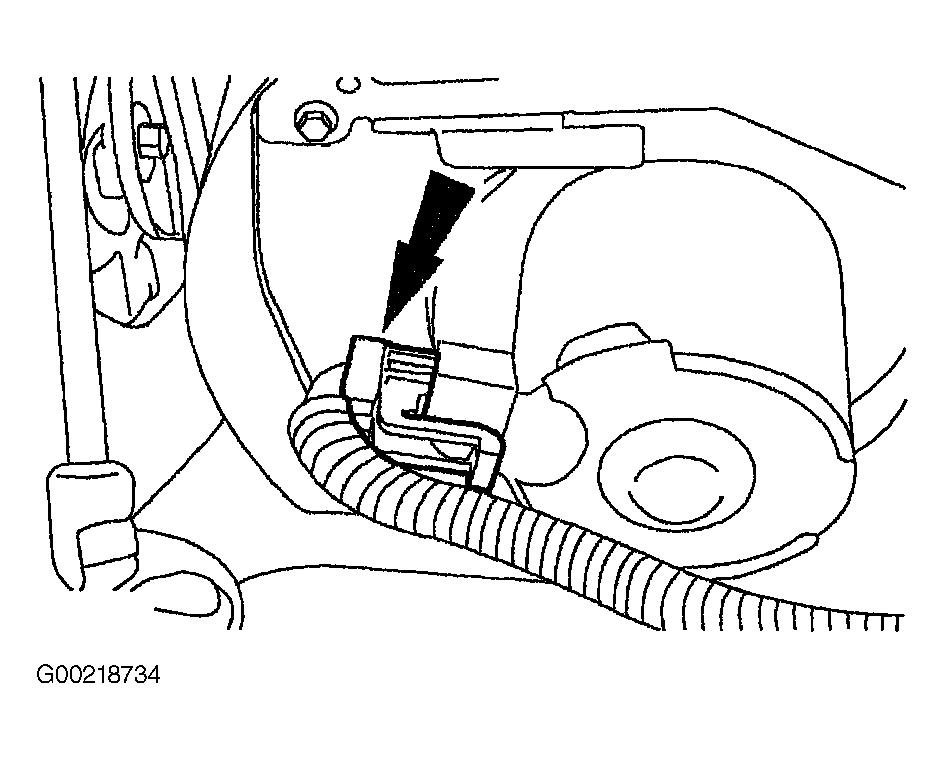

Fig 2: Disconnecting Wire Harness Connector
G00218734Courtesy of FORD MOTOR CO.

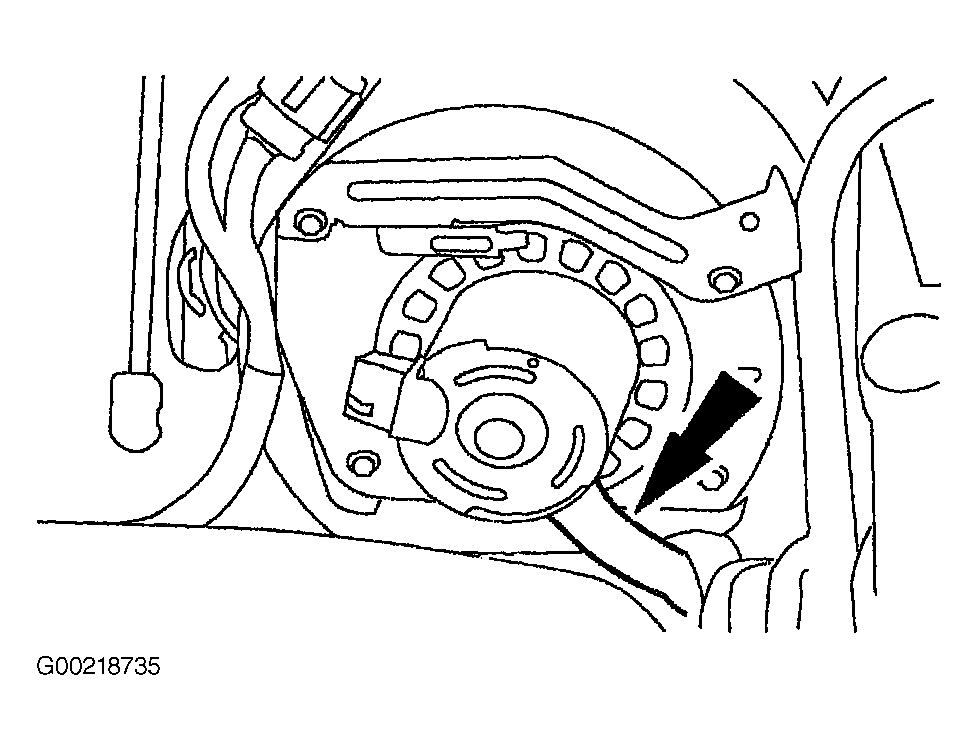

Fig 3: Removing & Installing Hose
G00218735Courtesy of FORD MOTOR CO.

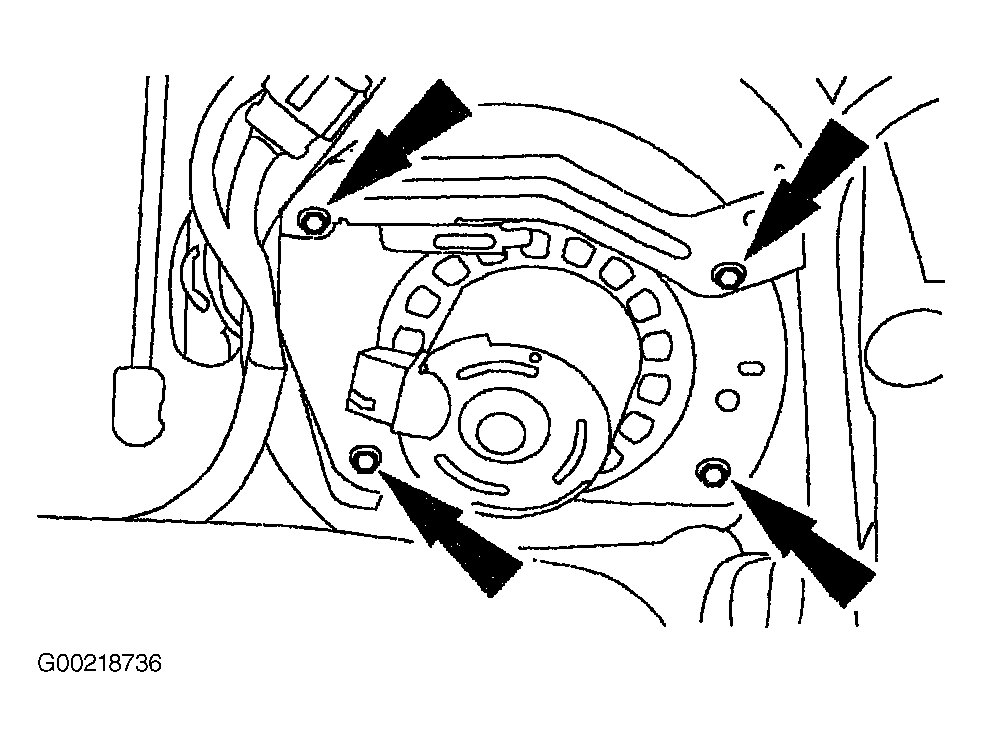

Fig 4: Removing & Installing Screws Then Remove Blower Motor
G00218736Courtesy of FORD MOTOR CO.

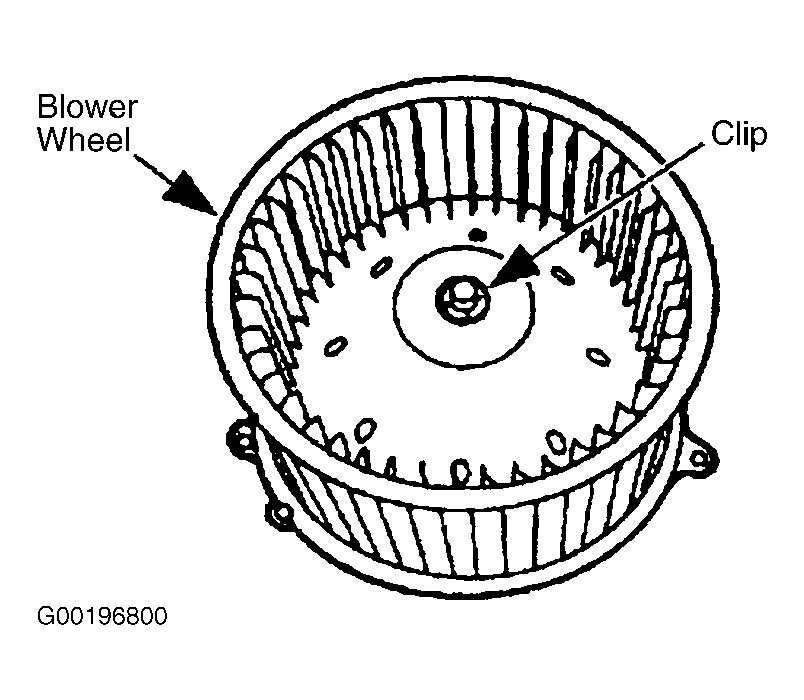

Fig 5: Removing & Installing Blower Wheel From/To Motor
G00196800Courtesy of FORD MOTOR CO.
