Clutch & Clutch Field Coil: Installation
- Clean the A/C clutch field coil and pulley mounting surfaces.

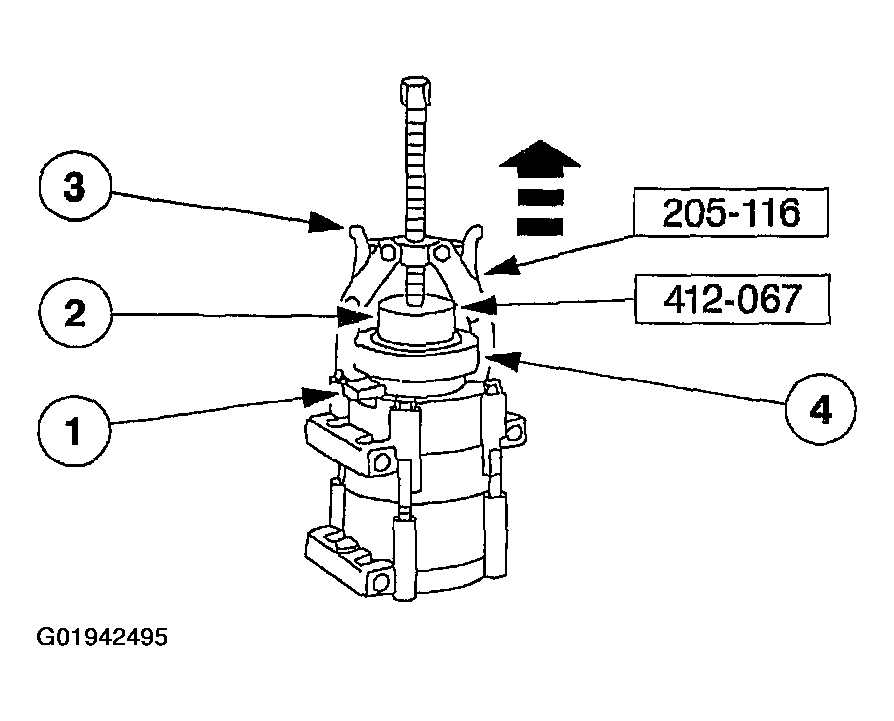

- Install the A/C clutch field coil by placing the A/C clutch field coil on the A/C compressor with the A/C clutch field coil electrical connector correctly positioned. Place the special tool on the A/C clutch field coil. Place the special tool on the special tool. Use the special tool to install the A/C clutch field coil until bottomed completely against the A/C compressor. See Figure.
- Install the A/C clutch pulley.
- Install the pulley snap ring with the bevel side out.
- Place one nominal thickness A/C clutch hub spacer inside the clutch hub spline opening.
- Install the A/C clutch.
- Install the bolt.

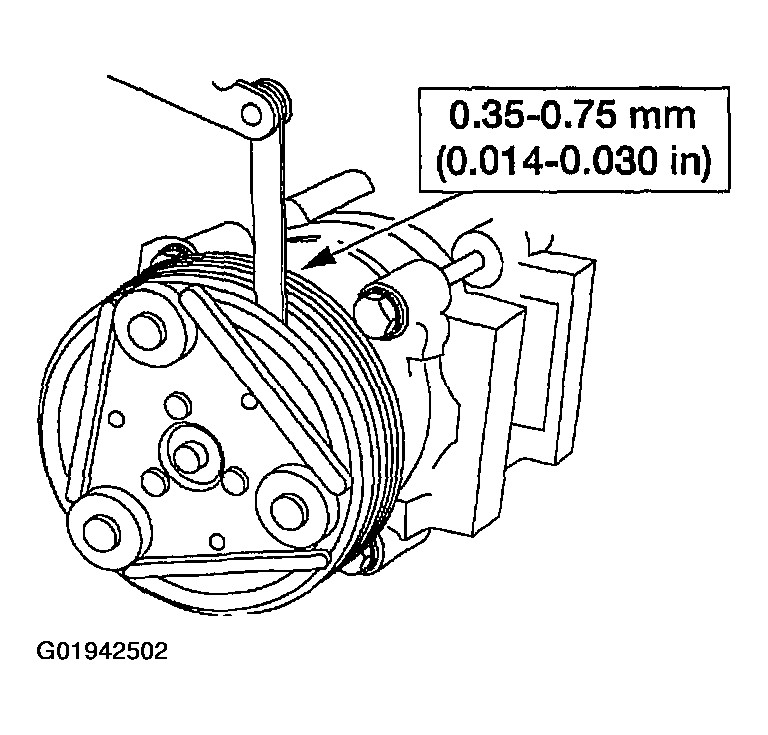

- Measure and adjust the clutch air gap by removing or adding A/C clutch hub spacers. See Fig 1.
- Install the A/C compressor. See COMPRESSOR .
CAUTION:
Do not use air tools. The A/C clutch field coil can be easily damaged.
NOTE:
The A/C clutch pulley is a tight fit on the A/C compressor head; it must be correctly aligned during installation.
