Removal & Installation

  1. Remove finish panel. See Fig 1. Disconnect connector. See Fig 2. Remove screws and climate control head. See Fig 3. Disconnect climate control head. See Fig 4. Disconnect electrical connectors. Disconnect vacuum line connector.
  2. To install, reverse removal procedure.

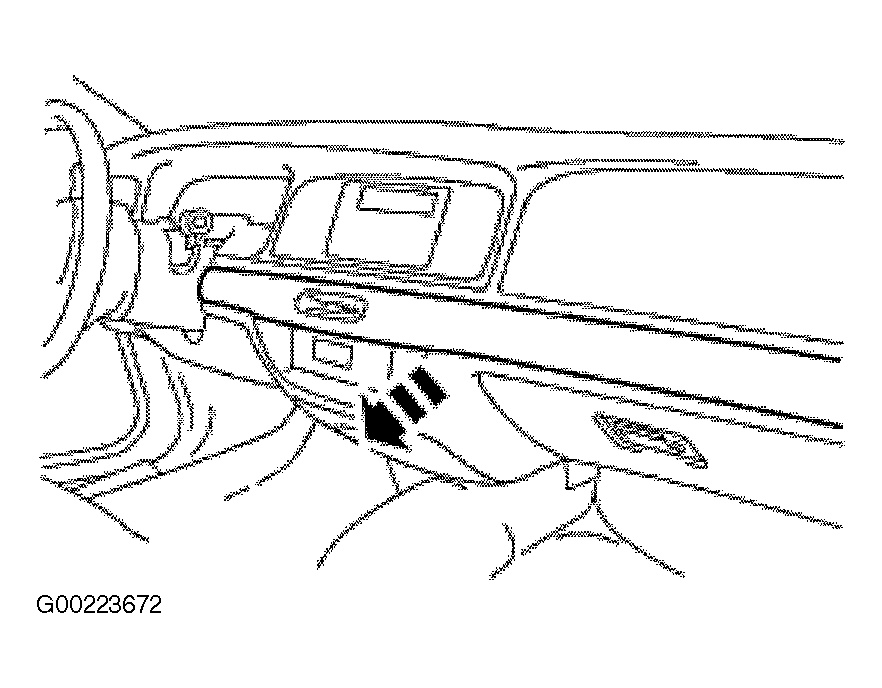

Fig 1: Removing & Installing Finish Panel
G00223672Courtesy of FORD MOTOR CO.

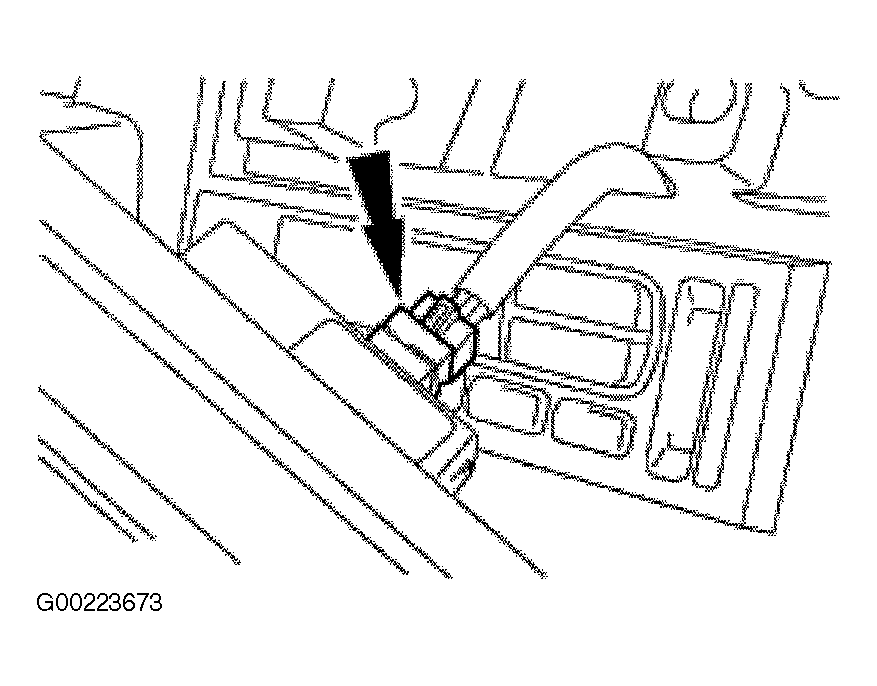

Fig 2: Disconnecting Finish Panel Connectors
G00223673Courtesy of FORD MOTOR CO.

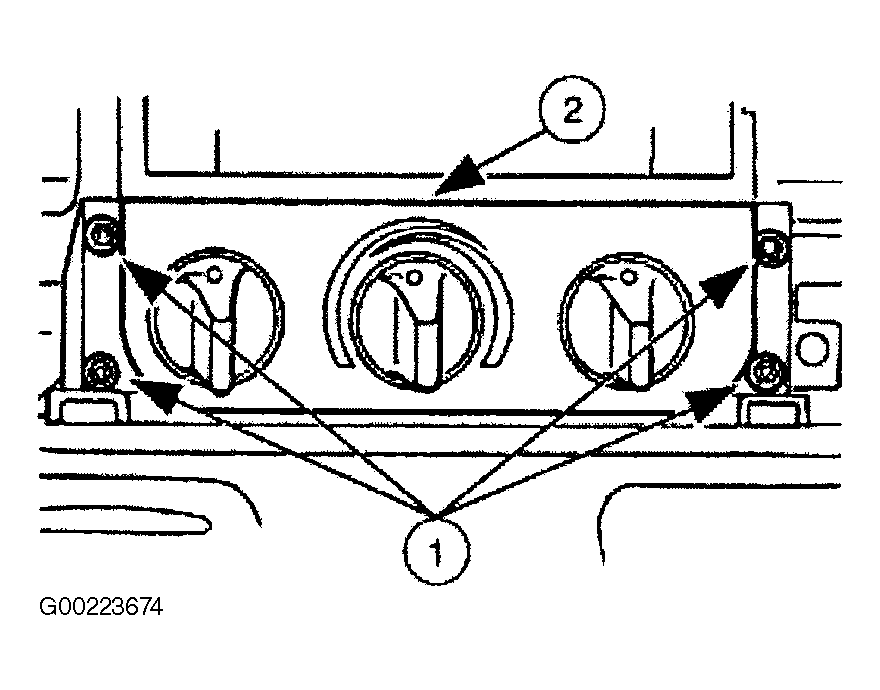

Fig 3: Removing & Installing Control Panel
G00223674Courtesy of FORD MOTOR CO.

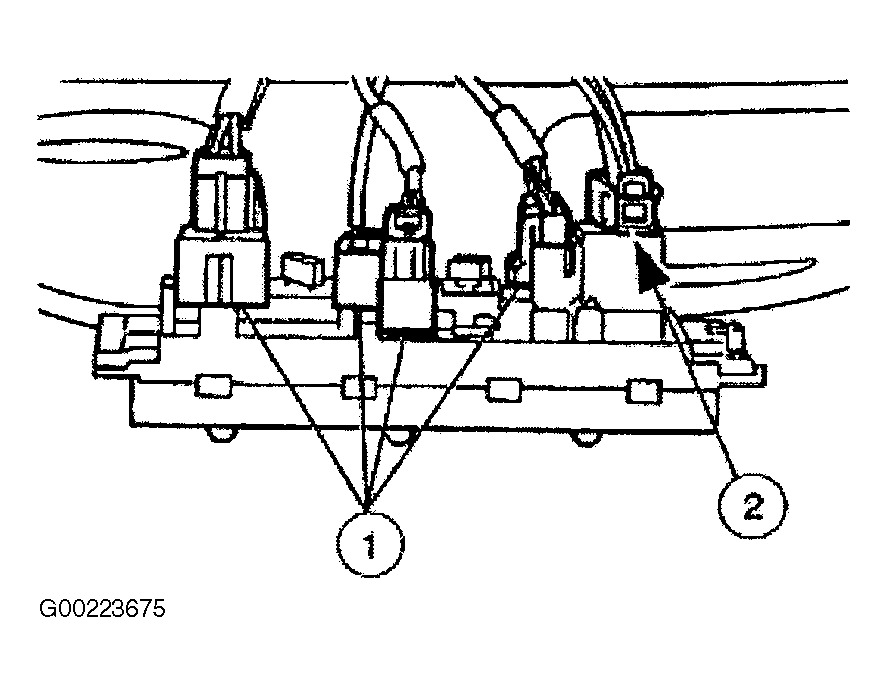

Fig 4: Identifying Control Panel Connectors
G00223675Courtesy of FORD MOTOR CO.
