Removal & Installation

  1. Remove plenum chamber. See PLENUM CHAMBER . Remove screws and heater core cover. See Fig 1. Carefully cut seal above heater core inlet and outlet then remove heater core. See Fig 2.
  2. To install, reverse removal procedure.

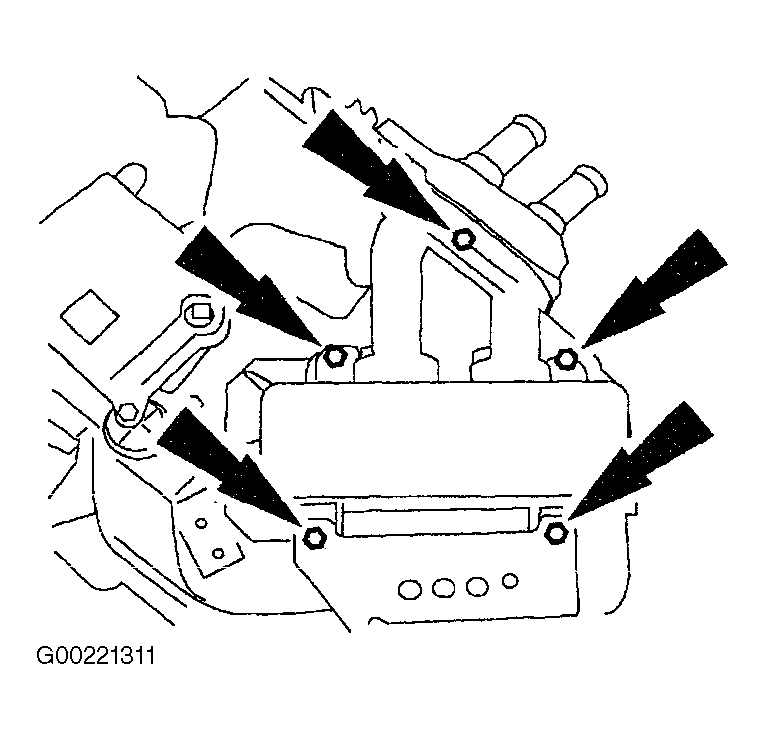

Fig 1: Removing & Installing Screws & Heater Core Cover
G00221311Courtesy of FORD MOTOR CO.

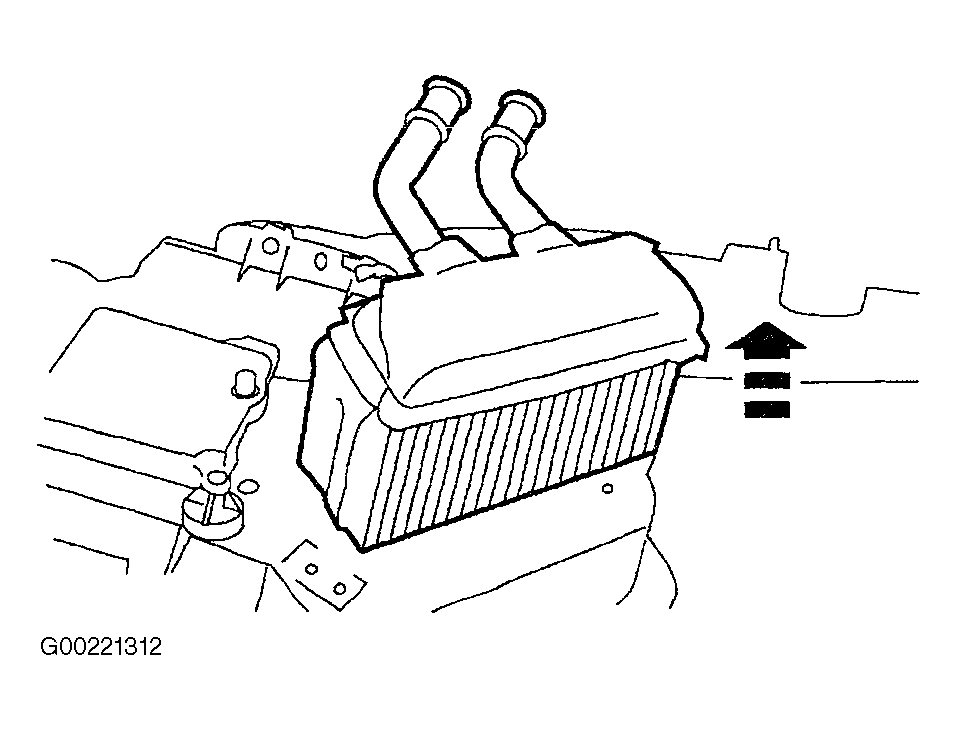

Fig 2: Removing & Installing Heater Core
G00221312Courtesy of FORD MOTOR CO.
