Removal & Installation

  1. Drain radiator. Remove heater hoses from heater core. See Fig 1. Remove heater hoses from engine. See Fig 2.
  2. To install, reverse removal procedure. Clean and lubricate coolant hoses with coolant hose lubricant or plain water.
Fig 1: Removing & Installing Heater Hoses From Heater Core
G00218731Courtesy of FORD MOTOR CO.

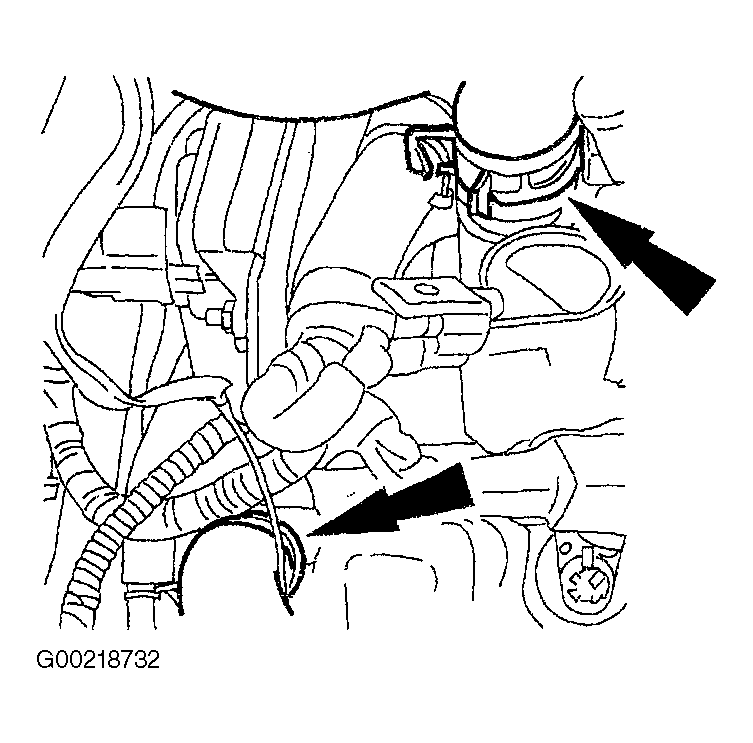

Fig 2: Removing & Installing Heater Hoses From Engine
G00218732Courtesy of FORD MOTOR CO.
