Pressure Cutoff Switch

Disconnect wire harness connector. See Fig 1. Remove pressure cutoff switch. See Fig 2. To install, reverse removal procedure. Coat NEW "O" rings with clean refrigerant oil.

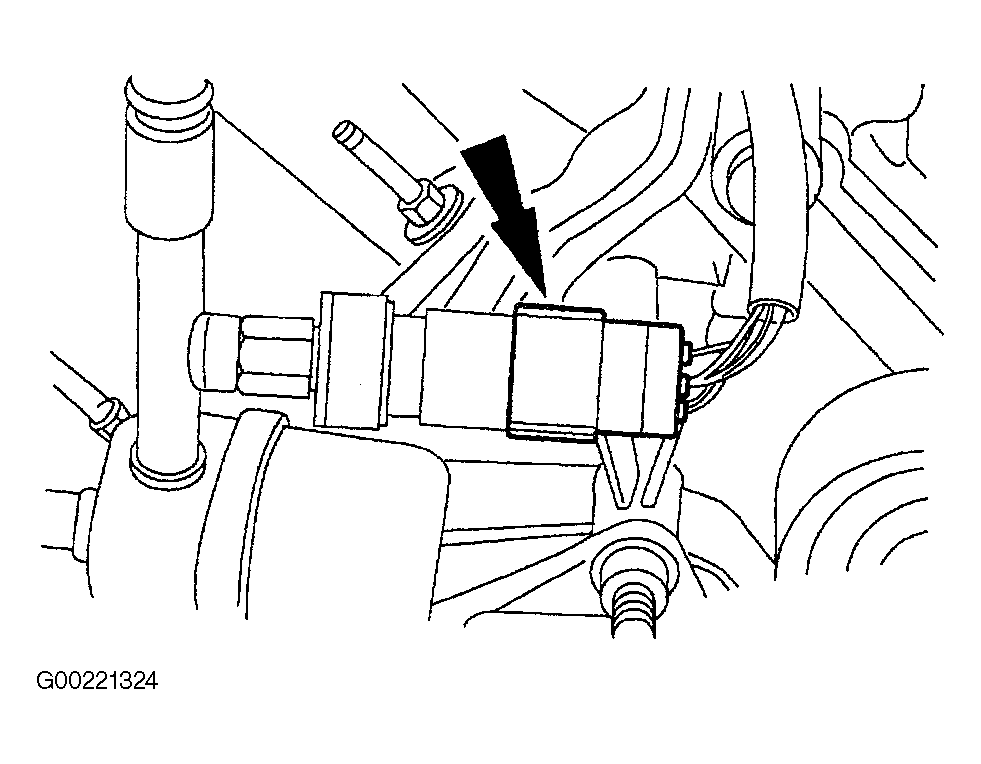

Fig 1: Disconnecting Wire Harness Connector

Courtesy of FORD MOTOR CO.

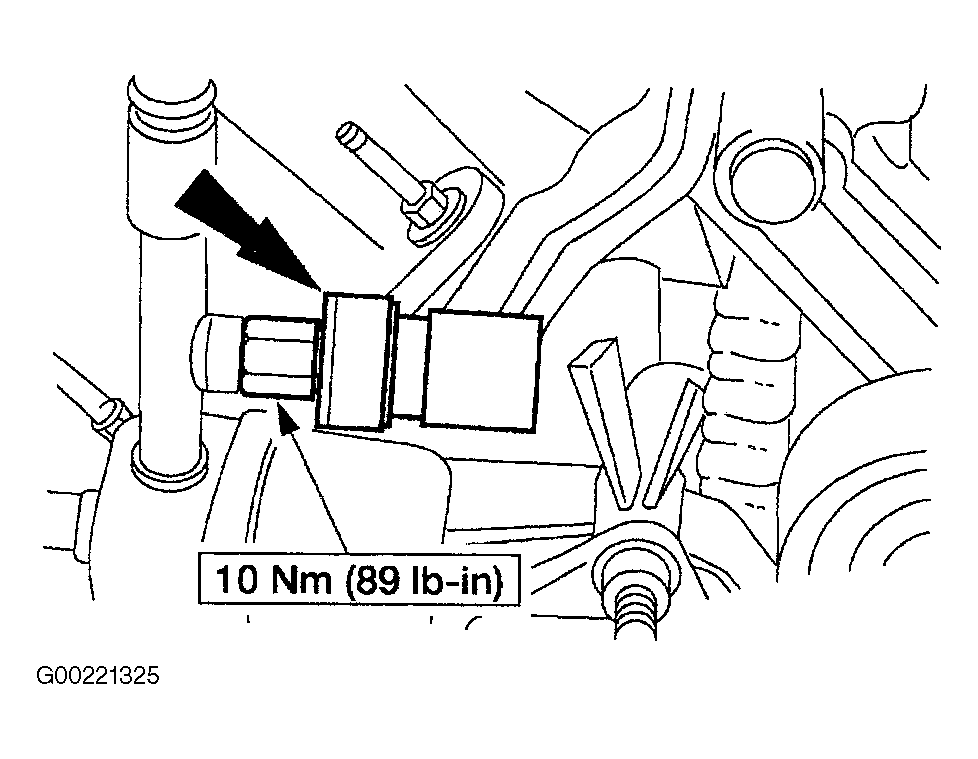

Fig 2: Removing & Installing Pressure Cut-Off Switch

Courtesy of FORD MOTOR CO.
