Removal & Installation

  1. Remove recirculating air duct. See RECIRCULATING AIR DUCT . Remove screw then remove heater and recirculating duct door. See Fig 1.
  2. To install, reverse removal procedure.

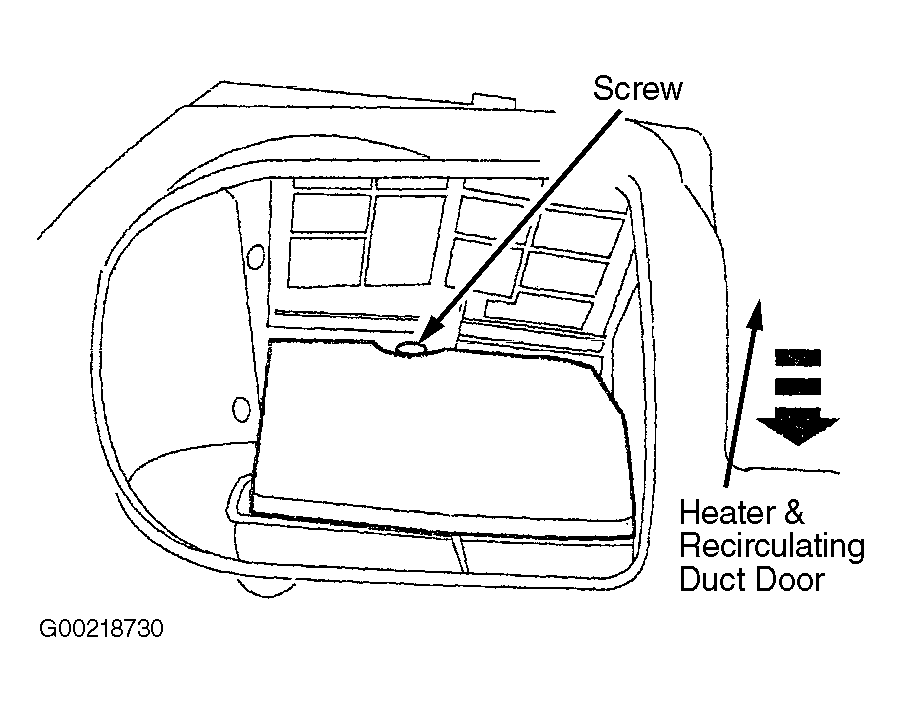

Fig 1: Removing & Installing Heater & Recirculating Duct Door
G00218730Courtesy of FORD MOTOR CO.
