Removal & Installation

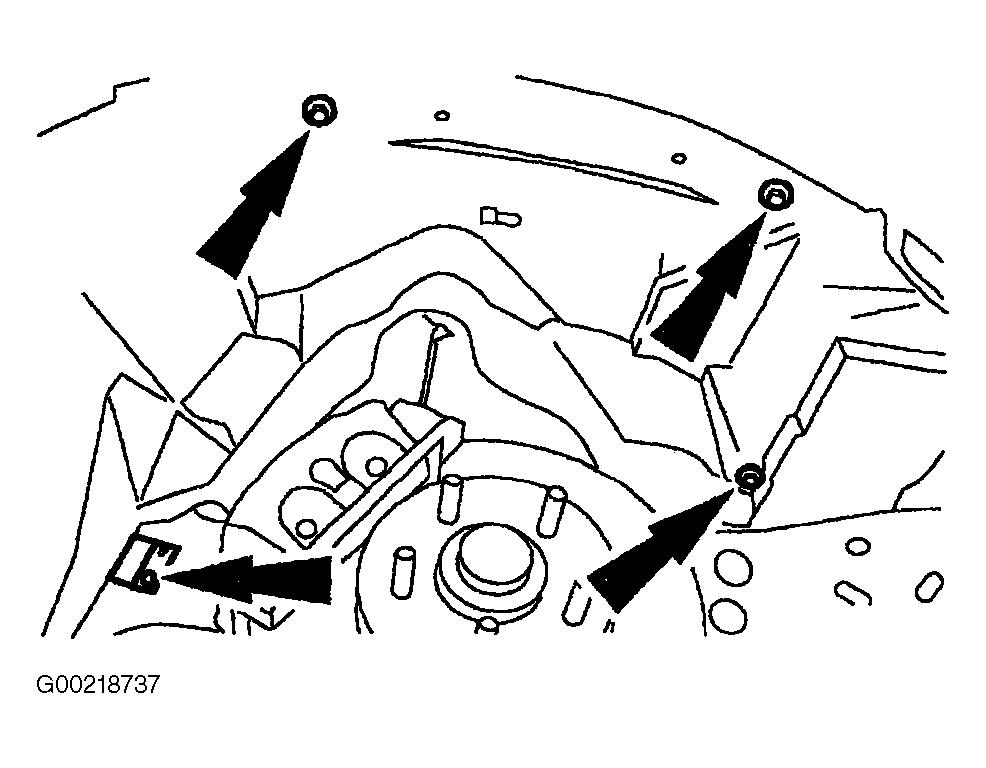

  1. Remove plenum chamber. See PLENUM CHAMBER . Remove right front wheel. Remove screws from right front fender apron and remove fender apron. See Figure.

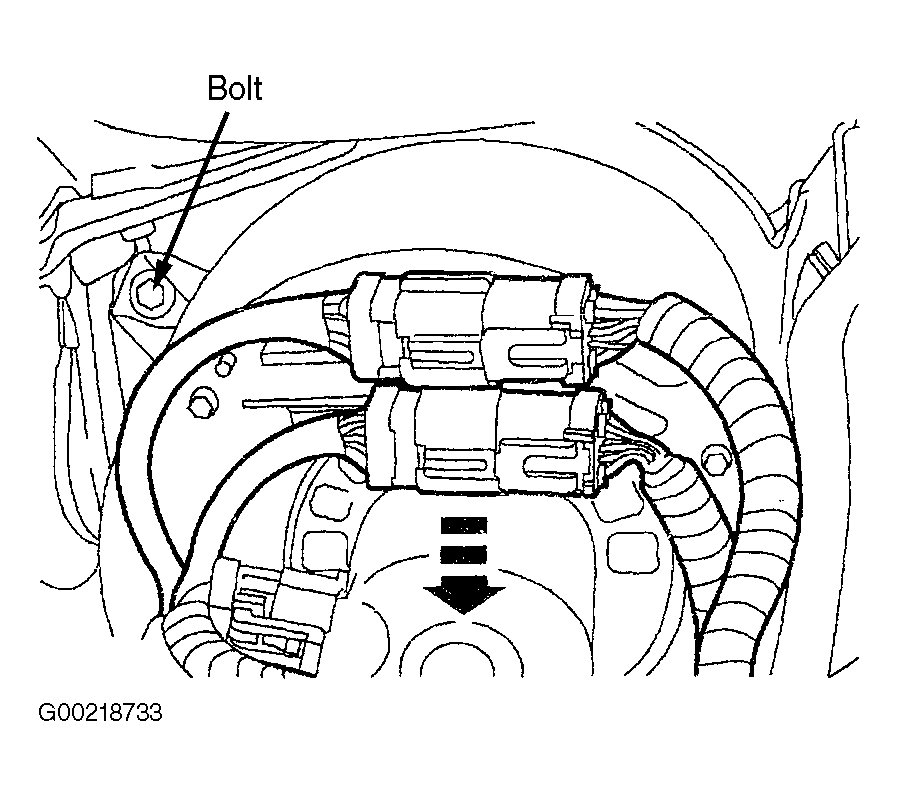

  2. Remove bolt located at upper left side of blower motor. See Figure. Remove screws and pin-type retainer and reposition cowl top cover to access duct nut. See Fig 1. Remove nut. See Fig 2. Remove nut and position harness cover aside. See Fig 3. Remove nut. See Fig 4. Remove bolt. See Fig 5. Remove wiring harness. See Fig 6. Disengage connectors and remove air recirculating duct. See Fig 7.
  3. To install, reverse removal procedure.

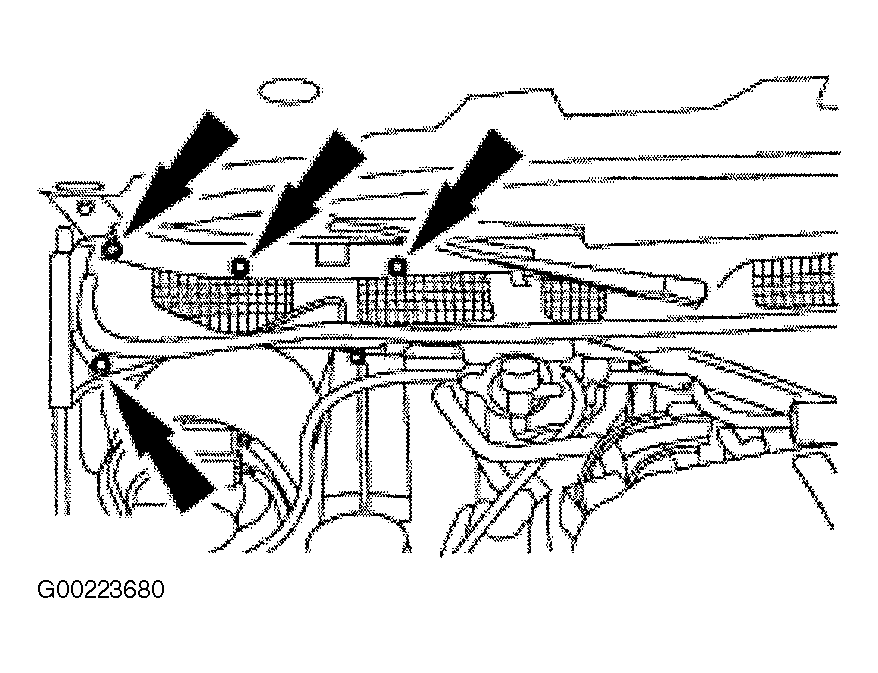

Fig 1: Identifying Cowl Top Cover Retainers
G00223680Courtesy of FORD MOTOR CO.

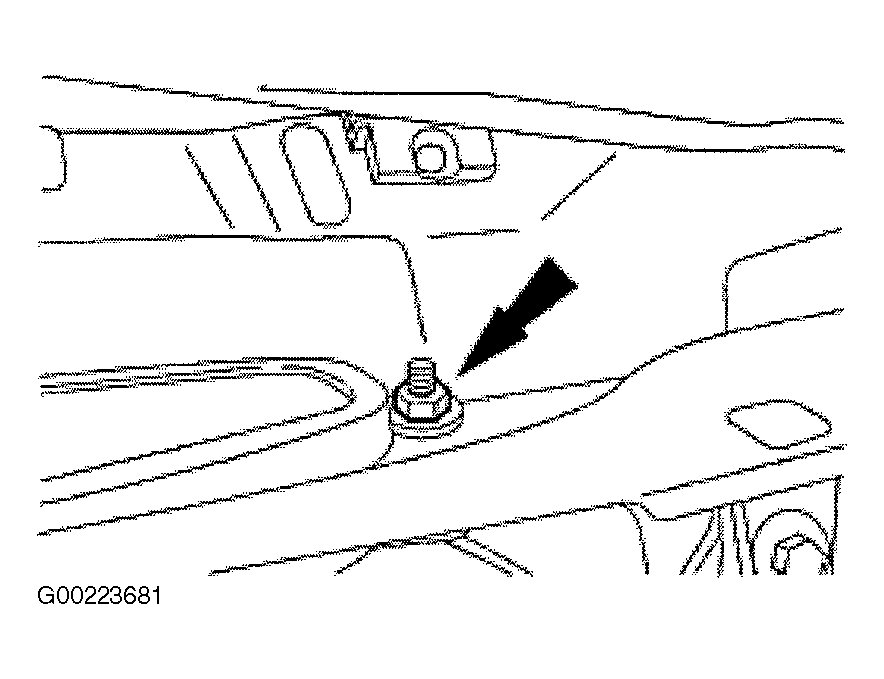

Fig 2: Removing & Installing Cowl Side Nut
G00223681Courtesy of FORD MOTOR CO.

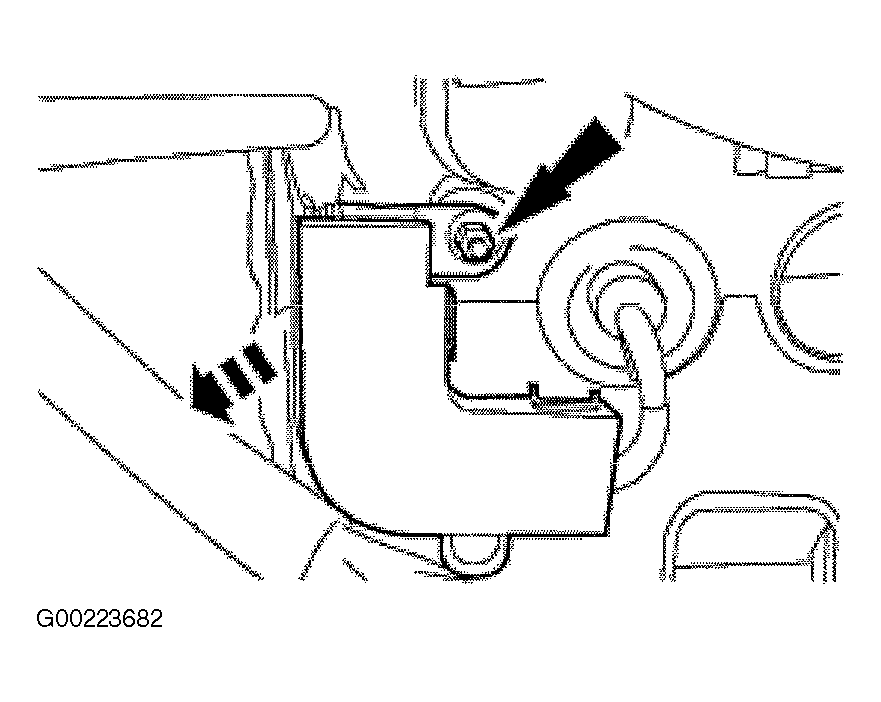

Fig 3: Removing & Installing Harness Cover Nut
G00223682Courtesy of FORD MOTOR CO.

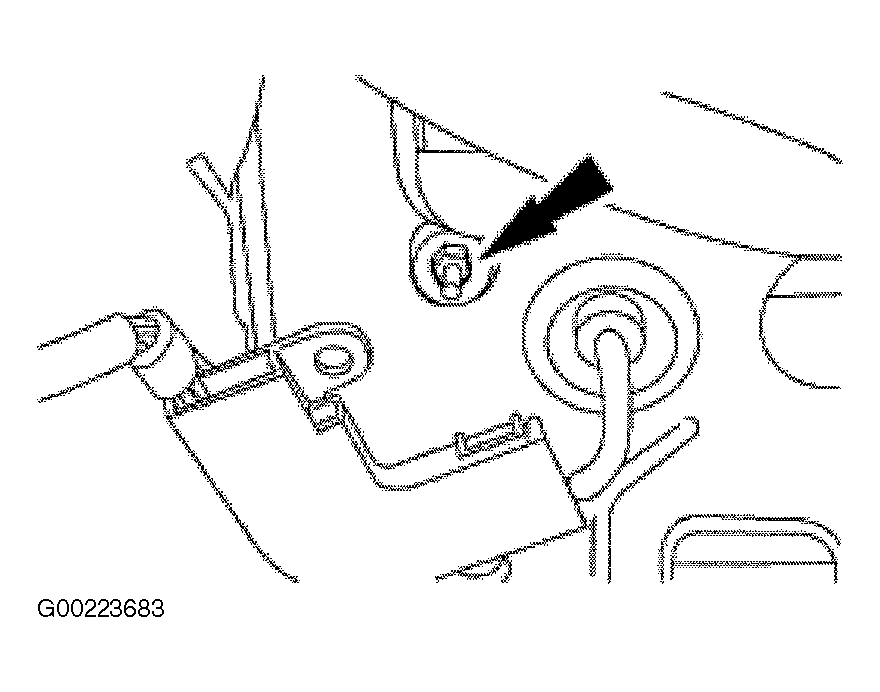

Fig 4: Removing & Installing Nut From Behind Harness Cover
G00223683Courtesy of FORD MOTOR CO.

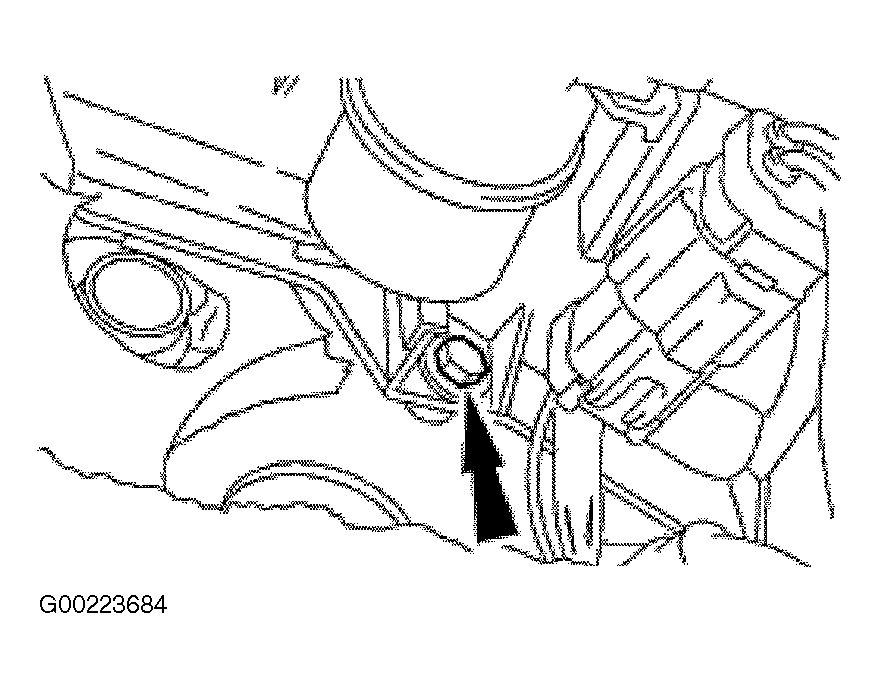

Fig 5: Removing & Installing Bolt
G00223684Courtesy of FORD MOTOR CO.

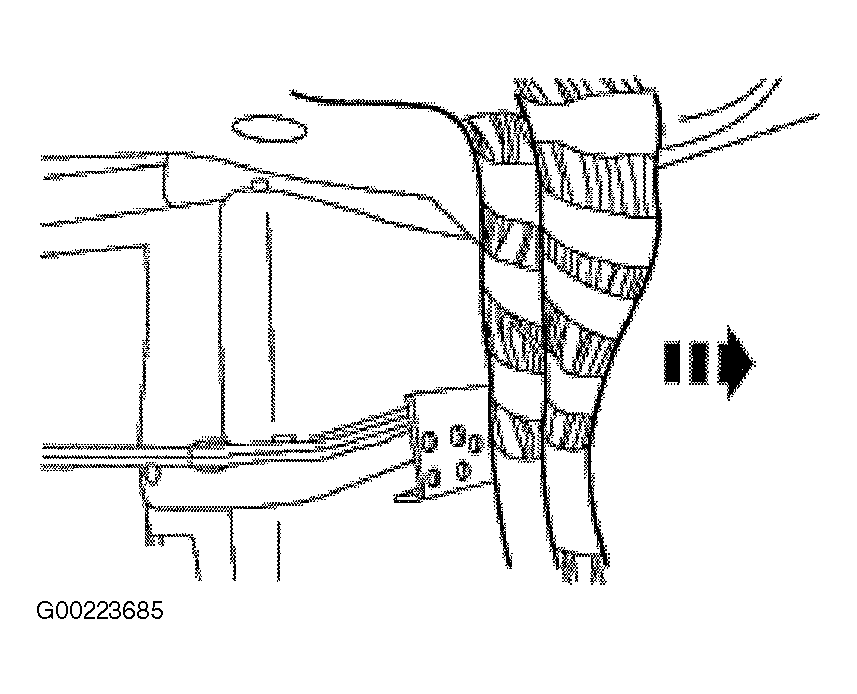

Fig 6: Moving Aside Wire Harness
G00223685Courtesy of FORD MOTOR CO.

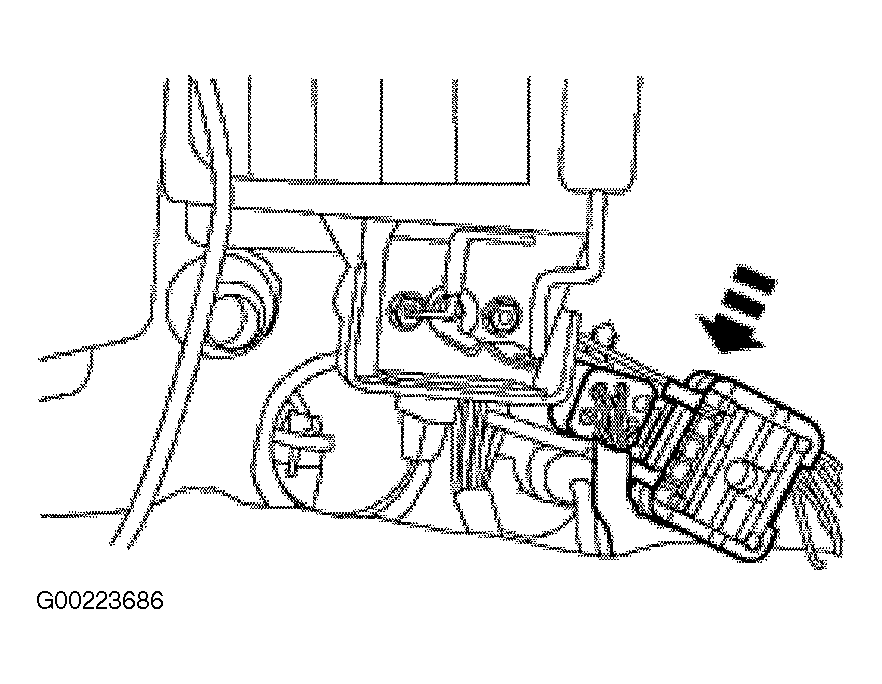

Fig 7: Removing & Installing Recirculating Air Duct
G00223686Courtesy of FORD MOTOR CO.
