Spring Lock Coupling: Removal

Remove A/C tube lock coupling clip, if equipped. See Fig 1. Fit Refrigerant Coupling Spring Remover (T84L-19623-B) to spring lock coupling. See Fig 2. Push tool into cage opening to release female fitting from A/C tube lock coupling spring. See Fig 3.
Pull spring lock coupling fittings apart. See Fig 4. Remove "O" ring seals with a non-metallic tool. Do not use metal tools to remove "O" ring seals. See Fig 5. Remove A/C tube lock coupling spring with a small hooked wire. Do not use a screwdriver or similar tool to remove A/C tube lock coupling spring. See Fig 6.

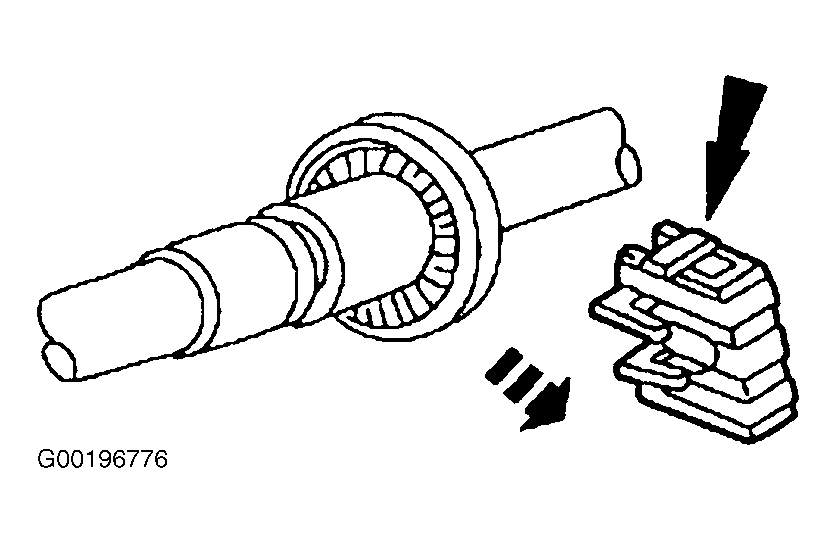

Fig 1: Removing & Installing A/C Tube Lock Coupling Clip

Courtesy of FORD MOTOR CO.

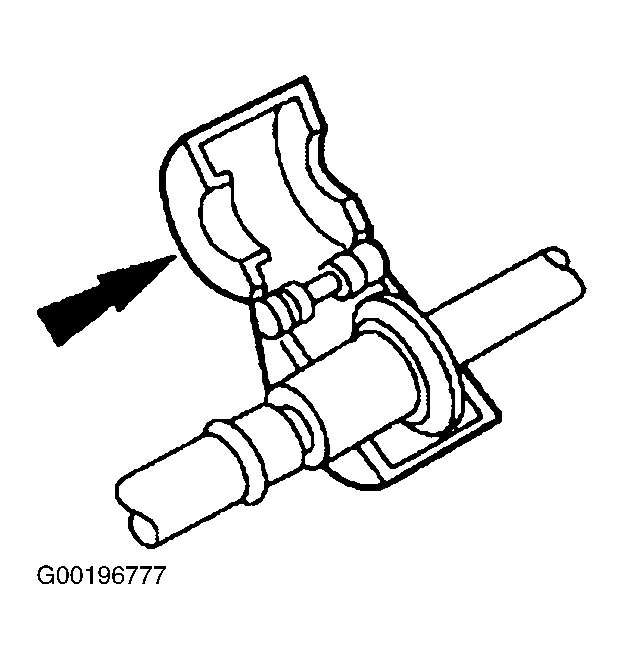

Fig 2: Fitting Special Tool To Spring Lock Coupling

Courtesy of FORD MOTOR CO.

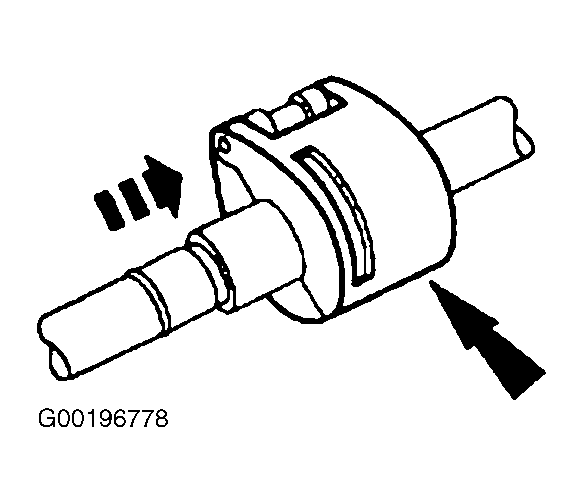

Fig 3: Pushing Tool Into Cage To Release Female Fitting

Courtesy of FORD MOTOR CO.

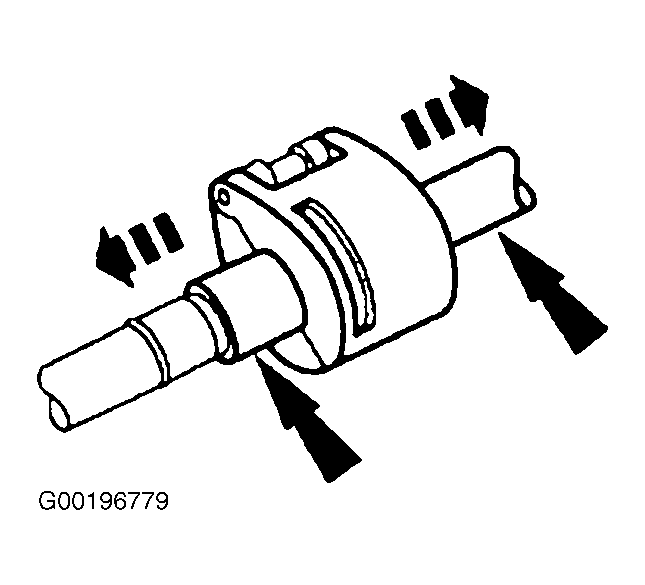

Fig 4: Pulling Spring Lock Coupling Apart

Courtesy of FORD MOTOR CO.

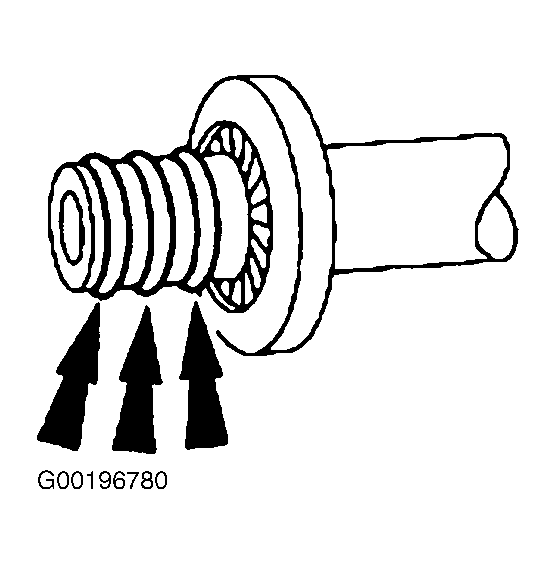

Fig 5: Removing & Installing "O" ring Seals

Courtesy of FORD MOTOR CO.

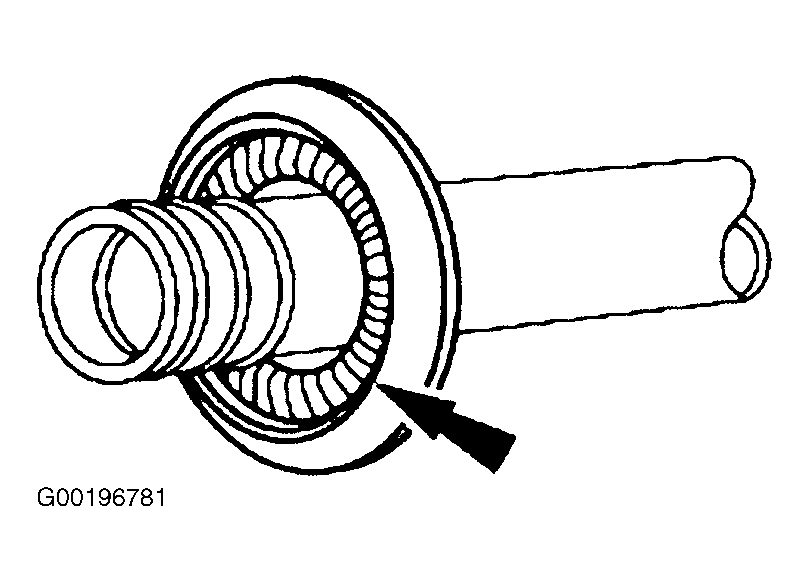

Fig 6: Removing & Installing A/C Tube Lock Coupling Spring

Courtesy of FORD MOTOR CO.
