Removal & Installation

  1. Depress snap tabs. See Fig 1. Remove function selector.
  2. Remove screws. See Fig 2. Rotate and pull temperature blend control switch.
  3. Depress snap tabs. See Fig 3. Remove blower motor switch.
  4. To install, reverse remove procedure.

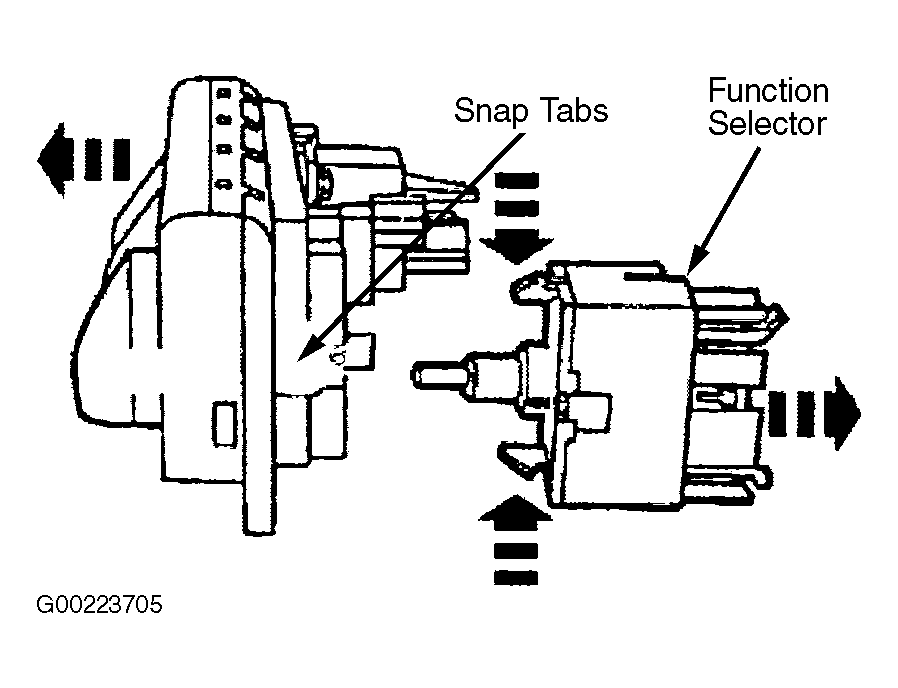

Fig 1: Removing & Installing Function Selector
G00223705Courtesy of FORD MOTOR CO.

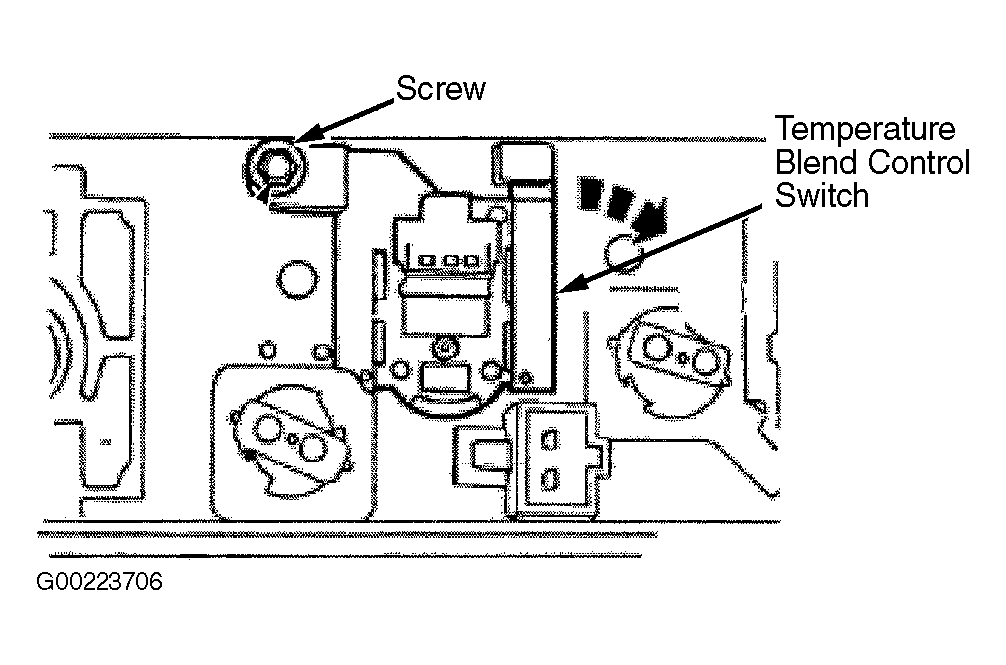

Fig 2: Removing & Installing Temperature Blend Control Switch
G00223706Courtesy of FORD MOTOR CO.

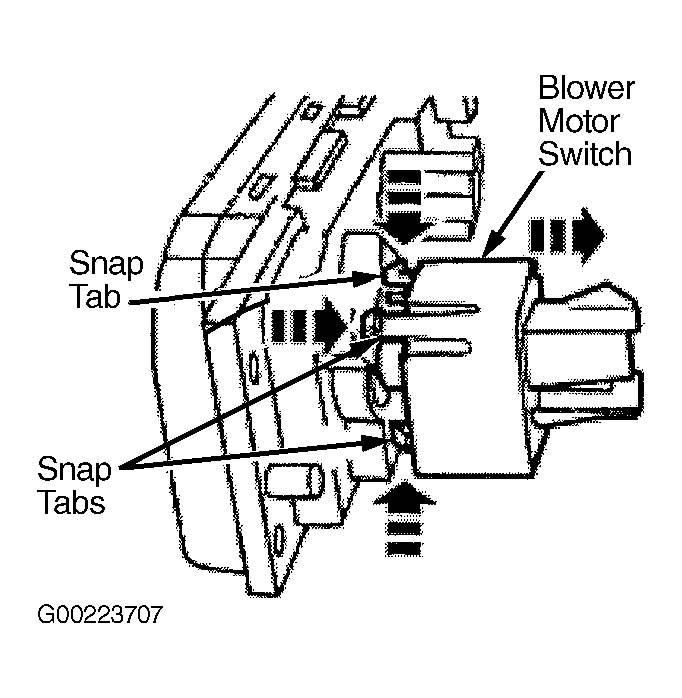

Fig 3: Removing & Installing Blower Motor Switch
G00223707Courtesy of FORD MOTOR CO.
