Remove pin-type connectors and retainer and remove instrument panel lower insulator. See Figure. Disconnect vacuum connector. See Fig 1. Remove control arm clip and spring. See Fig 2. Remove nuts and remove vacuum control motor. See Fig 3. To install, reverse removal procedure.

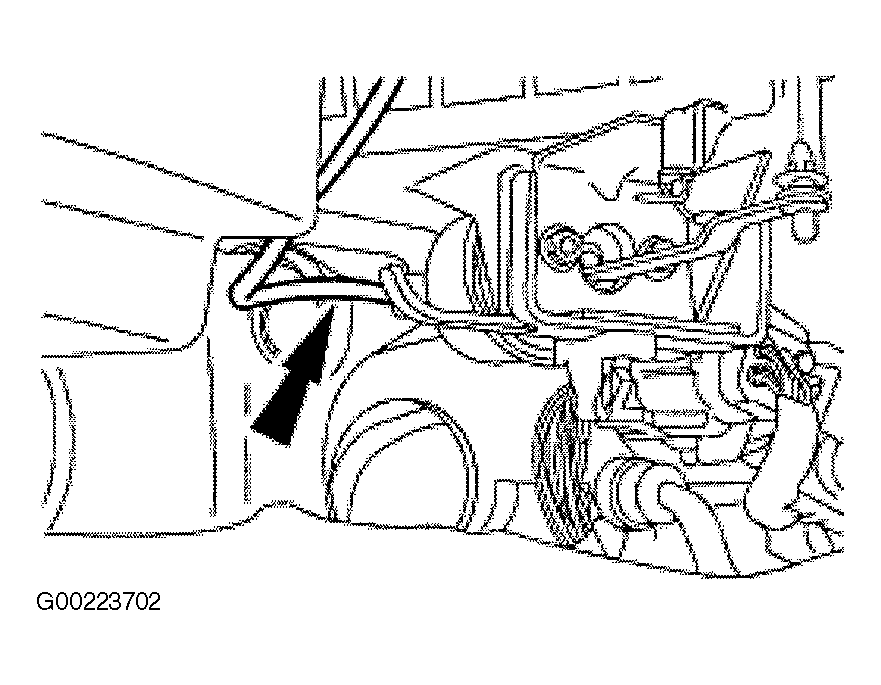

Fig 1: Disconnecting Vacuum Connector
Courtesy of FORD MOTOR CO.

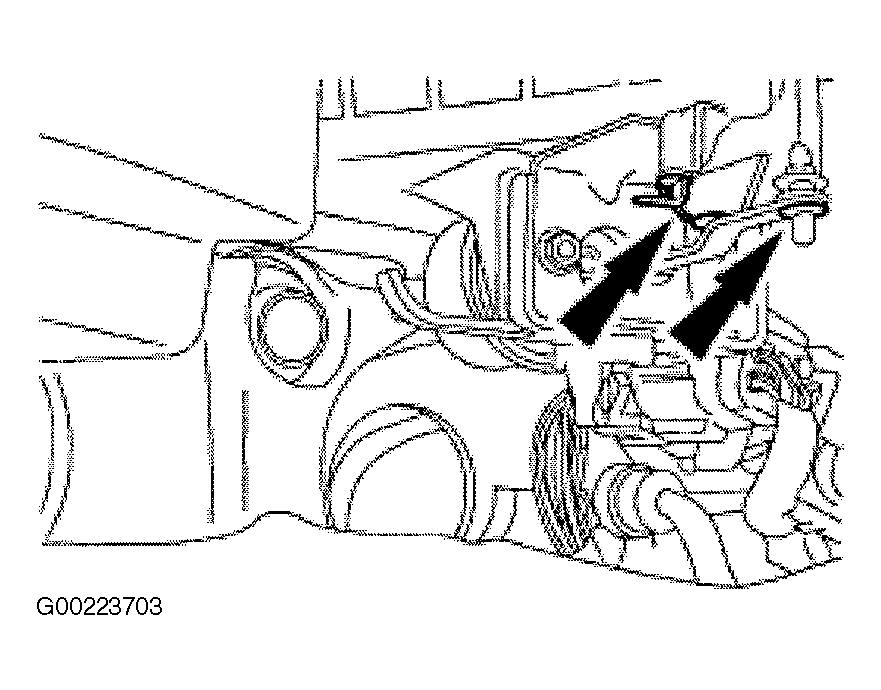

Fig 2: Removing & Installing Control Arm Clip & Spring
Courtesy of FORD MOTOR CO.

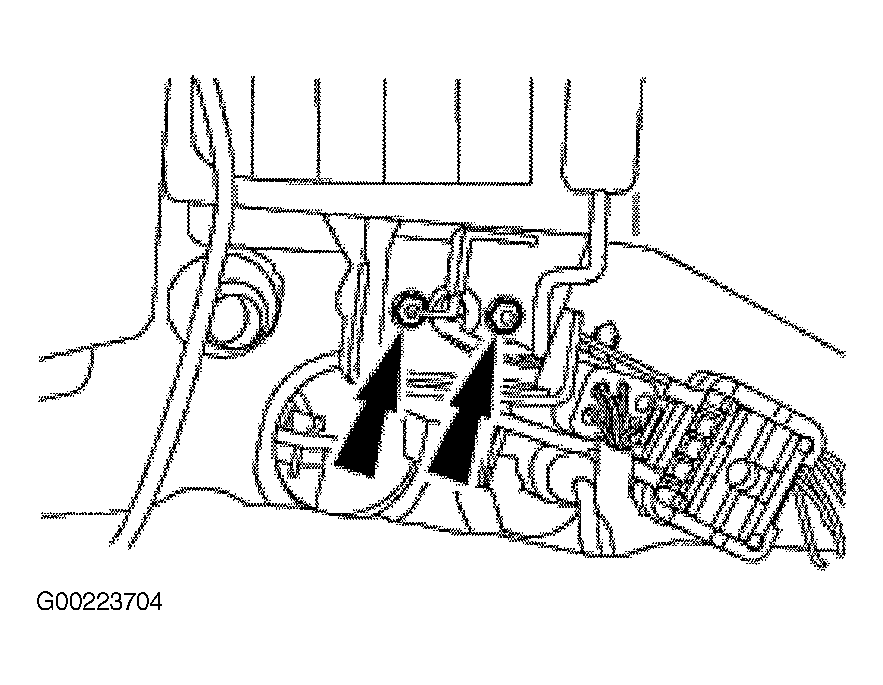

Fig 3: Removing & Installing Air Recirculation Door Vacuum Control
