Removal & Installation (Floor Duct Door)

Remove instrument panel. See INSTRUMENT PANEL . Reach through door opening and remove pin. See Fig 1. Disconnect vacuum control motor vacuum line. Remove screws and remove vacuum control motor. See Fig 2. To install, reverse removal procedure.

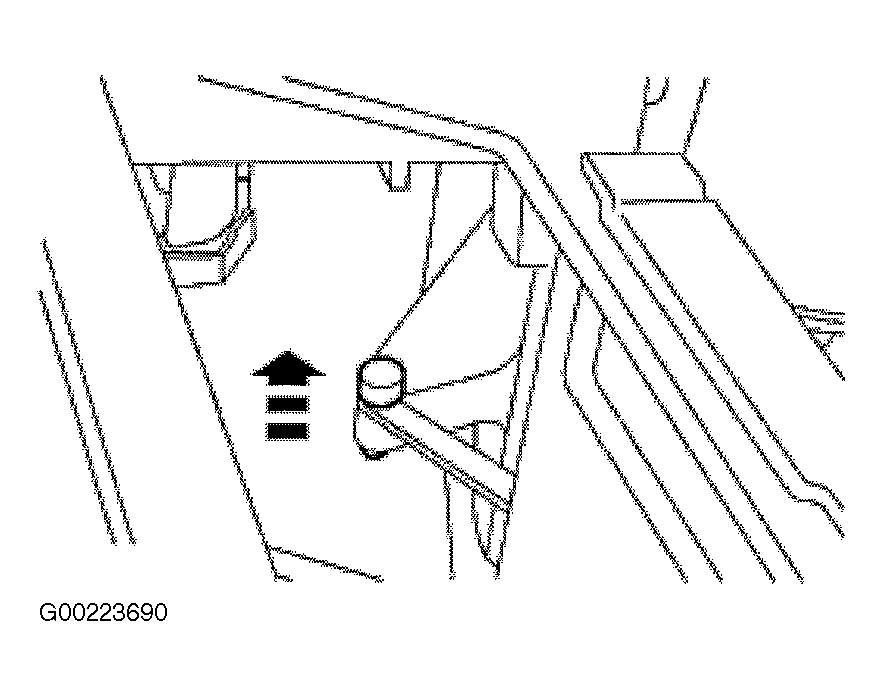

Fig 1: Removing & Installing Pin Through Door Opening

Courtesy of FORD MOTOR CO.

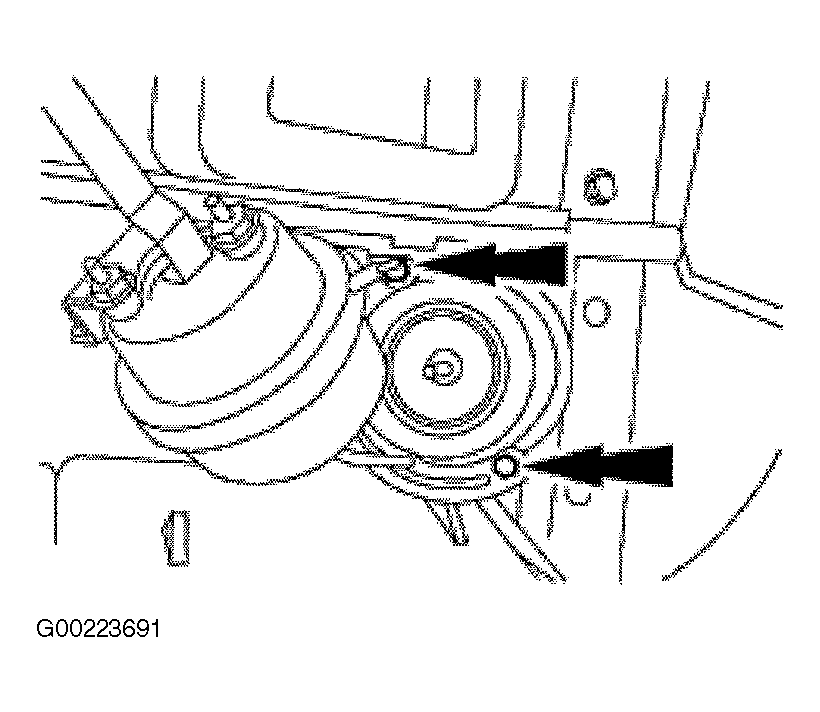

Fig 2: Removing & Installing Floor Duct Door Vacuum Control Motor

Courtesy of FORD MOTOR CO.
