Removal & Installation (Windshield Defrost Door)

1. Disconnect negative battery cable. Remove left lower dash insulator panel and disconnect lamp. See Fig 1. Remove 2 pin-type connectors and fill panel. See Fig 2. Remove screws. See Fig 3. Disengage vacuum line. See Fig 4. Remove screws, disengage clip and remove lighting module. See Fig 5.
2. Remove connectors. See Fig 6. Remove screws and bracket. See Fig 7. Remove clip, nuts and vacuum motor. See Fig 8. Disconnect vacuum lines and remove vacuum motor. See Fig 9.
3. To install, reverse removal procedure.

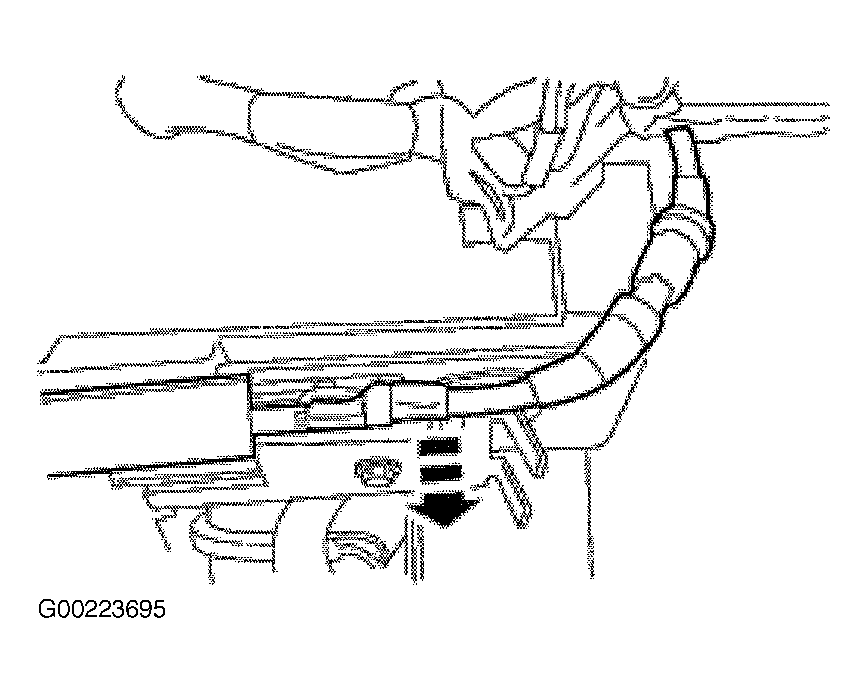

Fig 1: Removing & Installing Left Lower Dash Insulator Panel

Courtesy of FORD MOTOR CO.

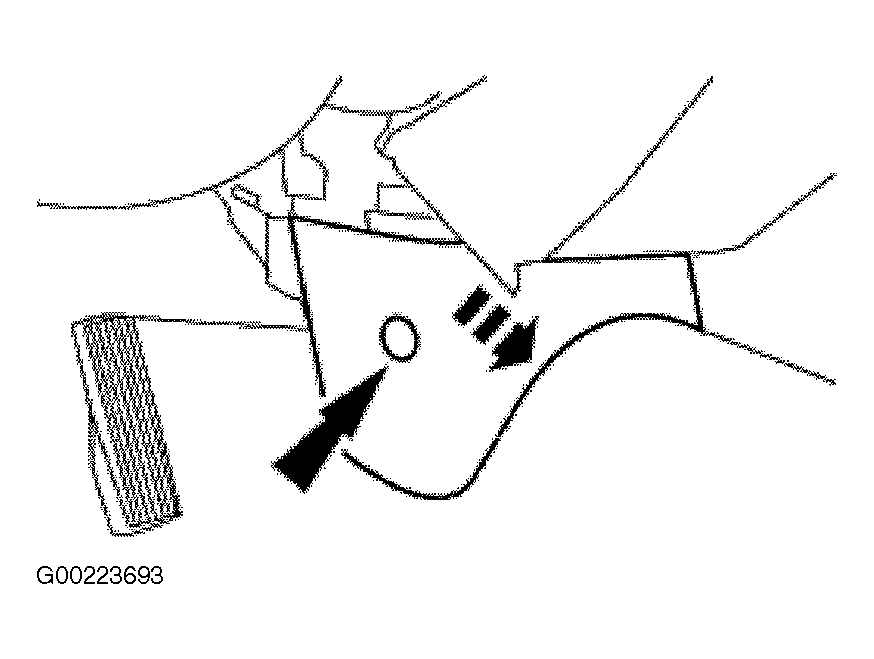

Fig 2: Removing & Installing Fill Panel

Courtesy of FORD MOTOR CO.

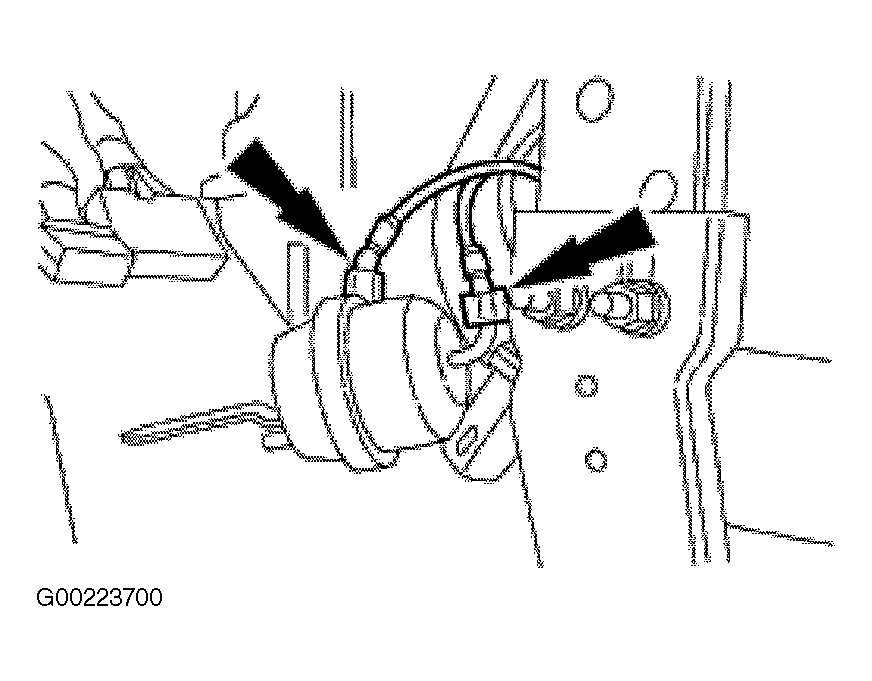

Fig 3: Removing & Installing Data Link Connector Screws

Courtesy of FORD MOTOR CO.

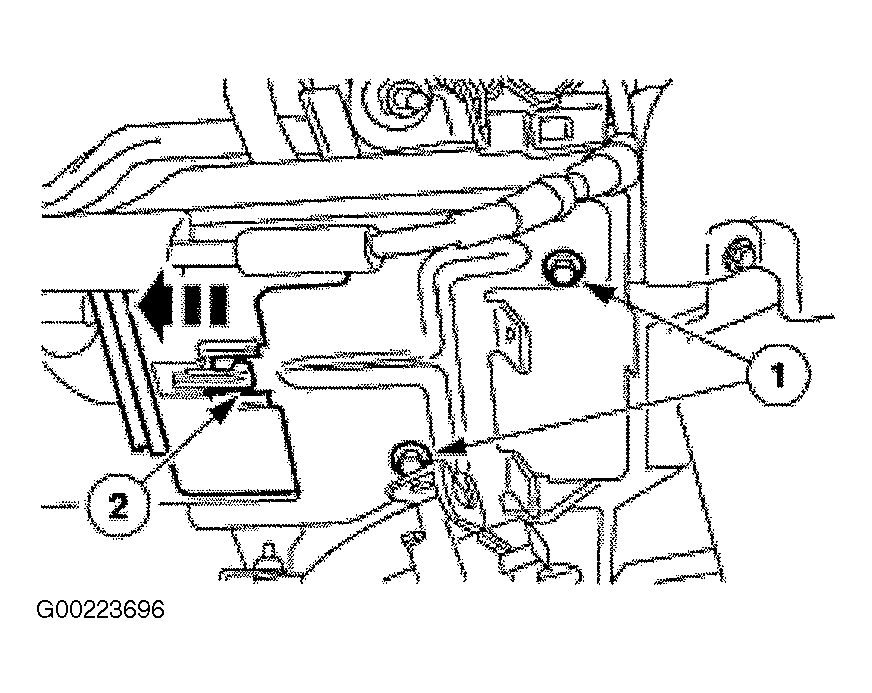

Fig 4: Disengaging Vacuum Line

Courtesy of FORD MOTOR CO.

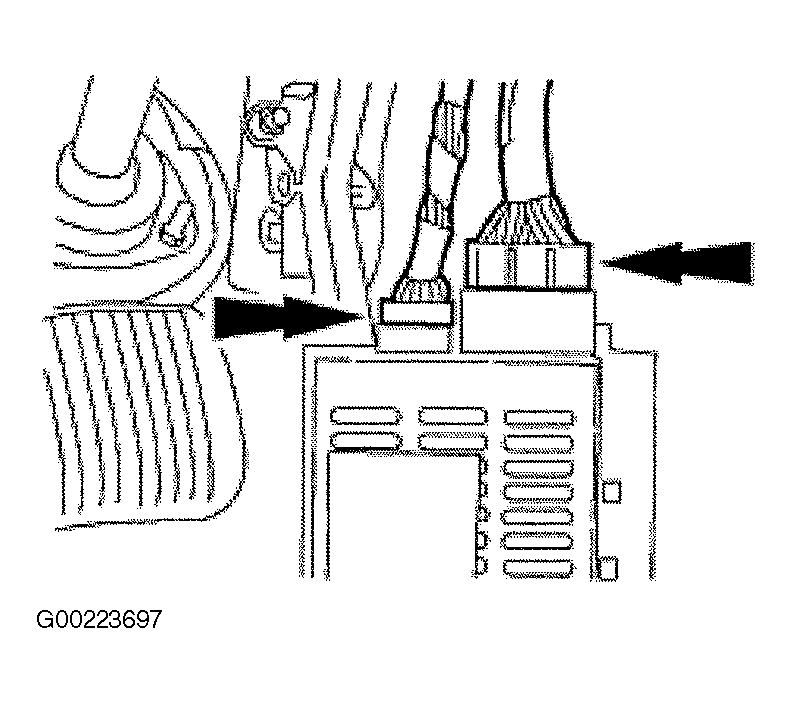

Fig 5: Removing & Installing Lighting Module

Courtesy of FORD MOTOR CO.

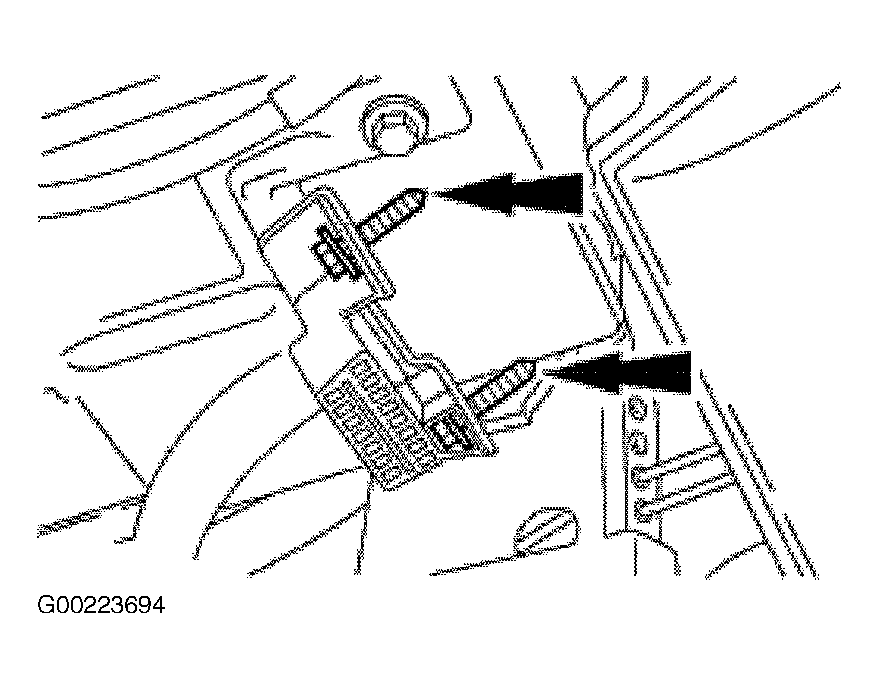

Fig 6: Removing & Installing Connectors

Courtesy of FORD MOTOR CO.

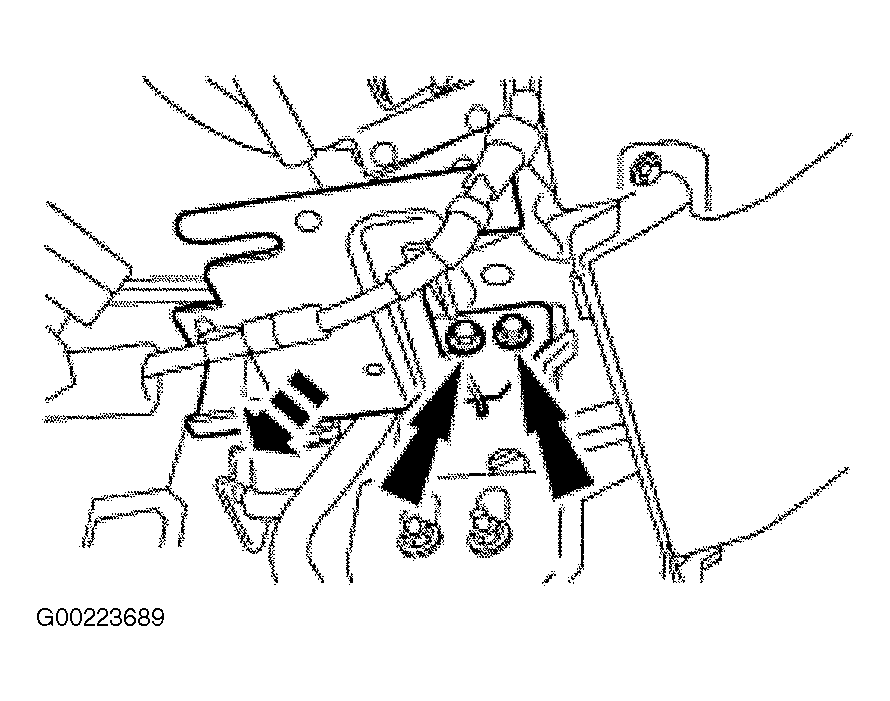

Fig 7: Removing & Installing Bracket

Courtesy of FORD MOTOR CO.

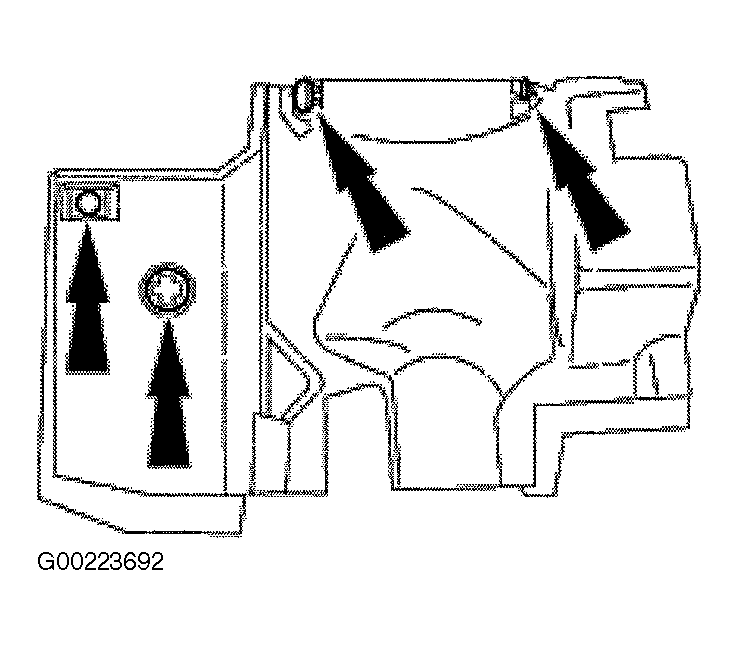

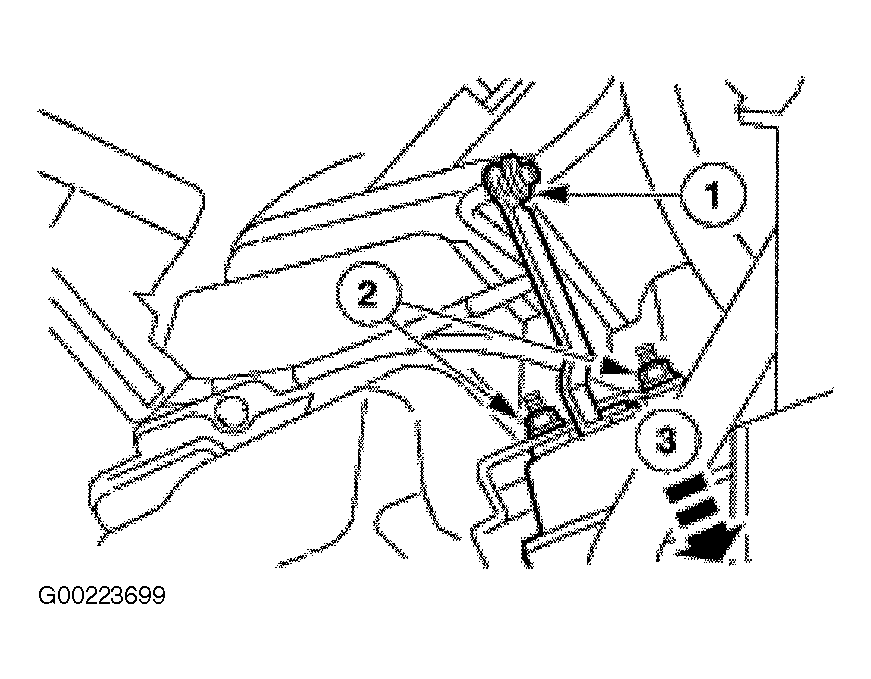

Fig 8: Removing & Installing Vacuum Motor

Courtesy of FORD MOTOR CO.

Fig 9: Disconnecting Vacuum Lines From Motor

Courtesy of FORD MOTOR CO.
