Removal & Installation

  1. Remove relay module. See Fig 1. Disconnect vacuum hose. See Fig 2. Raise and support vehicle. From inside left wheel well, remove nuts. See Fig 3. Remove vacuum reservoir tank.
  2. To install, reverse removal procedure.

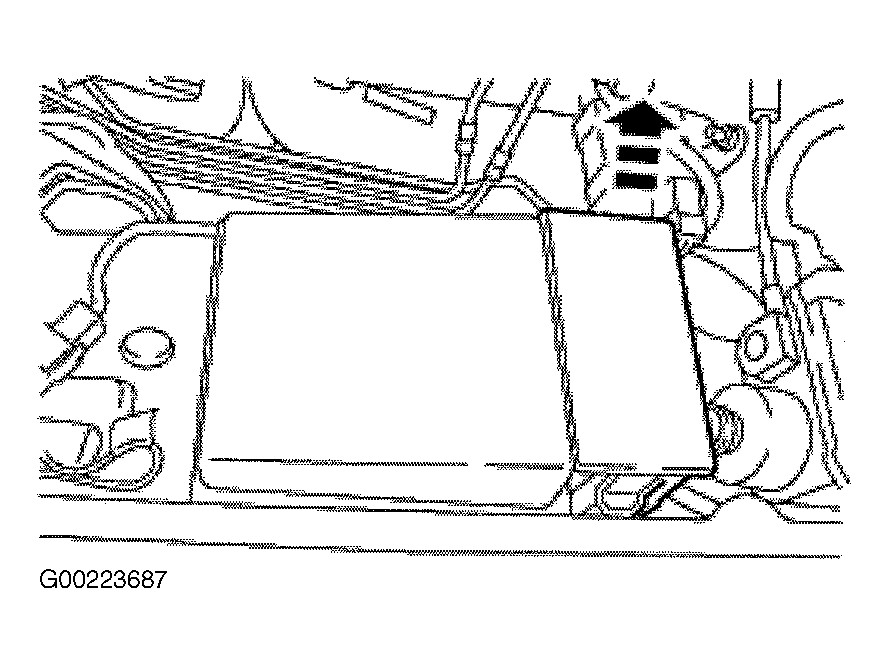

Fig 1: Removing & Installing Relay Module
G00223687Courtesy of FORD MOTOR CO.

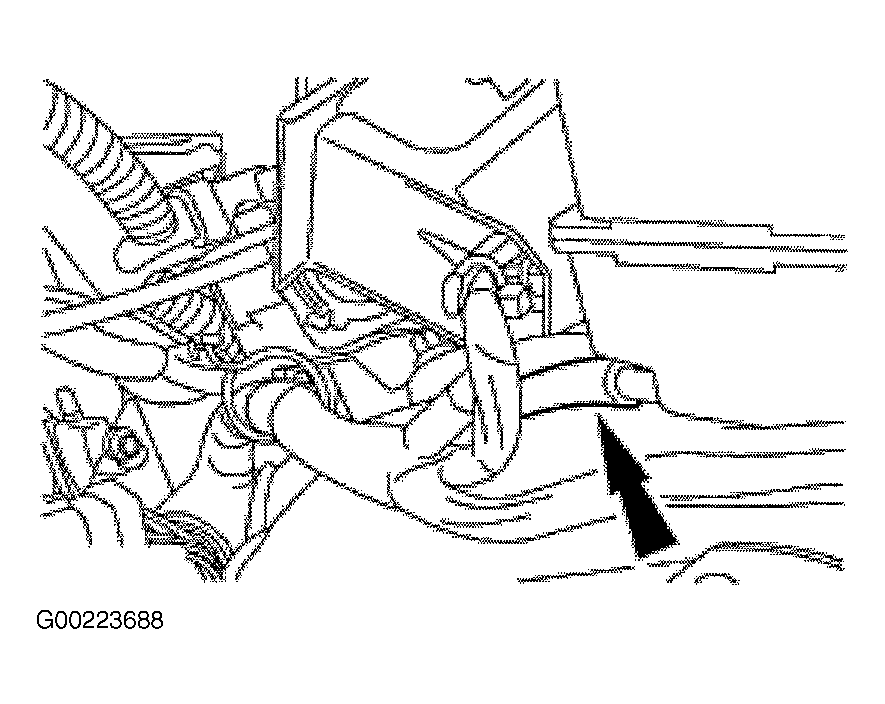

Fig 2: Disconnecting Vacuum Reservoir Tank Vacuum Hose
G00223688Courtesy of FORD MOTOR CO.

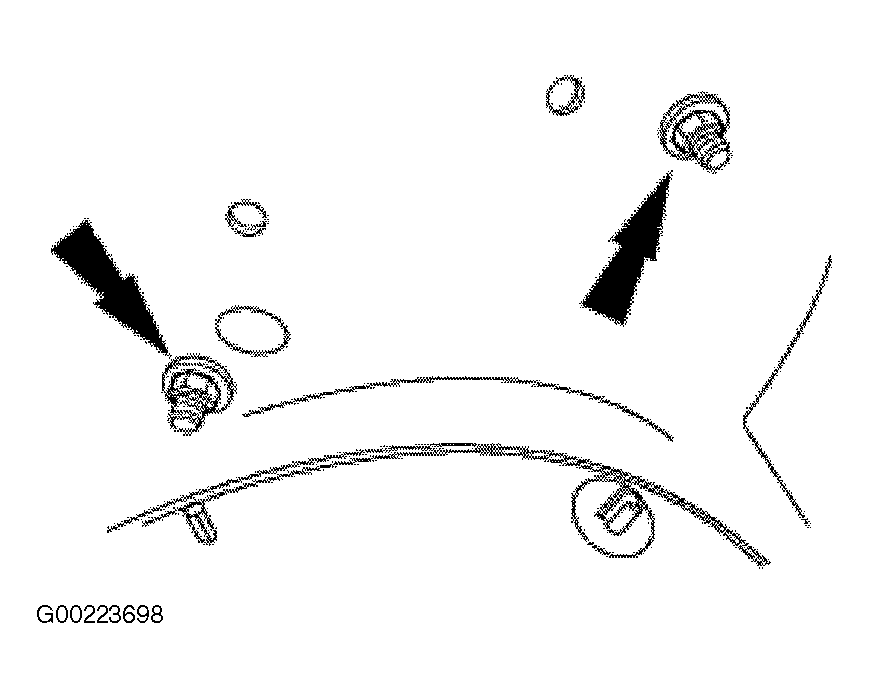

Fig 3: Removing & Installing Left Wheel Well Nuts
G00223698Courtesy of FORD MOTOR CO.
