Vacuum Hose Diagram(S)
Vacuum Hose Diagram(S)

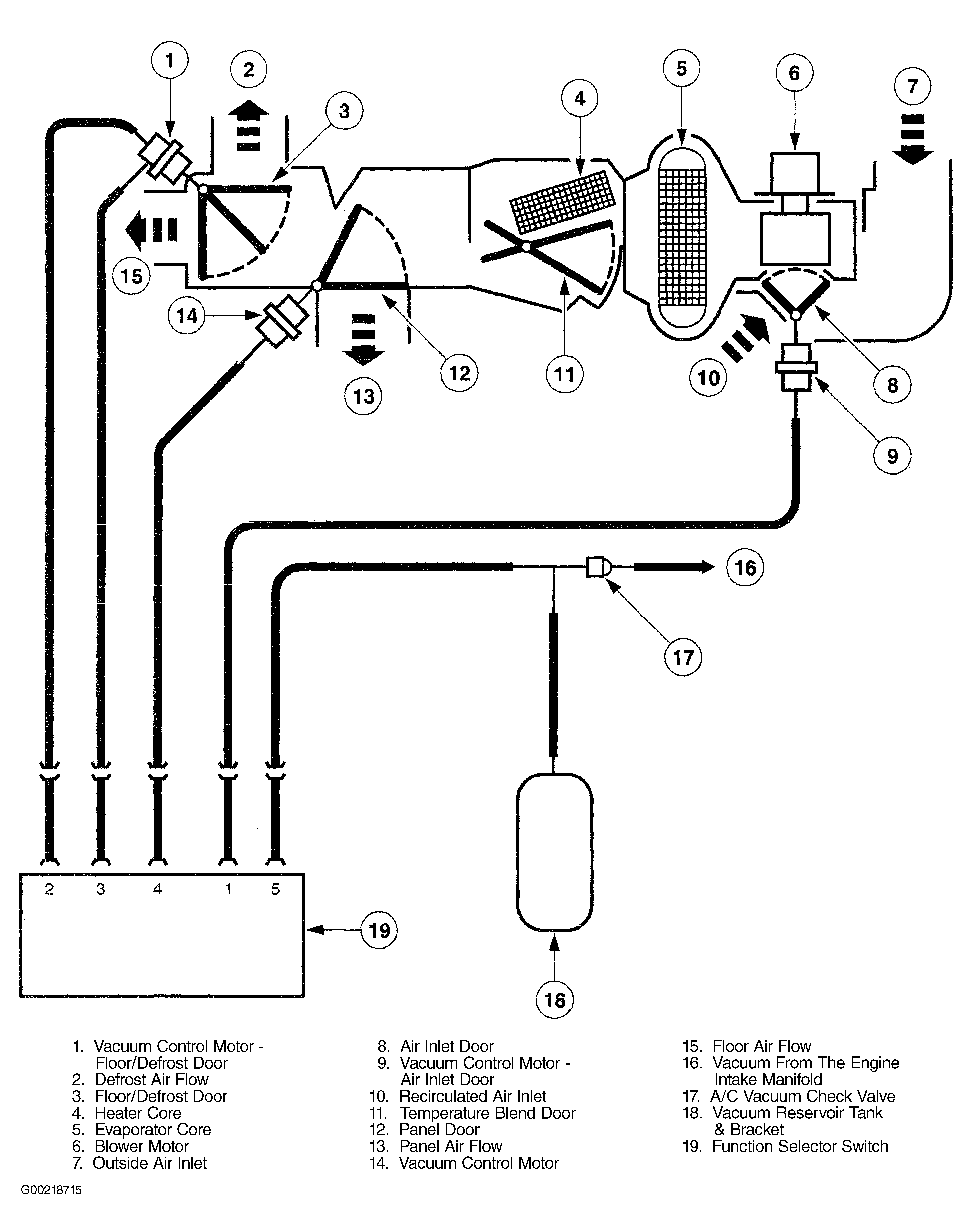

Fig 1: Manual Vacuum Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
