Home
>>
Ford
>>
2002
>>
Crown Victoria Base, 4.6 9
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
HVAC Control System - General Information
>>
Diagnosis & Testing
>>
Climate Control System
>>
Vacuum Application Chart - Manual A/C
Vacuum Application Chart - Manual A/C

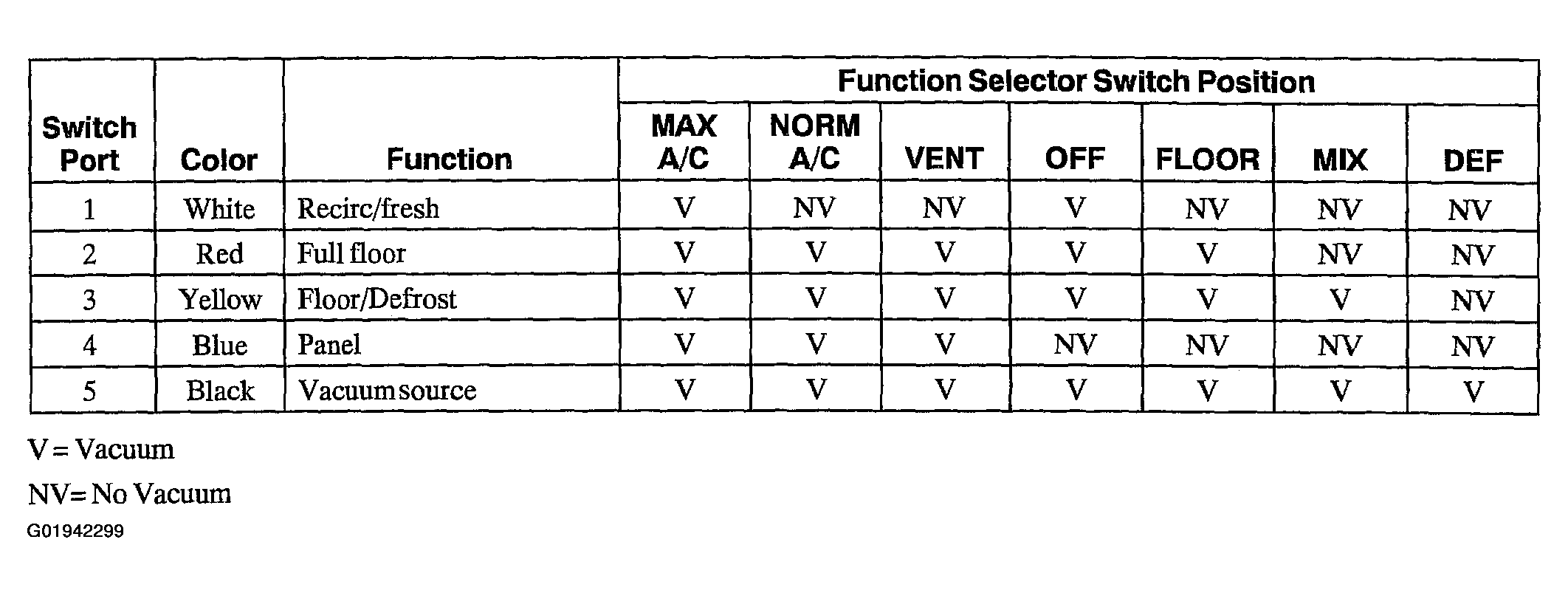

Fig 1: Identifying Vacuum Application Chart - Manual A/C
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
