Vacuum Connector End View - Electronic Automatic Temperature Control
Vacuum Connector End View - Electronic Automatic Temperature Control

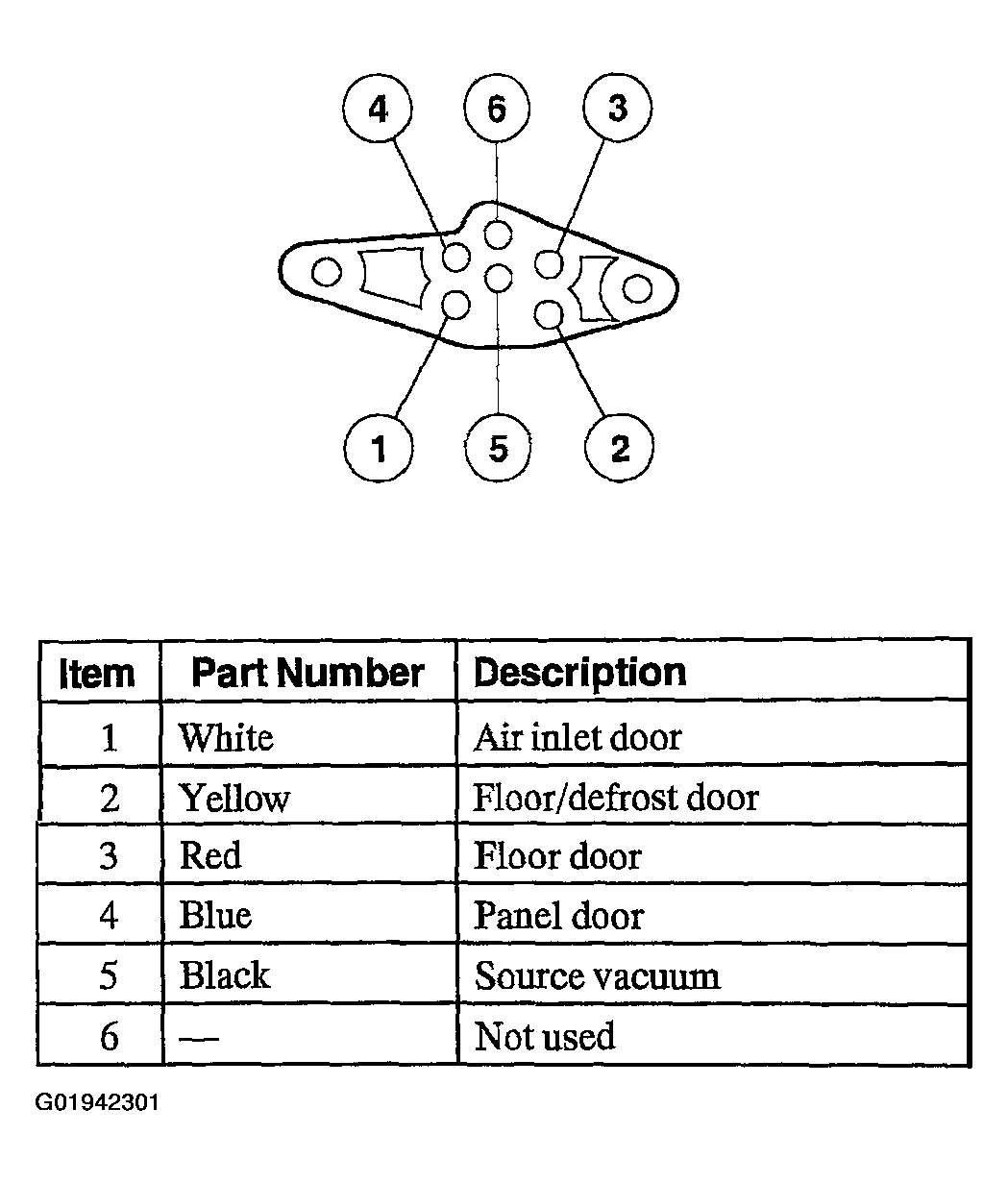

Fig 1: Identifying Vacuum Connector End View - Electronic Automatic Temperature Control
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
