Pinpoint Test D: DTC B1261 - A/C Solar Radiation Sensor Circuit Short To Ground

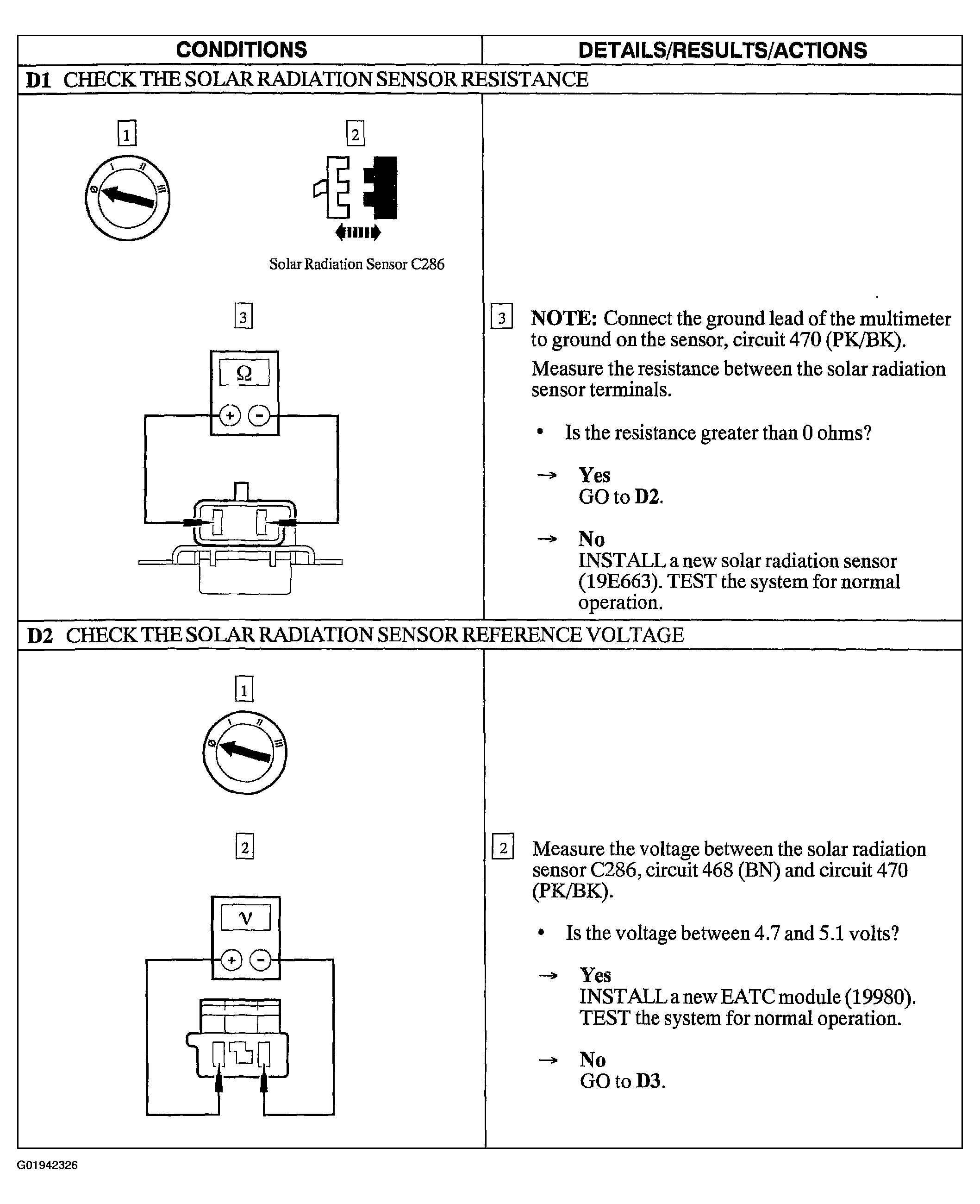

Fig 1: Pinpoint Test D: DTC B1261 - A/C Solar Radiation Sensor Circuit Short To Ground (Steps D1-D2)

Courtesy of FORD MOTOR CO.

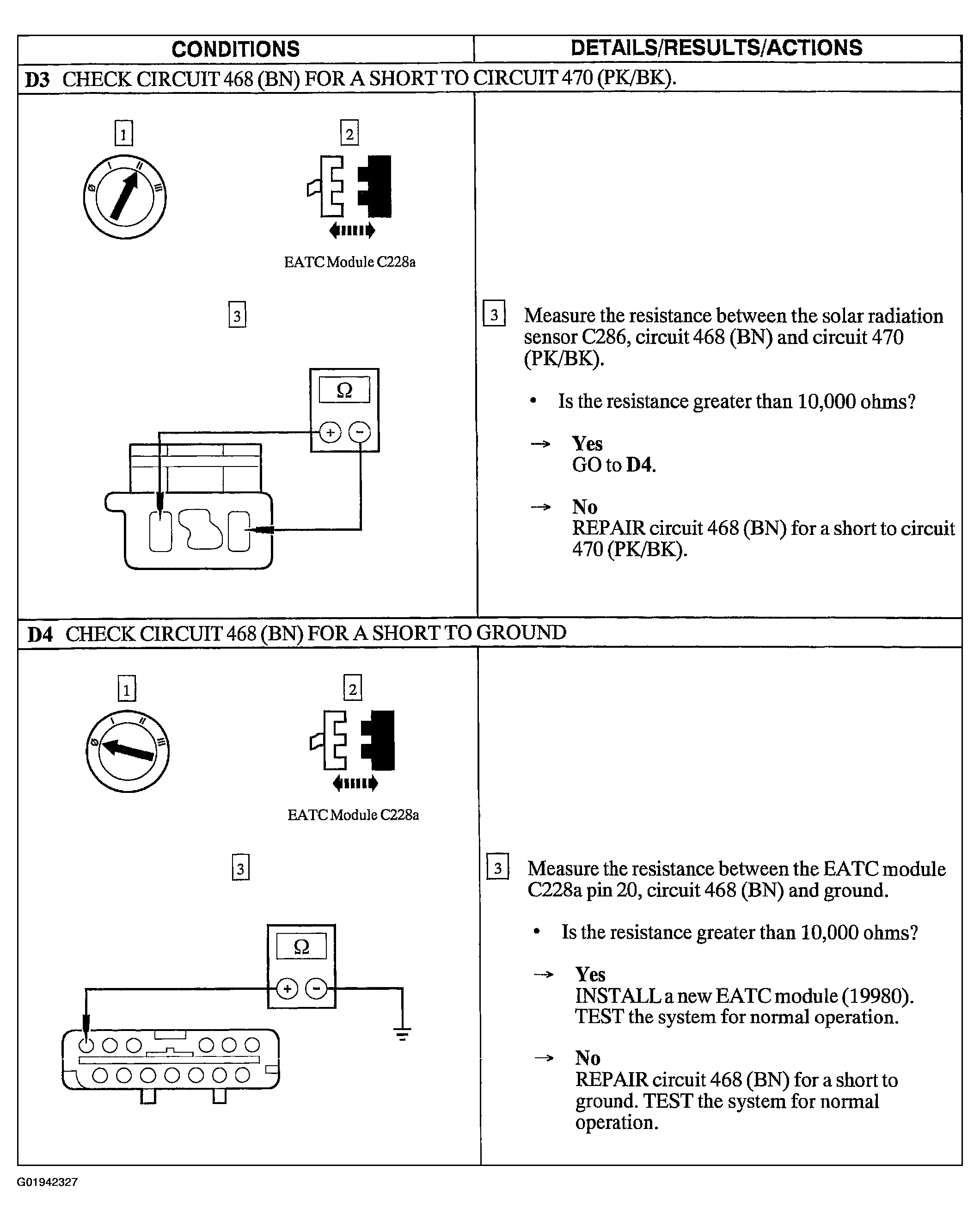

Fig 2: Pinpoint Test D: DTC B1261 - A/C Solar Radiation Sensor Circuit Short To Ground (Steps D3-D4)

Courtesy of FORD MOTOR CO.
