Pinpoint Test F: The EATC System Is Inoperative, Intermittent Or Incorrect Operation

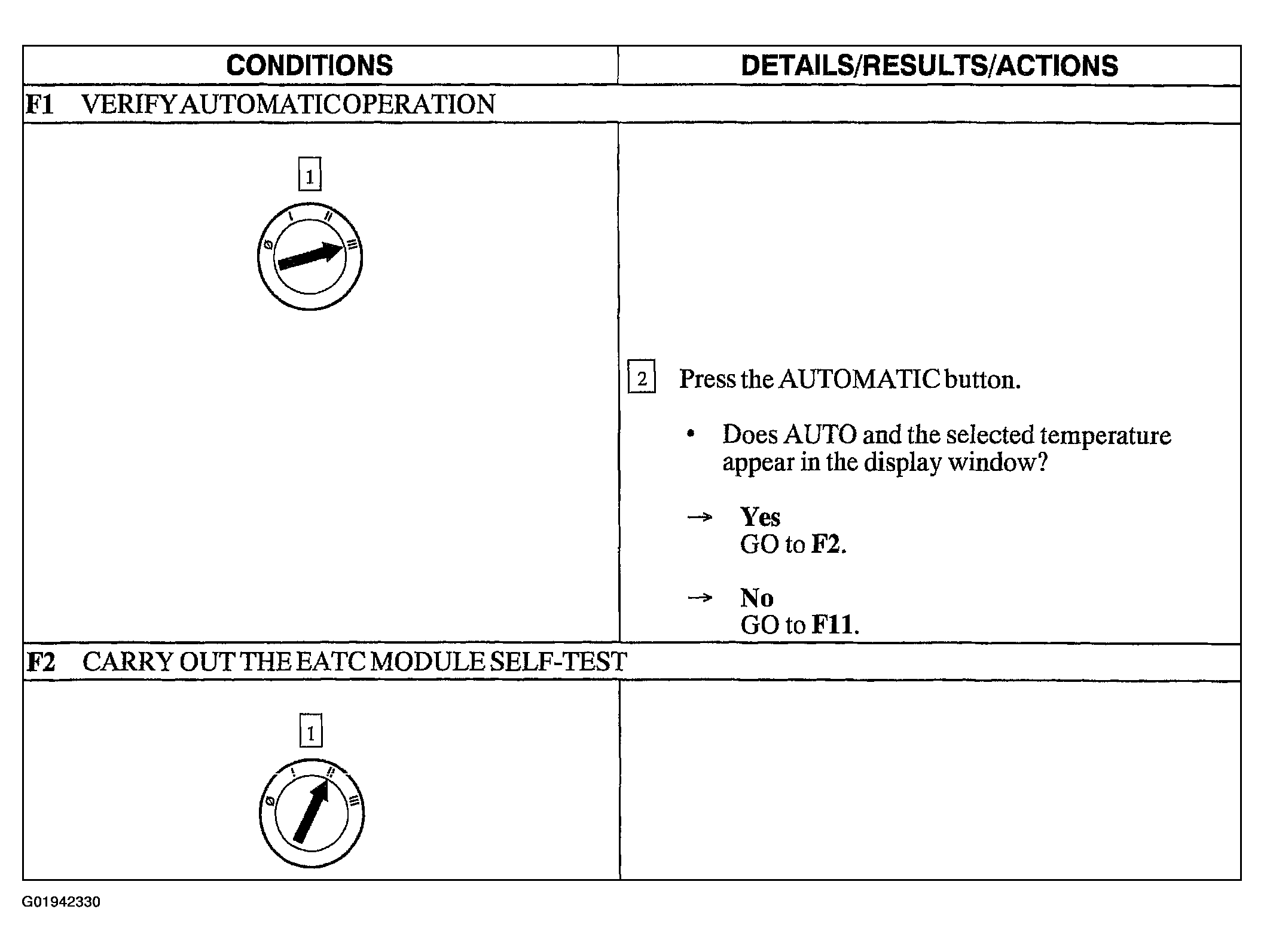

Fig 1: Pinpoint Test F: The EATC System Is Inoperative, Intermittent Or Incorrect Operation (Steps F1-F2)

Courtesy of FORD MOTOR CO.

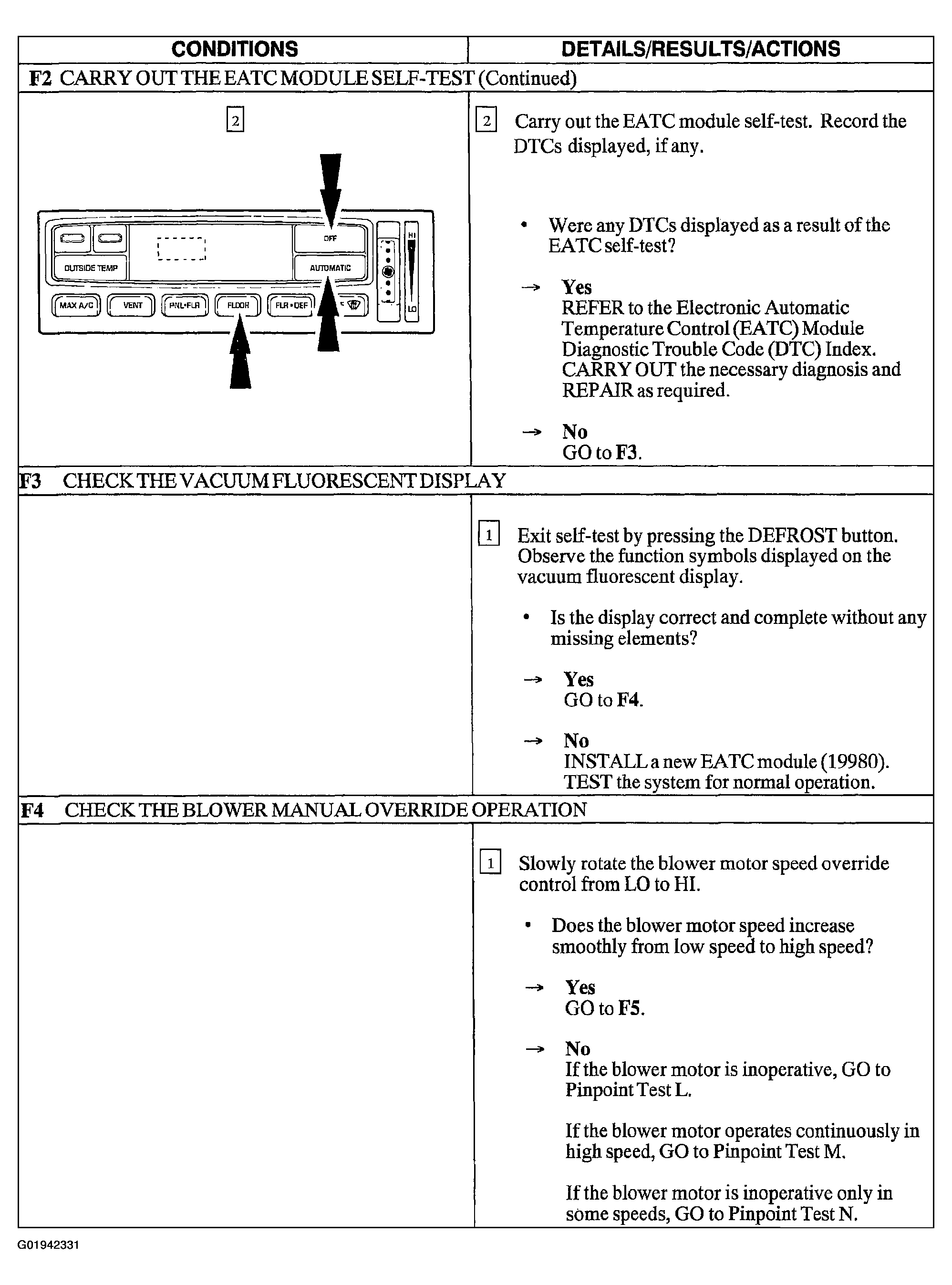

Fig 2: Pinpoint Test F: The EATC System Is Inoperative, Intermittent Or Incorrect Operation (Steps F2 Cont.-F4)

Courtesy of FORD MOTOR CO.

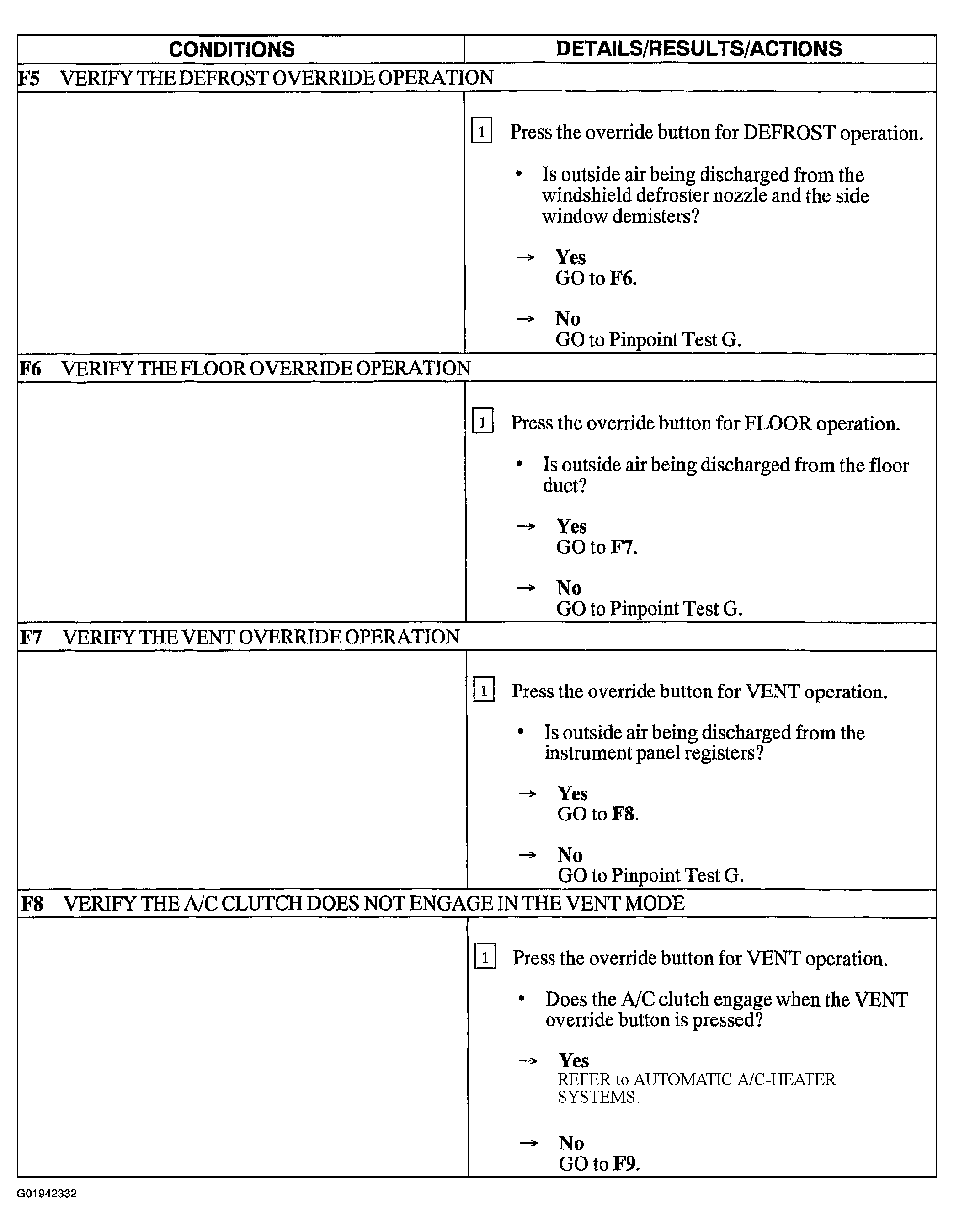

Fig 3: Pinpoint Test F: The EATC System Is Inoperative, Intermittent Or Incorrect Operation (Steps F5-F8)

Courtesy of FORD MOTOR CO.

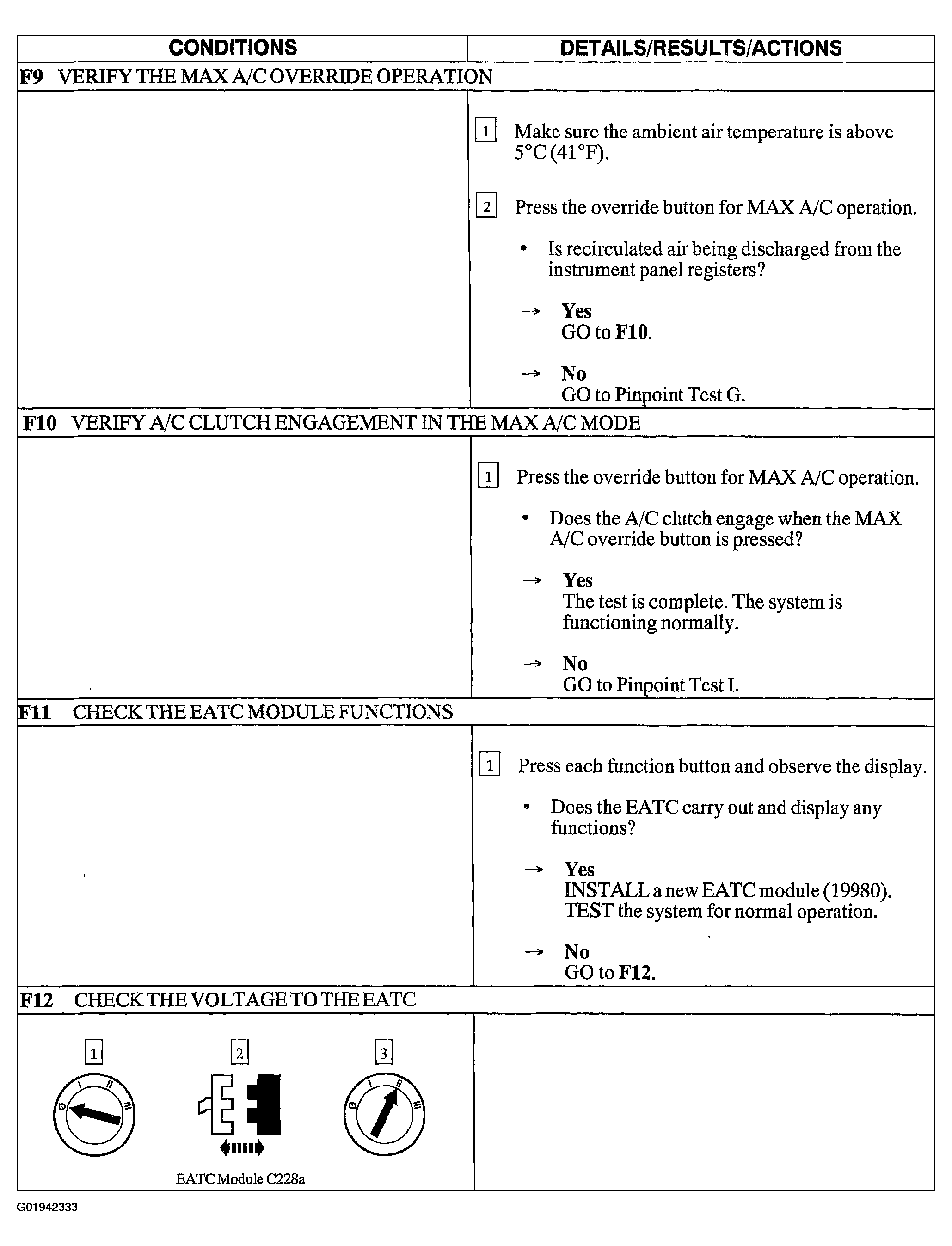

Fig 4: Pinpoint Test F: The EATC System Is Inoperative, Intermittent Or Incorrect Operation (Steps F9-F12)

Courtesy of FORD MOTOR CO.

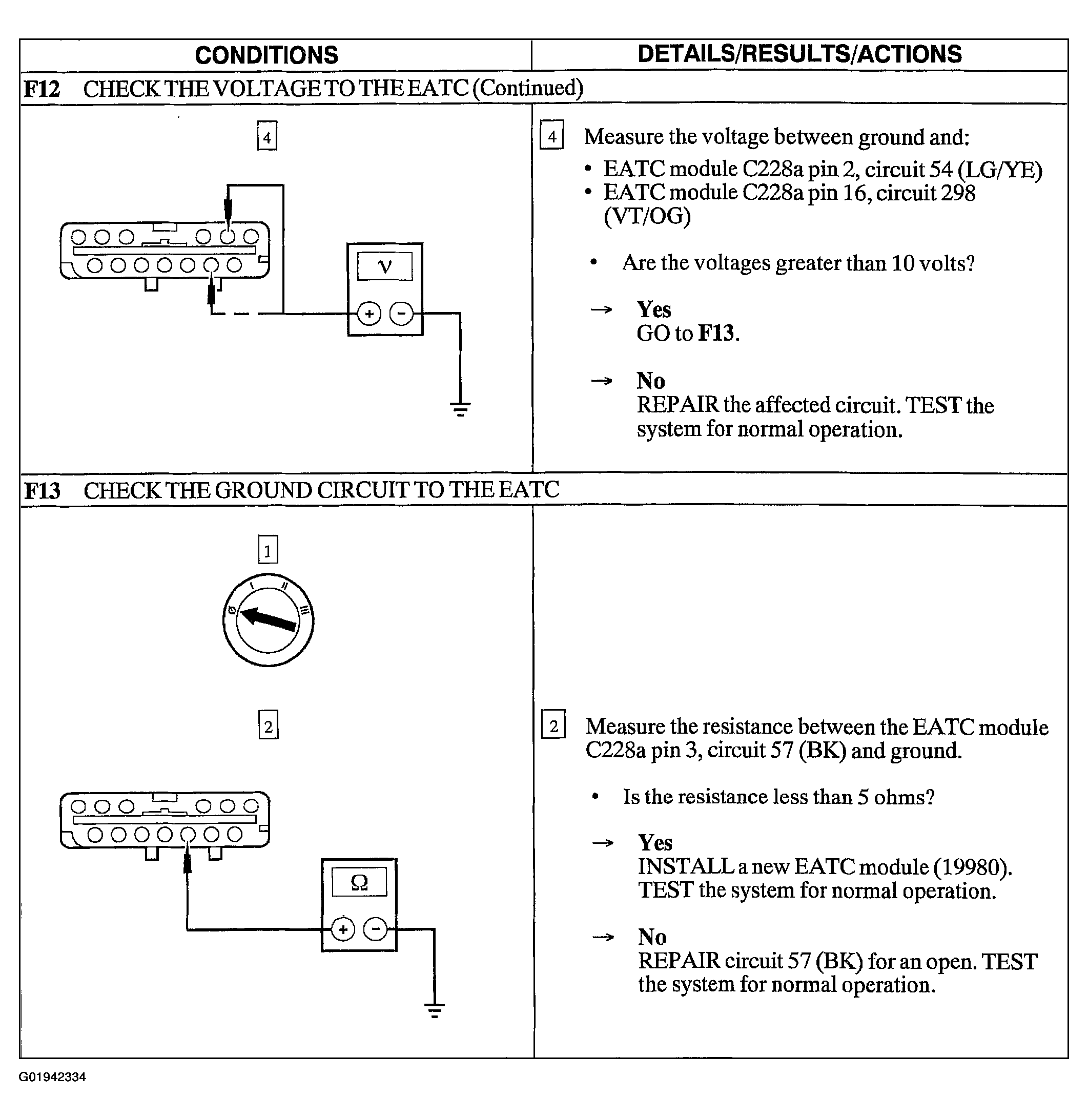

Fig 5: Pinpoint Test F: The EATC System Is Inoperative, Intermittent Or Incorrect Operation (Steps F12 Cont.-F13)

Courtesy of FORD MOTOR CO.
