Pinpoint Test G: Incorrect/Erratic Direction Of Air Flow From Outlet - Manual Climate Control

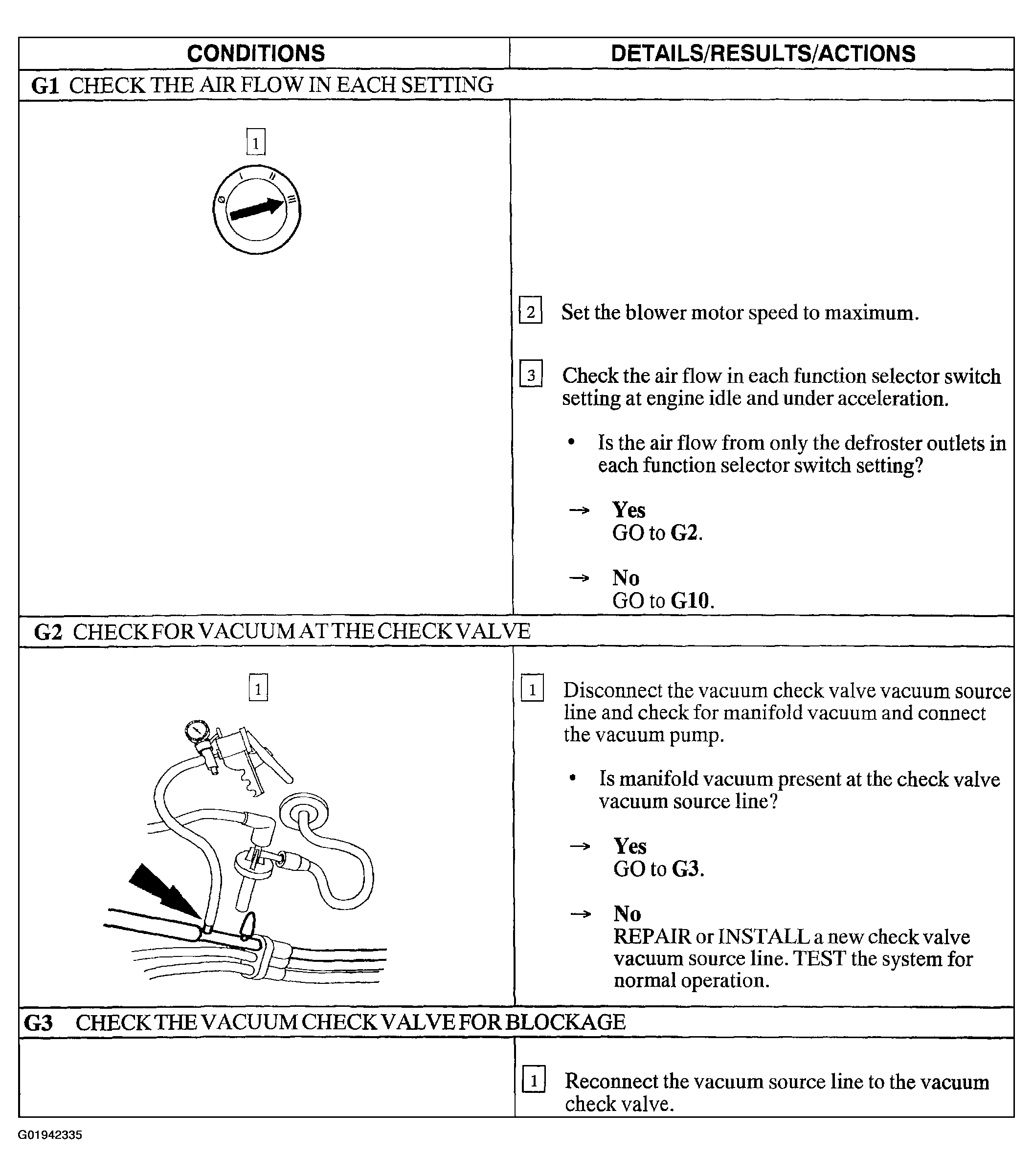

Fig 1: Pinpoint Test G: Incorrect/Erratic Direction Of Air Flow From Outlet - Manual Climate Control (Steps G1-G3)

Courtesy of FORD MOTOR CO.

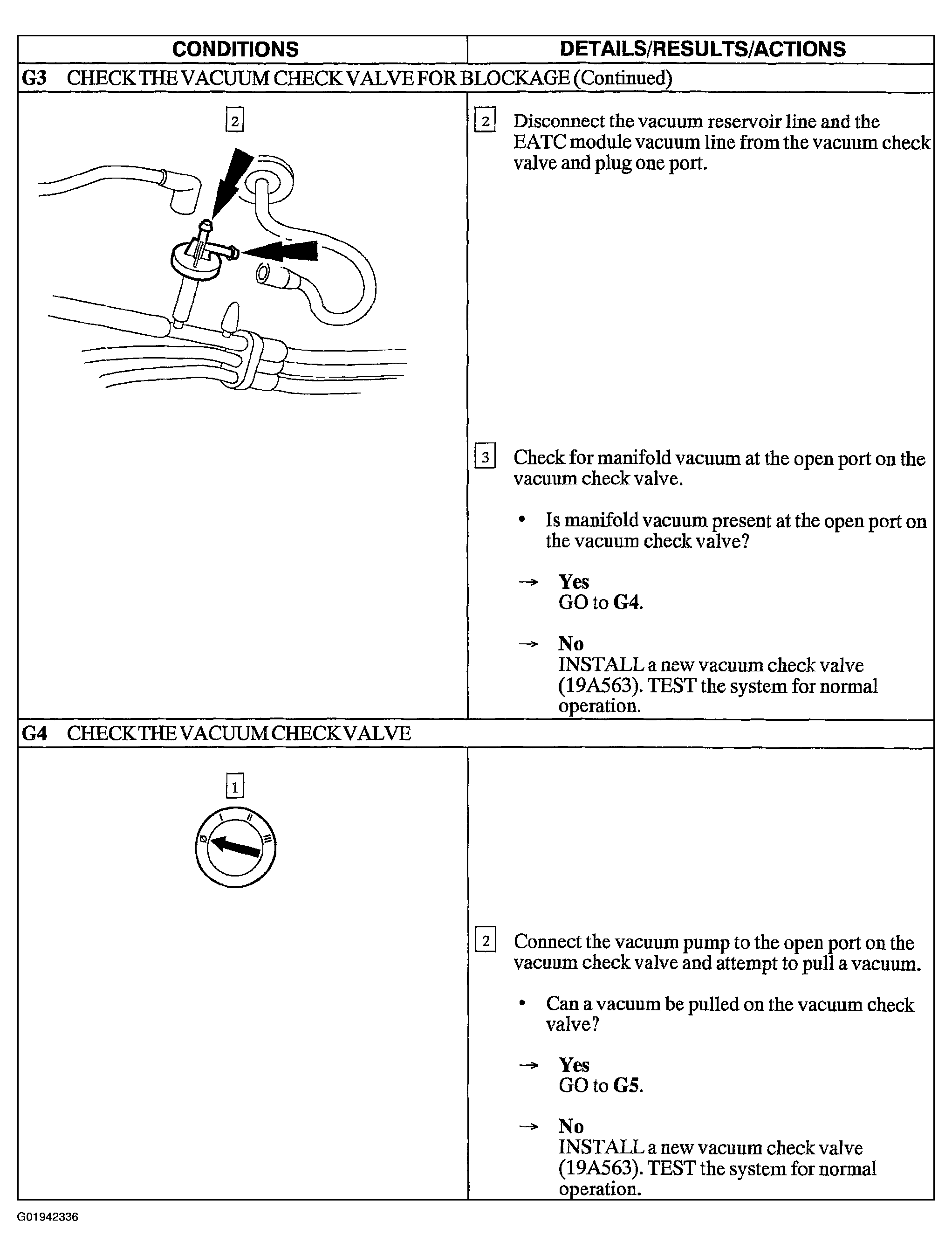

Fig 2: Pinpoint Test G: Incorrect/Erratic Direction Of Air Flow From Outlet - Manual Climate Control (Steps G3 Cont.-G4)

Courtesy of FORD MOTOR CO.

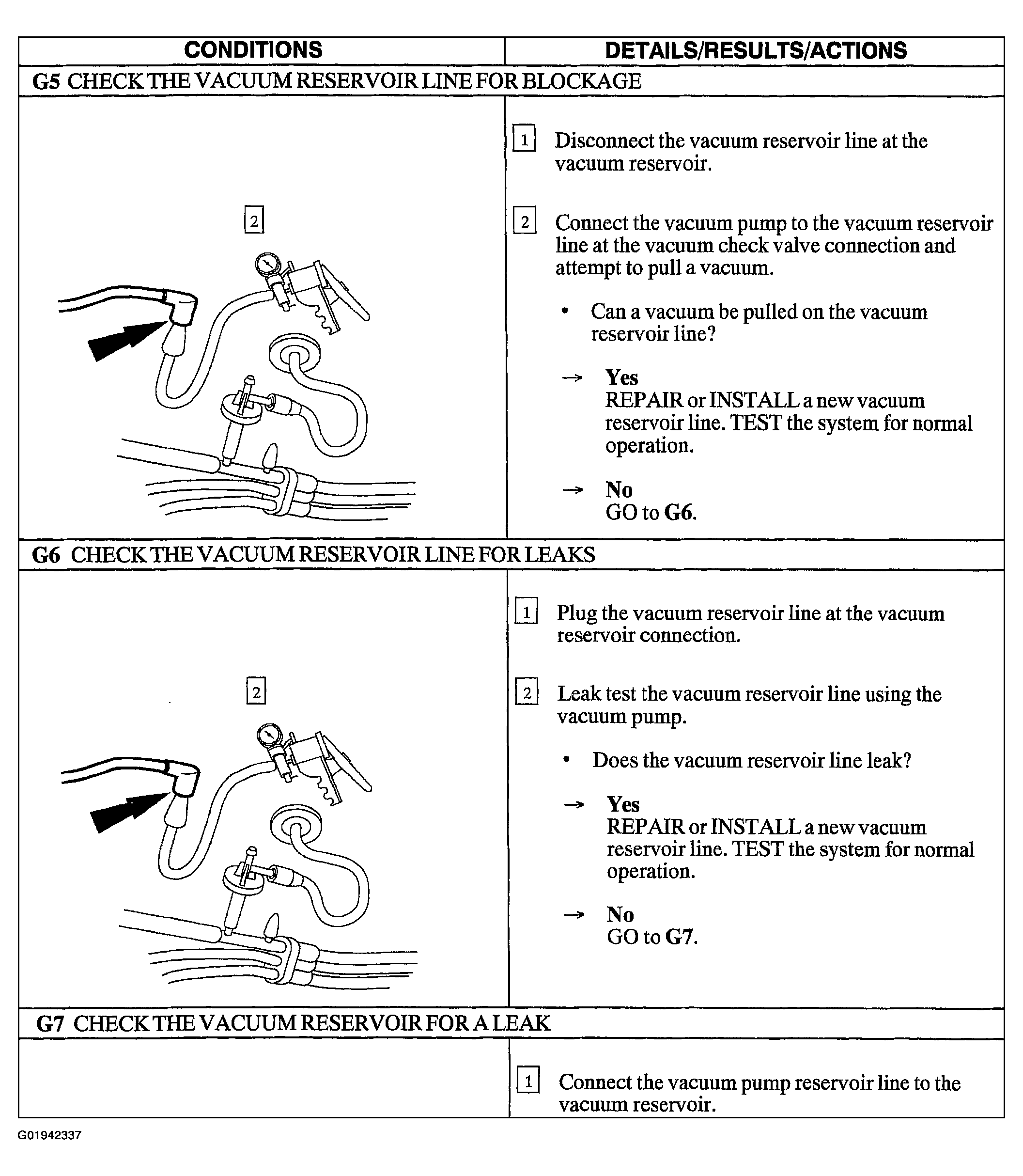

Fig 3: Pinpoint Test G: Incorrect/Erratic Direction Of Air Flow From Outlet - Manual Climate Control (Steps G5-G7)

Courtesy of FORD MOTOR CO.

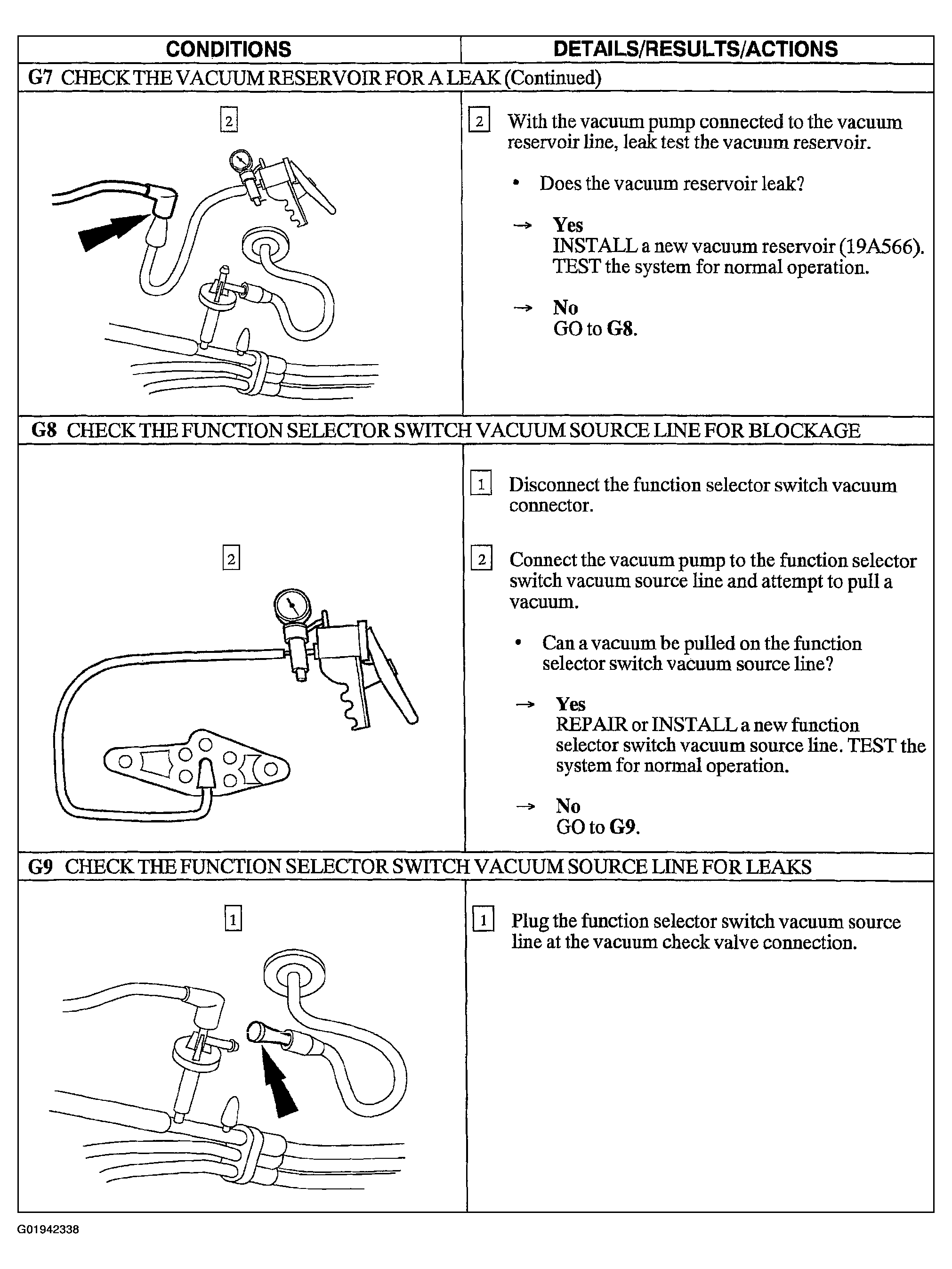

Fig 4: Pinpoint Test G: Incorrect/Erratic Direction Of Air Flow From Outlet - Manual Climate Control (Steps G7 Cont.-G9)

Courtesy of FORD MOTOR CO.

Fig 5: Pinpoint Test G: Incorrect/Erratic Direction Of Air Flow From Outlet - Manual Climate Control (Steps G9 Cont.-G11)

Courtesy of FORD MOTOR CO.

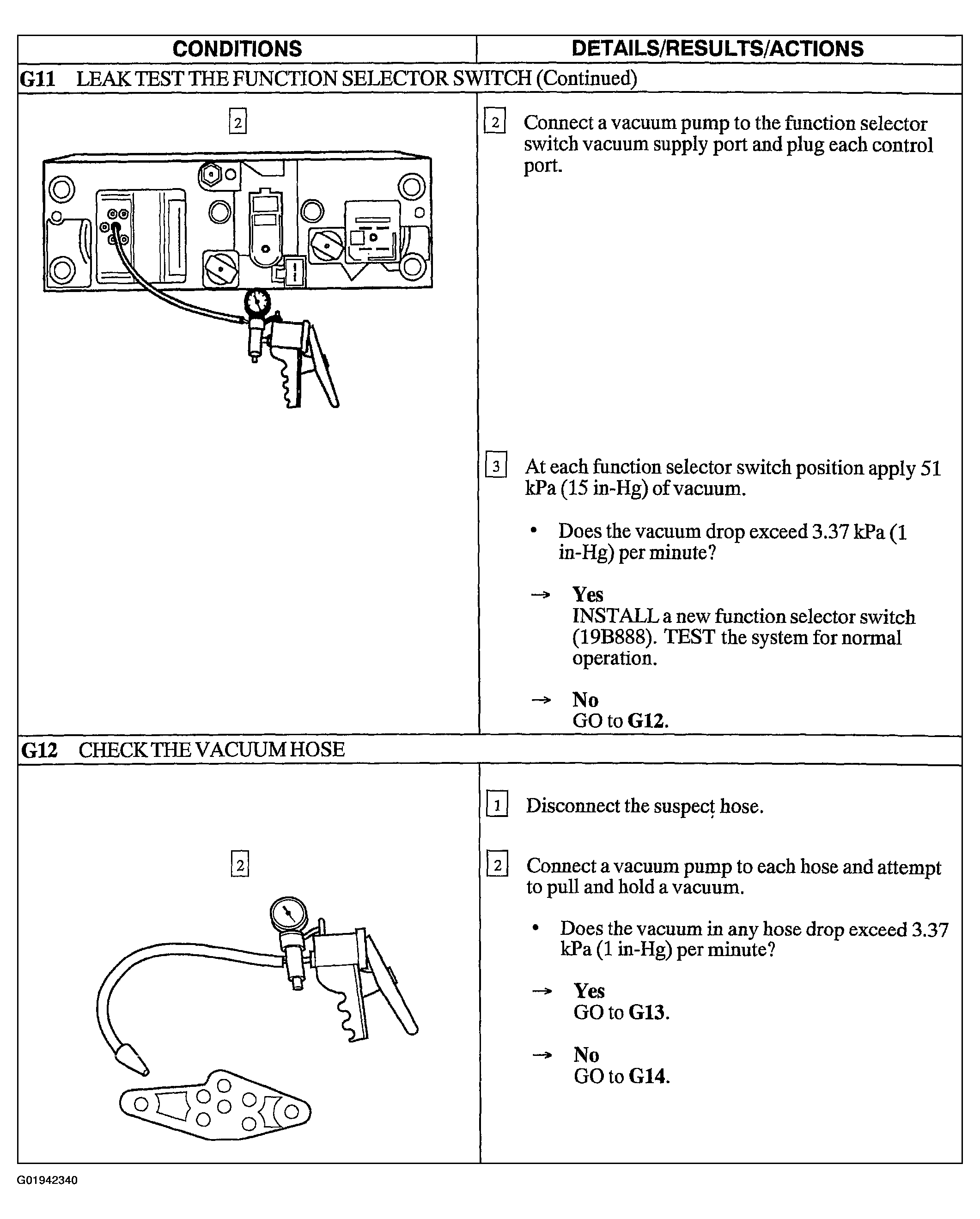

Fig 6: Pinpoint Test G: Incorrect/Erratic Direction Of Air Flow From Outlet - Manual Climate Control (Steps G11 Cont.-G12)

Courtesy of FORD MOTOR CO.

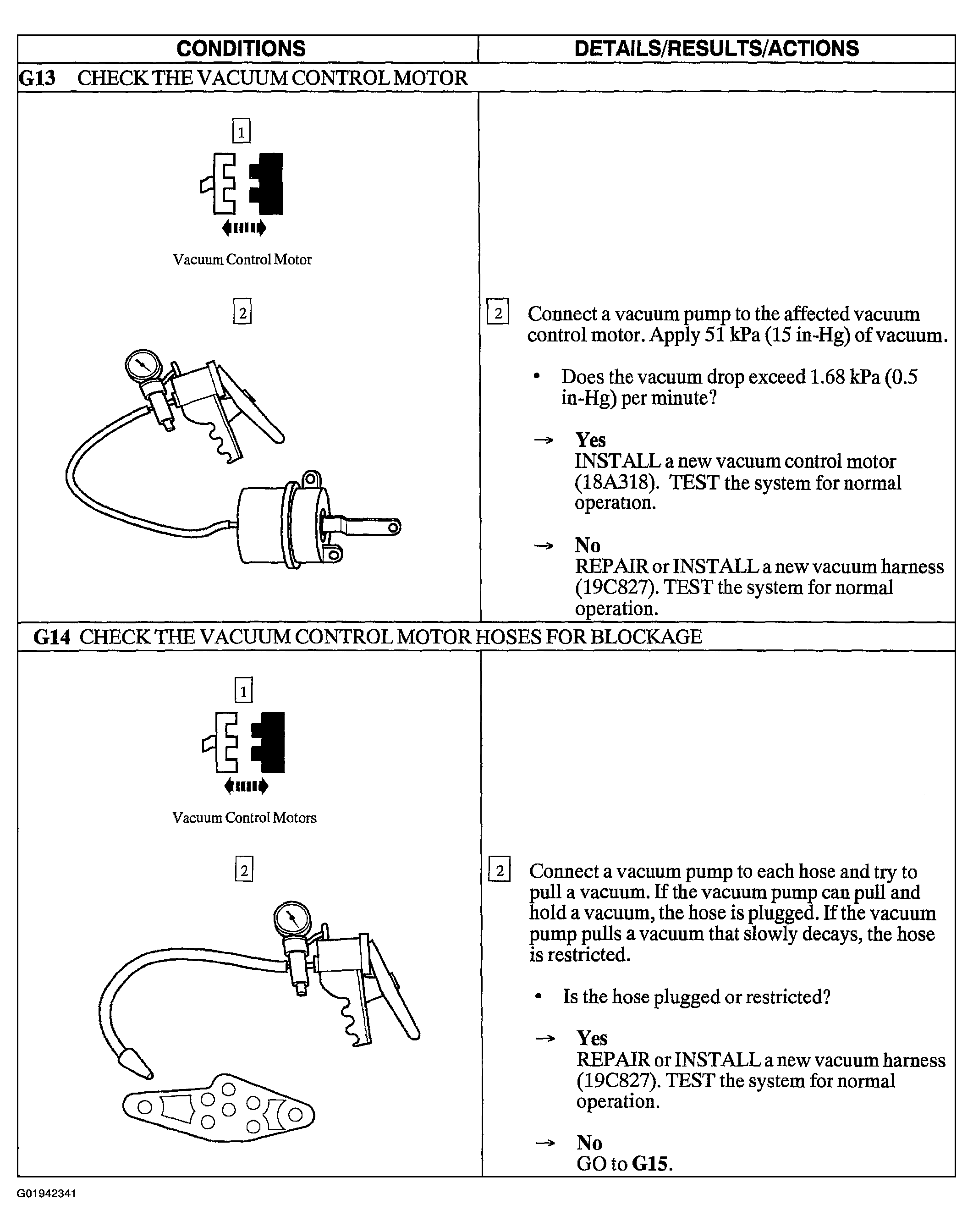

Fig 7: Pinpoint Test G: Incorrect/Erratic Direction Of Air Flow From Outlet - Manual Climate Control (Steps G13-G14)

Courtesy of FORD MOTOR CO.

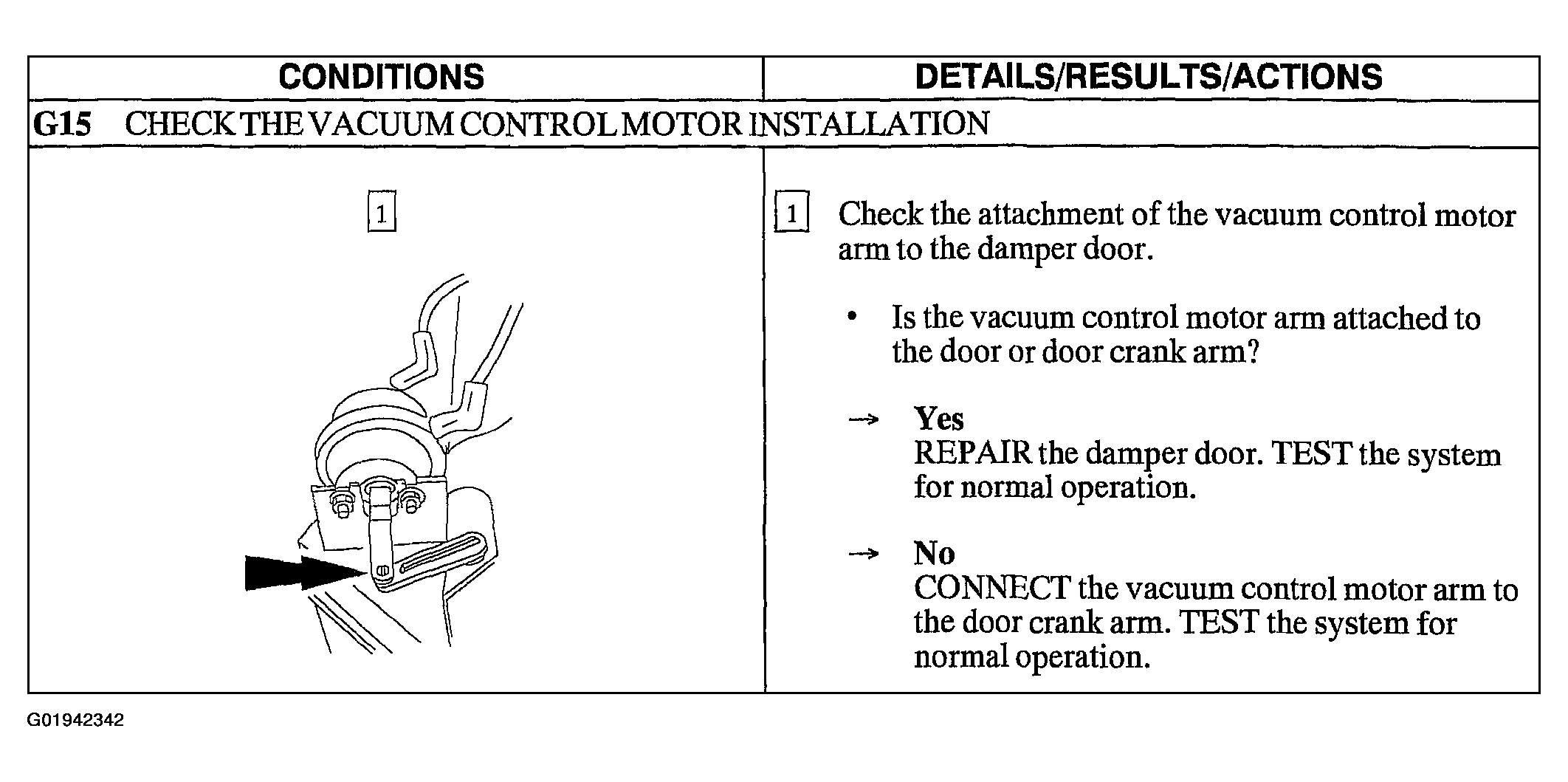

Fig 8: Pinpoint Test G: Incorrect/Erratic Direction Of Air Flow From Outlet - Manual Climate Control (Step G15)

Courtesy of FORD MOTOR CO.
