Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC

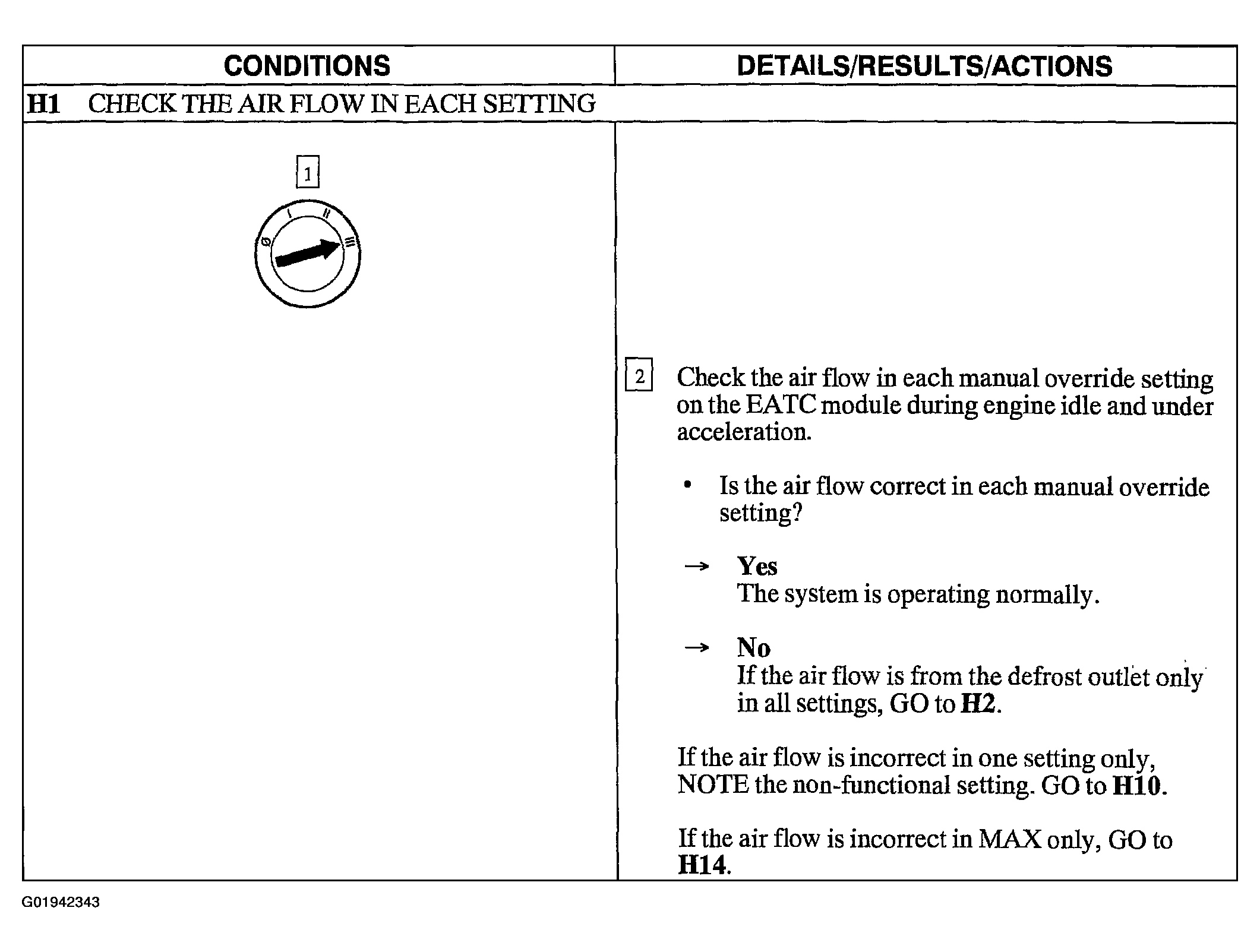

Fig 1: Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC (Step H1)

Courtesy of FORD MOTOR CO.

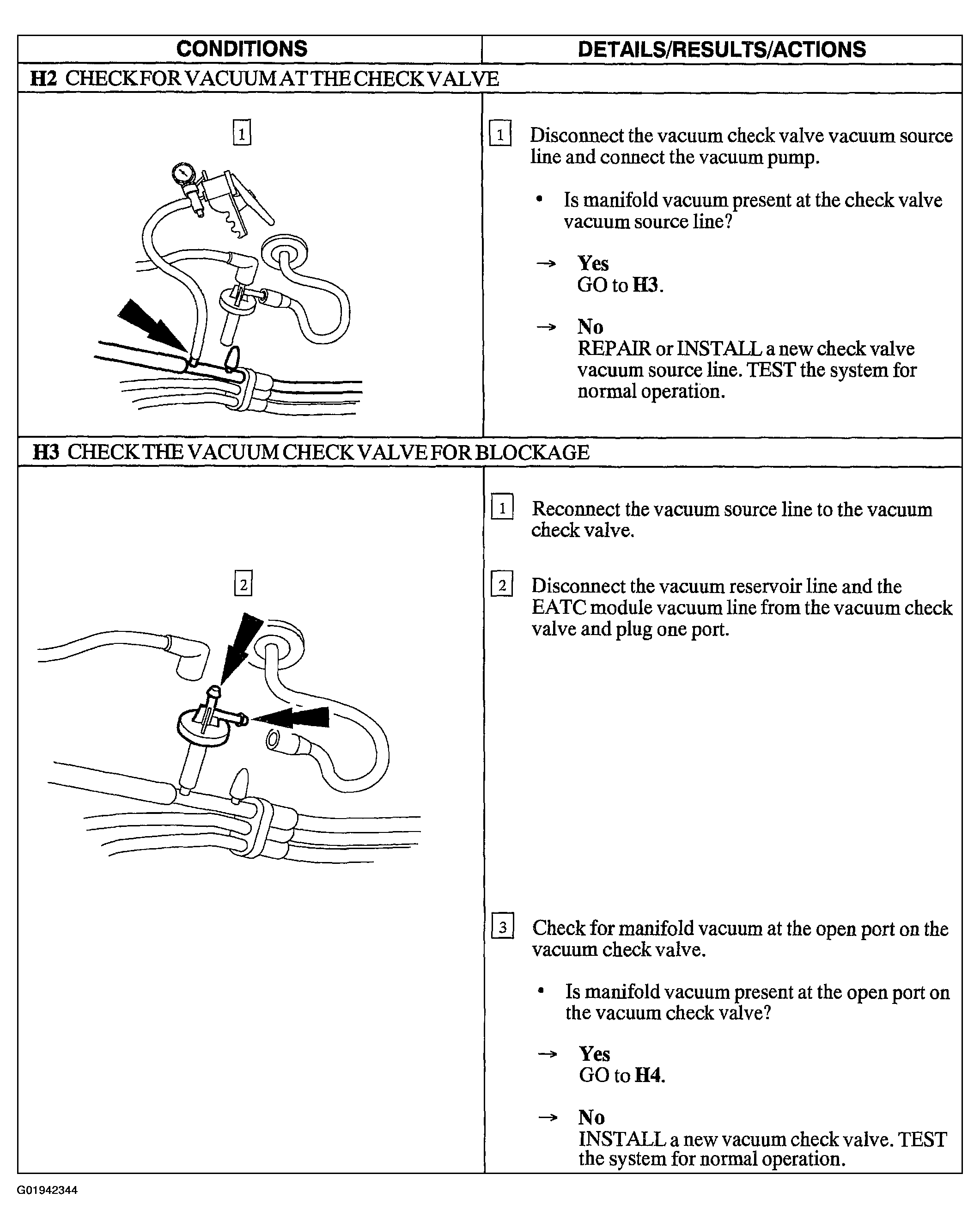

Fig 2: Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC (Steps H2-H3)

Courtesy of FORD MOTOR CO.

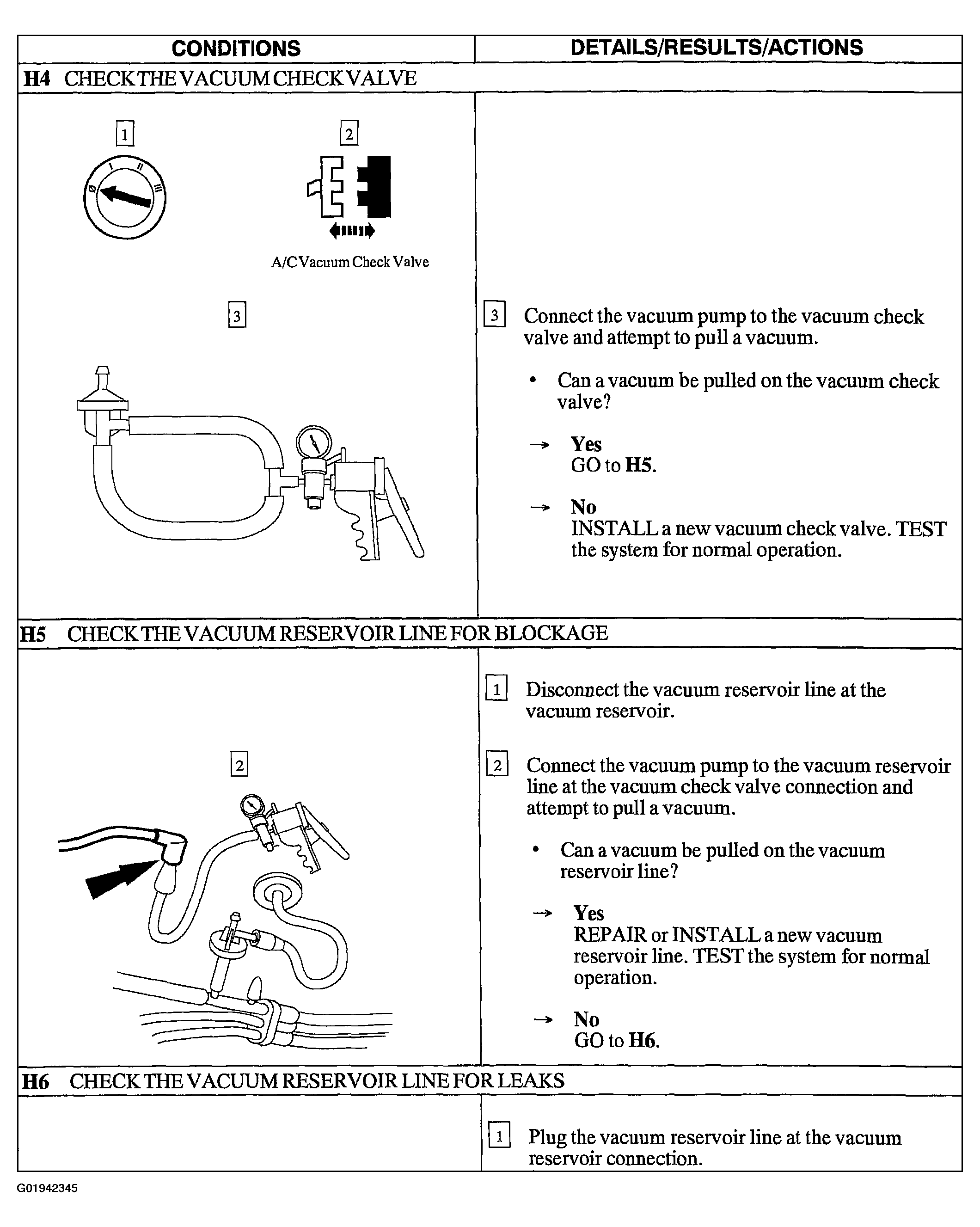

Fig 3: Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC (Steps H4-H6)

Courtesy of FORD MOTOR CO.

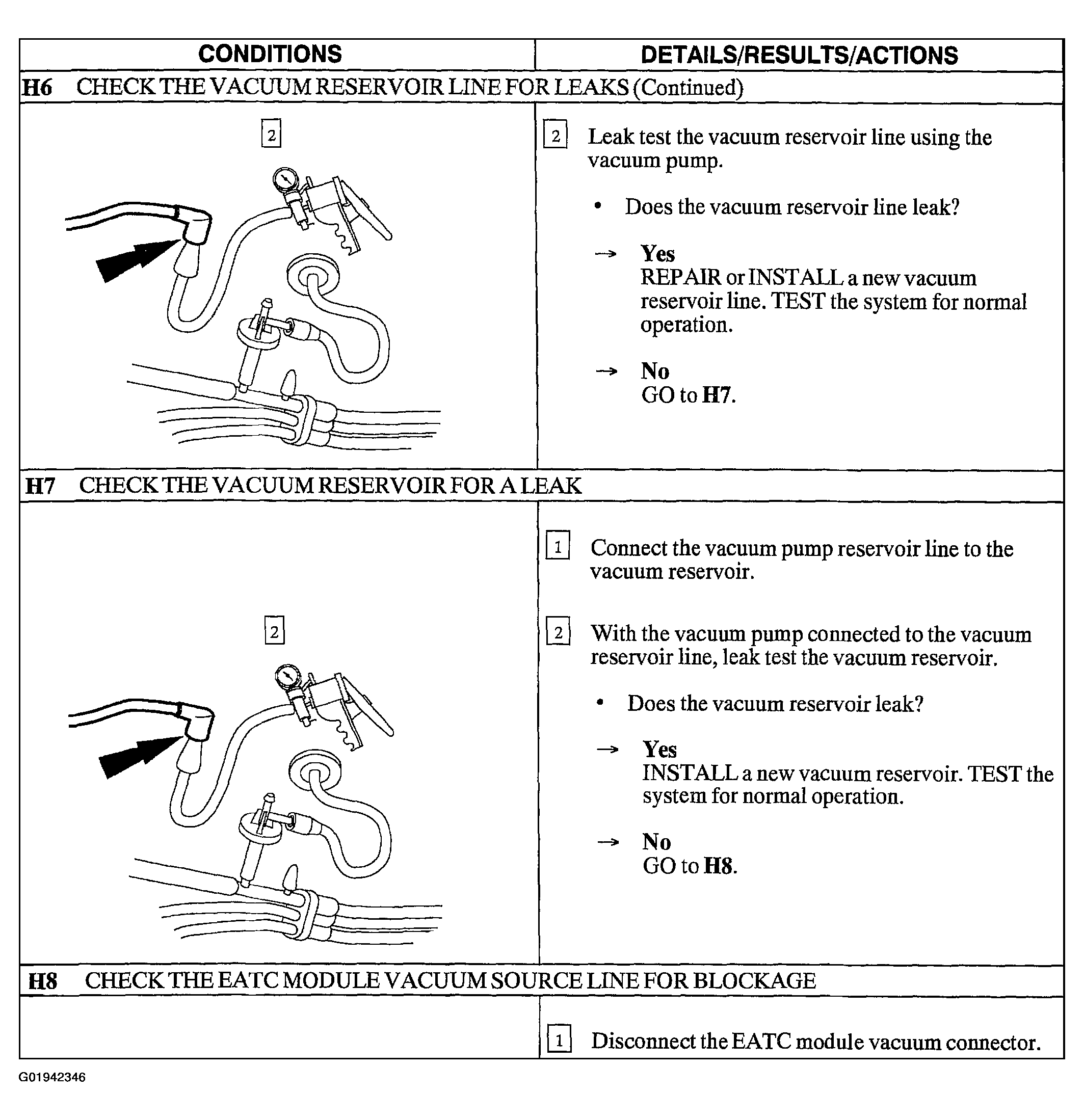

Fig 4: Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC (Steps H6 Cont.-H8)

Courtesy of FORD MOTOR CO.

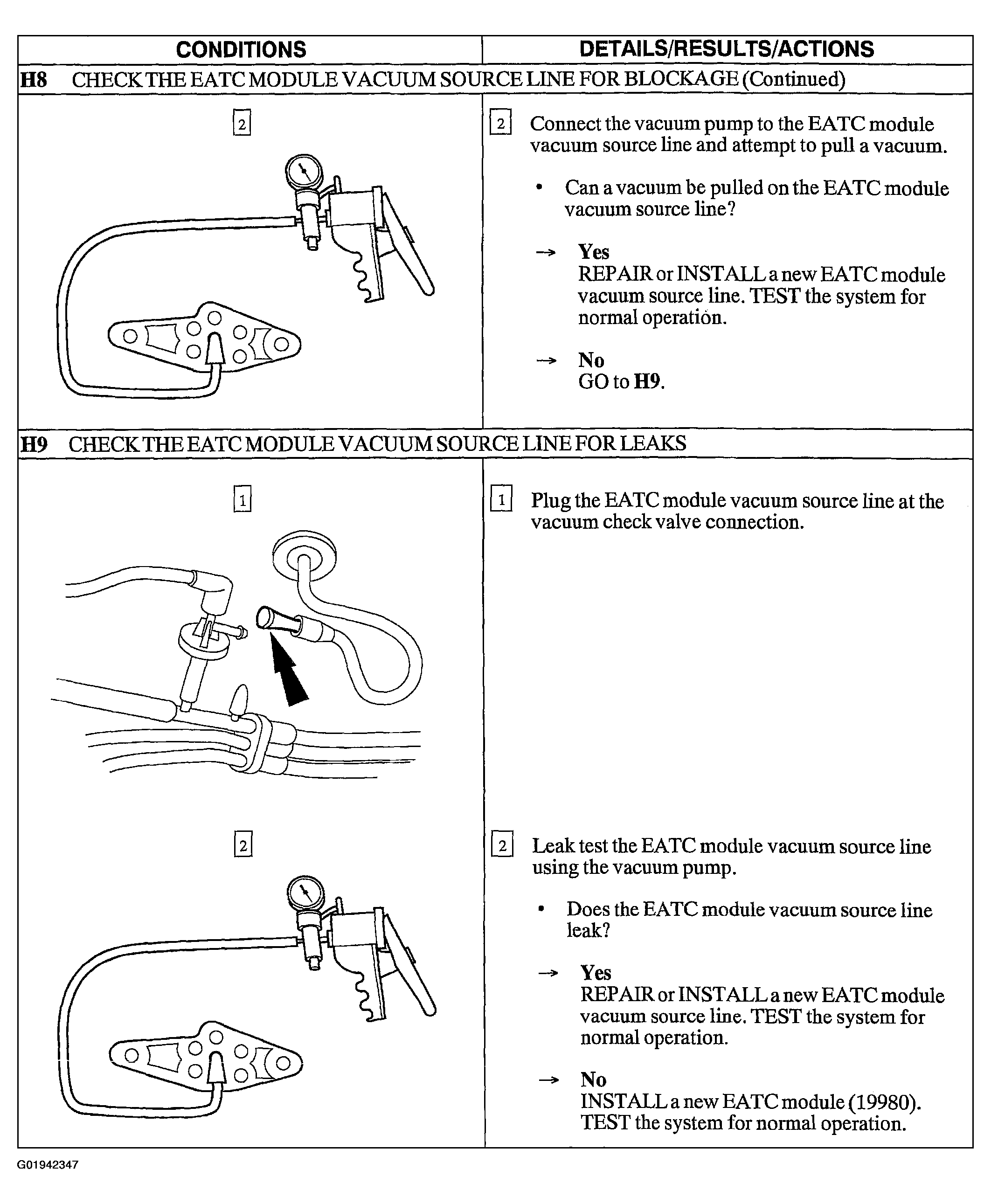

Fig 5: Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC (Steps H8 Cont.-H9)

Courtesy of FORD MOTOR CO.

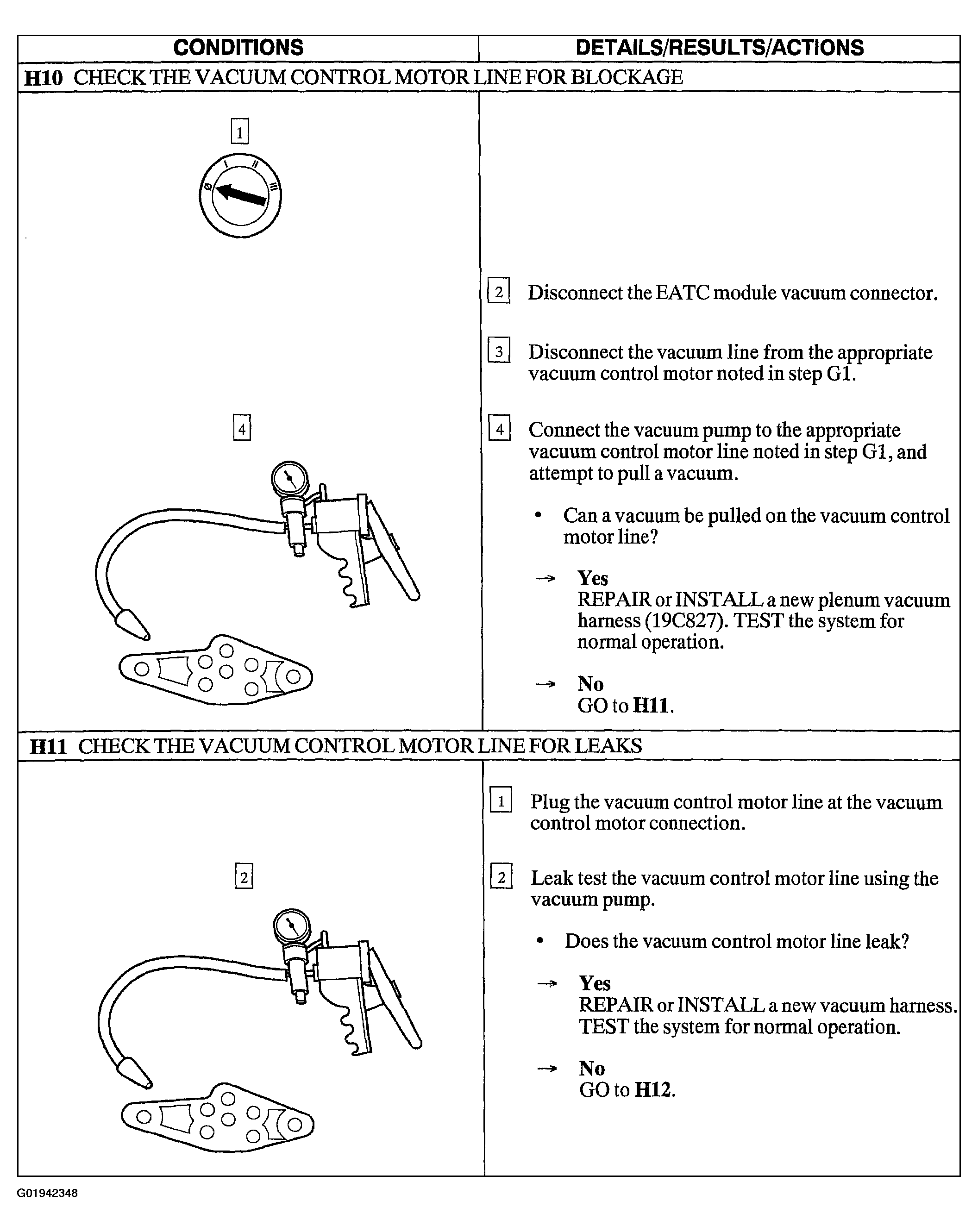

Fig 6: Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC (Steps H10-H11)

Courtesy of FORD MOTOR CO.

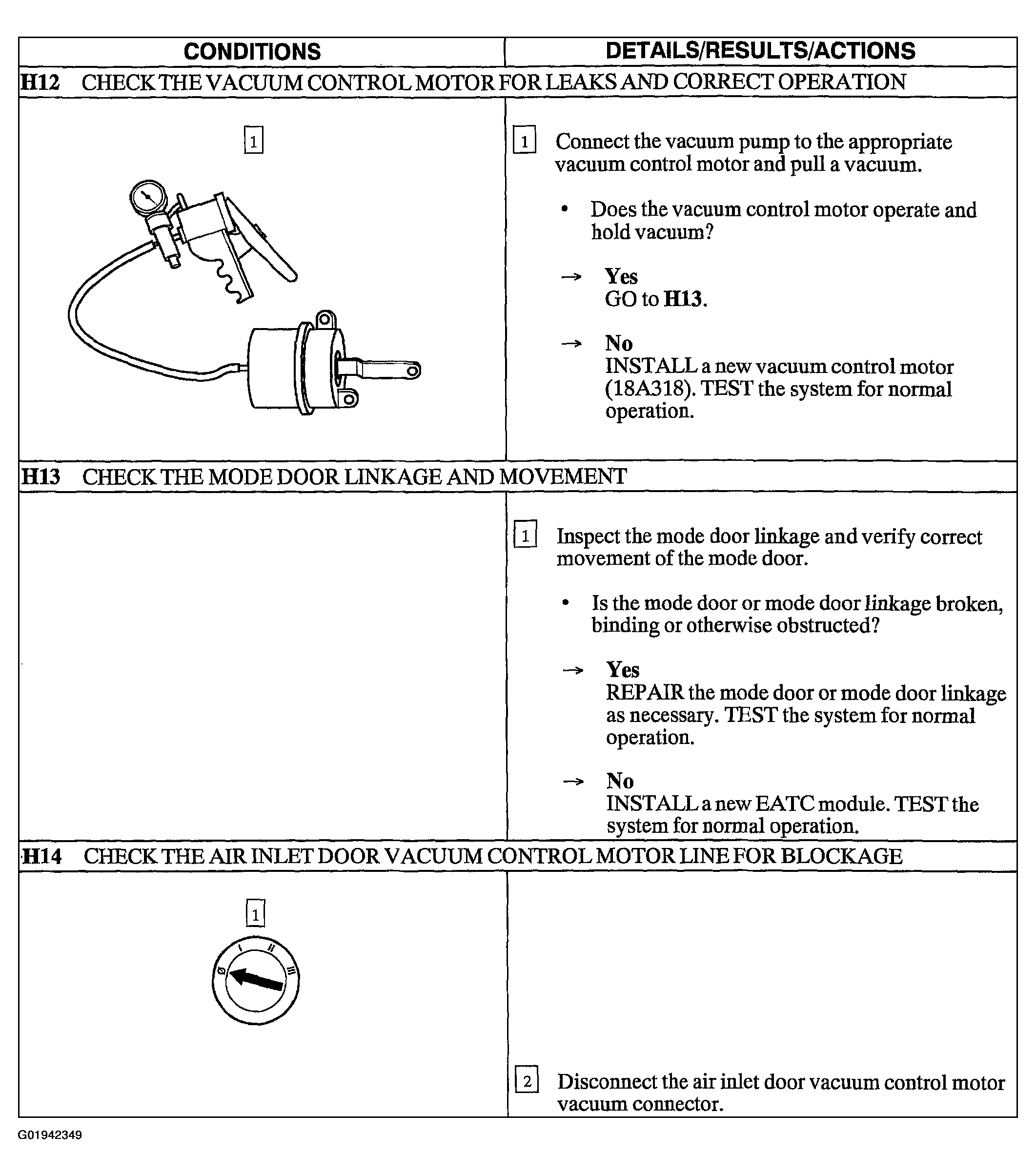

Fig 7: Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC (Steps H12-H14)

Courtesy of FORD MOTOR CO.

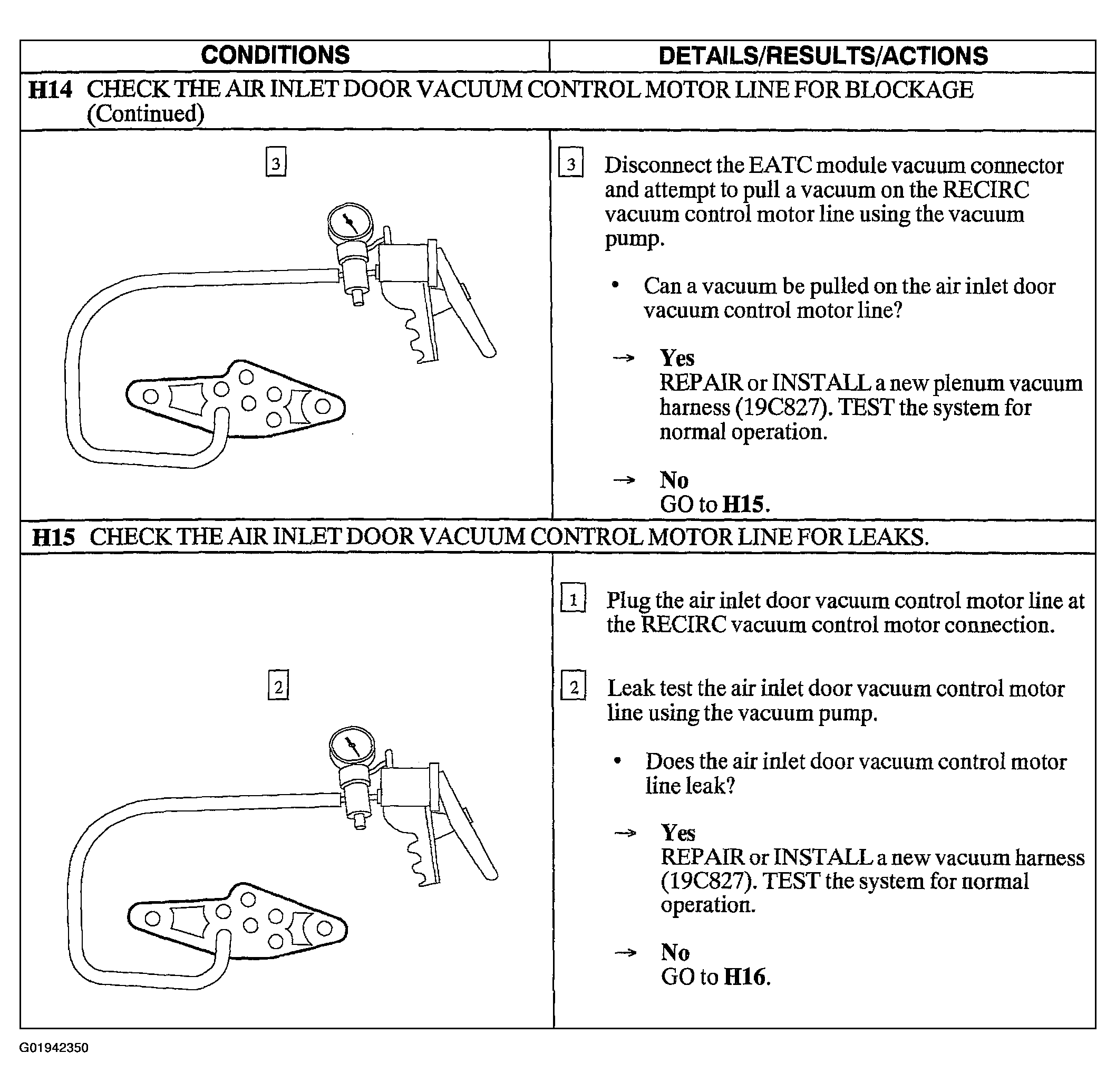

Fig 8: Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC (Steps H14 Cont.-H15)

Courtesy of FORD MOTOR CO.

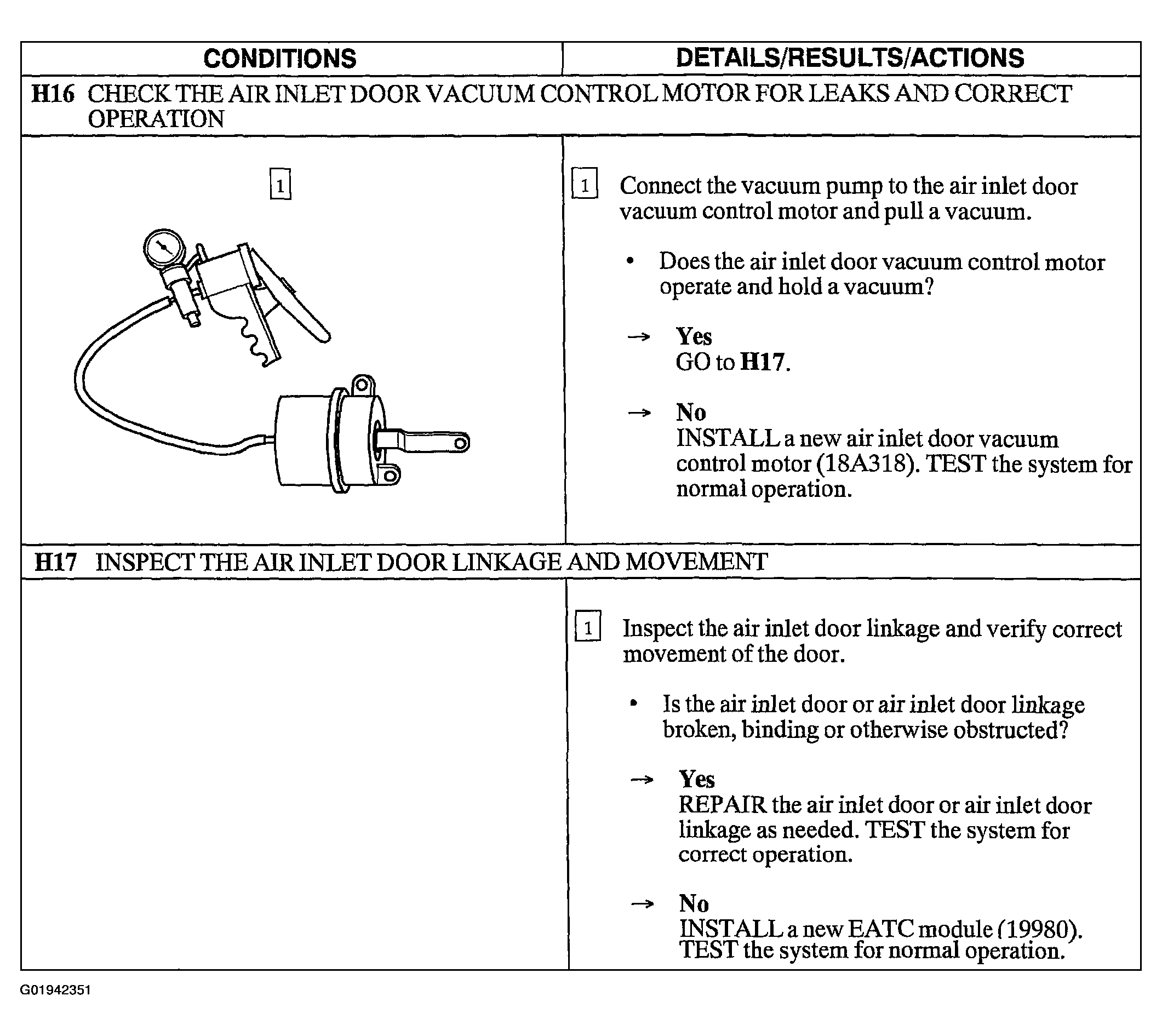

Fig 9: Pinpoint Test H: Incorrect/Erratic Direction Of Air Flow From Outlet - EATC (Steps H16-H17)

Courtesy of FORD MOTOR CO.
