Pinpoint Test I: Insufficient, Erratic, Or No Heat - EATC & Manual Climate Control

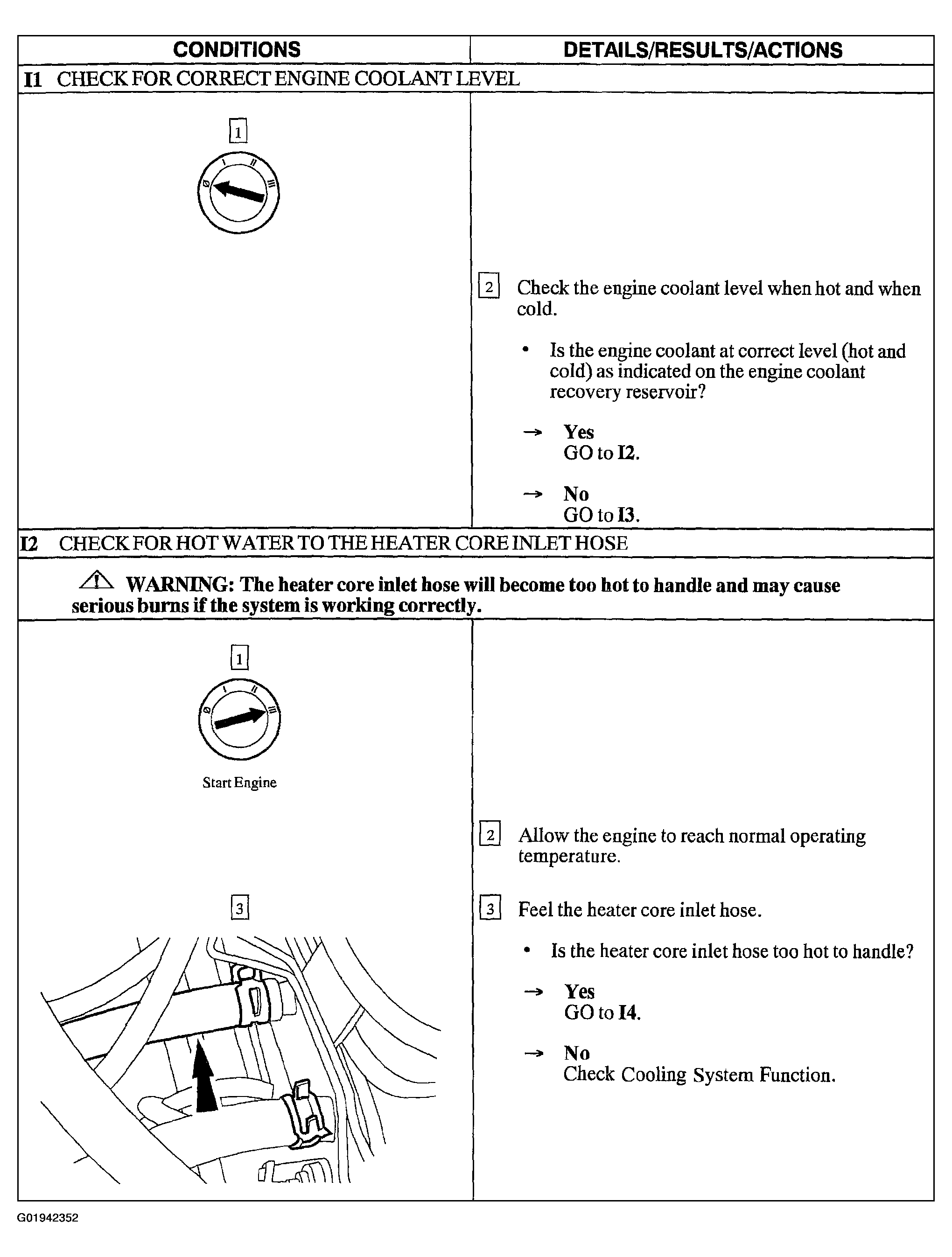

Fig 1: Pinpoint Test I: Insufficient, Erratic, Or No Heat - EATC & Manual Climate Control (Steps I1-I2)
G01942352Courtesy of FORD MOTOR CO.

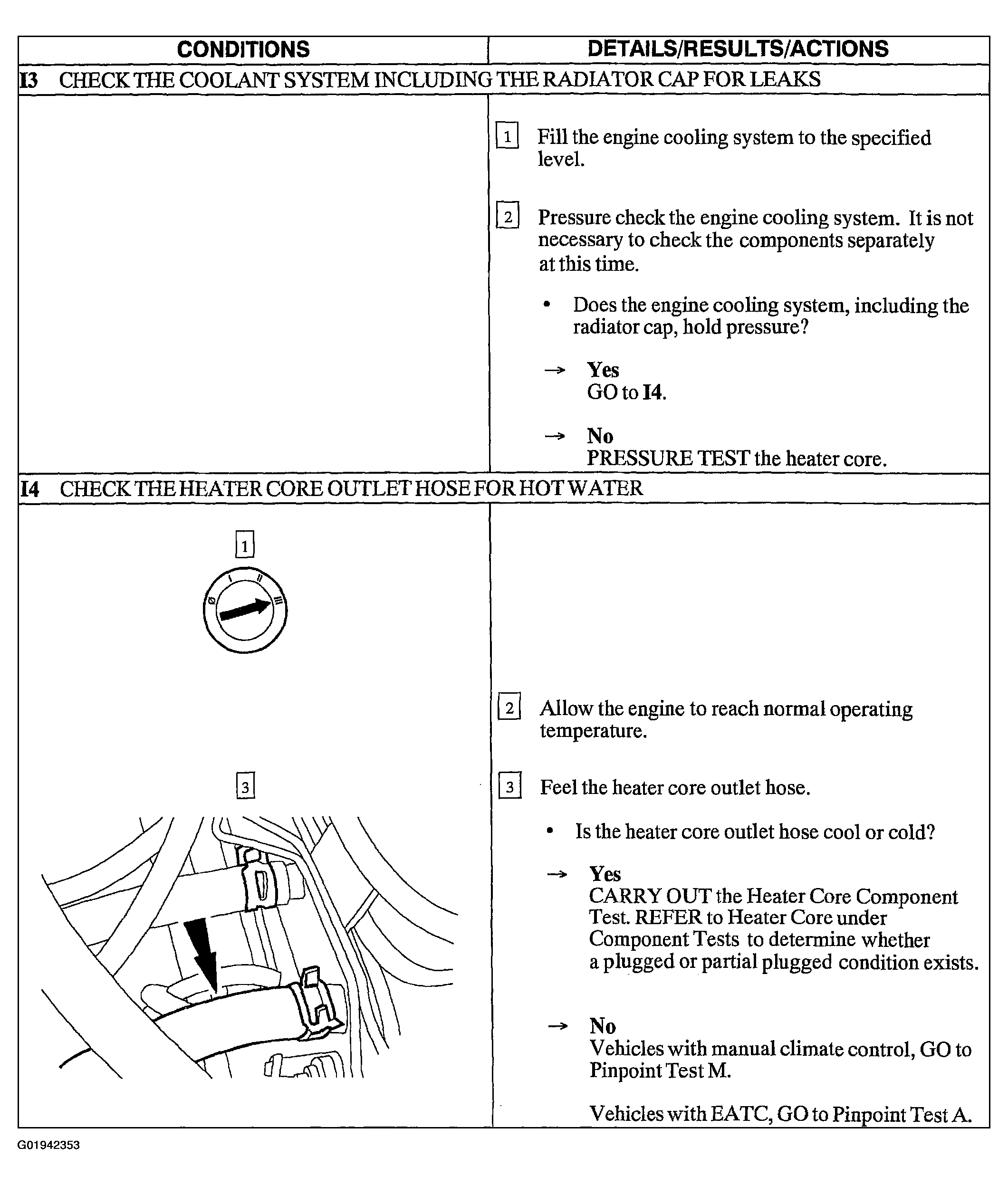

Fig 2: Pinpoint Test I: Insufficient, Erratic, Or No Heat - EATC & Manual Climate Control (Steps I3-I4)
G01942353Courtesy of FORD MOTOR CO.
