Pinpoint Test N: The Blower Motor Is Inoperative - Manual Climate Control

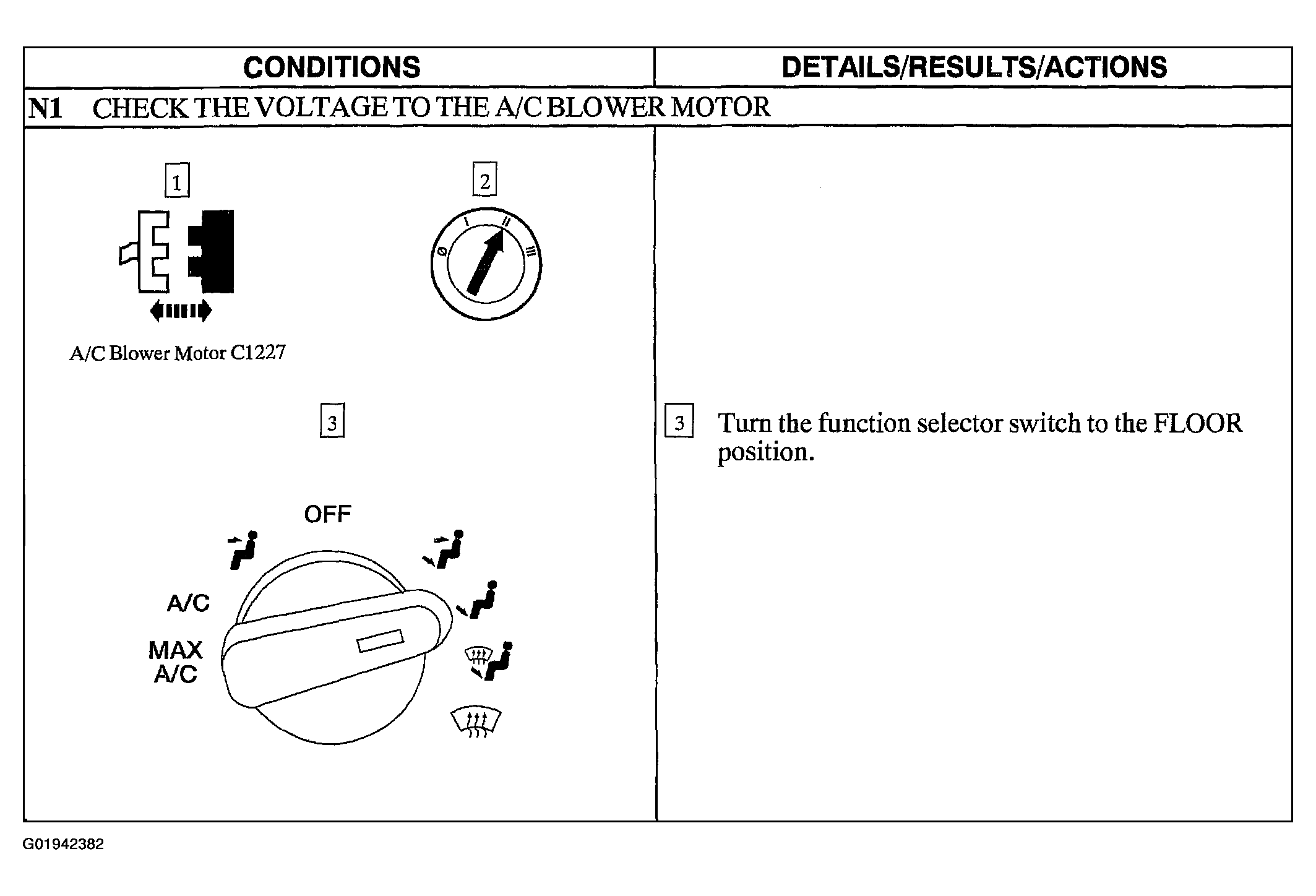

Fig 1: Pinpoint Test N: The Blower Motor Is Inoperative - Manual Climate Control (Step N1)

Courtesy of FORD MOTOR CO.

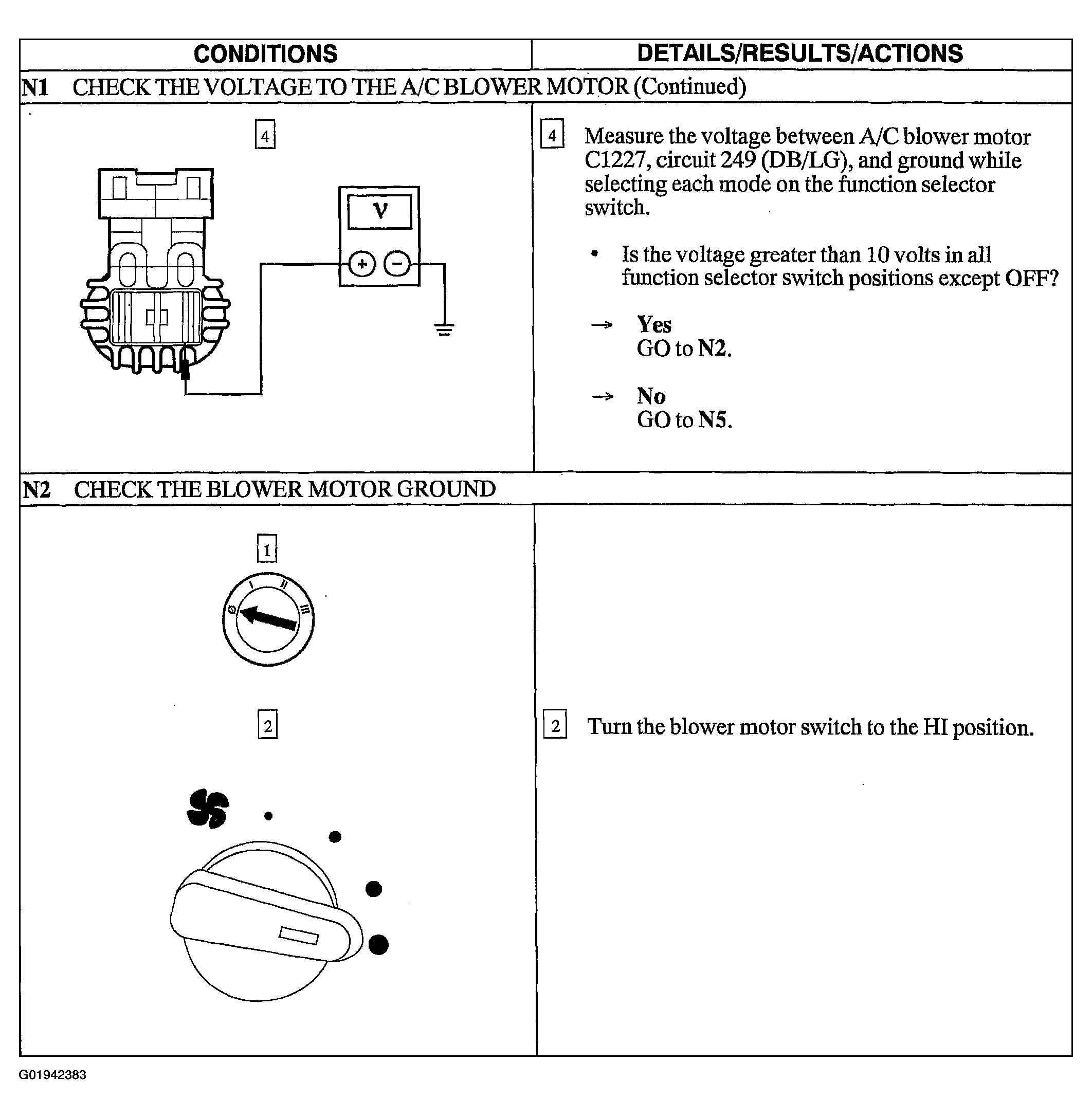

Fig 2: Pinpoint Test N: The Blower Motor Is Inoperative - Manual Climate Control (Steps N1 Cont.-N2)

Courtesy of FORD MOTOR CO.

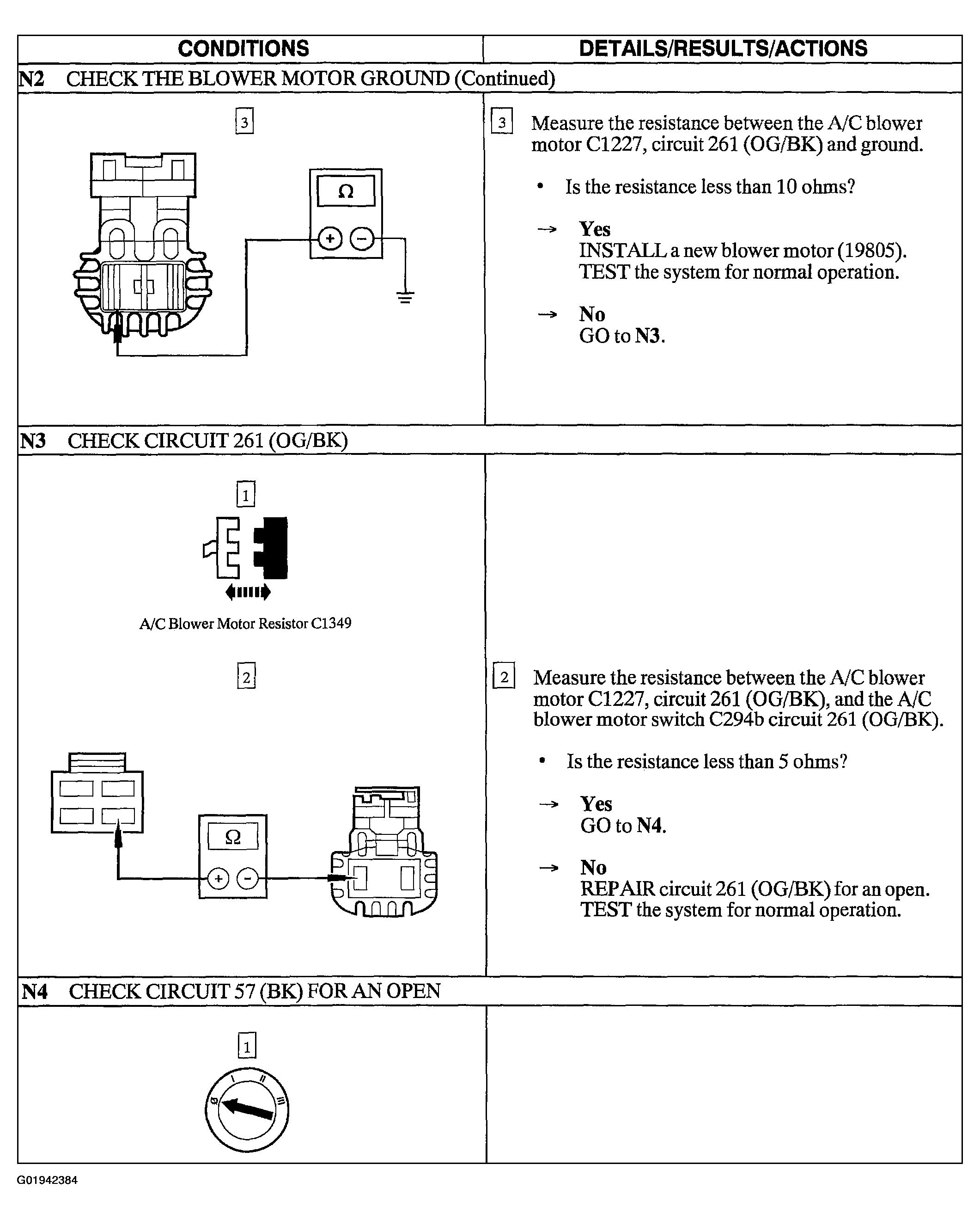

Fig 3: Pinpoint Test N: The Blower Motor Is Inoperative - Manual Climate Control (Steps N2 Cont.-N4)

Courtesy of FORD MOTOR CO.

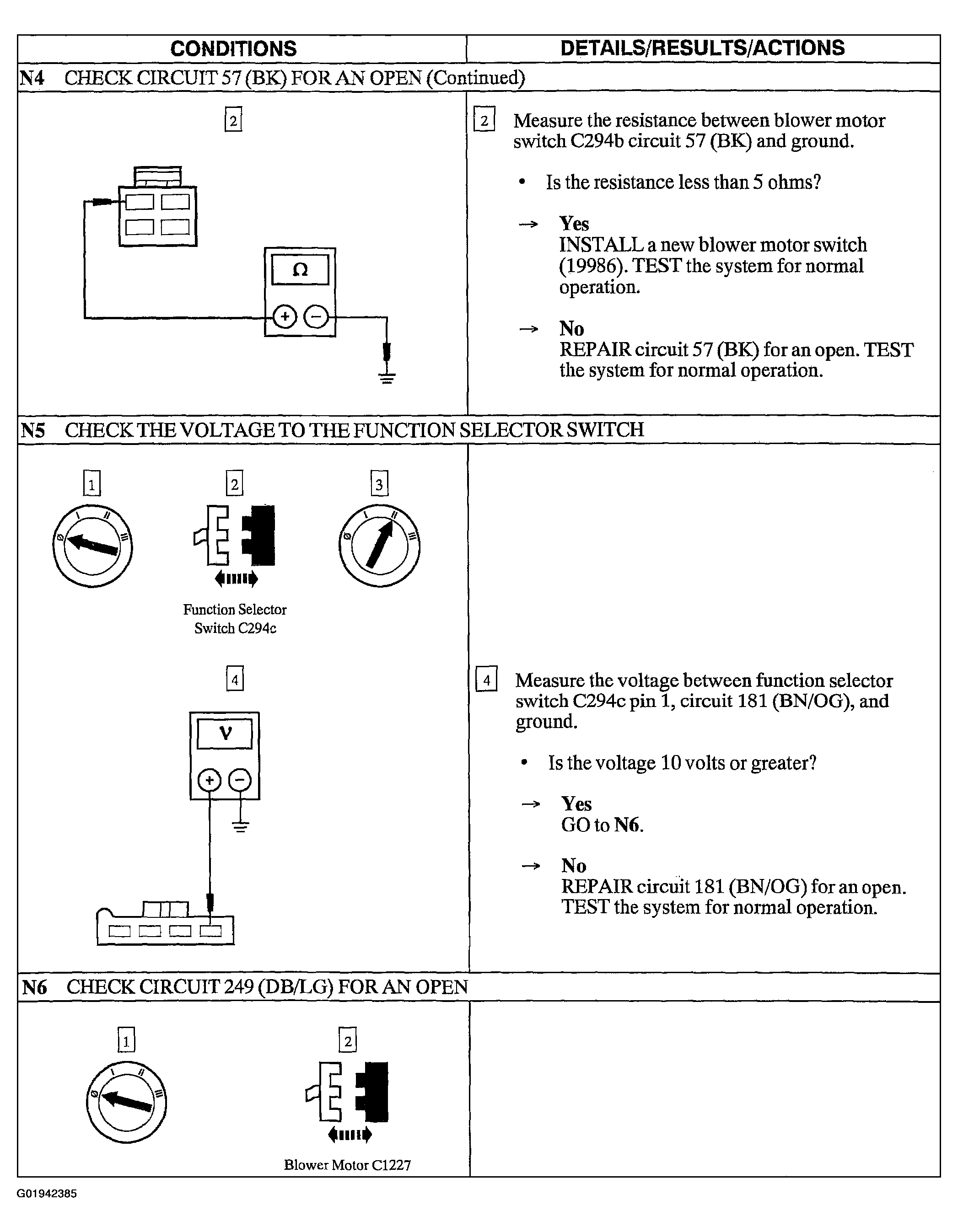

Fig 4: Pinpoint Test N: The Blower Motor Is Inoperative - Manual Climate Control (StepN4 Cont.-N6)

Courtesy of FORD MOTOR CO.

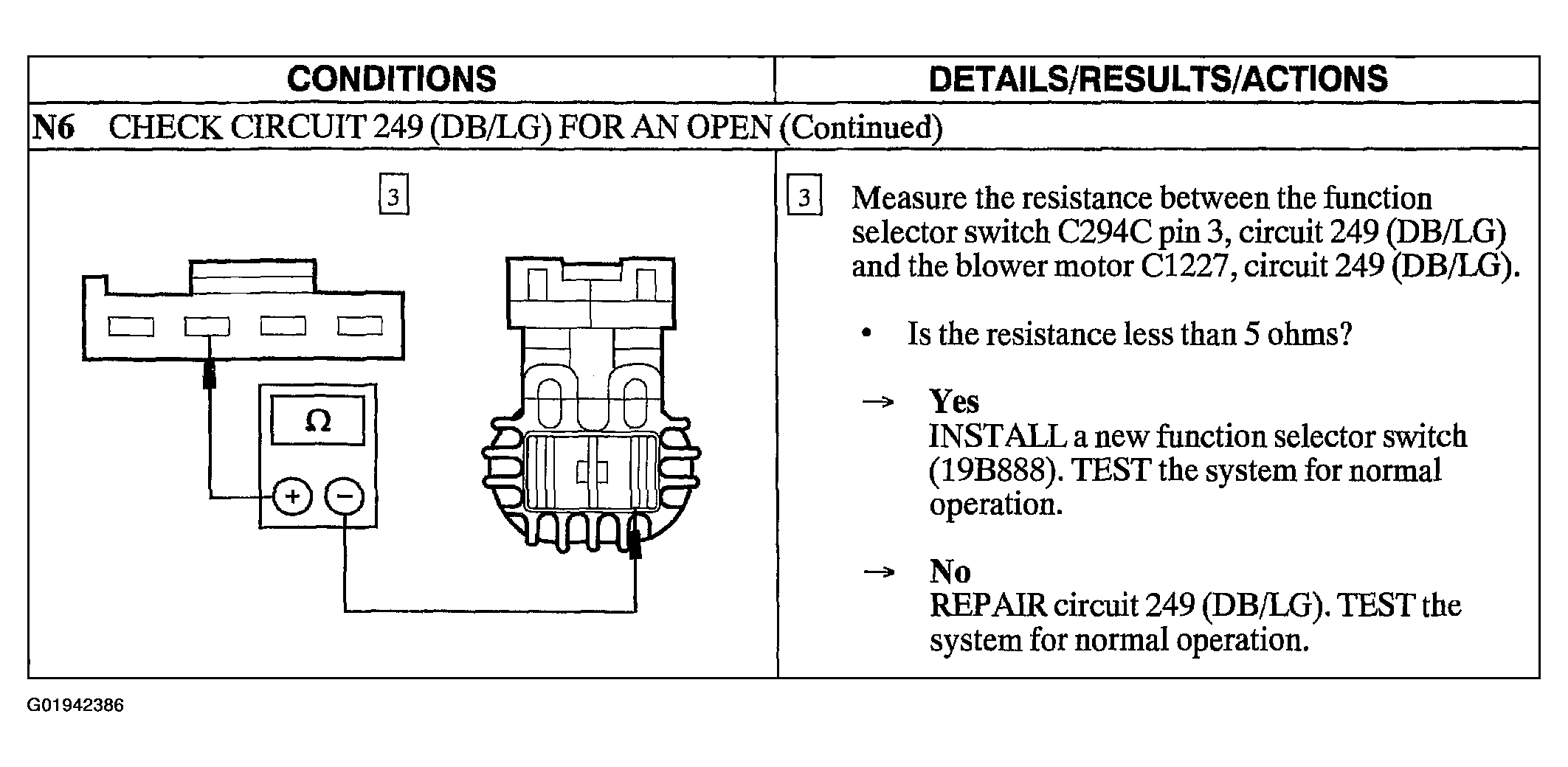

Fig 5: Pinpoint Test N: The Blower Motor Is Inoperative - Manual Climate Control (Step N6 Cont.)

Courtesy of FORD MOTOR CO.
