Pinpoint Test Q: The Blower Motor Does No Operate Correctly - Manual Climate Control

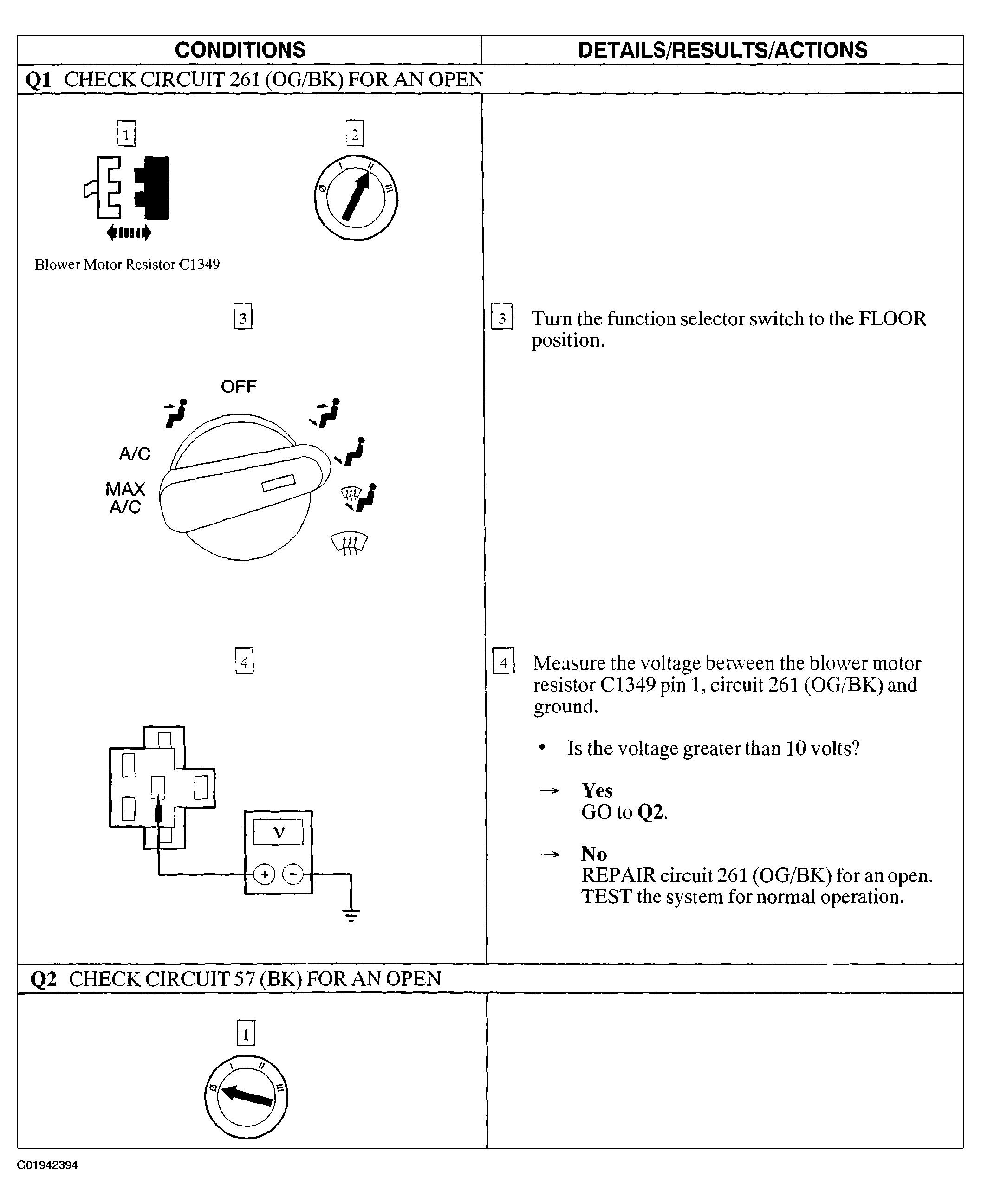

Fig 1: Pinpoint Test Q: The Blower Motor Does No Operate Correctly - Manual Climate Control (Steps Q1-Q2)

Courtesy of FORD MOTOR CO.

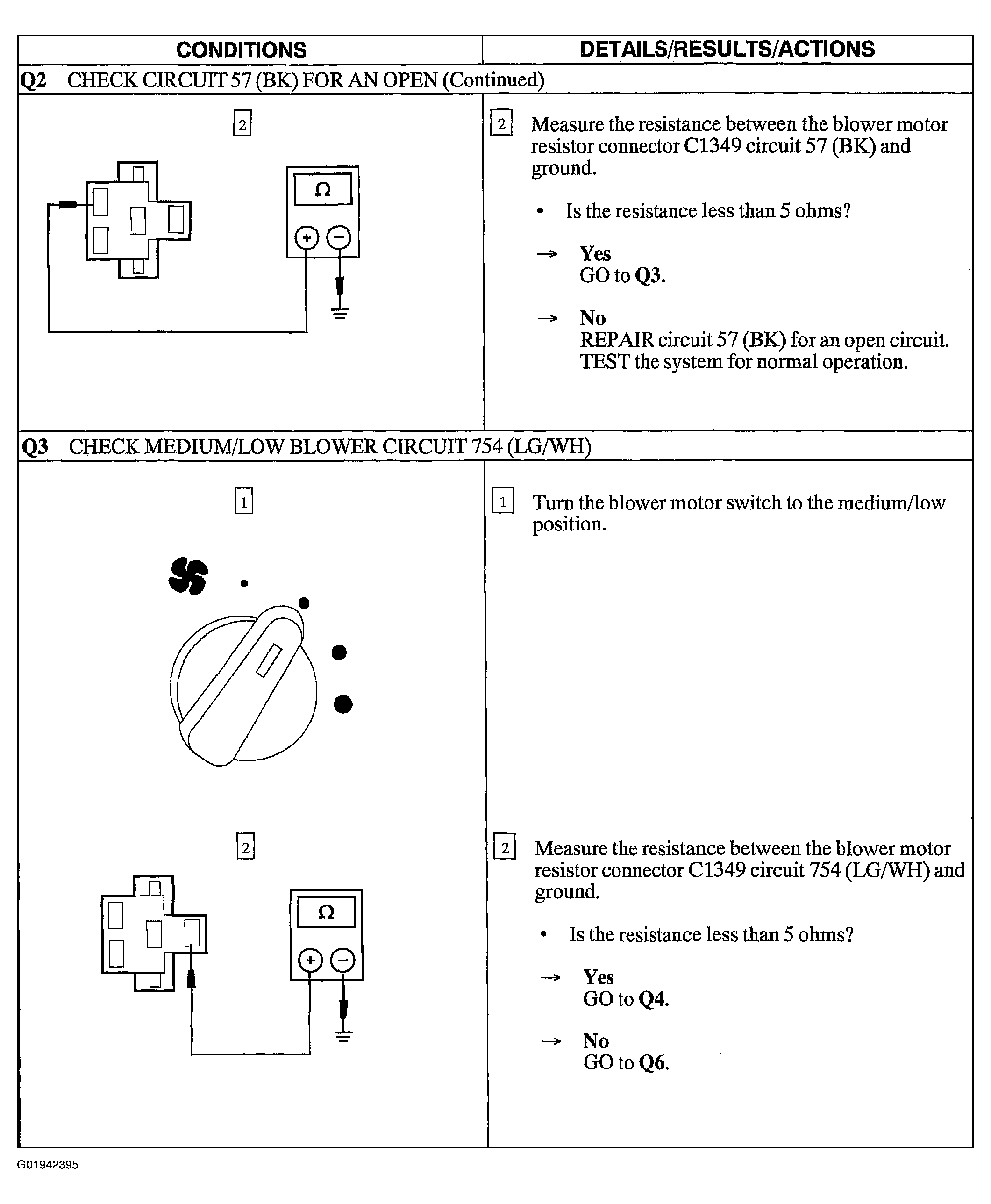

Fig 2: Pinpoint Test Q: The Blower Motor Does No Operate Correctly - Manual Climate Control (Steps Q2 Cont.-Q3)

Courtesy of FORD MOTOR CO.

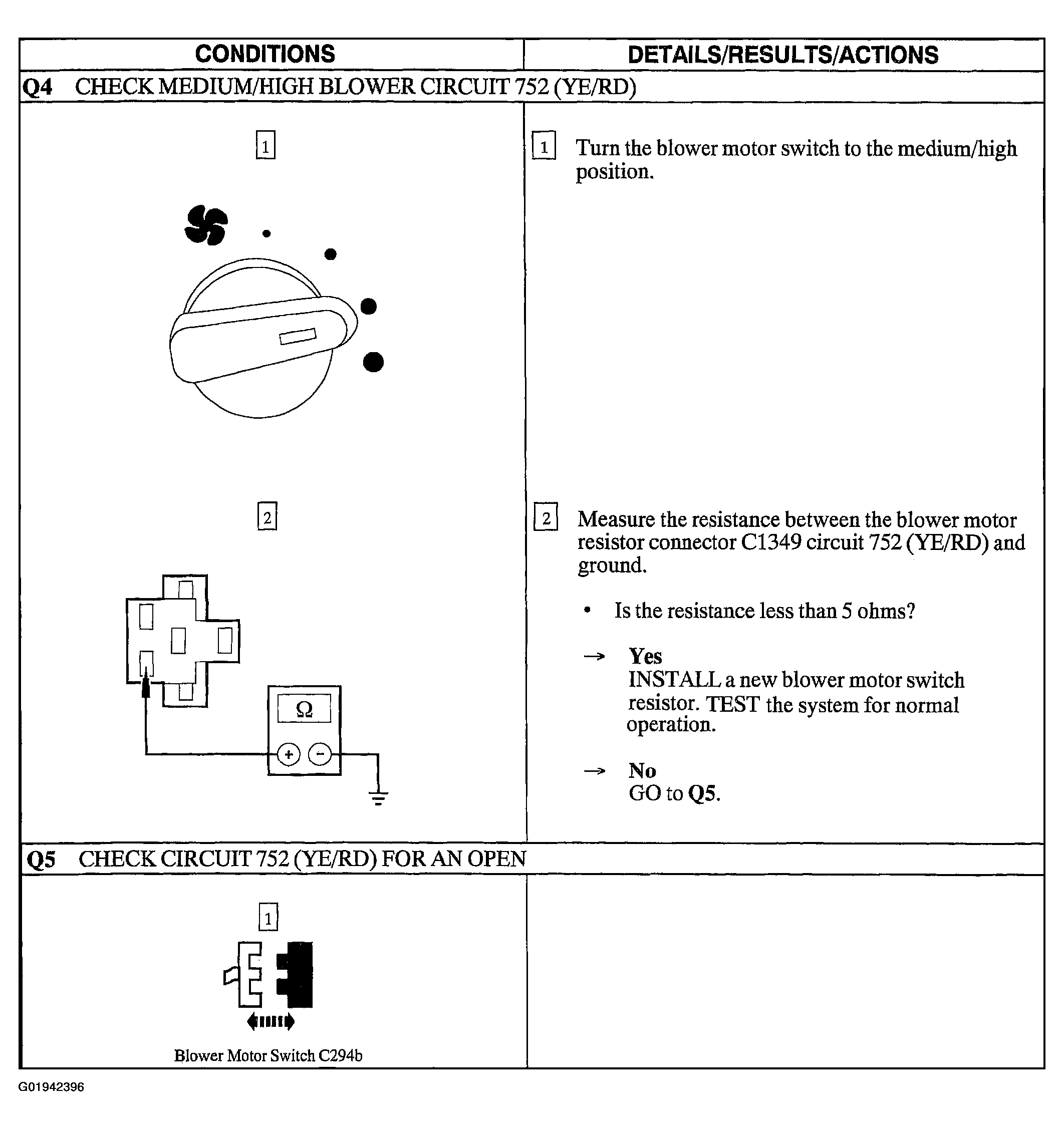

Fig 3: Pinpoint Test Q: The Blower Motor Does No Operate Correctly - Manual Climate Control (Steps Q4-Q5)

Courtesy of FORD MOTOR CO.

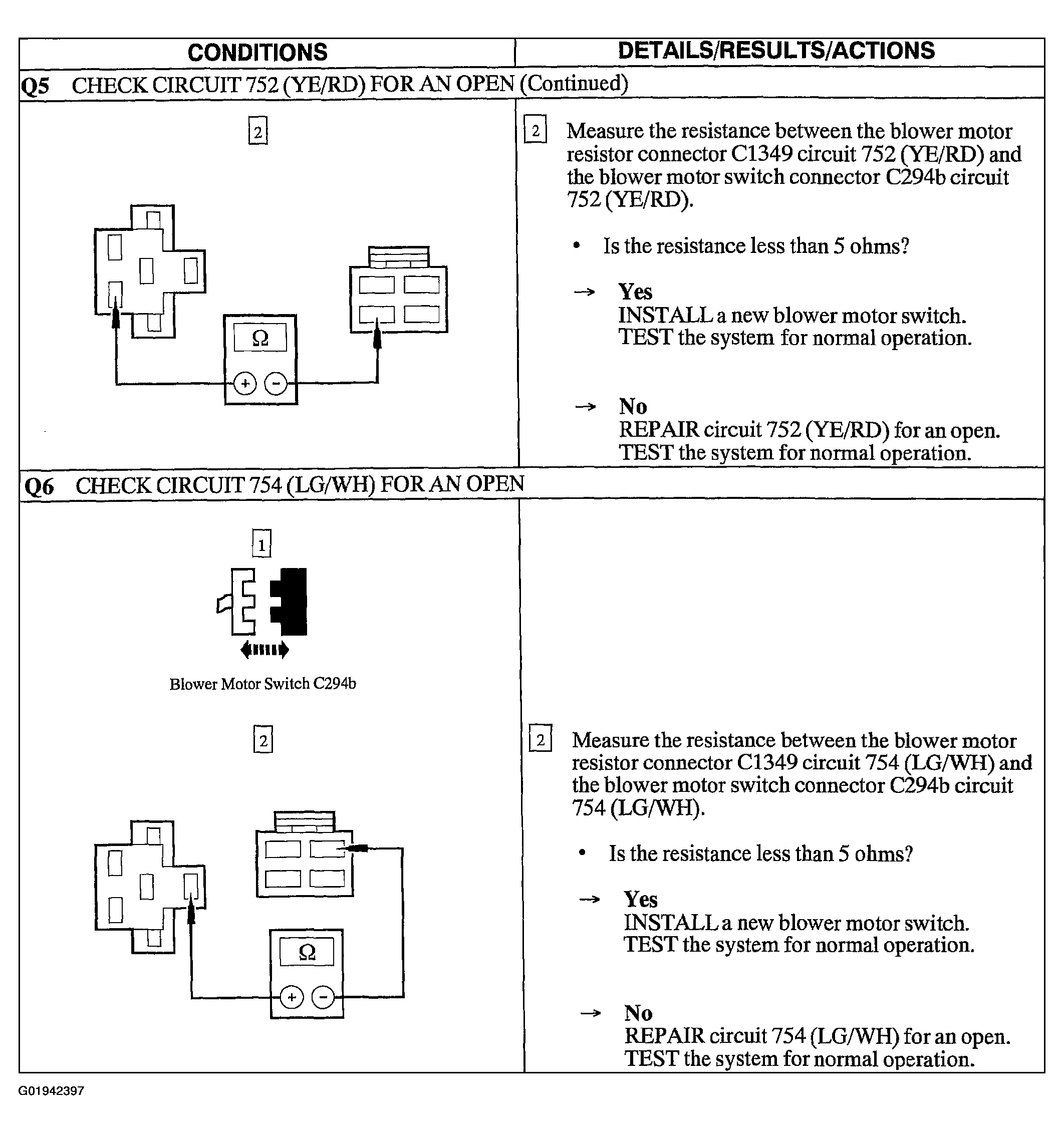

Fig 4: Pinpoint Test Q: The Blower Motor Does No Operate Correctly - Manual Climate Control (Steps Q5 Cont.-Q6)

Courtesy of FORD MOTOR CO.
