Pinpoint Test R: The Blower Motor Operates Continuously In High Speed - Manual Climate Control

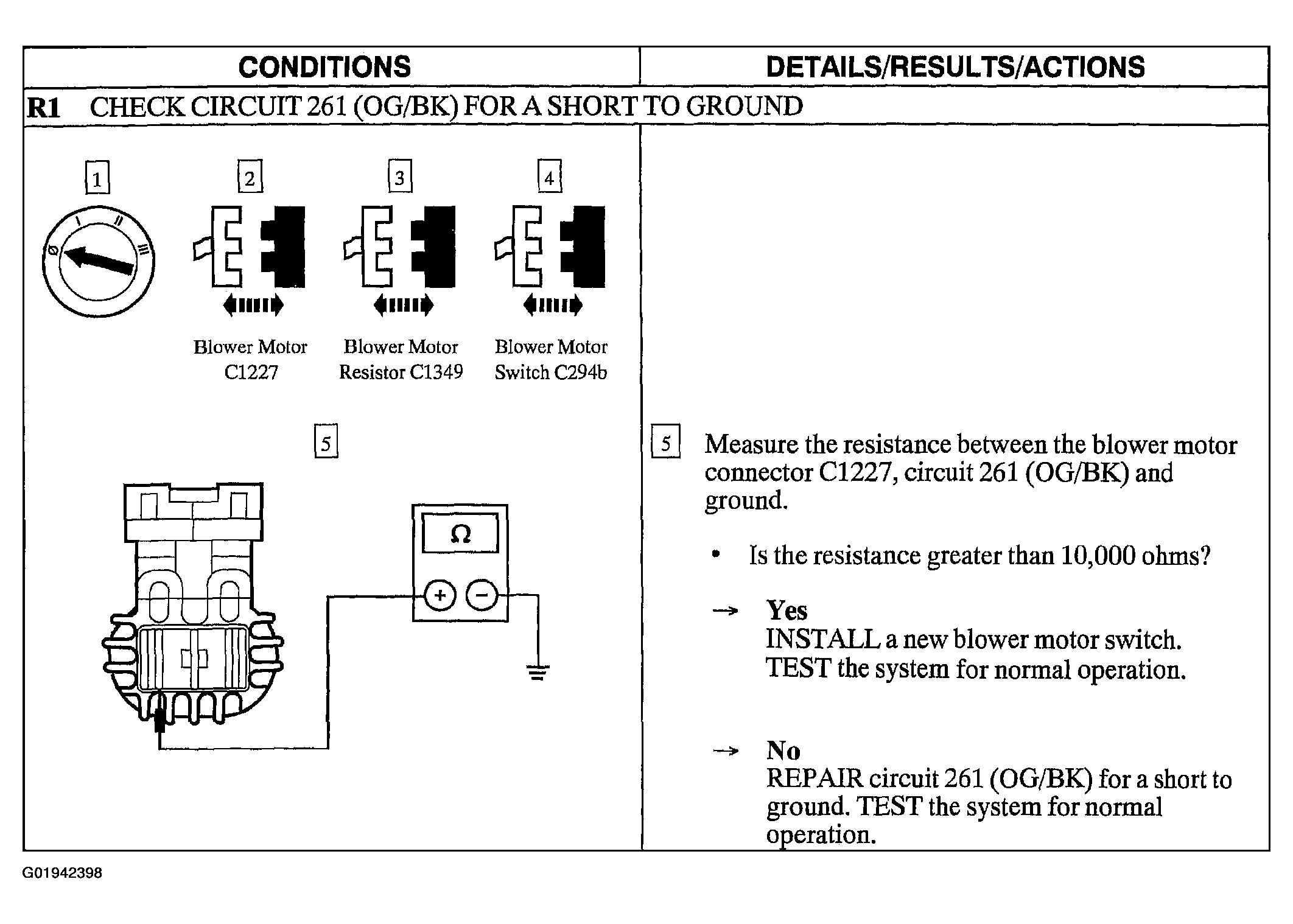

Fig 1: Pinpoint Test R: The Blower Motor Operates Continuously In High Speed - Manual Climate Control (Step R1)
G01942398Courtesy of FORD MOTOR CO.
