Pinpoint Test S: The Blower Motor Does Not Operate Correctly - EATC

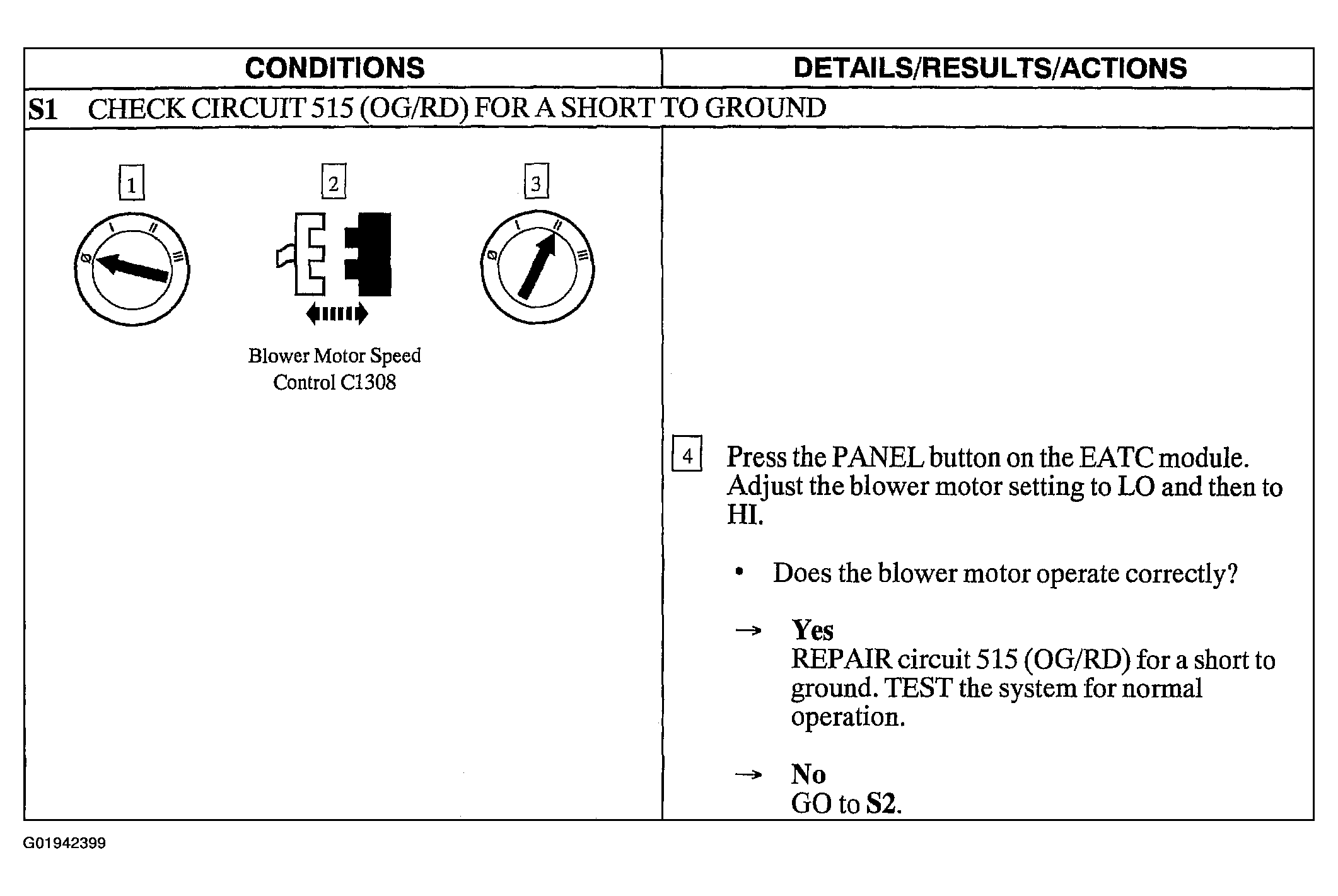

Fig 1: Pinpoint Test S: The Blower Motor Does Not Operate Correctly - EATC (Step S1)

Courtesy of FORD MOTOR CO.

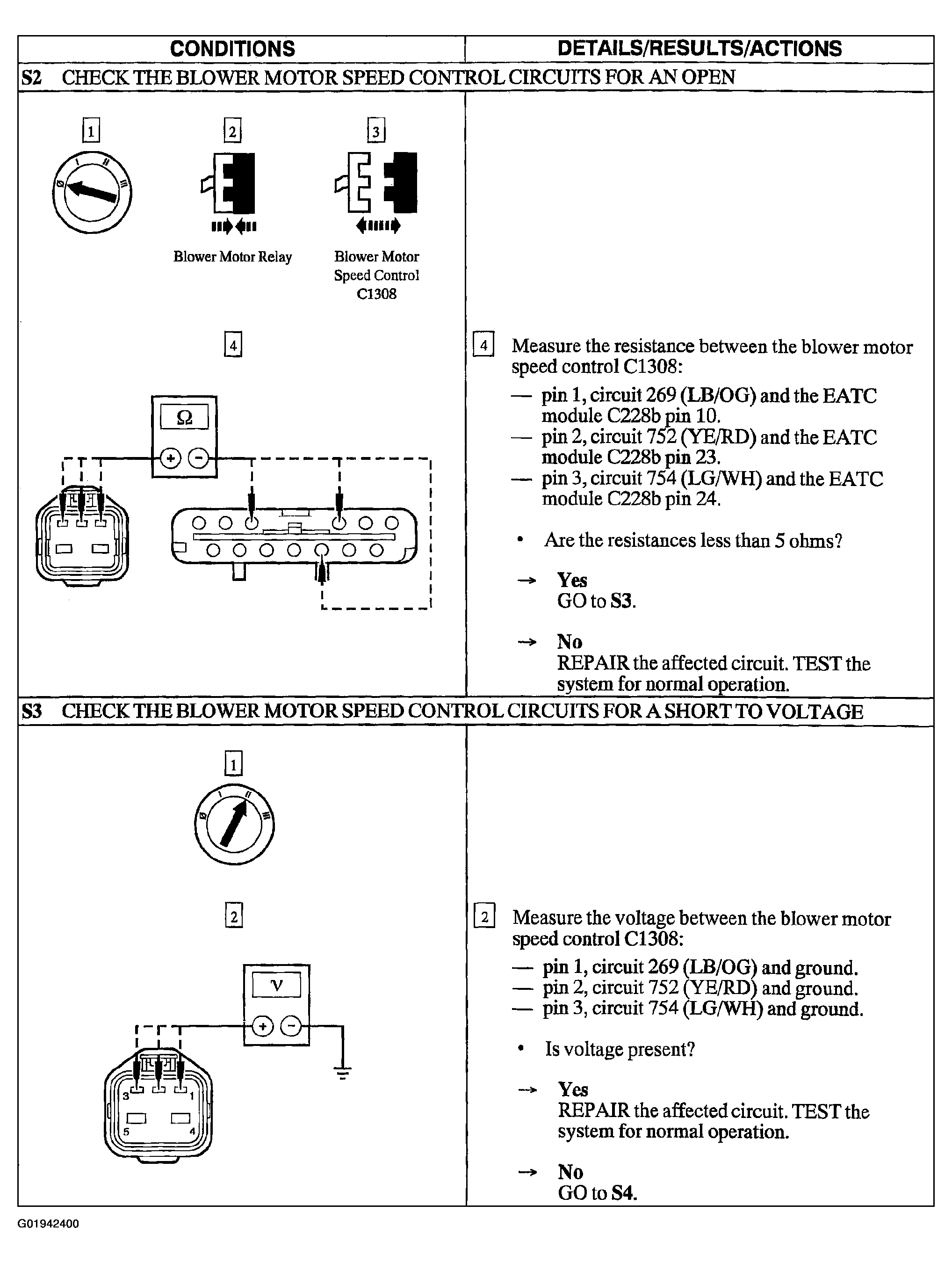

Fig 2: Pinpoint Test S: The Blower Motor Does Not Operate Correctly - EATC (Steps S2-S3)

Courtesy of FORD MOTOR CO.

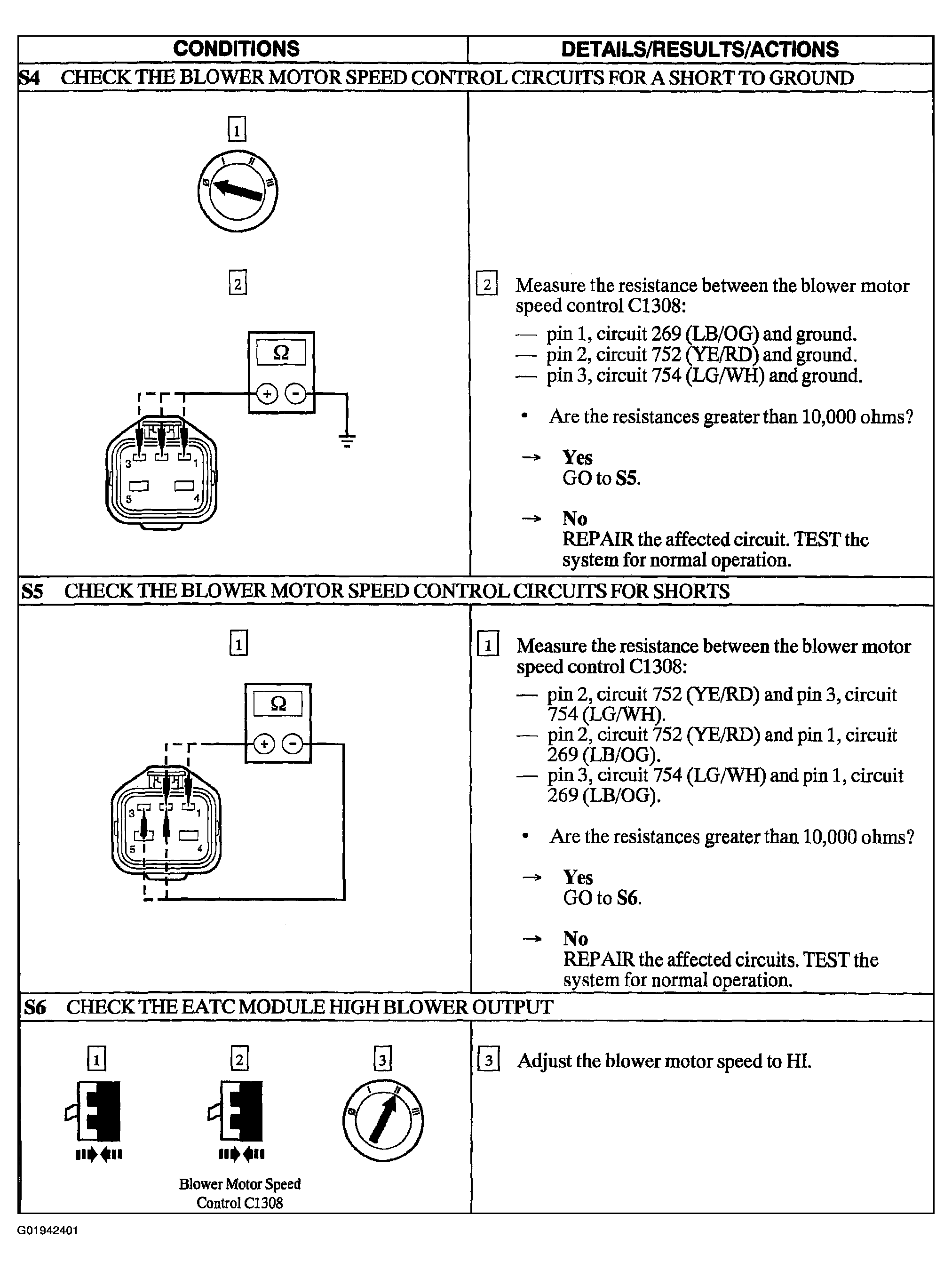

Fig 3: Pinpoint Test S: The Blower Motor Does Not Operate Correctly - EATC (Steps S4-S6)

Courtesy of FORD MOTOR CO.

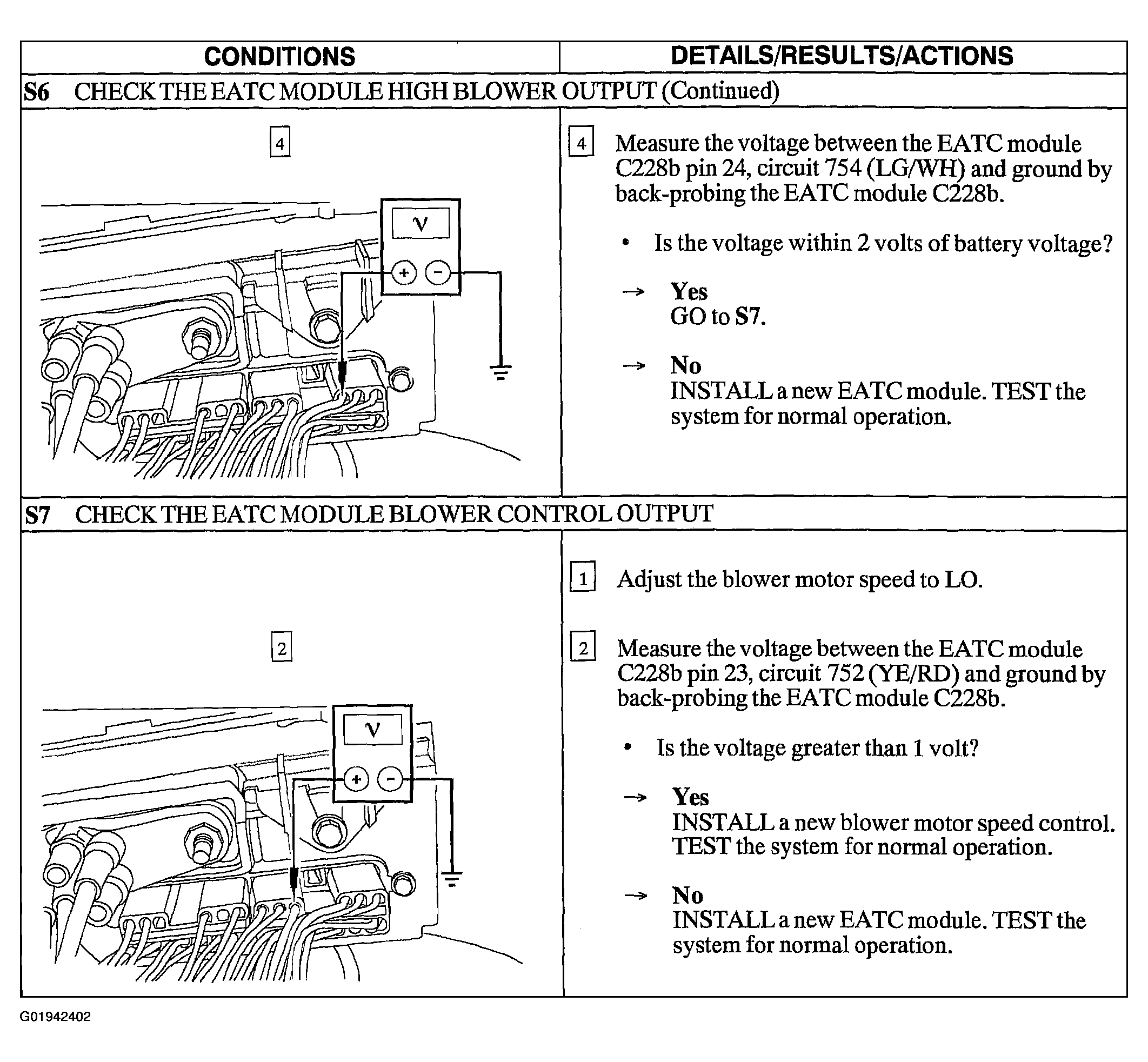

Fig 4: Pinpoint Test S: The Blower Motor Does Not Operate Correctly - EATC (Steps S6 Cont.-S7)

Courtesy of FORD MOTOR CO.
