Pinpoint Test T: The Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly

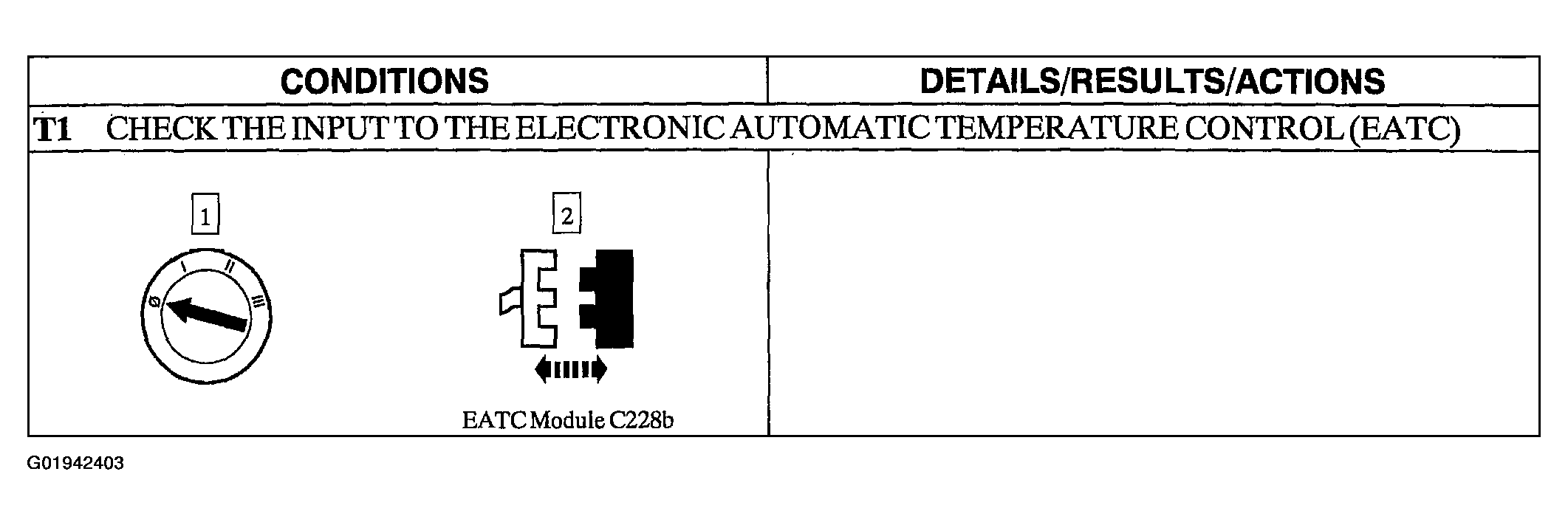

Fig 1: Pinpoint Test T: The Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Step T1)

Courtesy of FORD MOTOR CO.

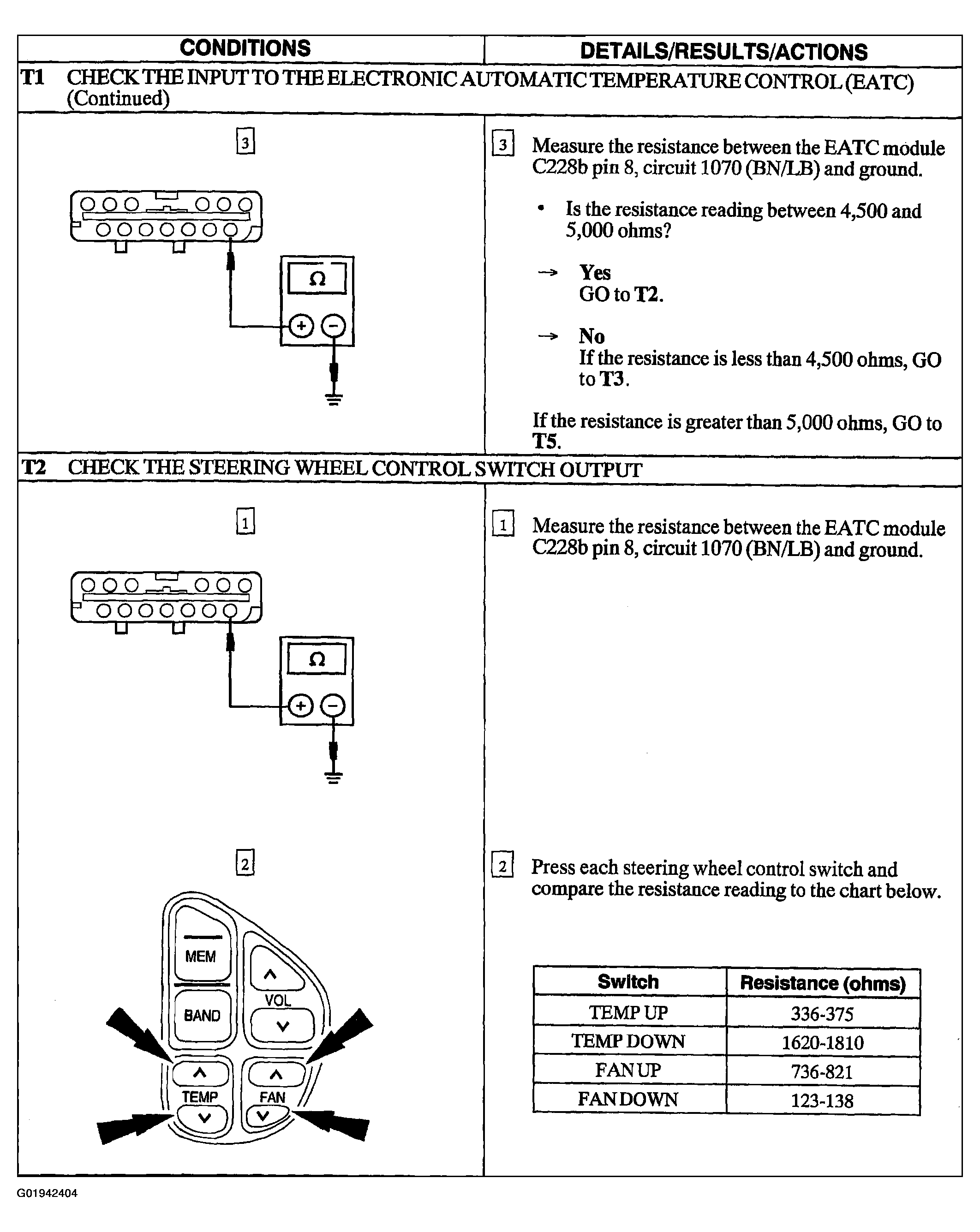

Fig 2: Pinpoint Test T: The Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Steps T1 Cont.-T2)

Courtesy of FORD MOTOR CO.

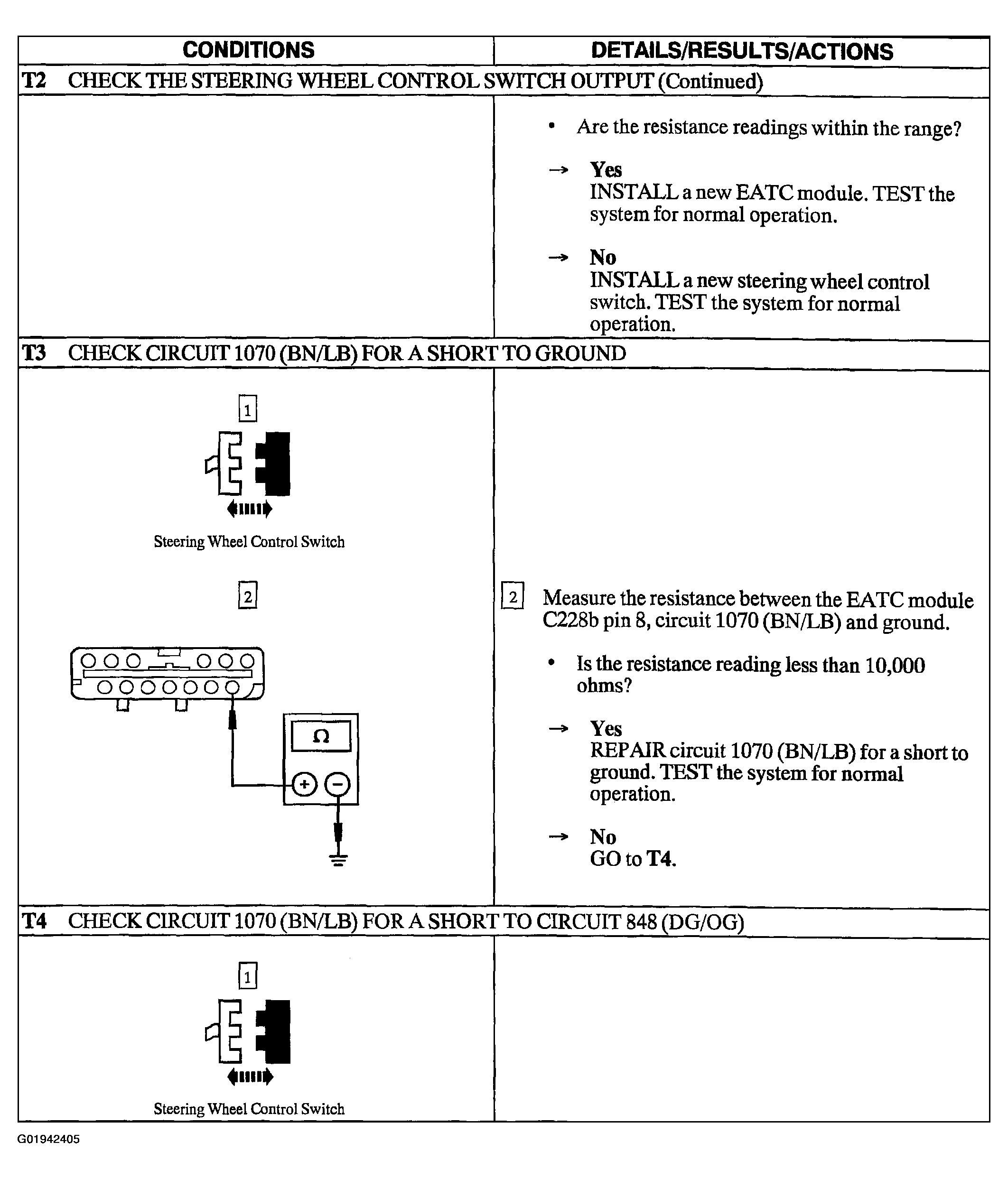

Fig 3: Pinpoint Test T: The Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Steps T2 Cont.-T4)

Courtesy of FORD MOTOR CO.

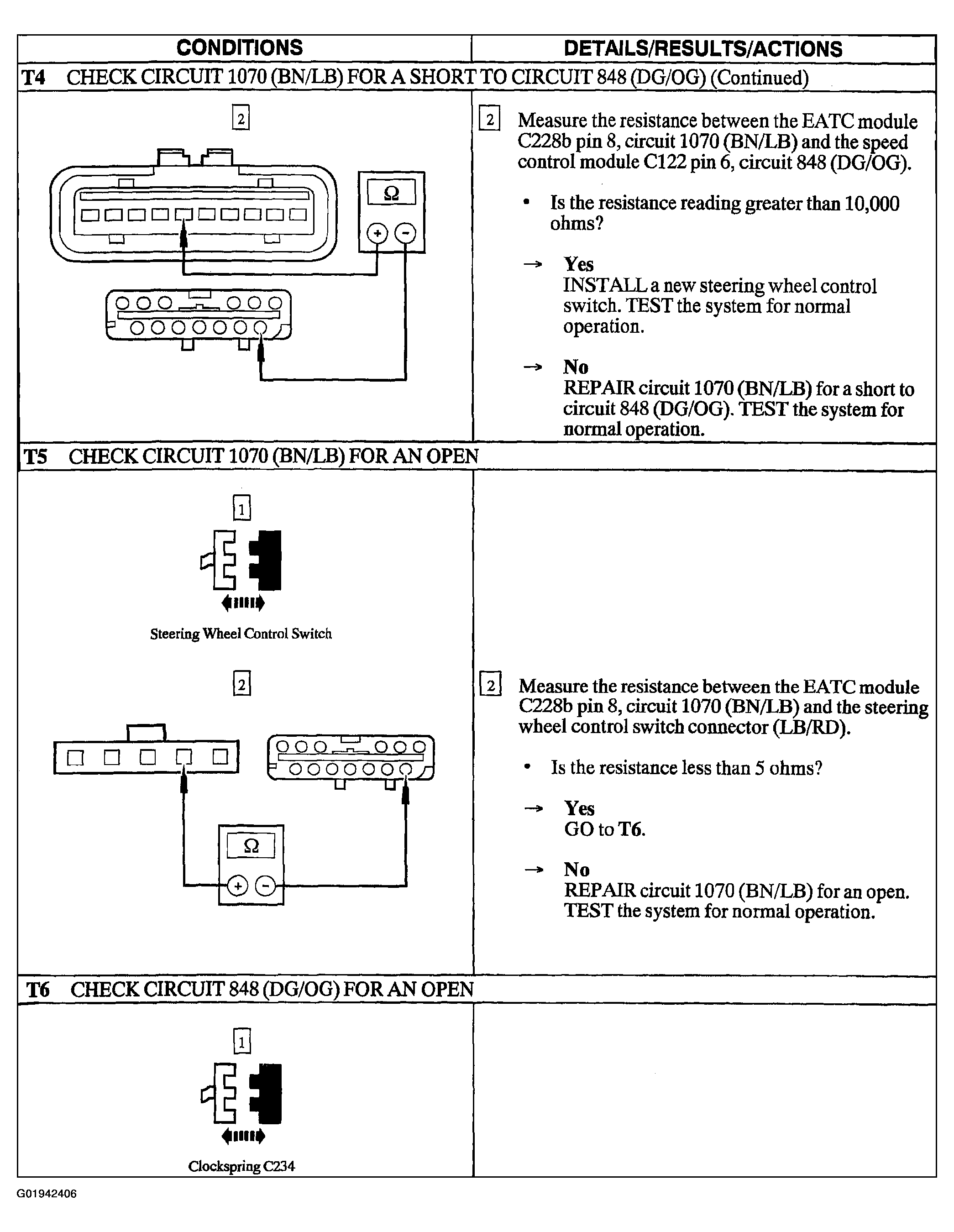

Fig 4: Pinpoint Test T: The Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Steps T4 Cont.-T6)

Courtesy of FORD MOTOR CO.

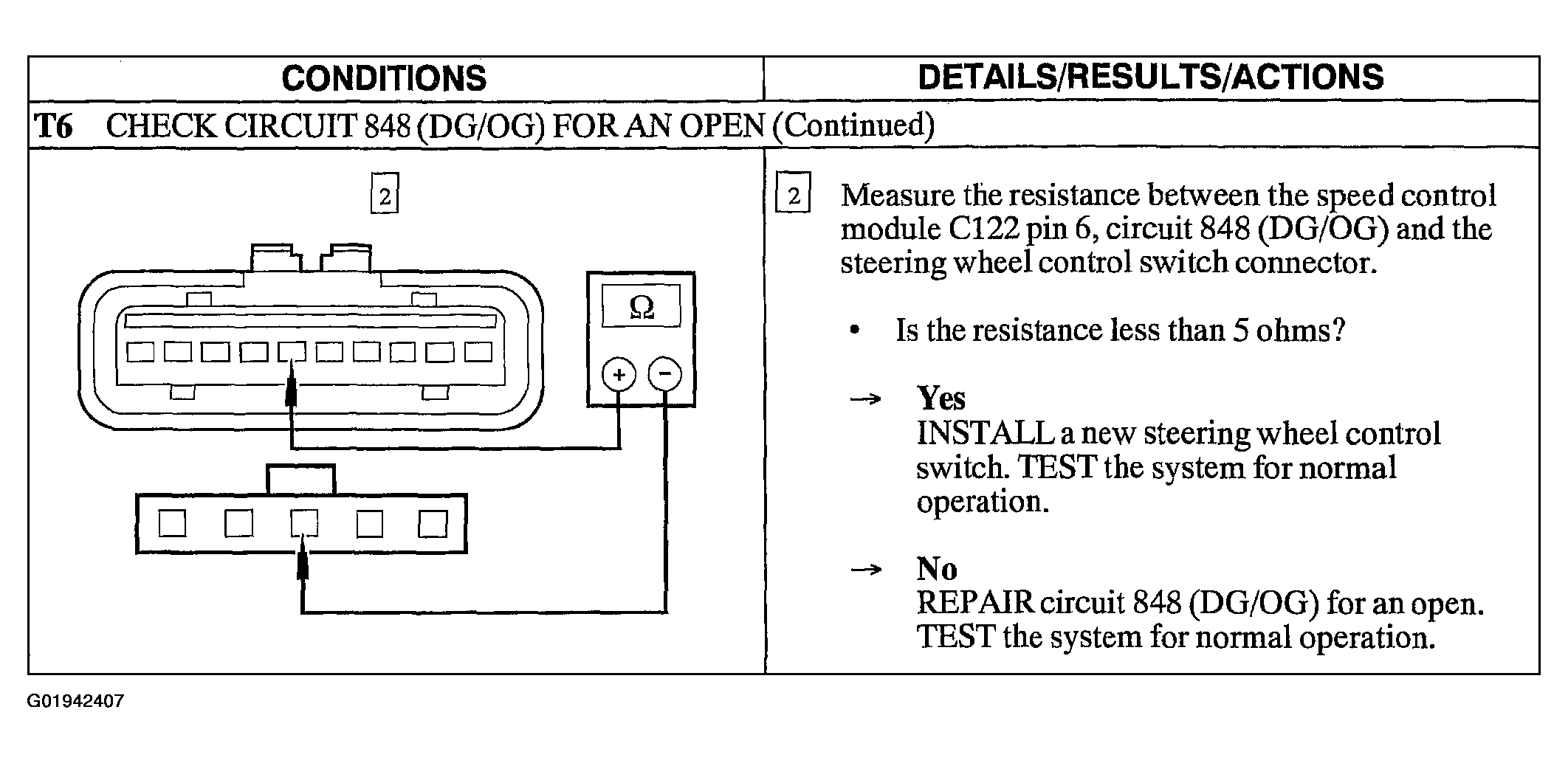

Fig 5: Pinpoint Test T: The Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Step T6 Cont.)

Courtesy of FORD MOTOR CO.
