Pinpoint Test G: DTC B1445 Or B1442: Door Handle Switch Failure

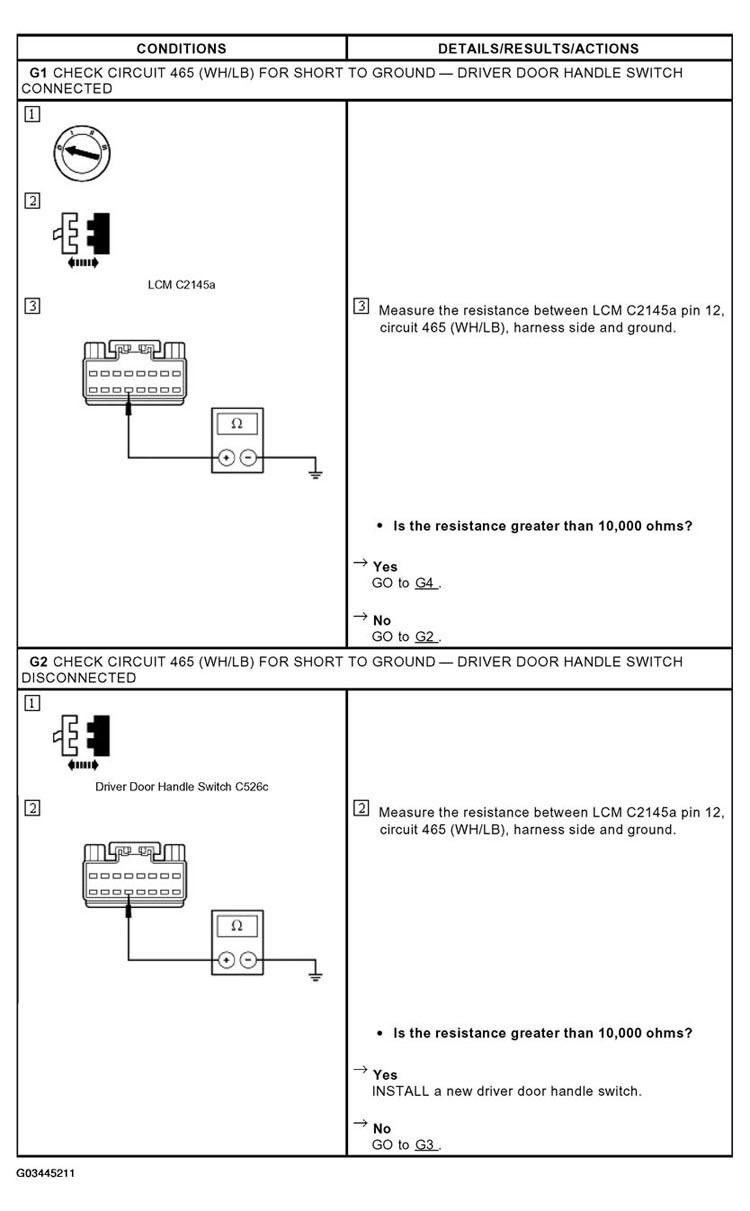

Fig 1: Pinpoint Test G: DTC B1445 Or B1442: Door Handle Switch Failure (G1 - G2)

Courtesy of FORD MOTOR CO.

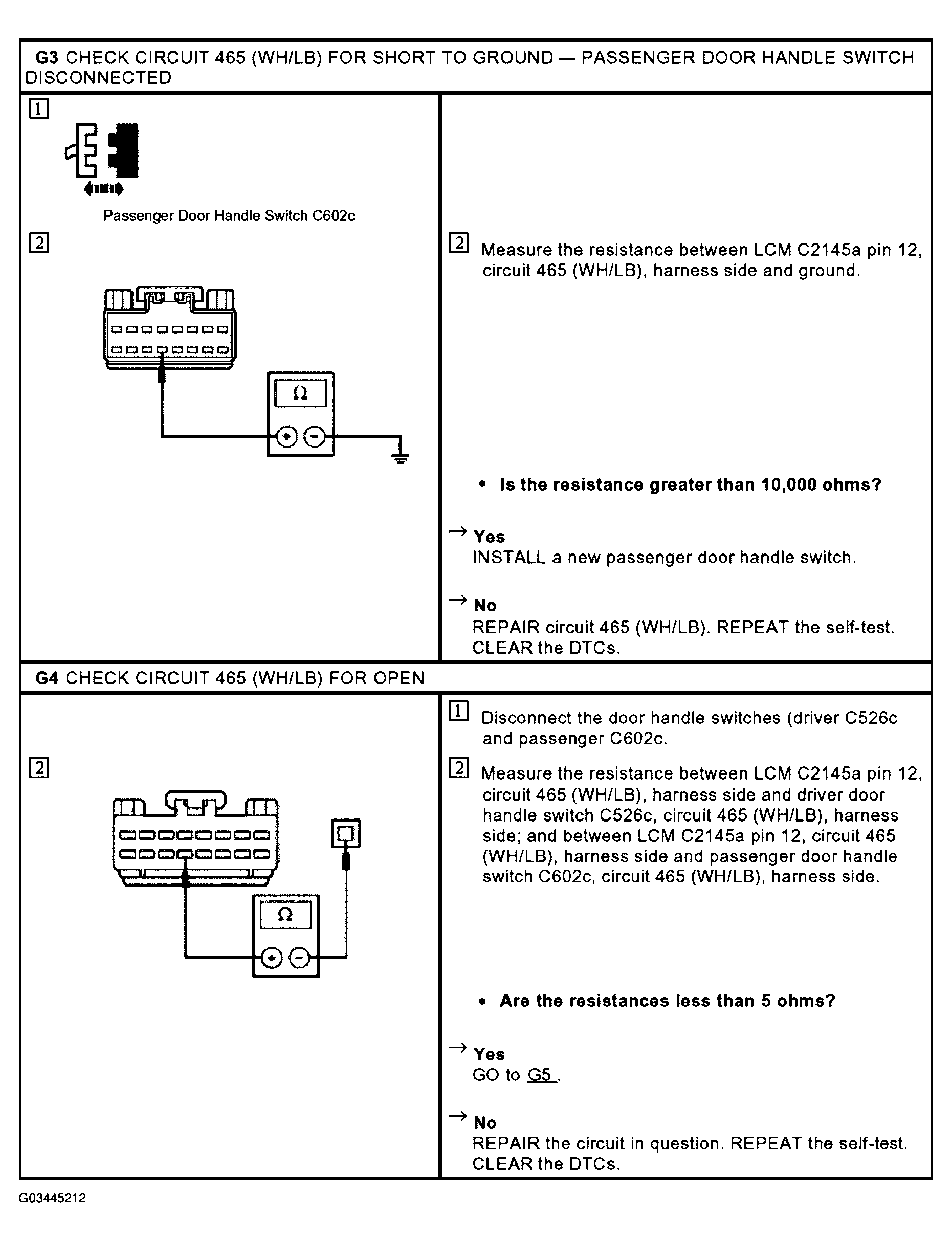

Fig 2: Pinpoint Test G: DTC B1445 Or B1442: Door Handle Switch Failure (G3 - G4)

Courtesy of FORD MOTOR CO.

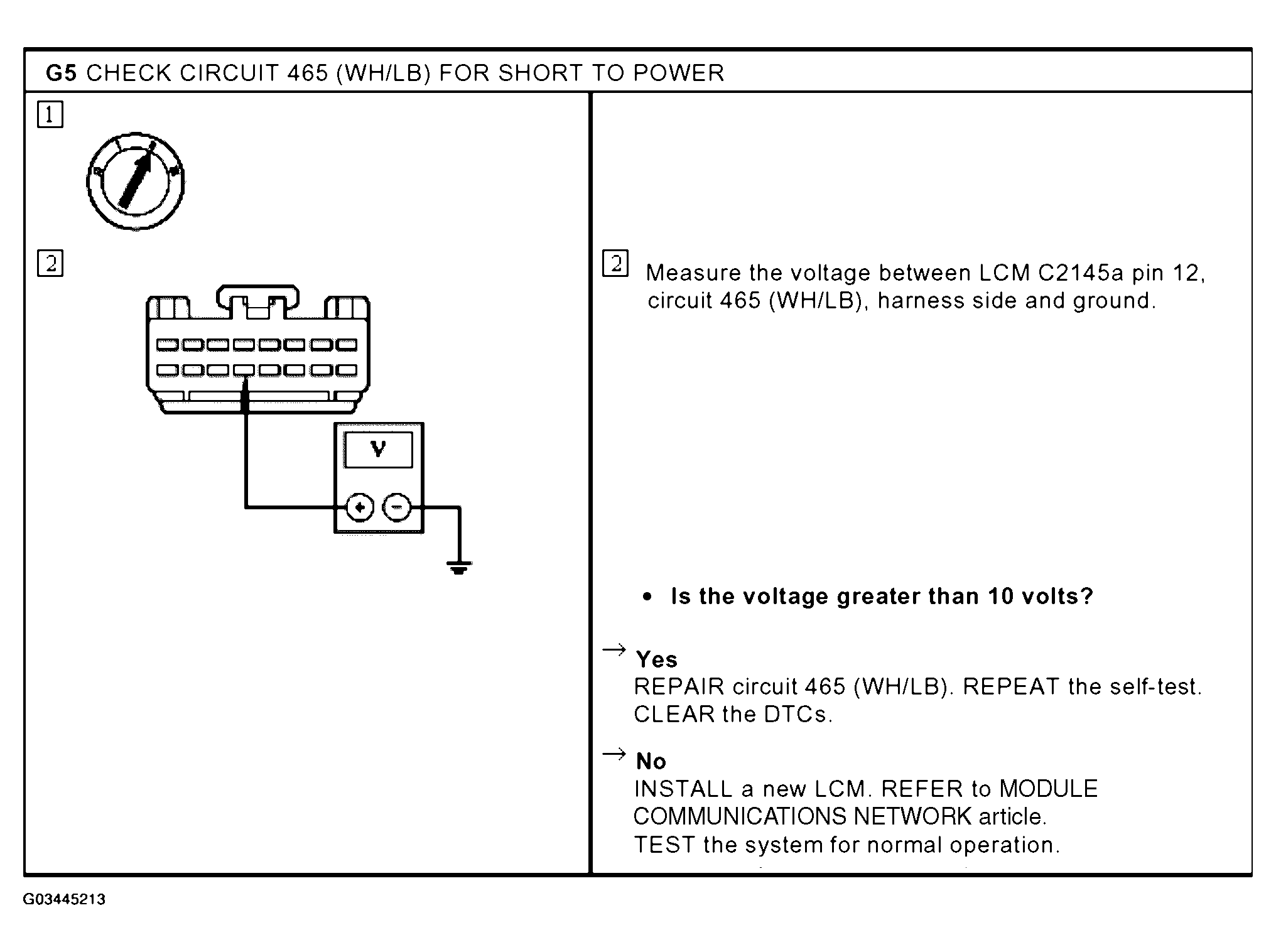

Fig 3: Pinpoint Test G: DTC B1445 Or B1442: Door Handle Switch Failure (G5)

Courtesy of FORD MOTOR CO.
