Pinpoint Test B: The Anti-Theft Is Always/Never On - No Three-Second Anti-Theft Indicator Prove Out

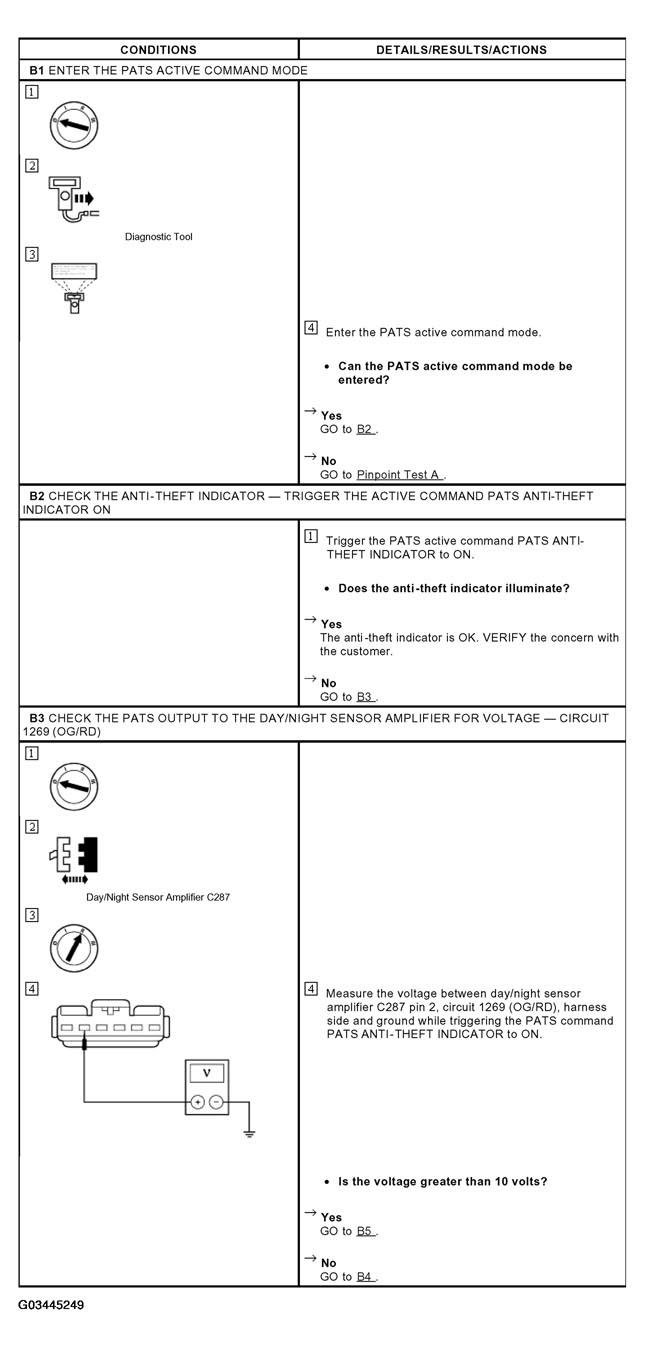

Fig 1: Pinpoint Test B: Anti-Theft Is Always/Never On - No Three-Second Anti-Theft Indicator Prove Out (Test B1 - B3)

Courtesy of FORD MOTOR CO.

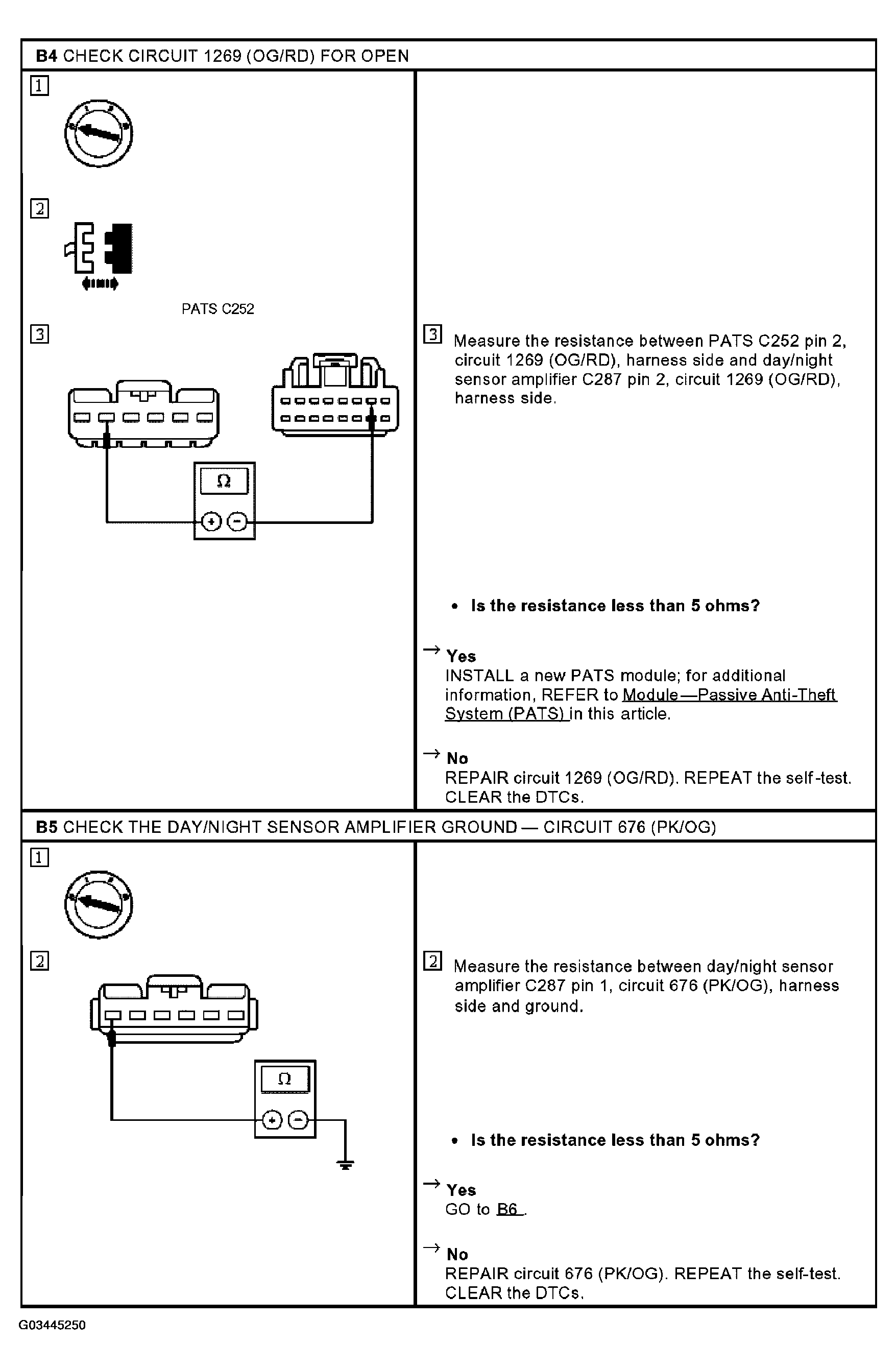

Fig 2: Pinpoint Test B: Anti-Theft Is Always/Never On - No Three-Second Anti-Theft Indicator Prove Out (Test B4 - B5)

Courtesy of FORD MOTOR CO.

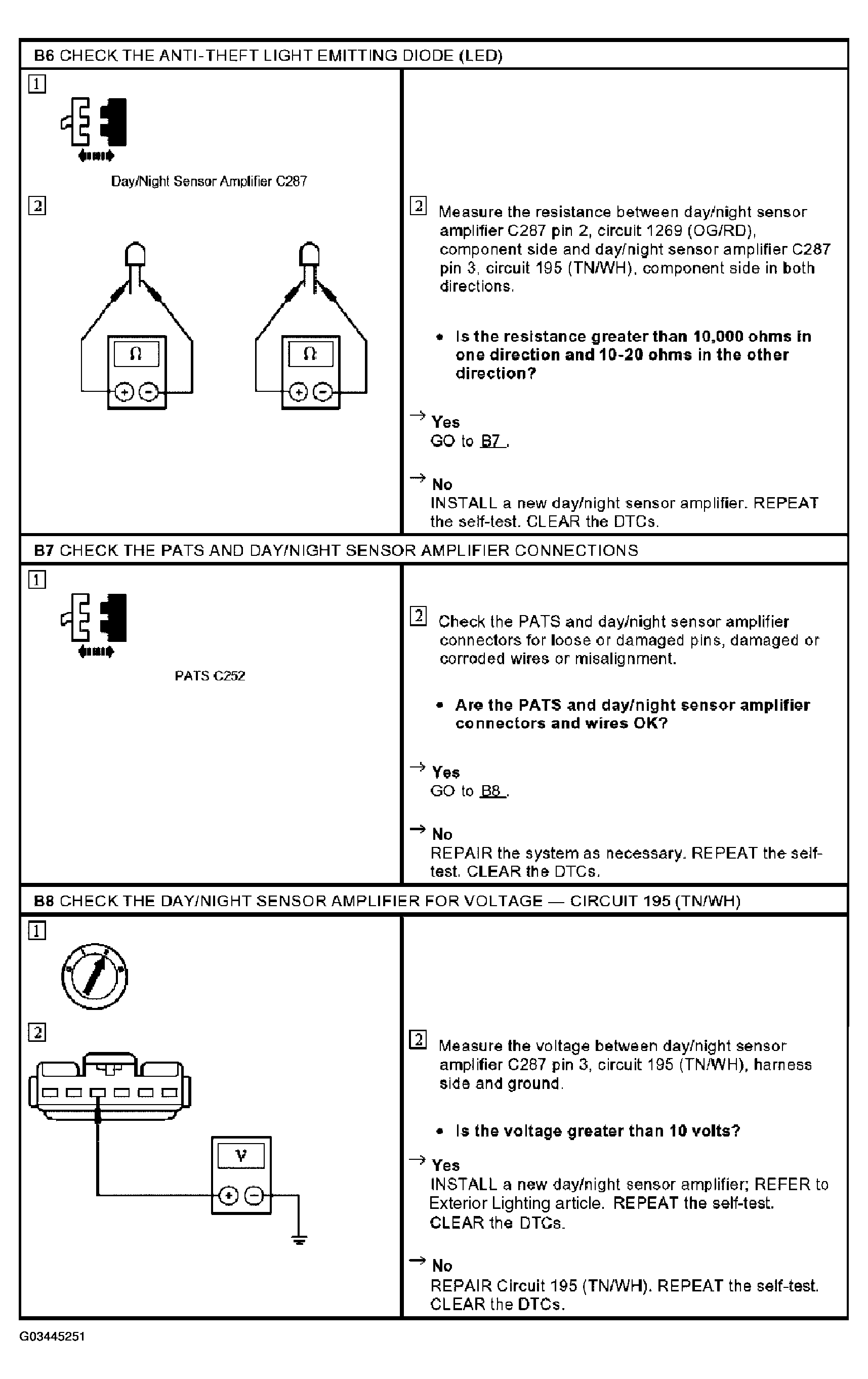

Fig 3: Pinpoint Test B: Anti-Theft Is Always/Never On - No Three-Second Anti-Theft Indicator Prove Out (Test B6 - B8)

Courtesy of FORD MOTOR CO.
