Removal & Installation

  1. Remove the instrument cluster finish panel. For additional information, refer to INSTRUMENT PANEL -- CLUSTER FINISH PANEL .
  2. Disengage the four lock tabs and remove the register assemblies.

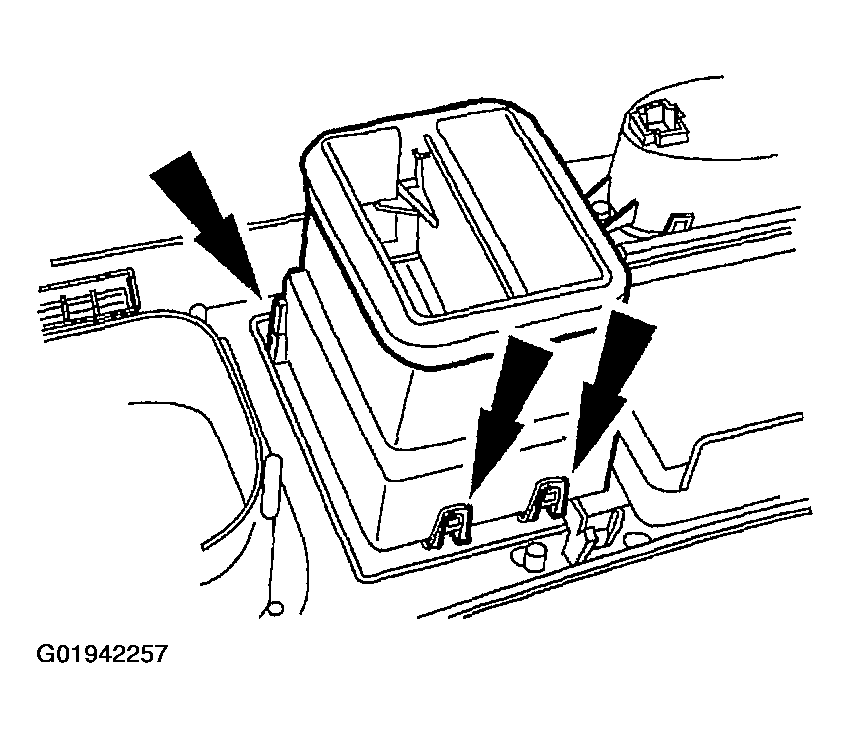

    Fig 1: Identifying Center & LH Register Assembly Lock Tabs
    G01942257Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
