Register - RH: Removal

  1. Remove the passenger side airbag. For additional information, refer to DUAL-STAGE PASSENGER-SIDE AIR BAG MODULE .
  2. Remove the screw and the RH instrument panel register.

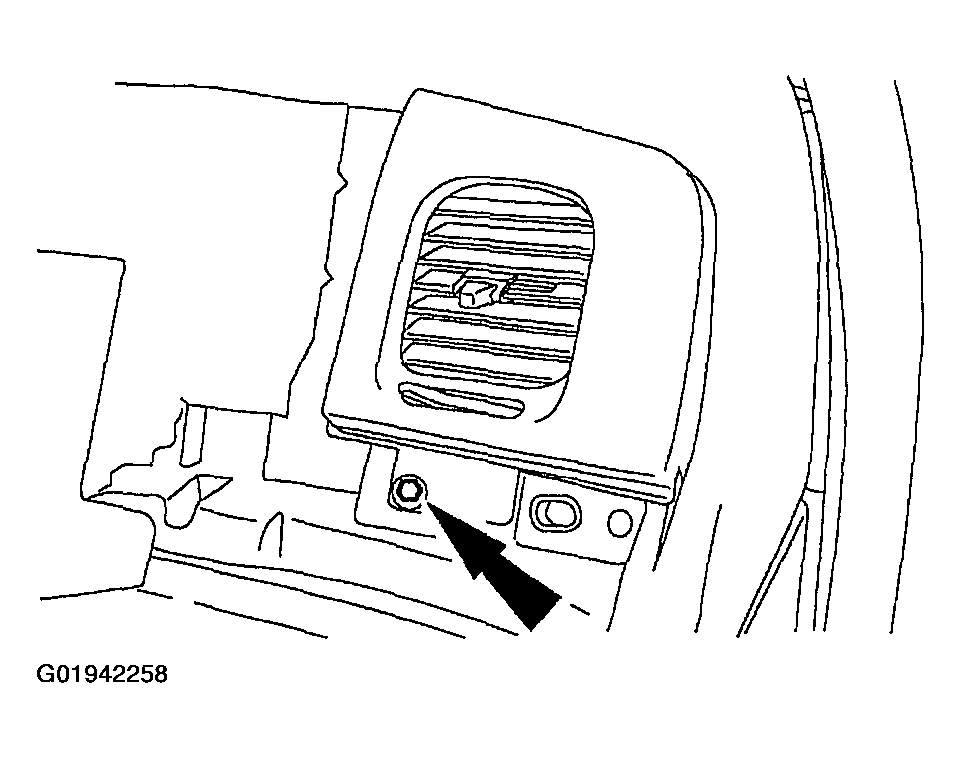

    Fig 1: Identifying RH Instrument Panel Register Screw
    G01942258Courtesy of FORD MOTOR CO.
  3. Disengage the lock tabs and remove the register assembly.

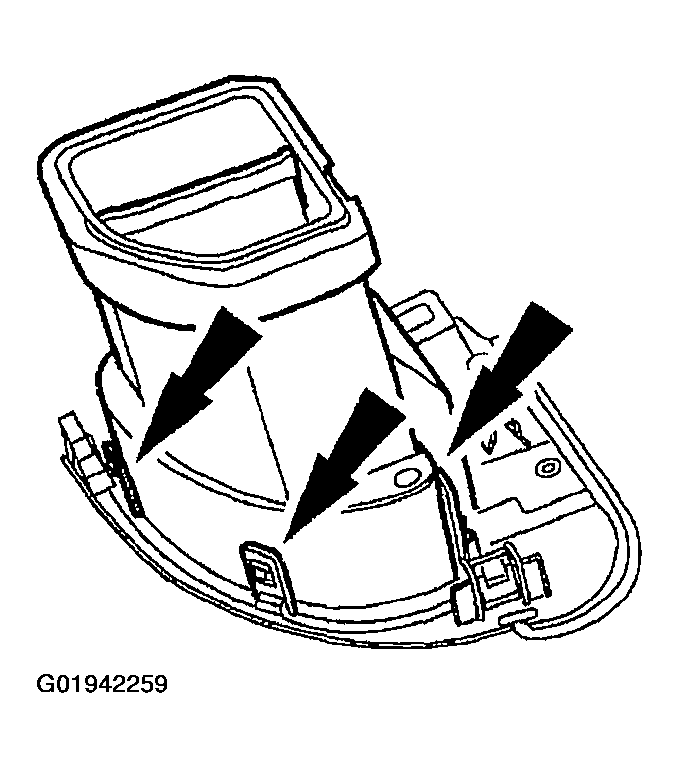

    Fig 2: Identifying Rh Register Assembly Lock Tabs
    G01942259Courtesy of FORD MOTOR CO.
